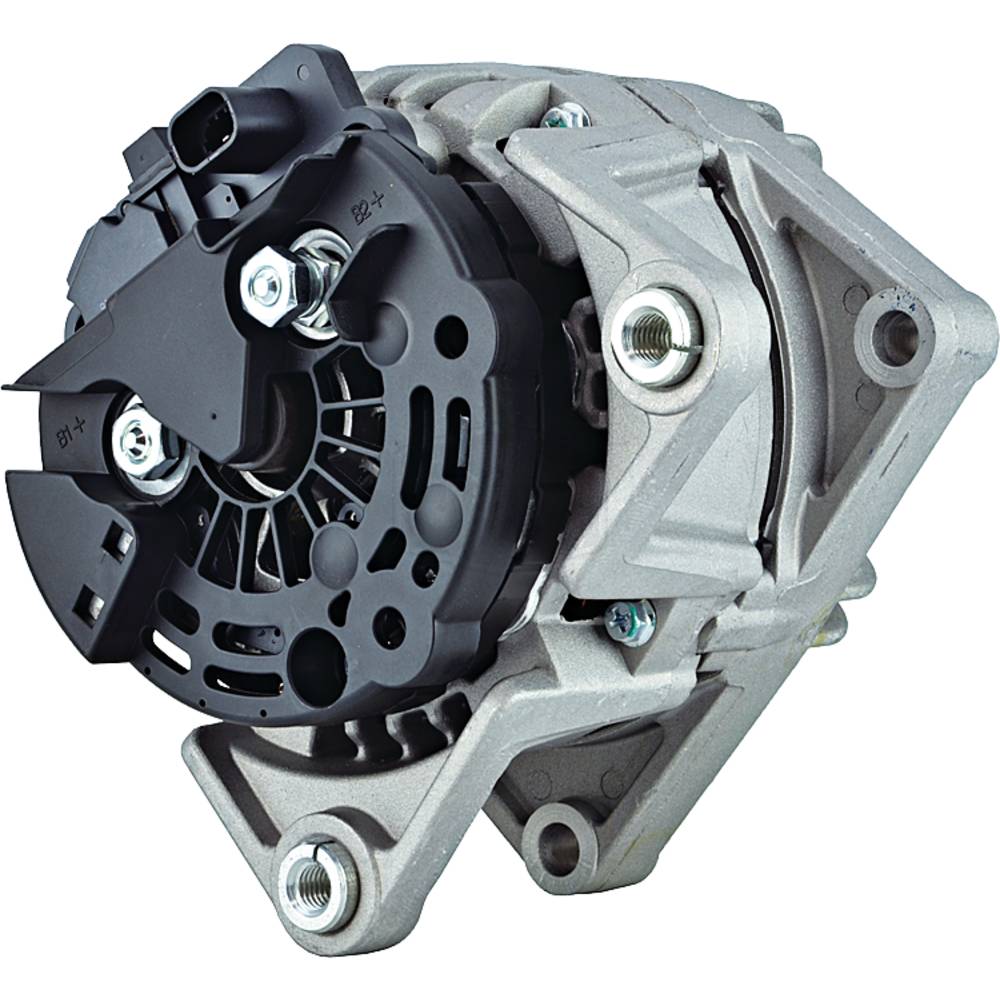

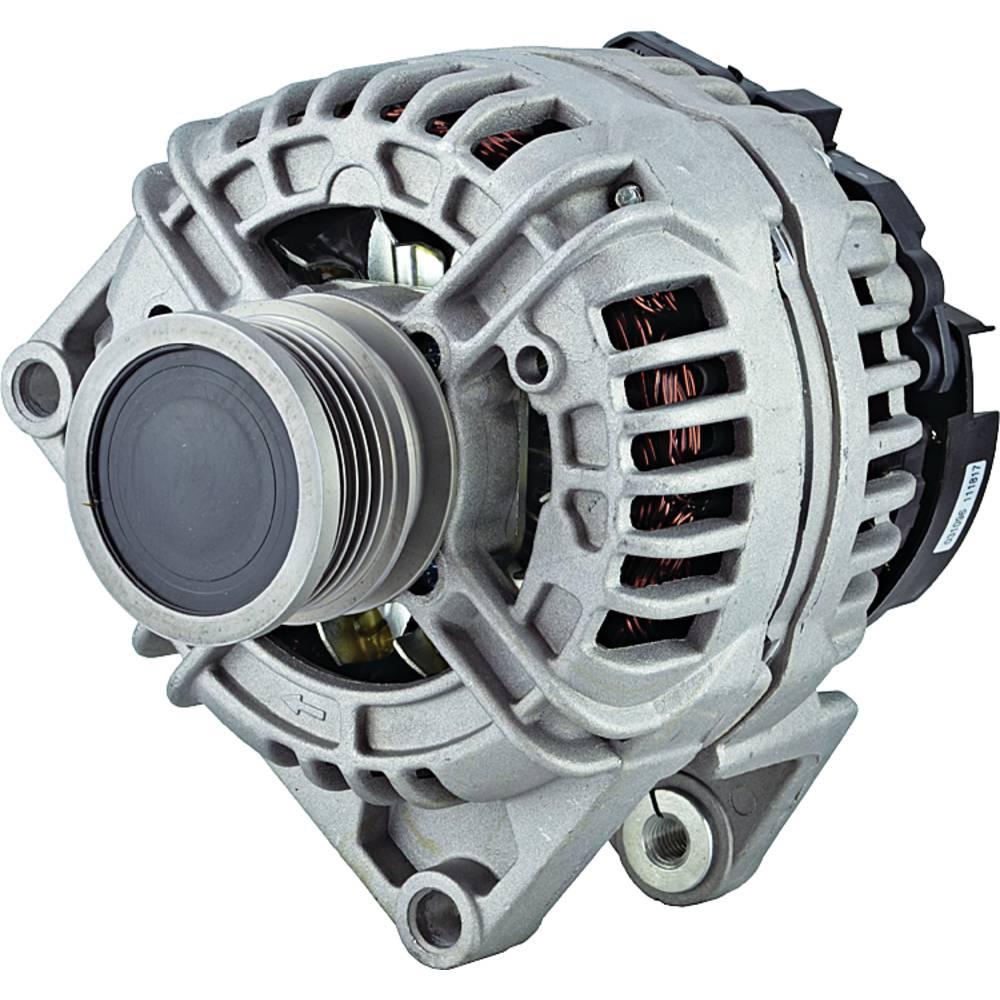

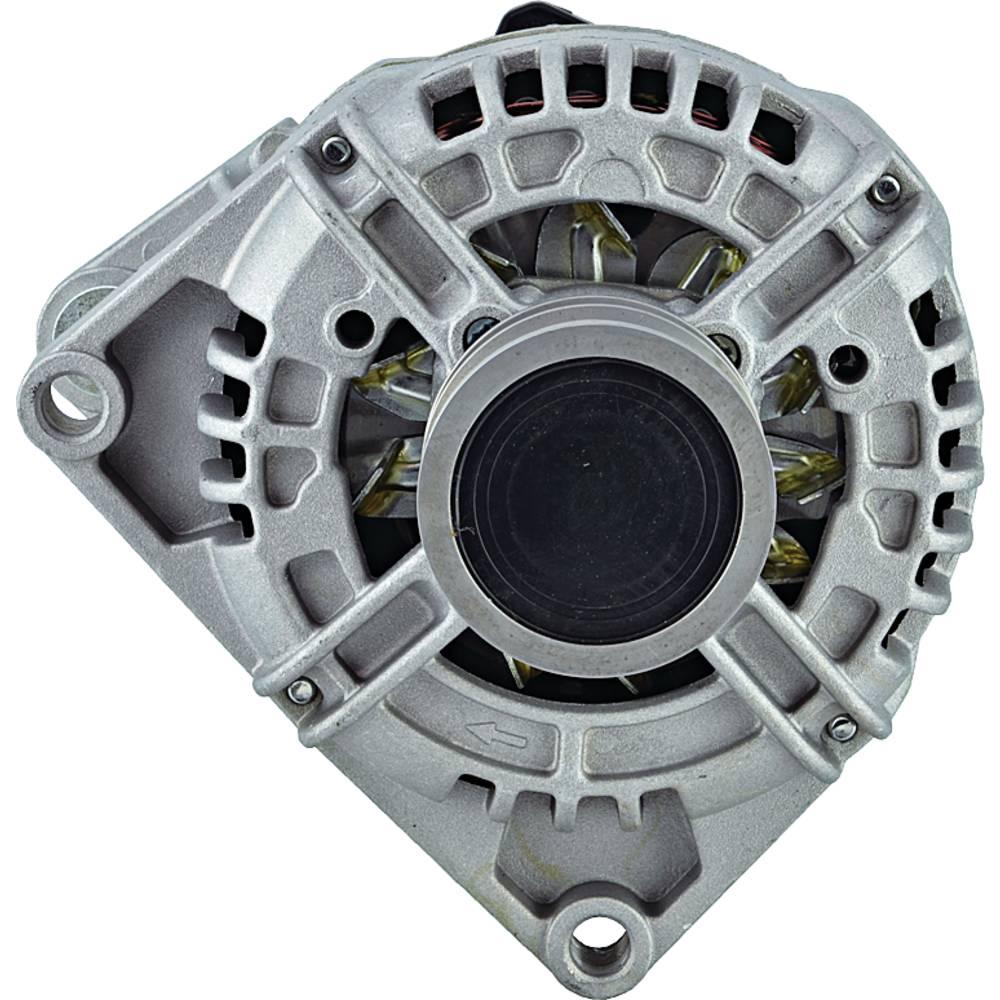

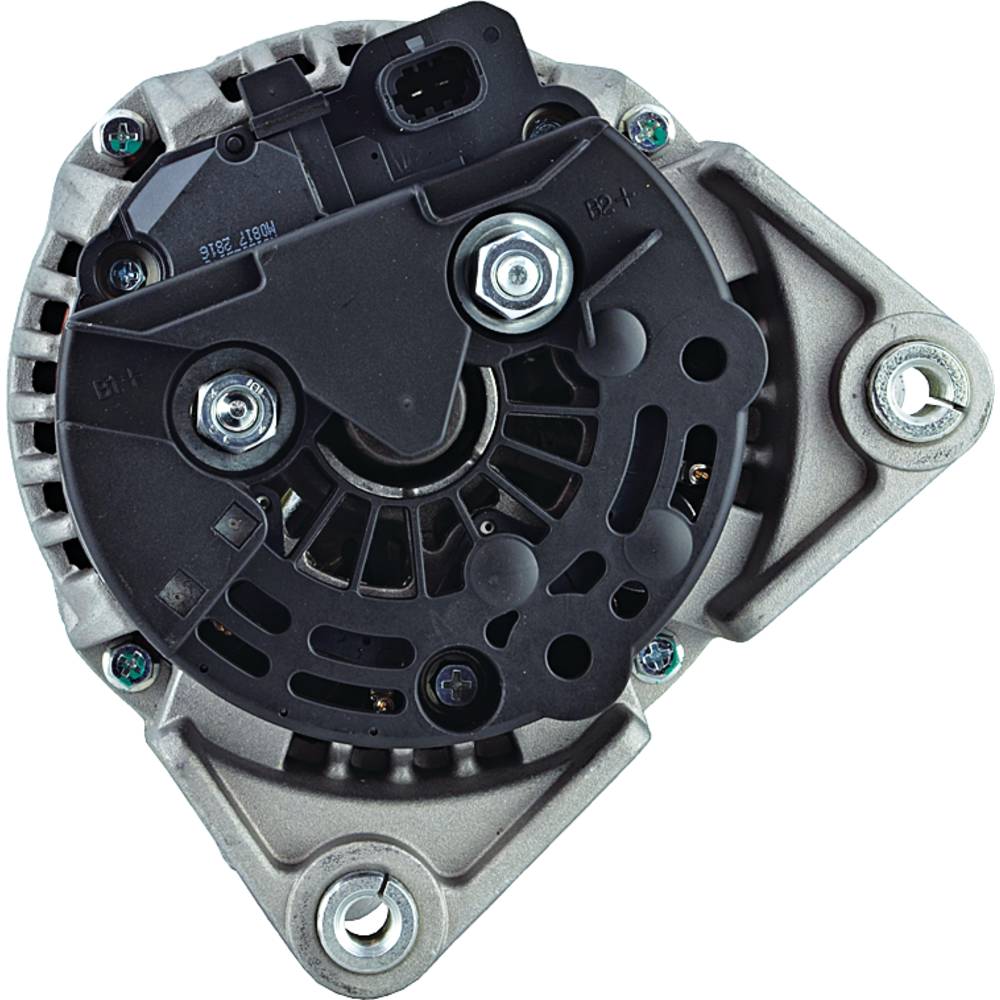

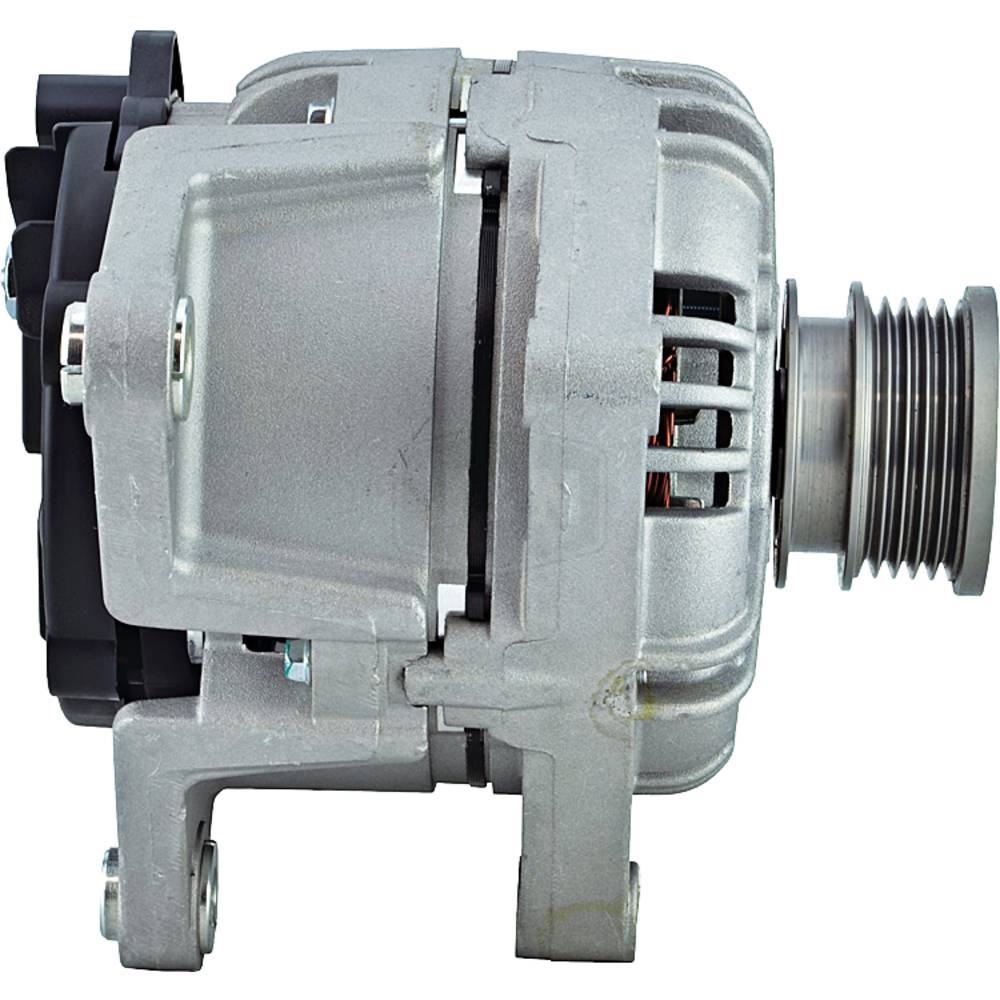

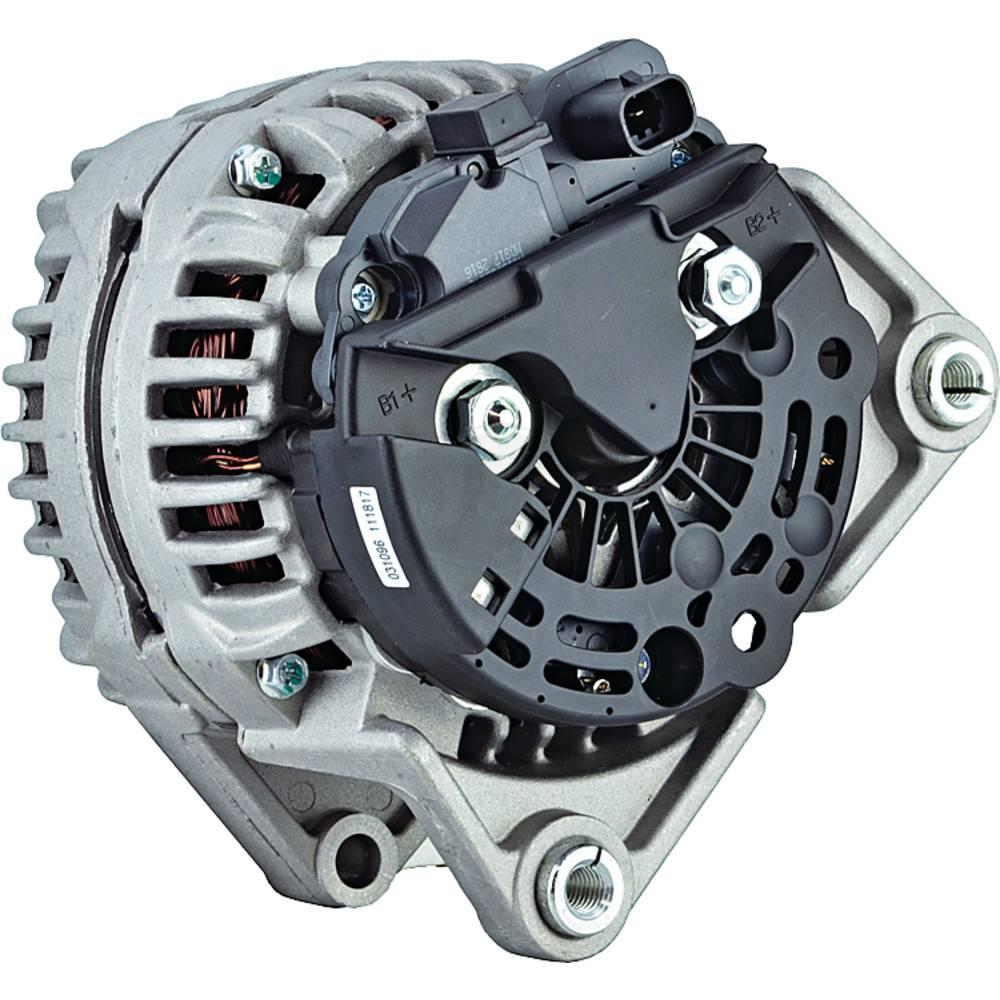

400-24258-JN J&N Electrical Products Alternator

400-24258-JN J&N Electrical Products Alternator

$541.00 CAD
$541.00 CAD
Sale Sold out
Shipping calculated at checkout.
One New Aftermarket J&N Electrical Products Alternator

Tech Info:
-Arrowhead: 400-24258; Fits Bosch: 0124425060; General Motors: 93188158, 95515976; Lester: 11501; Other OEMS: 13222933, 6204218, 93188158, 95515976
-LESTER: 11501, VOLT: 12, AMPS: 120, CONDITION: New, REGULATOR CLOCK: 12:00, ROTATION DIRECTION: Clockwise, MOUNT HOLE ID 1: 10.500mm, MOUNT HOLE 1 TYPE: Unthreaded, MOUNT HOLE ID 2: M10x1.50, MOUNT HOLE 2 TYPE: Threaded, MOUNT HOLE ID 3: 10.500mm, MOUNT HOLE 3 TYPE: Unthreaded, MOUNT HOLE ID 4: M10x1.50, MOUNT HOLE 4 TYPE: Threaded, MOUNTING EAR THICKNESS: 0.906", MOUNTING EAR THICKNESS: 23mm, MOUNTING EAR 2 THICKNESS: 0.827", MOUNTING EAR 2 THICKNESS: 21mm, MOUNTING EAR 3 THICKNESS: 0.906", MOUNTING EAR 3 THICKNESS: 23mm, MOUNTING EAR 4 THICKNESS: 0.827", MOUNTING EAR 4 THICKNESS: 21mm, FAN LOCATION: Internal, REGULATOR LOCATION: Internal, TERMINAL ID 2: B+, TERMINAL 2 SIZE: M8x1.25, TERMINAL ID 3: F, TERMINAL 3 SIZE: Spade, TERMINAL ID 4: L, TERMINAL 4 SIZE: Spade, POLARITY: Negative, NUMBER OF GROOVES: 5, GROOVE OD: 2.118", GROOVE OD: 53.800mm, PULLEY TYPE: Clutch, PULLEY OUTER DIAMETER: 2.323", PULLEY OUTER DIAMETER: 59mm

Replaces Part Number(s): 400-24258

Additional Information:

Arrowhead: 400-24258; Bosch: 0124425060; General Motors: 93188158, 95515976; Lester: 11501; Other OEMS: 13222933, 6204218, 93188158, 95515976, LESTER: 11501, VOLT: 12, AMPS: 120, CONDITION: New, REGULATOR CLOCK: 12:00, ROTATION DIRECTION: Clockwise, MOUNT HOLE ID 1: 10.500mm, MOUNT HOLE 1 TYPE: Unthreaded, MOUNT HOLE ID 2: M10x1.50, MOUNT HOLE 2 TYPE: Threaded, MOUNT HOLE ID 3: 10.500mm, MOUNT HOLE 3 TYPE: Unthreaded, MOUNT HOLE ID 4: M10x1.50, MOUNT HOLE 4 TYPE: Threaded, MOUNTING EAR THICKNESS: 0.906", MOUNTING EAR THICKNESS: 23mm, MOUNTING EAR 2 THICKNESS: 0.827", MOUNTING EAR 2 THICKNESS: 21mm, MOUNTING EAR 3 THICKNESS: 0.906", MOUNTING EAR 3 THICKNESS: 23mm, MOUNTING EAR 4 THICKNESS: 0.827", MOUNTING EAR 4 THICKNESS: 21mm, FAN LOCATION: Internal, REGULATOR LOCATION: Internal, TERMINAL ID 2: B+, TERMINAL 2 SIZE: M8x1.25, TERMINAL ID 3: F, TERMINAL 3 SIZE: Spade, TERMINAL ID 4: L, TERMINAL 4 SIZE: Spade, POLARITY: Negative, NUMBER OF GROOVES: 5, GROOVE OD: 2.118", GROOVE OD: 53.800mm

Reference Numbers:

400-24258
