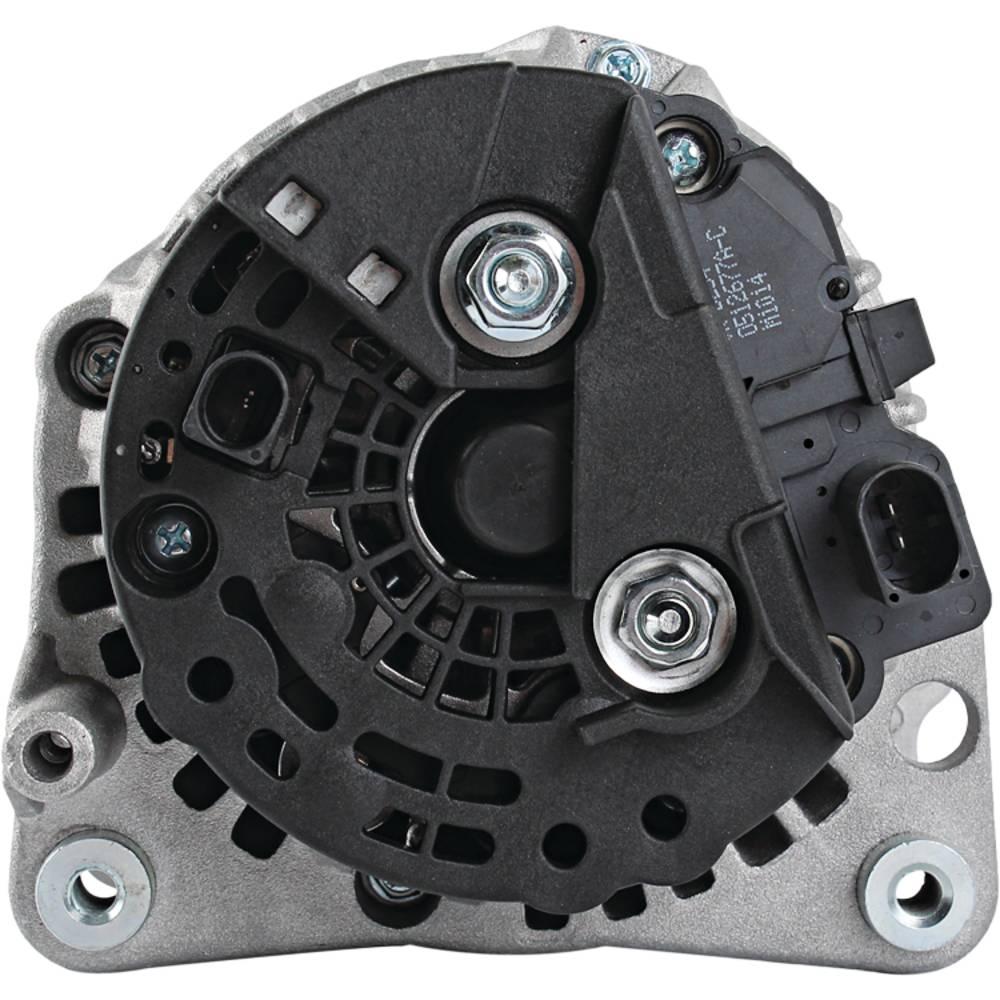

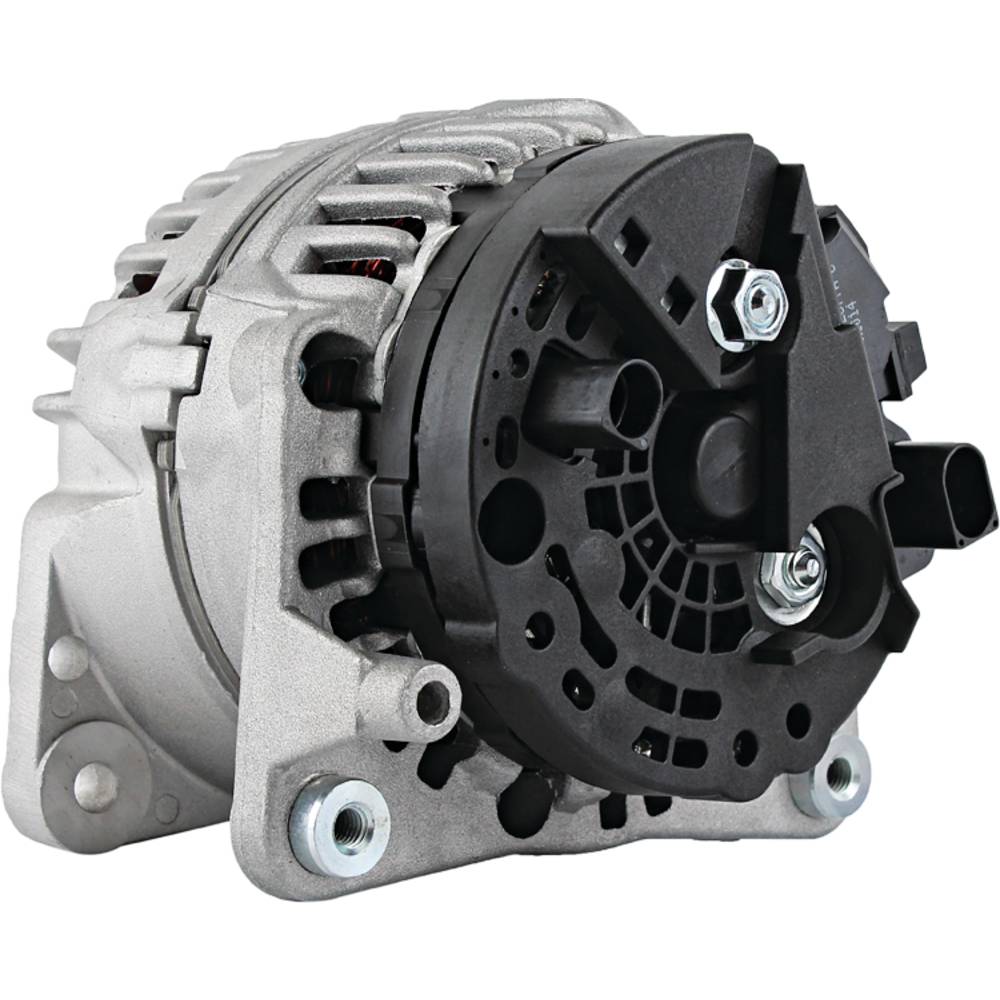

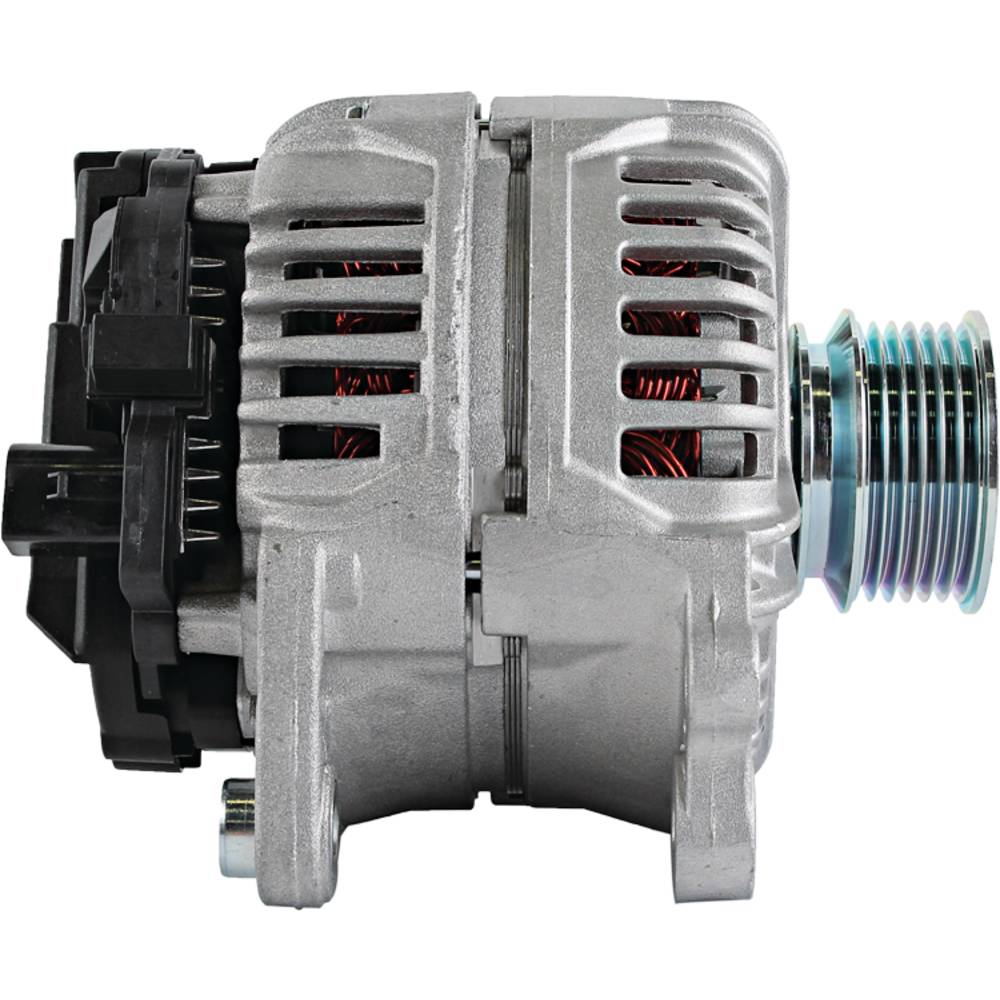

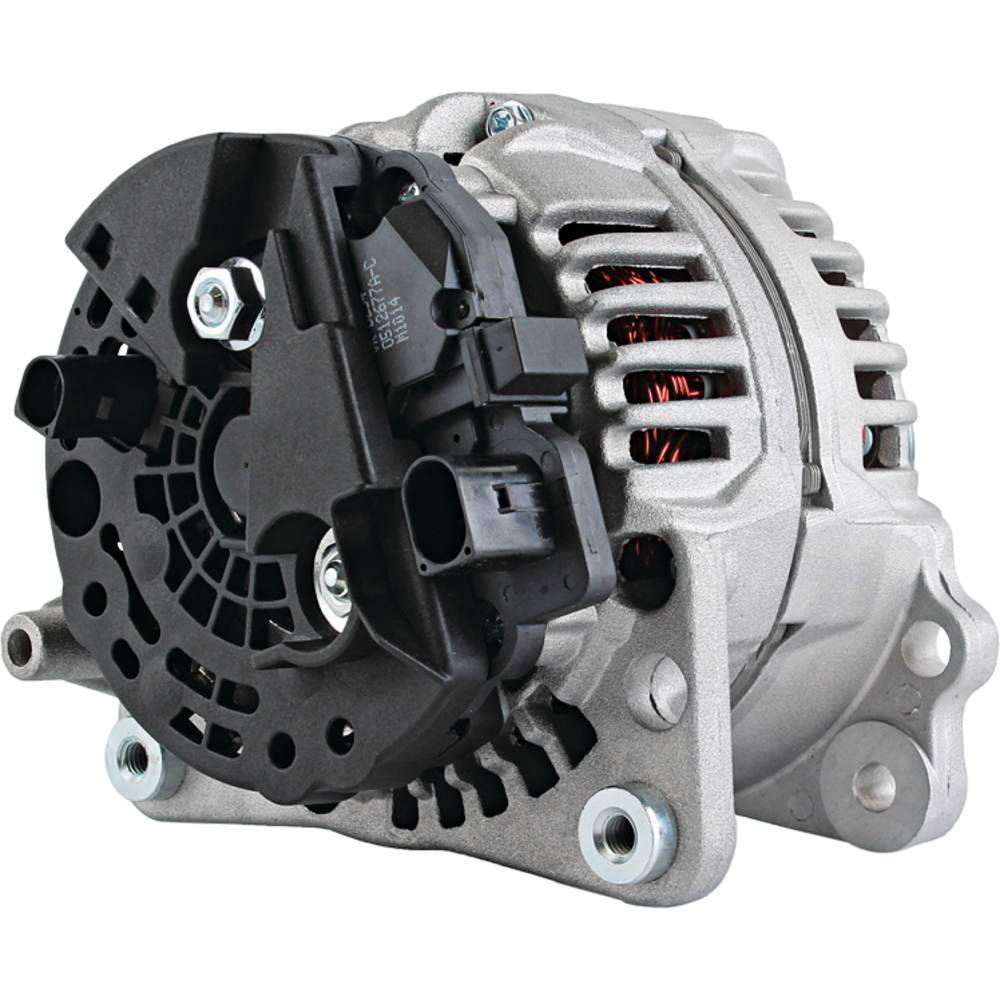

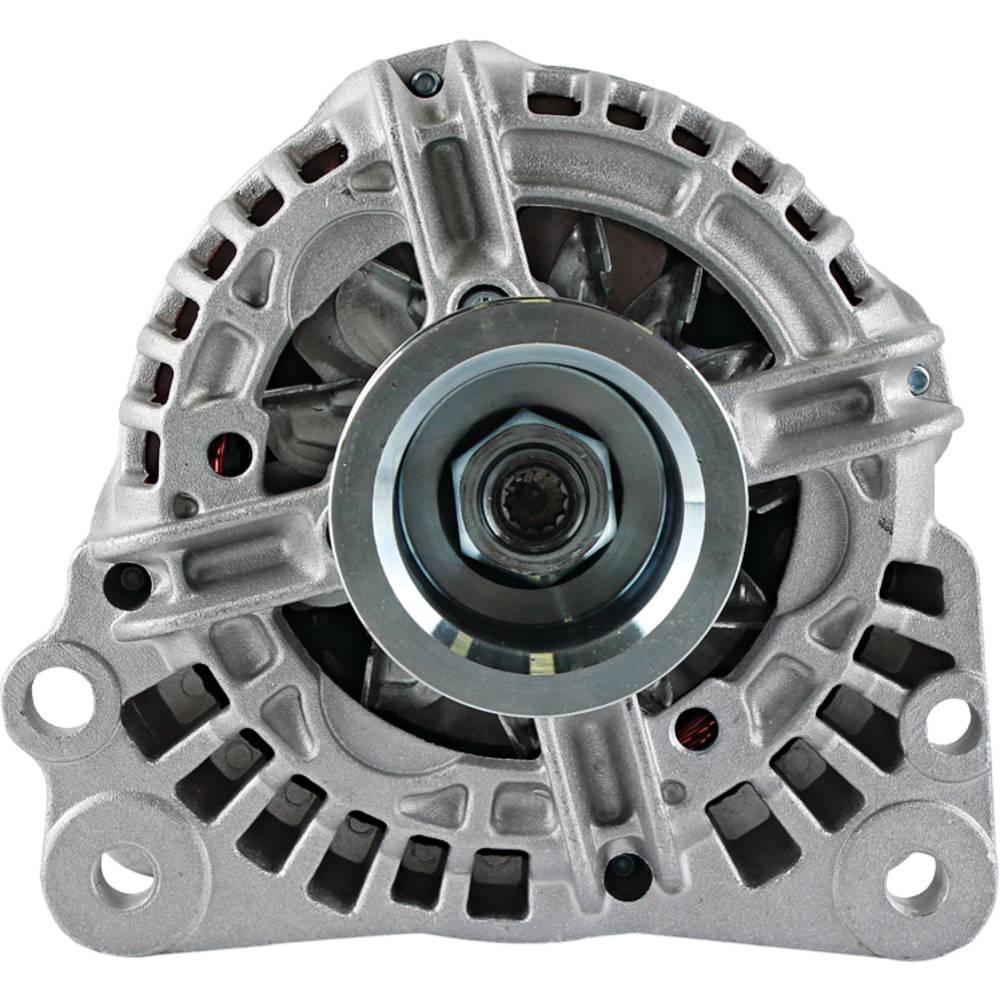

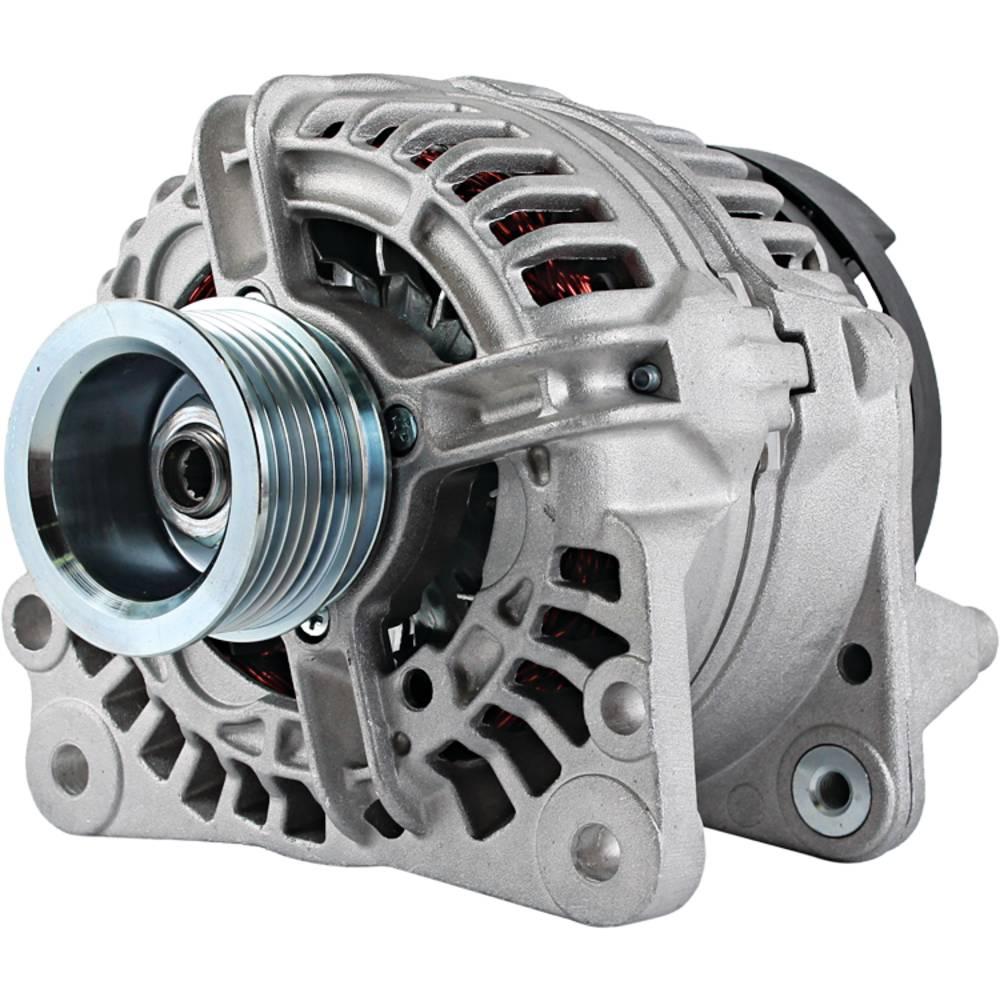

400-24230-JN J&N Electrical Products Alternator

400-24230-JN J&N Electrical Products Alternator

$400.00 CAD
$400.00 CAD
Sale Sold out
Shipping calculated at checkout.
One New Aftermarket J&N Electrical Products Alternator

Tech Info:
-LESTER: 12445, VOLT: 12, AMPS: 140, CONDITION: New, REGULATOR CLOCK: 3:00, QUALITY TYPE: High Output Standard, ROTATION DIRECTION: Clockwise, MOUNT HOLE ID 1: 9.600mm, MOUNT HOLE 1 TYPE: Unthreaded, MOUNT HOLE ID 2: M8x1.25, MOUNT HOLE 2 TYPE: Threaded, MOUNT HOLE ID 3: 9.600mm, MOUNT HOLE 3 TYPE: Unthreaded, MOUNT HOLE ID 4: M8x1.25, MOUNT HOLE 4 TYPE: Threaded, MOUNTING EAR THICKNESS: 0.551", MOUNTING EAR THICKNESS: 14mm, MOUNTING EAR 2 THICKNESS: 0.787", MOUNTING EAR 2 THICKNESS: 20mm, MOUNTING EAR 3 THICKNESS: 0.551", MOUNTING EAR 3 THICKNESS: 14mm, MOUNTING EAR 4 THICKNESS: 0.787", MOUNTING EAR 4 THICKNESS: 20mm, FAN LOCATION: Internal, REGULATOR LOCATION: Internal, TERMINAL ID 2: B+, TERMINAL 2 SIZE: M8x1.25, TERMINAL ID 3: L, TERMINAL 3 SIZE: Spade, TERMINAL ID 4: FR, TERMINAL 4 SIZE: Spade, POLARITY: Negative, NUMBER OF GROOVES: 6, GROOVE OD: 2.209", GROOVE OD: 56.100mm, PULLEY TYPE: Solid, PULLEY OUTER DIAMETER: 2.390", PULLEY OUTER DIAMETER: 60.700mm
-Arrowhead: ABO0435-140; Fits Bosch: 0124315030, 0124315042, AL5057N, AL5057X; J&N Electrical Products: 400-24230; JANNCO: 400-24047R; Fits John Deere: RE509648; Lester: 12445; Fits Mahle: IA1528, MG471

Replaces Part Number(s): 400-24230

Additional Information:

LESTER: 12445, VOLT: 12, AMPS: 140, CONDITION: New, REGULATOR CLOCK: 3:00, QUALITY TYPE: High Output Standard, ROTATION DIRECTION: Clockwise, MOUNT HOLE ID 1: 9.600mm, MOUNT HOLE 1 TYPE: Unthreaded, MOUNT HOLE ID 2: M8x1.25, MOUNT HOLE 2 TYPE: Threaded, MOUNT HOLE ID 3: 9.600mm, MOUNT HOLE 3 TYPE: Unthreaded, MOUNT HOLE ID 4: M8x1.25, MOUNT HOLE 4 TYPE: Threaded, MOUNTING EAR THICKNESS: 0.551", MOUNTING EAR THICKNESS: 14mm, MOUNTING EAR 2 THICKNESS: 0.787", MOUNTING EAR 2 THICKNESS: 20mm, MOUNTING EAR 3 THICKNESS: 0.551", MOUNTING EAR 3 THICKNESS: 14mm, MOUNTING EAR 4 THICKNESS: 0.787", MOUNTING EAR 4 THICKNESS: 20mm, FAN LOCATION: Internal, REGULATOR LOCATION: Internal, TERMINAL ID 2: B+, TERMINAL 2 SIZE: M8x1.25, TERMINAL ID 3: L, TERMINAL 3 SIZE: Spade, TERMINAL ID 4: FR, TERMINAL 4 SIZE: Spade, POLARITY: Negative, NUMBER OF GROOVES: 6, GROOVE OD: 2.209", GROOVE OD: 56.100mm, PULLEY TYPE: Solid, PULLEY OUTER DIAMETER: 2.390", PULLEY OUTER DIAMETER: 60.700mm, Arrowhead: ABO0435-140; B

Reference Numbers:

400-24230
