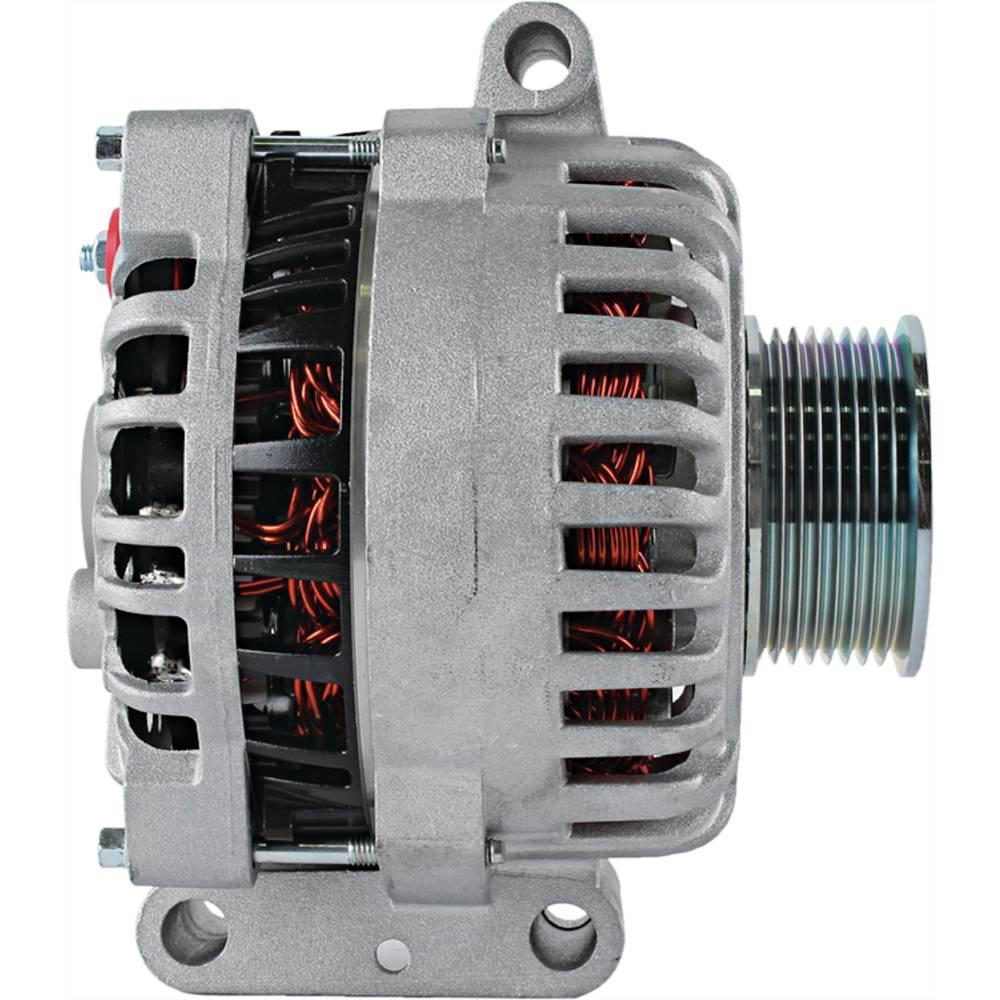

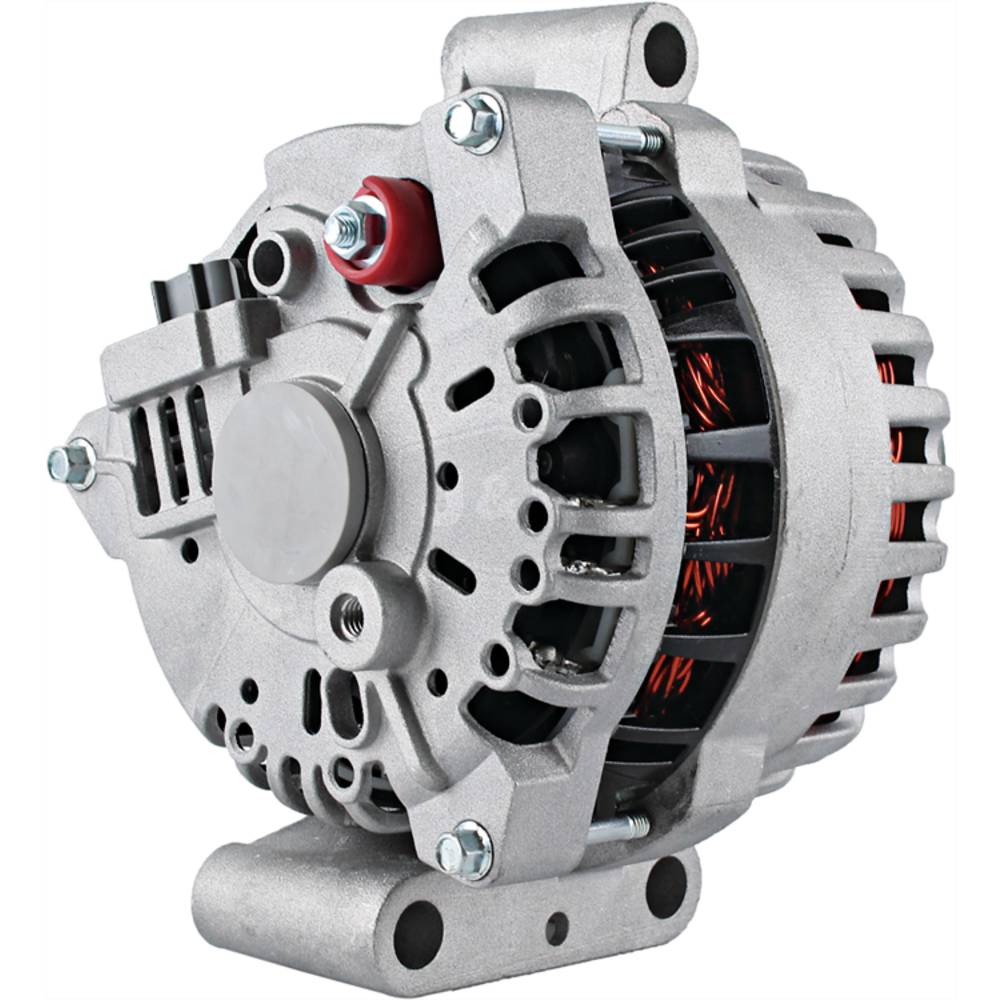

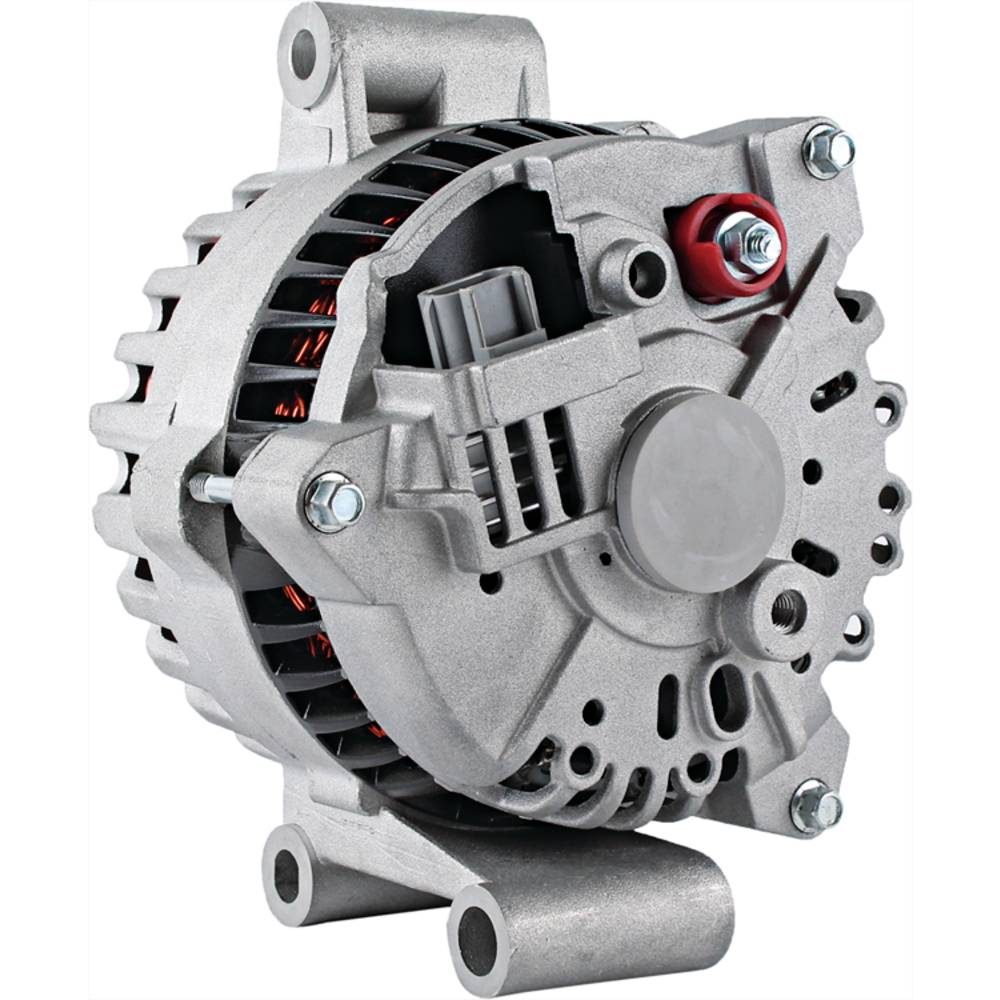

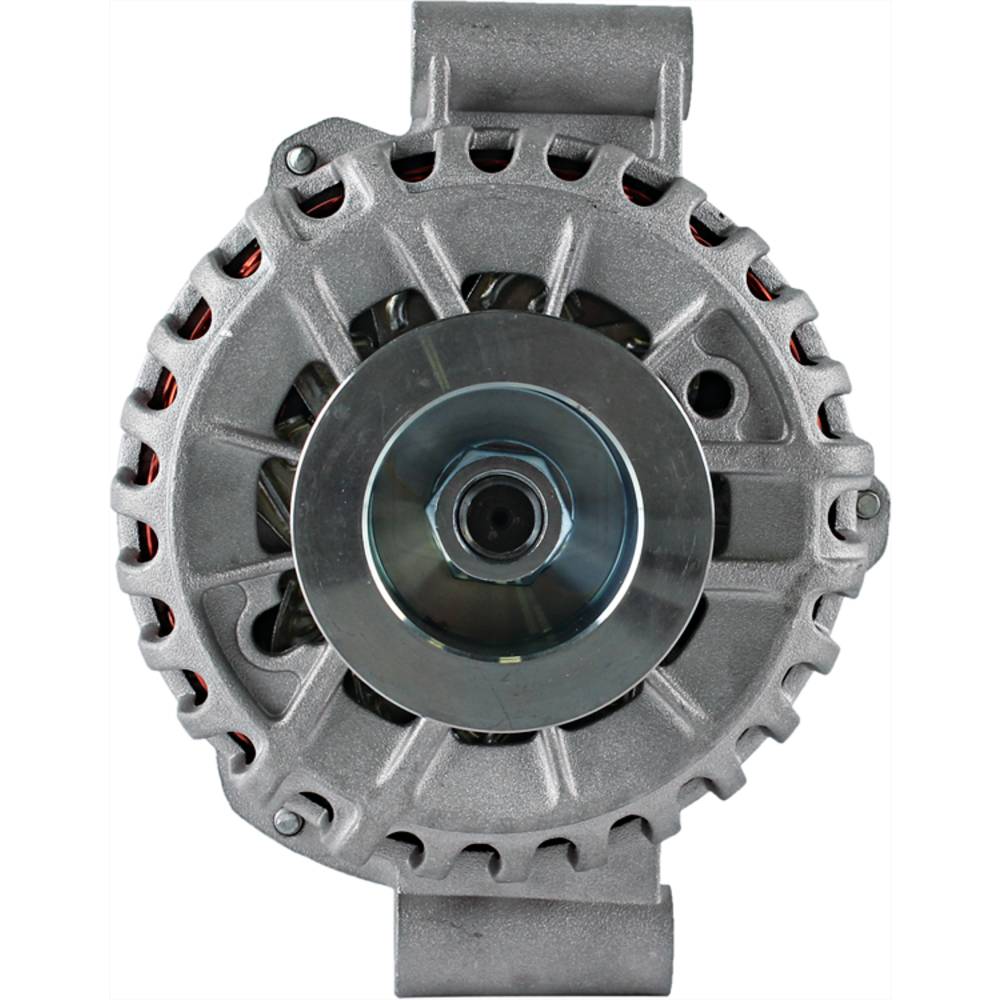

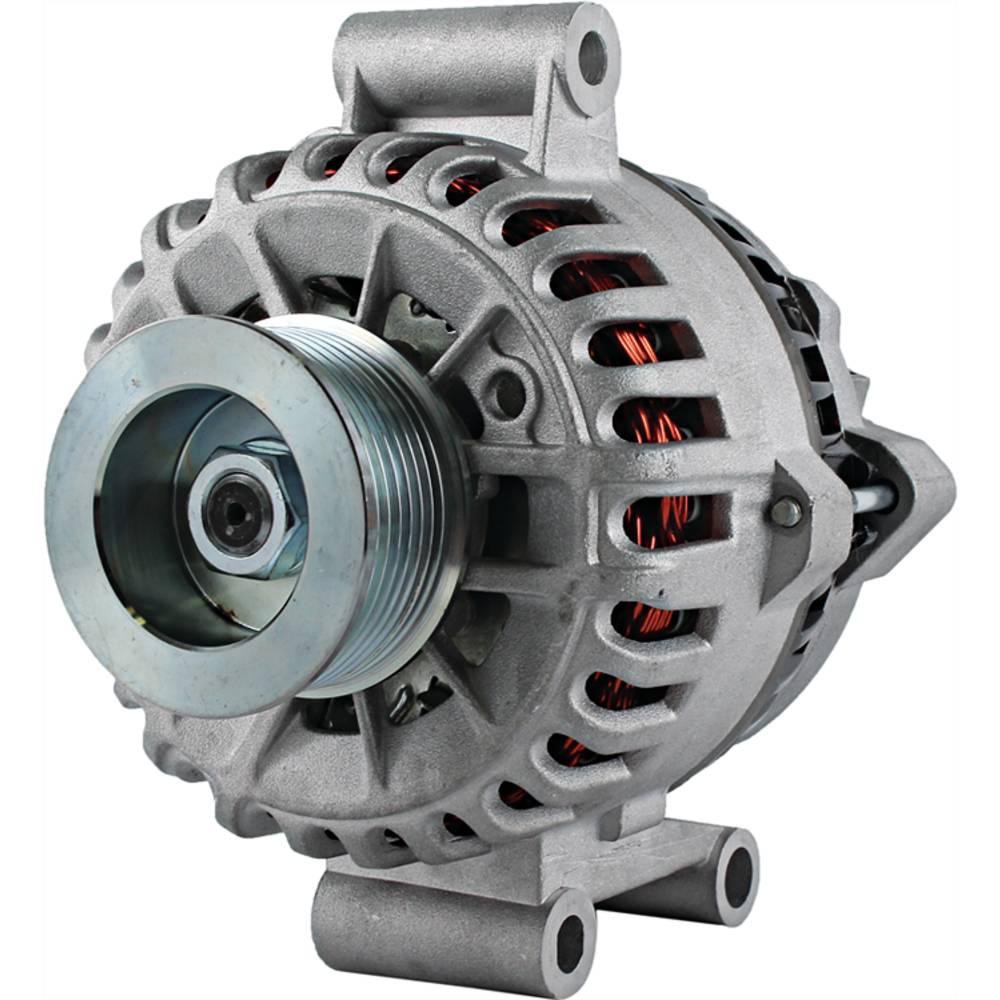

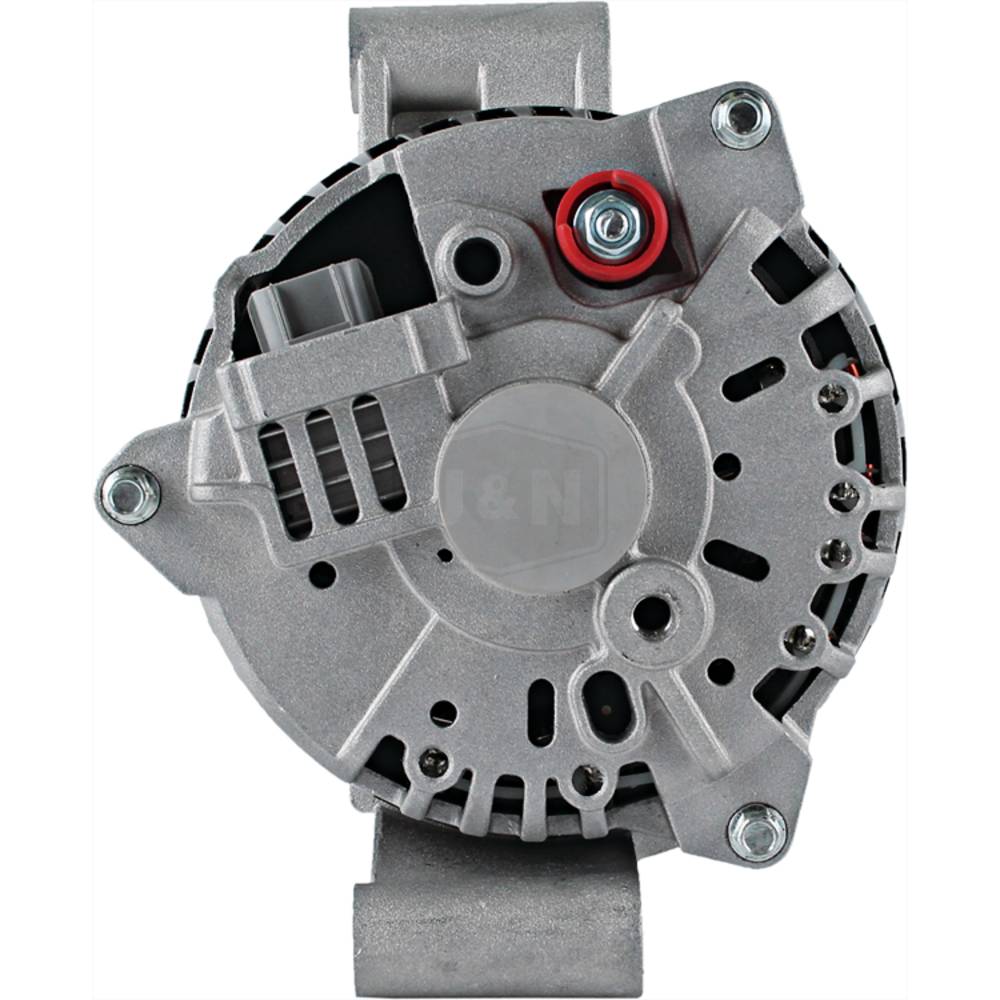

400-14178-JN J&N Electrical Products Alternator

Additional Information:

LESTER: 8478-180, FAMILY: Ford 6G, VOLT: 12, AMPS: 180, CONDITION: New, REGULATOR CLOCK: 10:00, ROTATION DIRECTION: Clockwise, MOUNT HOLE ID 1: 10.400mm, MOUNT HOLE 1 TYPE: Unthreaded, MOUNT HOLE 2 TYPE: Slotted, MOUNT HOLE ID 3: 12.800mm, MOUNT HOLE 3 TYPE: Unthreaded, MOUNTING EAR THICKNESS: 2.142", MOUNTING EAR THICKNESS: 54.400mm, MOUNTING EAR 2 THICKNESS: 2.169", MOUNTING EAR 2 THICKNESS: 55.100mm, MOUNTING EAR 3 THICKNESS: 2.169", MOUNTING EAR 3 THICKNESS: 55.100mm, FAN LOCATION: Internal, REGULATOR LOCATION: Internal, TERMINAL ID 2: B+, TERMINAL 2 SIZE: M6x1.00, TERMINAL ID 3: S, TERMINAL 3 SIZE: Spade, TERMINAL ID 4: D, TERMINAL 4 SIZE: Spade, TERMINAL ID 5: L, TERMINAL 5 SIZE: Spade, POLARITY: Negative, NUMBER OF GROOVES: 8, PULLEY TYPE: Solid, PULLEY OUTER DIAMETER: 2.902", PULLEY OUTER DIAMETER: 73.700mm, WARRANTY: 1 Year, : 180A Output@ Standard Alternator in Single Alternator Applications and Top Alternator in Dual Alternator Applications, Arrowhead: AFD0131-180; J&N Electr

Reference Numbers:

400-14178
