(4) Trailer Leaf Spring Shackle Strap 2 5/8" Dump Flat

Name: (4) Trailer Leaf Spring Shackle Strap 2 5/8" Dump Flat
SKU: OTK20-0258_x4
Price: 19.0 USD
Availability: InStock

(4) Trailer Leaf Spring Shackle Strap 2 5/8" Dump Flat

$19.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

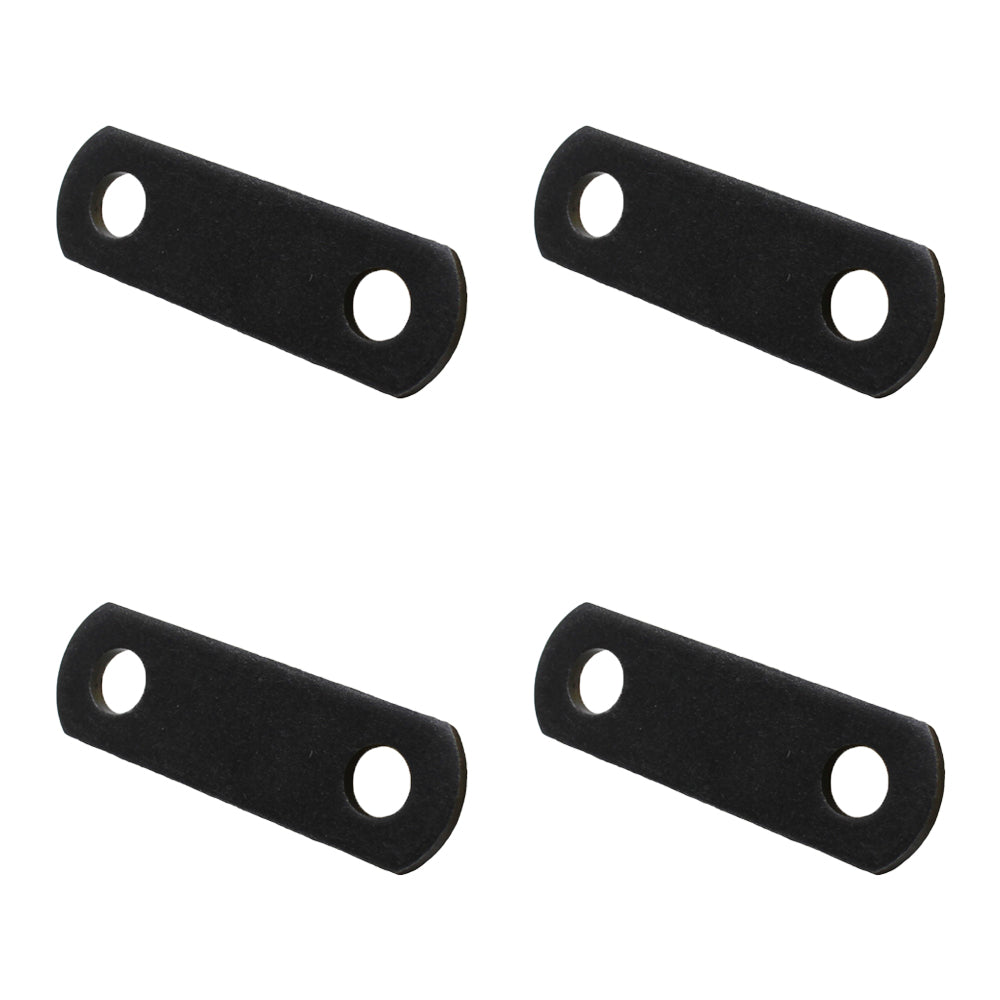

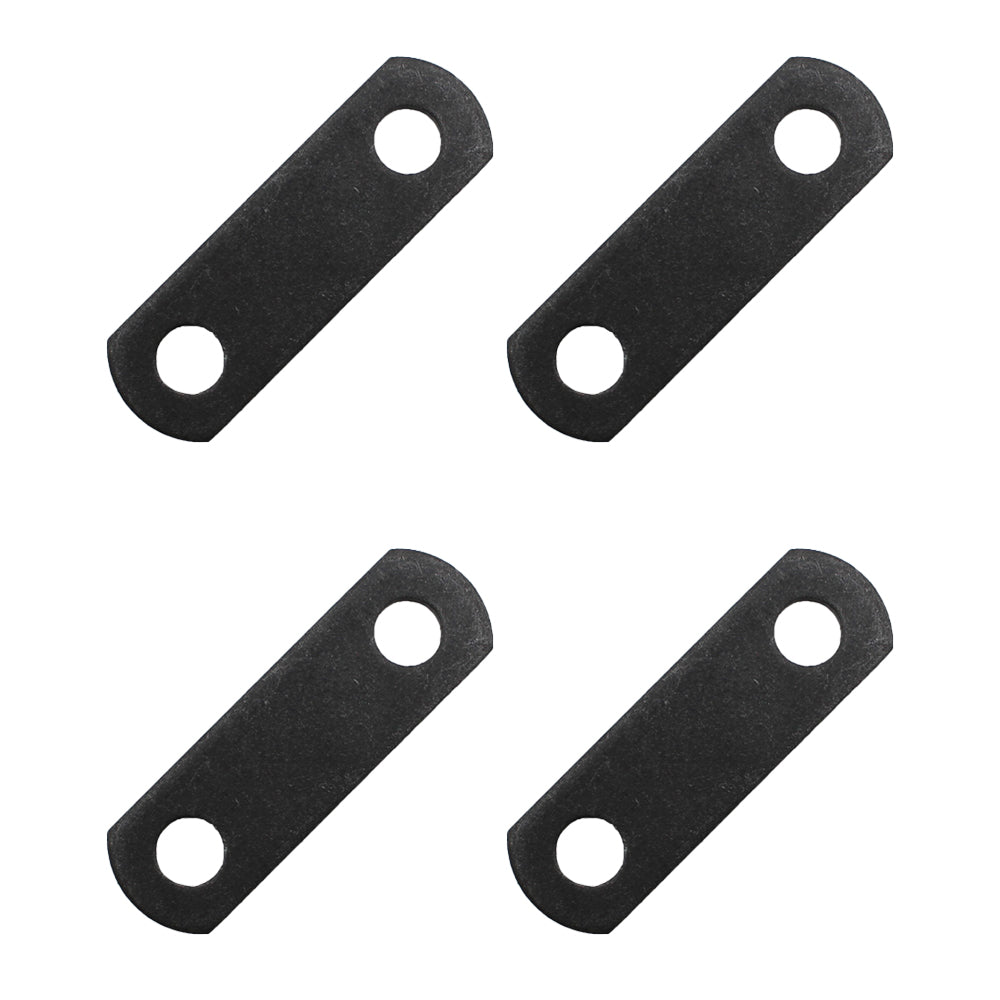

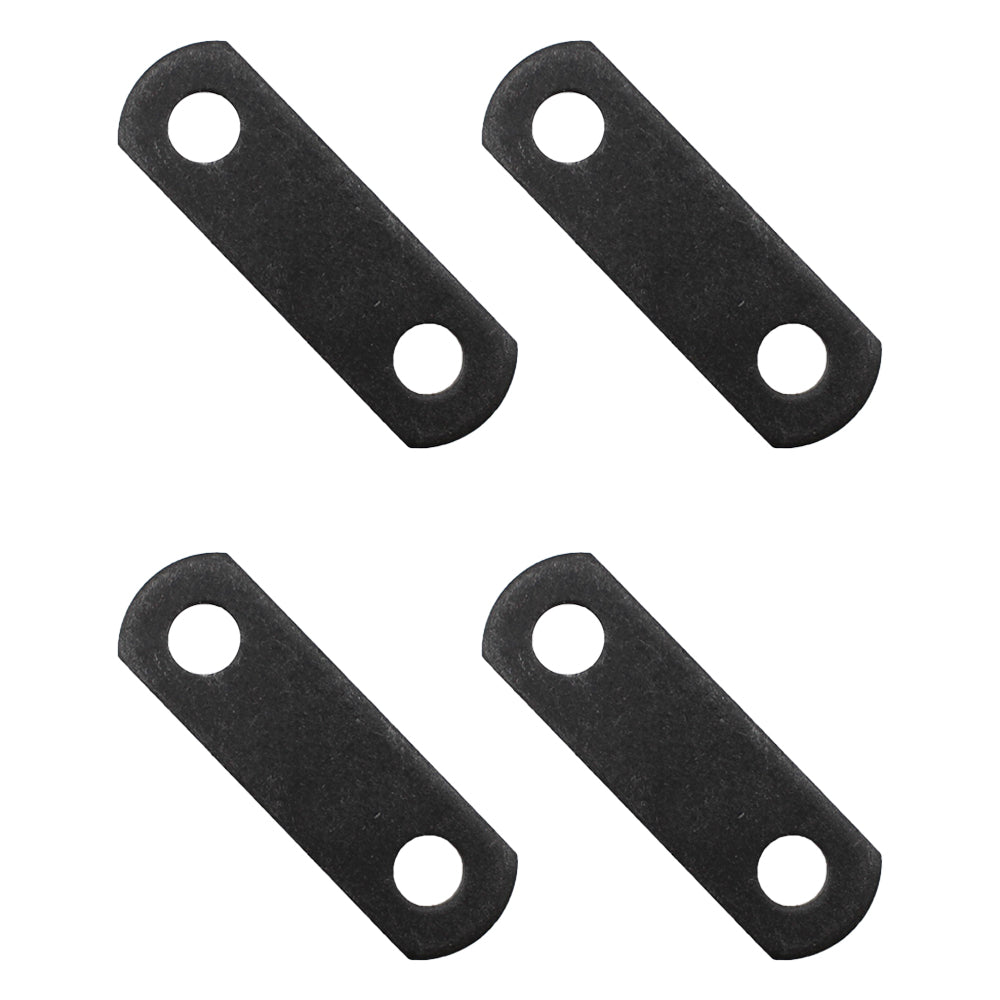

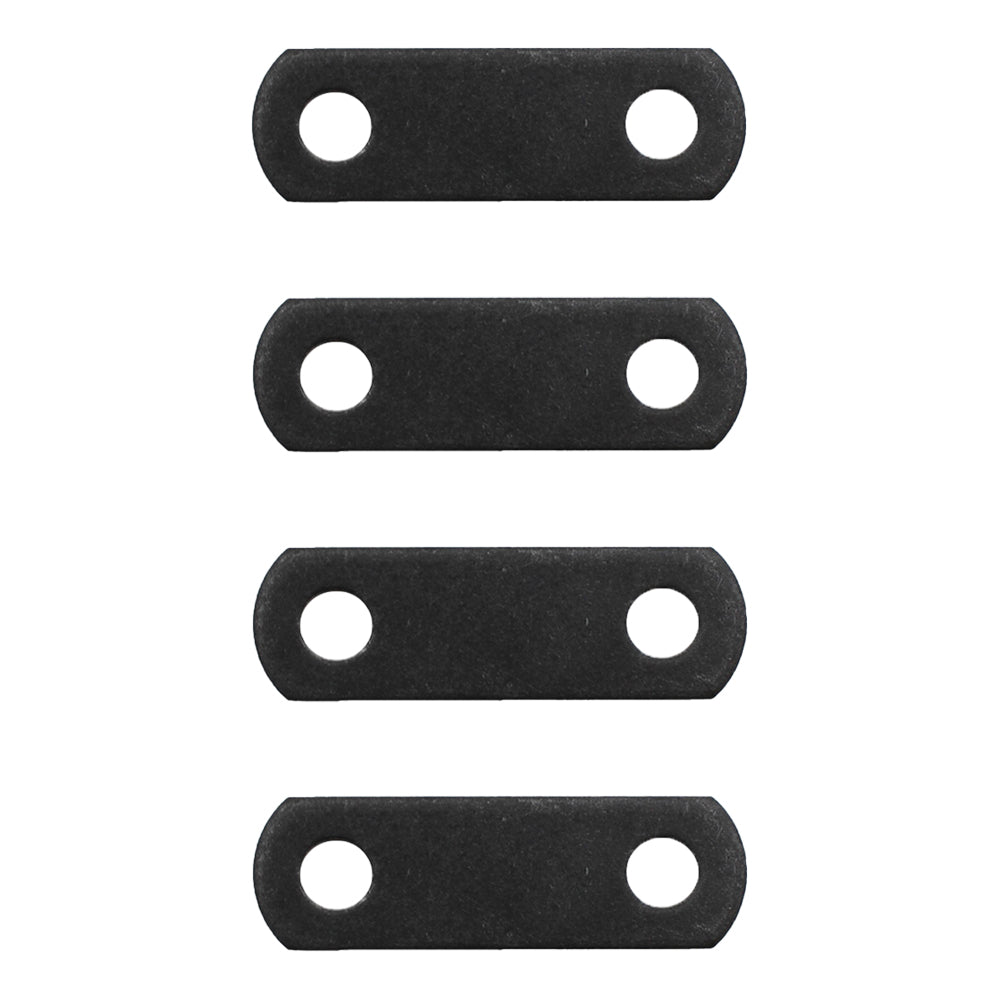

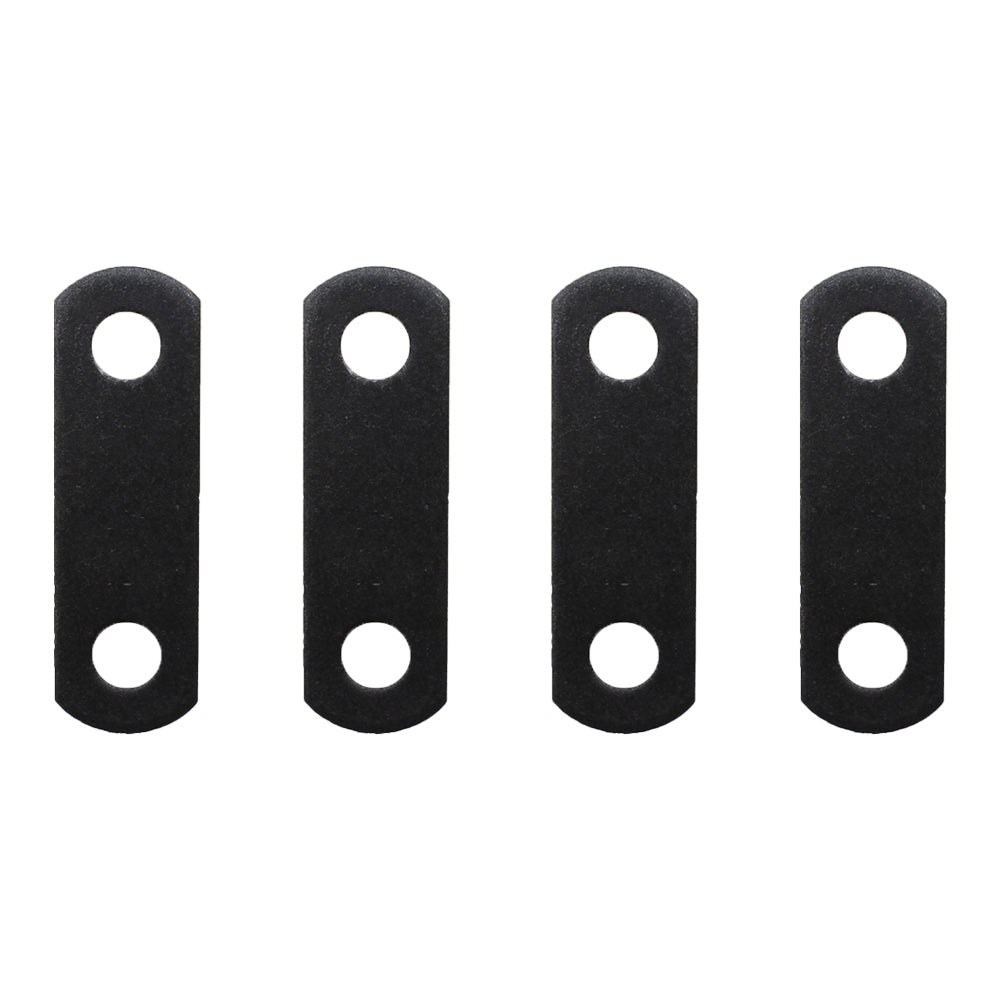

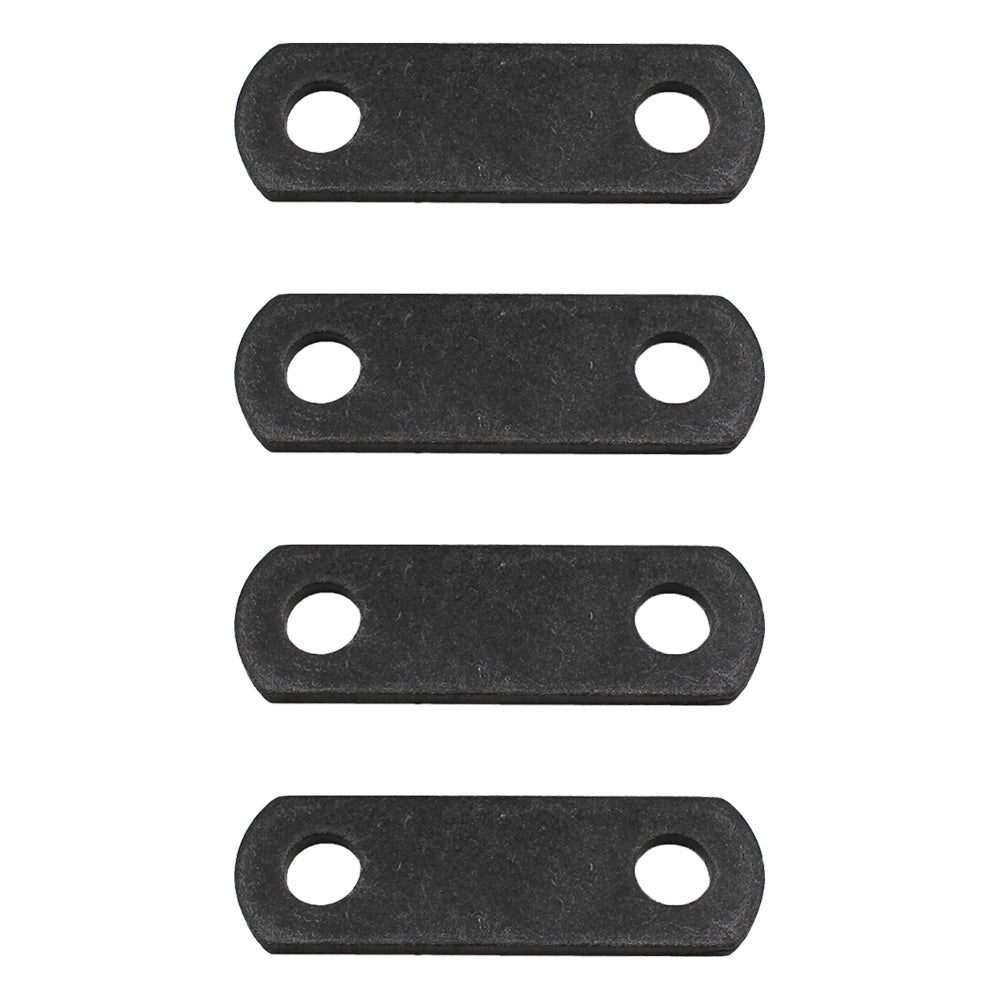

Set of Four (4) New Aftermarket Replacement Trailer Shackle Straps that features the following:

Set of 4 Shackle Straps
Shackle straps connects double-eye leaf spring to the rear hanger or equalizer on trailer suspension systems
Length: 2 5/8" from center of hole to center of hole
Dimensions: 4" long x 1-1/4" wide
Bolt hole diameter: 9/16"

Available Individually and In Other Multiples - Please See Our Other Listings!

Models This Part Fits:

Used for Double-Eye Leaf Springs

Additional Information:

4" Long x 1.25" Wide 9/16" Hole Diameter 2-5/8" Center Hole to Center Hole Connects the Double-Eye Leaf Spring to the Rear Hanger / Equalizer on the Suspension System for the Trailer. This allows for the necessary Pivot of the Springs by shackling the two together instead of Bolting them directly, which will ensure an evenly distributed load between the Axles.
