(4) Four Steel Weld-On Hangers for Single Axle Trailer 1-3/4" Leaf Spring Axle

Name: (4) Four Steel Weld-On Hangers for Single Axle Trailer 1-3/4" Leaf Spring Axle
SKU: TLU31-0032_x4-TRI
Price: 26.0 USD
Availability: InStock

(4) Four Steel Weld-On Hangers for Single Axle Trailer 1-3/4" Leaf Spring Axle

$26.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

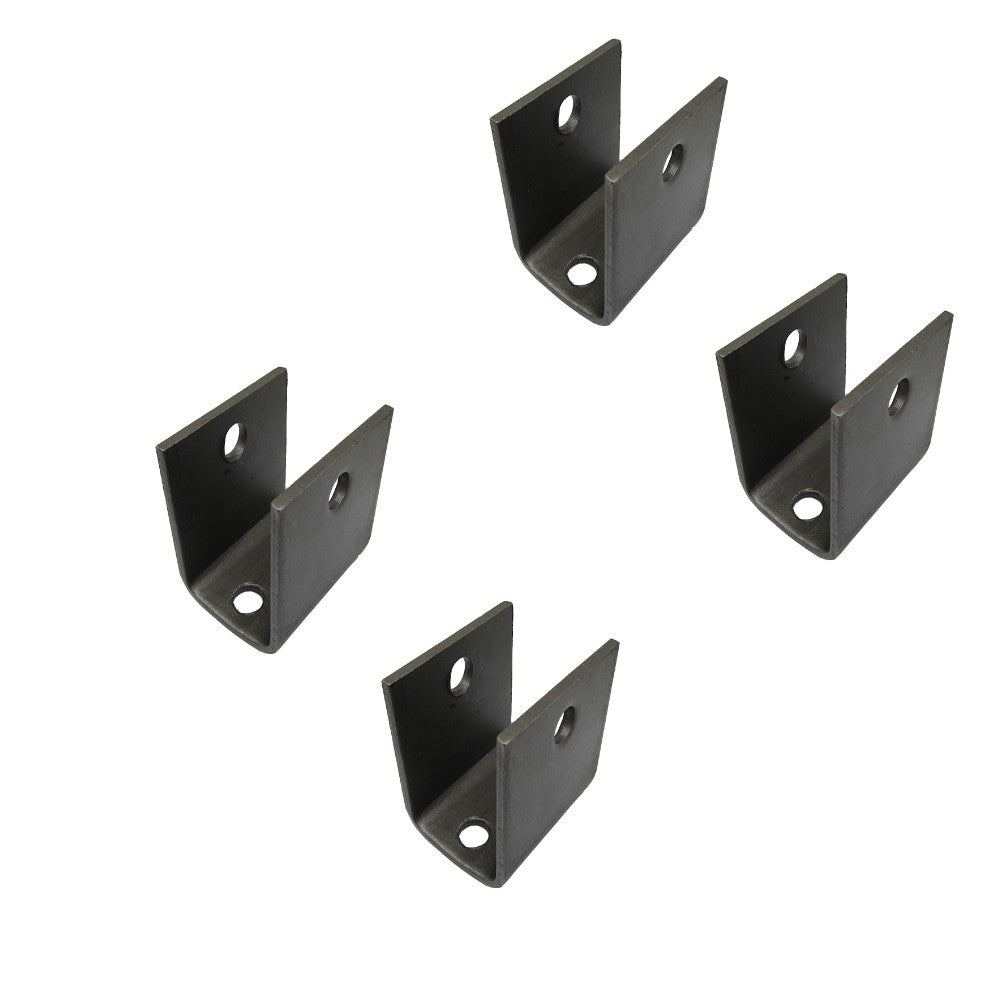

Four New Aftermarket Weld On Hanger Brackets Fits Trailers

Tech Info:
Width: 1-3/4"
Bolt Center Length: 1-1/2"
Overall Height: 2.312"
Bolt Hole Diameter: 9/16"

Includes (4) Hanger Brackets

Fits Various Makes and Models - Rear hanger for single axle trailers.

Replaces Part Number:
4103-8

Models This Part Fits:

1-3/4" Double Eye Leaf Springs

Additional Information:

Kit Includes: (4) Weld on Brackets Item Specs: For use with 1-3/4" wide Springs. Bracket Dimensions: 3-1/4" overall height, 3" Length, 2-1/2" from center hole to top of bracket, 1-7/8" width, 9/16" bolt hole. Hanger can be configured to work as either a front, center, or rear hanger on tandem- or triple-axle applications. Can be used on single-axle trailers as a front hanger only. Designed to suspend your double-eye leaf spring. Can be welded or bolted on.
