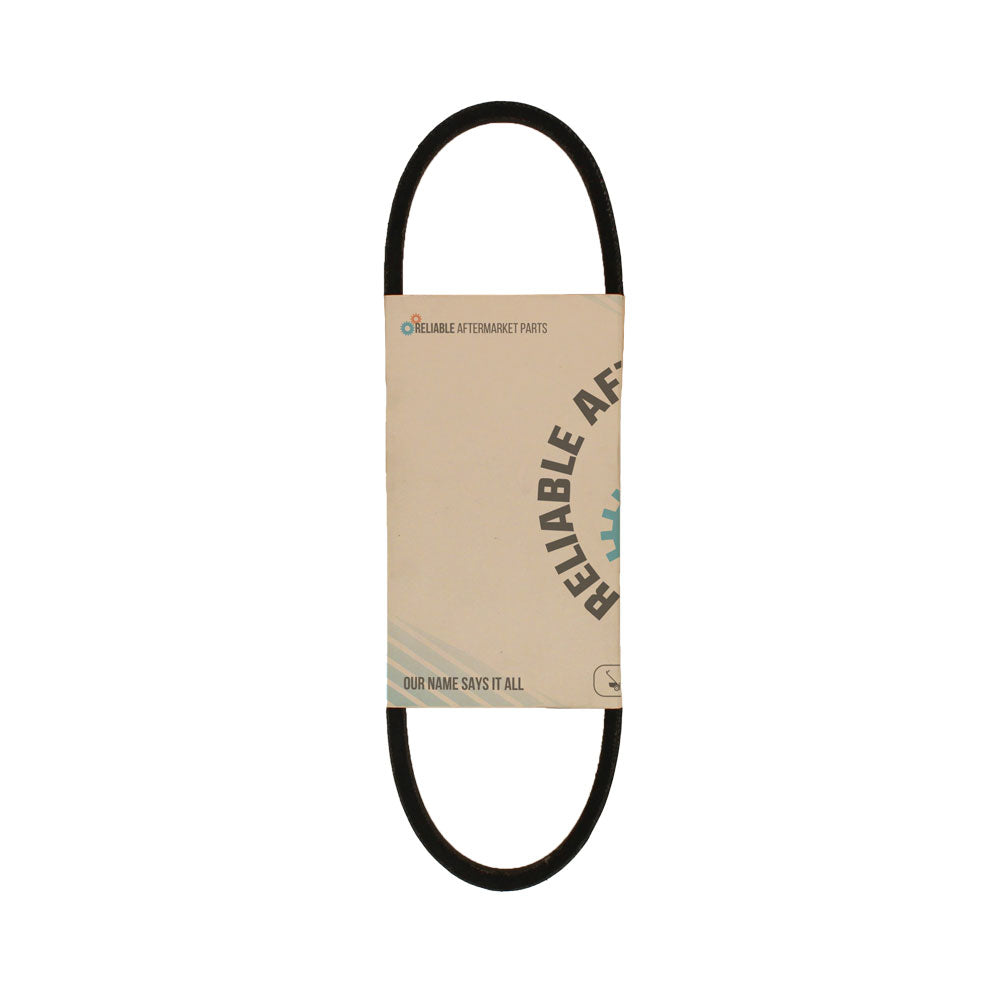

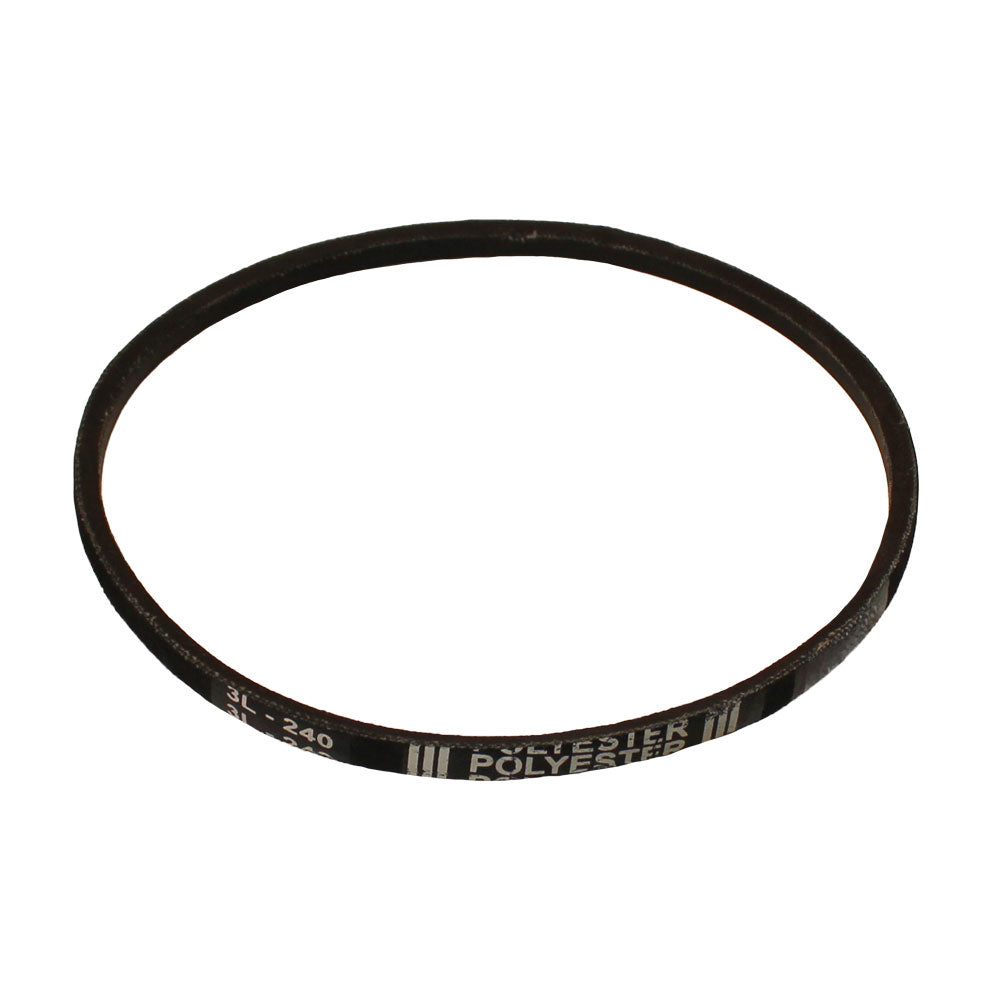

3L240 INDUSTRIAL V-BELT 3/8" X 24"

One New Aftermarket Replacement 3L240 Industrial FHP V-Belt for MTD, Troy-Bilt, Ariens, Toro, Cub Cadet and More

This 3/8" x 24" fractional horsepower (FHP) wrapped V-belt is a direct-fit forward drive belt replacement for a wide range of lawn and garden, agricultural, and industrial equipment. The 3L section belt transmits power efficiently on small-diameter sheaves and is engineered for use with backside idlers, making it well-suited for garden tillers, walk-behind mowers, lawn tractors, and other light-duty power equipment drives.

Specifications

• Belt Section: 3L (Fractional Horsepower)
• Top Width: 3/8"
• Outside Length: 24"
• Thickness: 0.22"
• Construction: Wrapped (fabric-covered exterior)
• Cord Material: Wrapped polyester cord
• Belt Type: Standard closed-loop V-belt
• Minimum Pulley Pitch Diameter: 1-1/2"

Compatible Models

MTD / Troy-Bilt / Cub Cadet (Garden Tillers - Forward Drive Belt): Troy-Bilt Tuffy Rear-Tine Tillers (2005); MTD Models 12060, 12061, 12077, 12155, 12163, 12209, 12210, 12217, 12227; Troy-Bilt/MTD Models 21A-630B063, 21A-630C063, 21A-630C766, 21A-634A766, 21A-634B063, 21A-634F063

Ariens: Models 935015, 935019, 935020, 935024, 935025, 935026, 935029, 935030, 935031

Toro: Models 5225, 5225 S

MTD / Cub Cadet / Troy-Bilt Walk-Behind Mowers and Lawn/Garden Tractors: 61-20RG01

Also used on pumps, industrial fans, conveyors, bench grinders, cultivators, edgers, lawn sweepers, snowblowers, string trimmers, brush cutters, and other small-motor applications across multiple brands including Case/International Harvester (Case IH) and Gilson equipment.

Replaces Part Number(s):

3L240, 1240, 07215900, 072159, 160119, 16784, 238-5024, 251028, 3L240DC, 55037, 61384C1, 61924, 61927, 741884, 754-04089, 823-5624, 8235624, 954-04089, B13L240, B1SB5007, GAT1240, GW-55037

New aftermarket replacement part - not remanufactured, not used.
