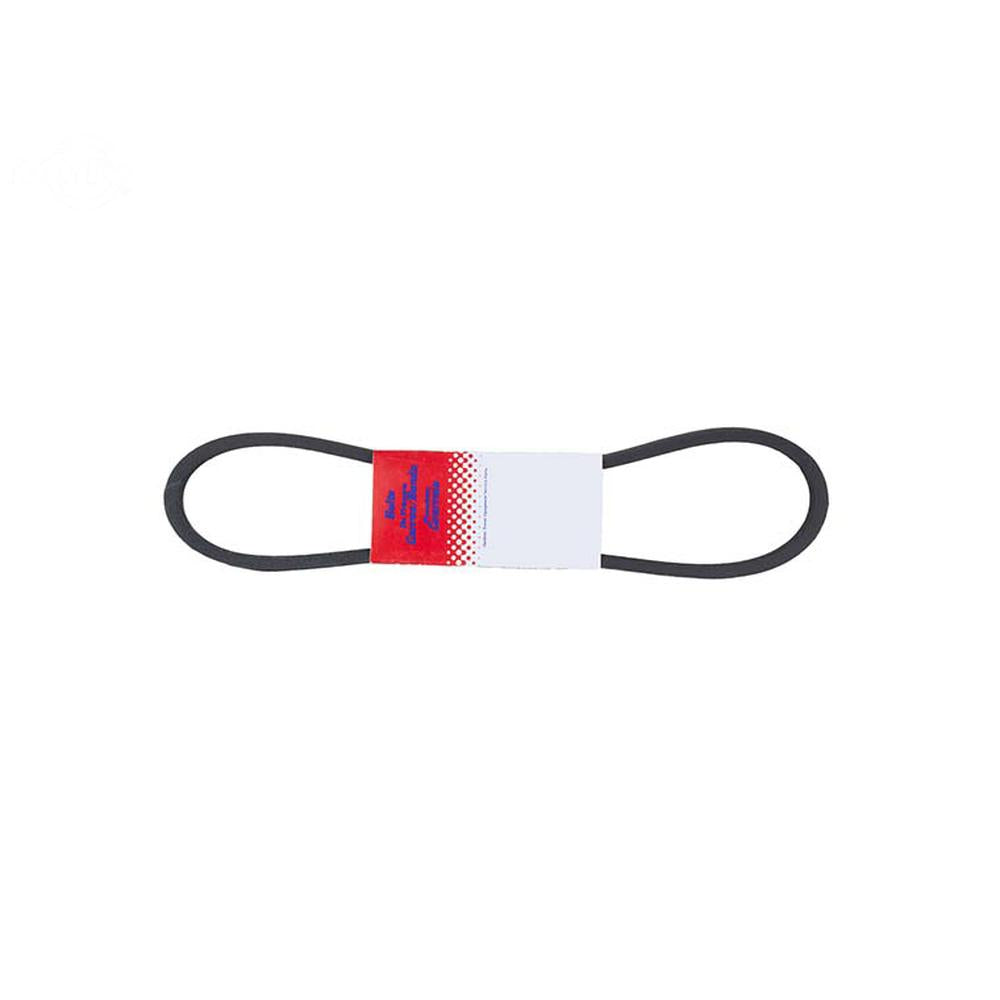

3L190 INDUSTRIAL V-BELT 3/8" X 19"
3L190 INDUSTRIAL V-BELT 3/8" X 19"
Couldn't load pickup availability
One New Aftermarket Replacement 3L Section FHP V-Belt - 3/8" x 19" Outside Circumference
The 3L190 is a Fractional Horsepower (FHP) wrapped V-belt in the standard 3L section profile. It is a versatile power transmission belt widely used in lawn and garden equipment, small engine drives, HVAC systems, power tools, compressors, and light industrial machinery. The wrapped construction and polyester tensile cord deliver heat resistance, oil resistance, and static dissipation for reliable performance across a wide range of applications.
Specifications
- Belt Section: 3L (Fractional Horsepower / FHP)
- Top Width: 3/8" (0.375")
- Outside Circumference: 19"
- Belt Depth / Thickness: 7/32" (approximately 0.21"-0.23")
- Construction: Wrapped (single band, closed loop)
- Reinforcing Cord: Polyester
- Material: Rubber
- Resistance: Heat-resistant, oil-resistant, static-dissipating
- Minimum Pulley Pitch Diameter: 1-1/2"
- Interchangeable with Metric M19 V-belts
Compatible Applications
This belt is a universal FHP V-belt compatible with a broad range of equipment including lawn mowers, garden tractors, small engine-driven equipment, HVAC units, air compressors, power tools, and other light industrial drives requiring a 3/8" x 19" belt.
Replaces Part Number(s):
3L190
Aftermarket Interchange Numbers
Gates Truflex 1190, Gates 8400-1190, Metric M19, Grizzly PVM19, MBL 1190
New aftermarket replacement part - not remanufactured, not used.
