38440-44780 RH Thread Tie Rod End Fits Kubota Compact Tractor Models B1700, B2100

38440-44780 RH Thread Tie Rod End Fits Kubota Compact Tractor Models B1700, B2100

$50.00 CAD
$50.00 CAD
Sale Sold out
Shipping calculated at checkout.

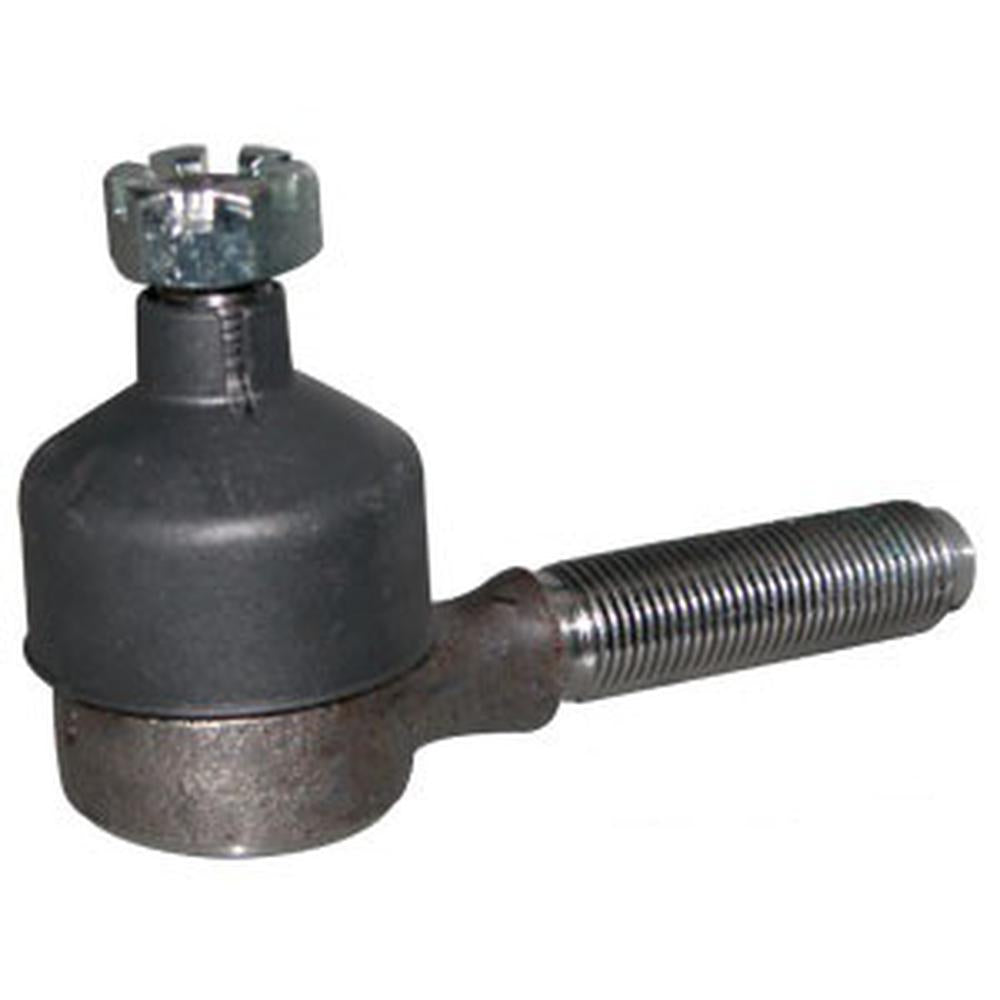

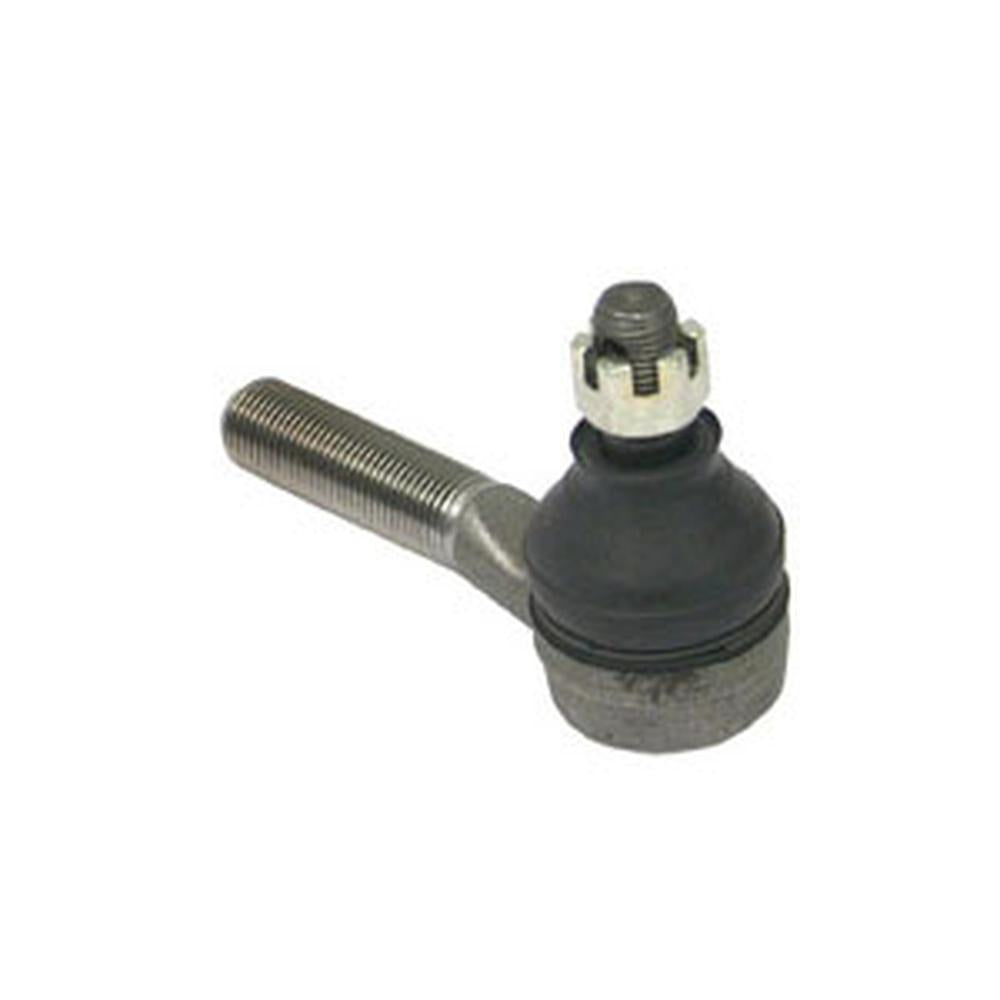

One New Aftermarket Replacement Right Hand Thread Tie Rod End Fits Kubota

Fits Compact Tractor models: (B1700, B2100, B2400 -- both 2WD, E/HSE), B2150, B8200, B9200, L185 (Serial Number 50001 >), L2050, L2250, L235, L2350, L245, L245H, L2500, L2550, L2650 (2WD or 4WD, Serial Number <50145), L285, L2850, L295 (2WD (F) Front Drag Link End, Serial Number 12224 >), (L2950 & L3450 -- both 2WD or 4WD, Serial Number <50198), (L3010 & L3300 -- both 2WD (F), L3250, L3650 (2WD or 4WD, Serial Number <50212), L4200, and L4310

Also Fits Industrial/Construction Models: B20, B21

Dimensions:
Right Hand, Male Thread, 0.622 OD"
3.875" Length to Center of Ball
0.516" to 0.576" Taper, 0.90" Taper Length

Replaces Part Numbers: 38440-44780, 3844044780

Models This Part Fits:

L3450DT-WET, L3250, B20, L2850, L2850DT-GST, B1700, L3650, B2400, L2900, B2410HSE, L3010, L2650F, B21, L3450, L3250F, L295, L2950, L185, L2600, L3130, L4200F, L2850DT, L4310F, B2400HSE, L210, L2950DT-WET, L3300F, L3650DT, L2950F, B2100, L2650, B9200, L285, L260, L2250, L2650DT-WET, L200, L185F, L2250DT, L2550, L2550DT-GST, MX5000F, L3650DT-WET, L4300, L2900F, L3830, L245F, L2350DT, L2600DT, L4310, L3000, L3000DT, L2650DT, L2550DT, B2400E, L2850F, L2050DT, L3300, B2100E, B8200, L2500DT, L245H, L295F, L3010F, L3650DT-GST, L275, L2950DT, L3450DT, L3130F, L3650F, L235, L3250DT, L2350F, L245, L2350, L4200, B2410, L3830F, L2050, L2500, L4300F

Additional Information:

Right Hand, Male Thread Outer Diameter - 0.622" Length - 3.875" 0.516" to 0.576" Taper, 0.90" Taper Length

Reference Numbers:

38440-44780, 3844044780, 32150-12600, 3215012600, 32150-12601, 3215012601, 32150-12602, 3215012602, 38440-44870, 3844044870, 34160-12600, 3416012600, 34670-44780, 3467044780
