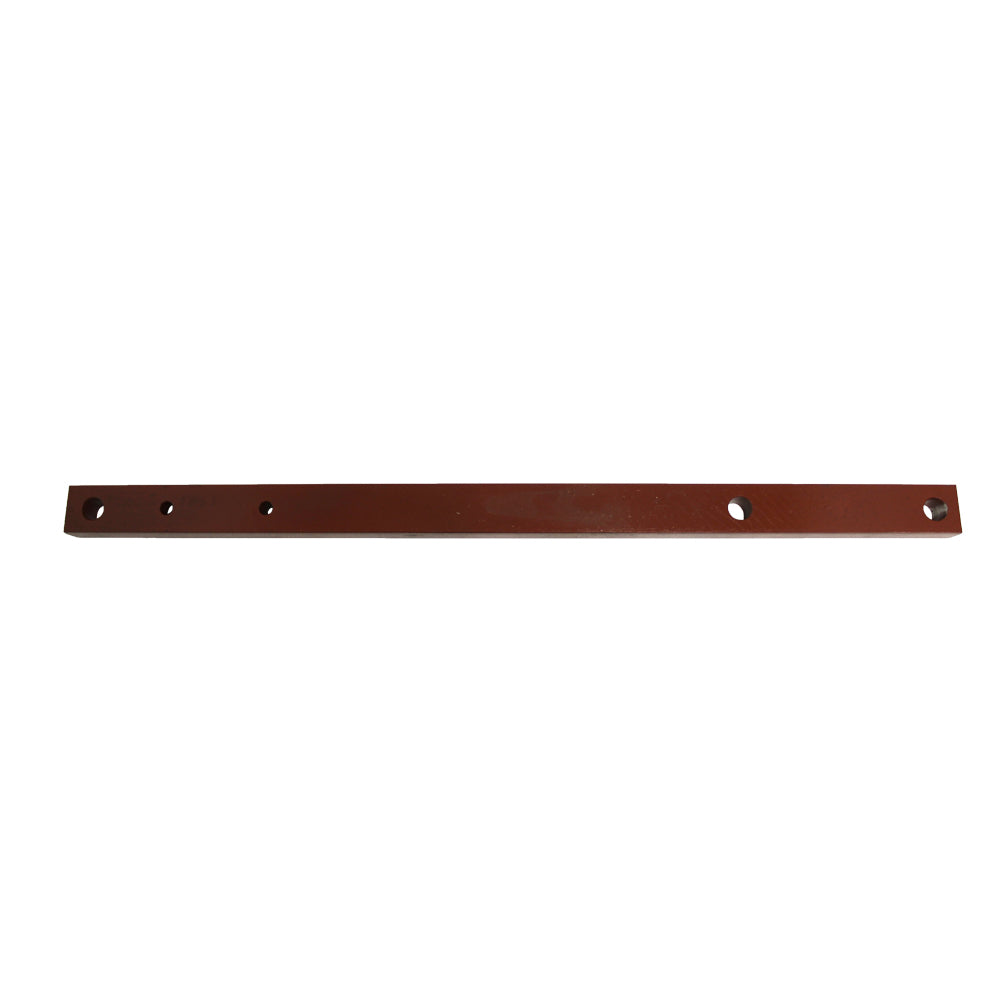

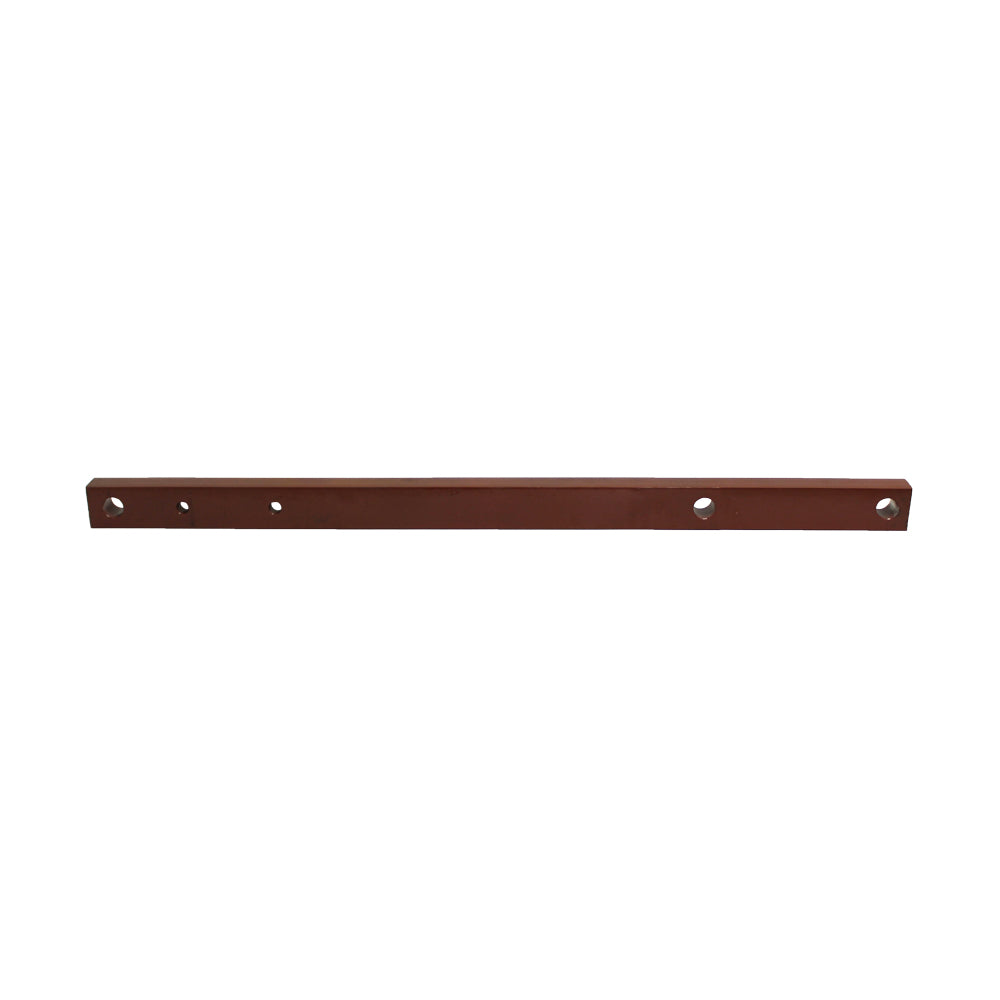

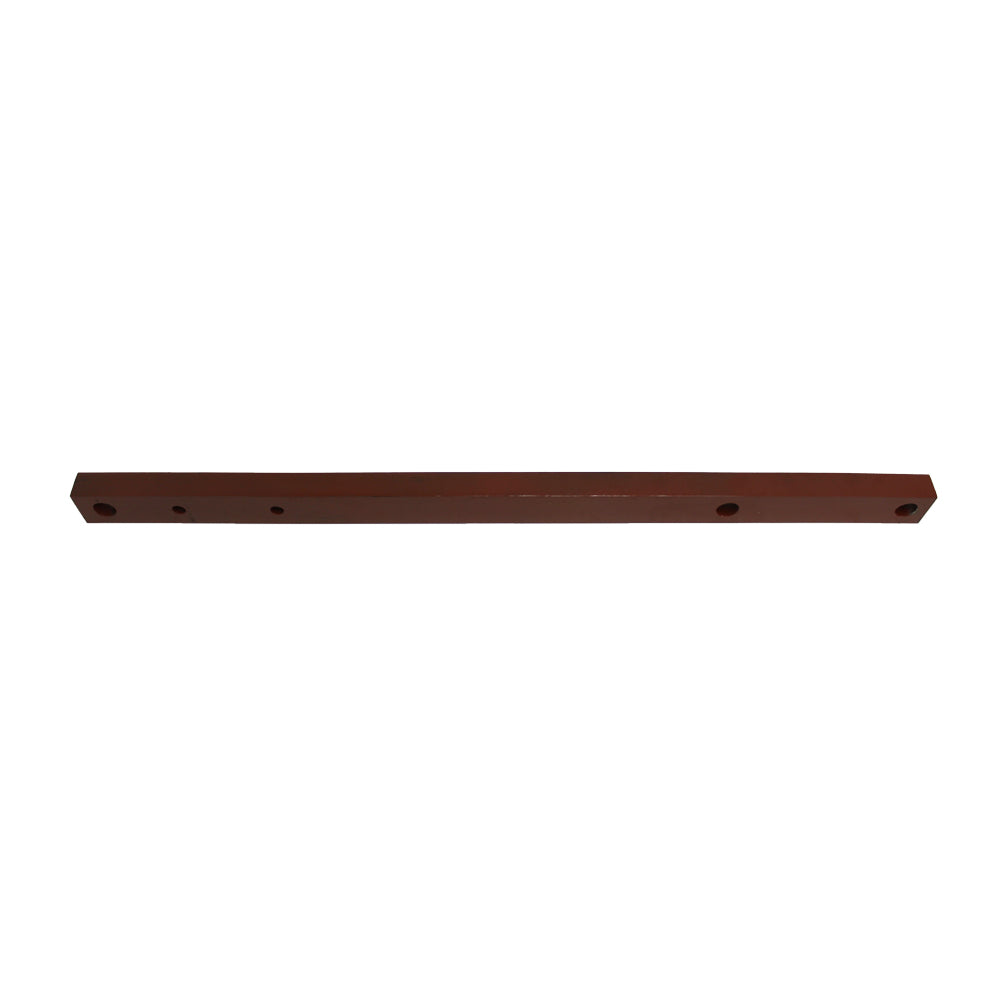

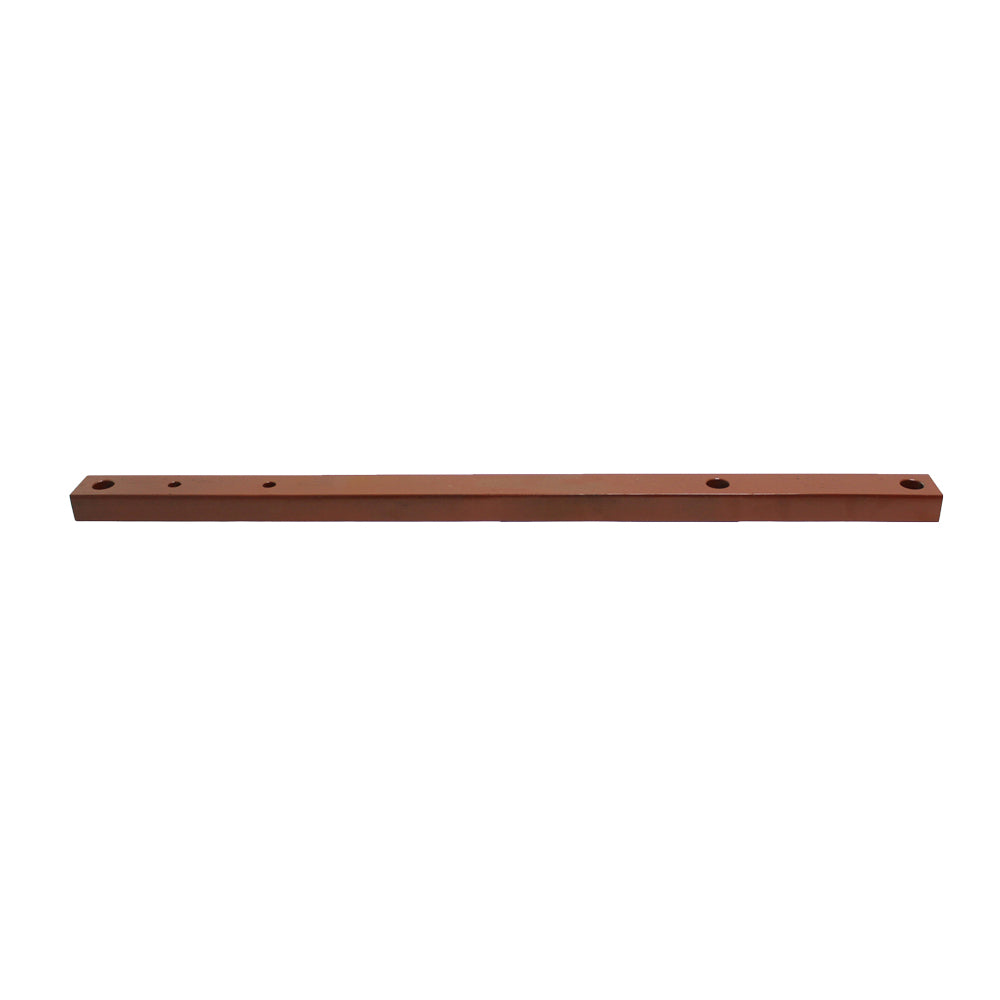

381706R2 Tractor Drawbar Rear Straight Fits International Fits Case IH

Name: 381706R2 Tractor Drawbar Rear Straight Fits International Fits Case IH
SKU: 381706R2_2
Price: 233.0 USD
Availability: InStock

381706R2 Tractor Drawbar Rear Straight Fits International Fits Case IH

$233.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Replacement Drawbar Fits Case - Fits InternationalTractor models:1026,706,756SN 806,826,856,966SN Notes(2) 1.165" Diameter holes @ 1.500" & 10.500" from front. This bar can replace 2 piece assembly(397065R1 bar 393501R11 tube)Long45.750"Wide2.500"High1.500"

Replaces Part Numbers:381706R2, 393150R1

Models This Part Fits:

966, 856, 806, 766, 1026, 826, 706, 756

Additional Information:

Length: 45-3/4" Width: 2-1/2" Height: 1-5/8" (3) of the Mounting Holes have I.D. of 1-3/16" (2) of the Mounting Holes have I.D. of 0.665" (2) of the Mounting Holes are located 1-1/2" to center on both ends (1) of the Mounting Holes is located 11-9/16" to center from end
