373024H New Tail Rim Assembly Wheel fits Rhino Several

One New Aftermarket Replacement Rotary Cutter Tailwheel Tire and Rim Assembly for Rhino (Servis-Rhino), Bush Hog, Hardee, King Kutter, Hico/Howse, and More

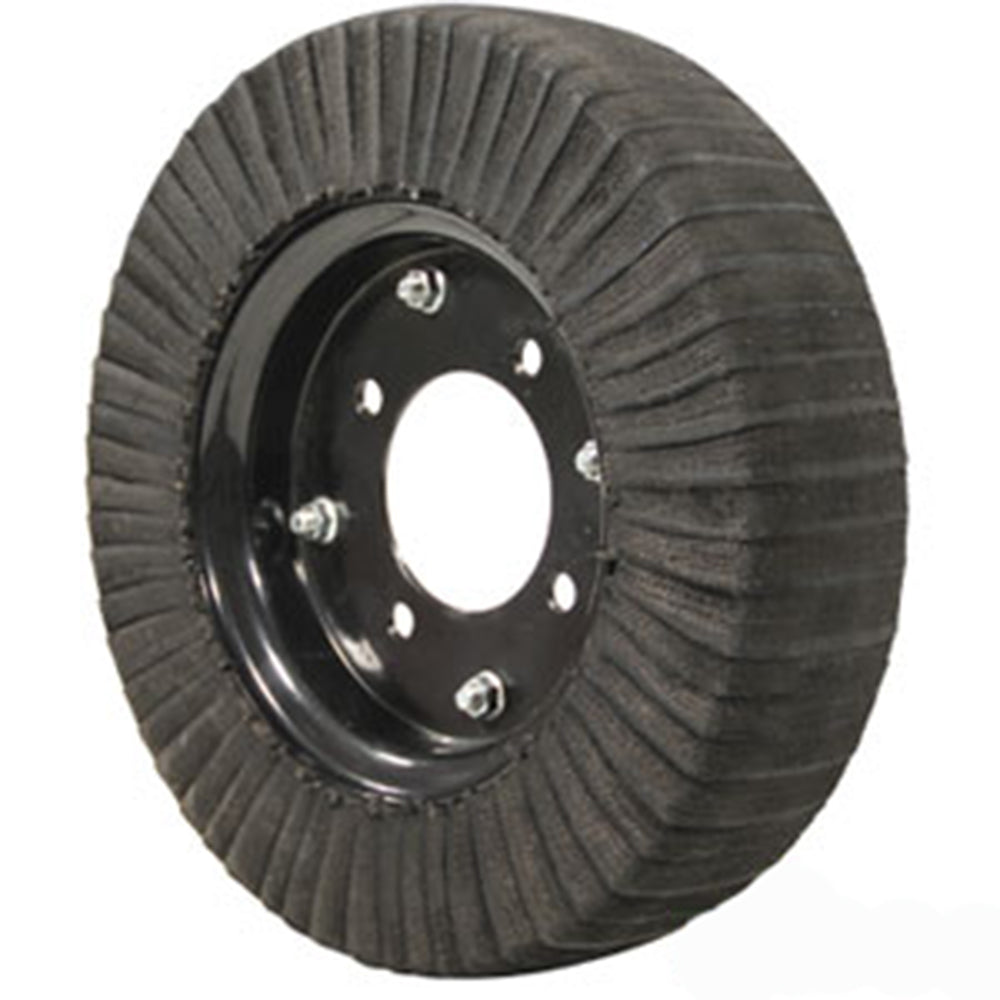

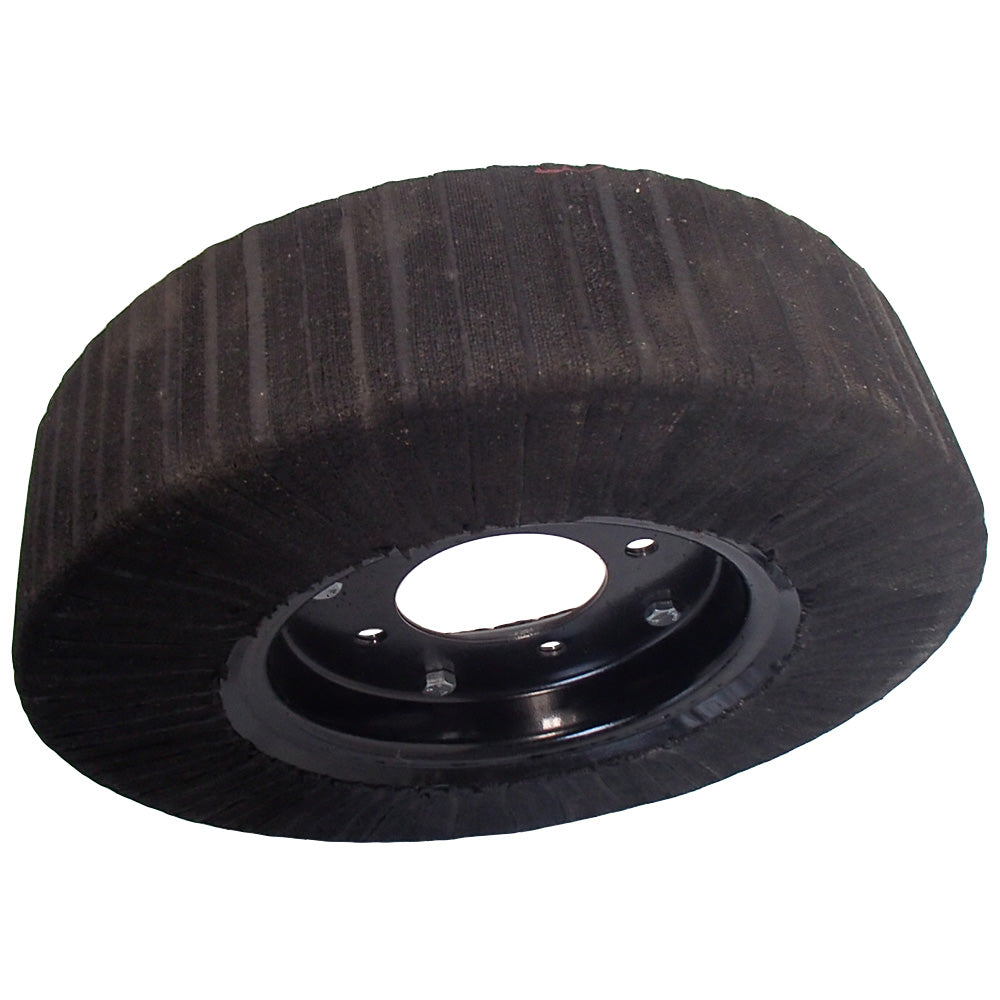

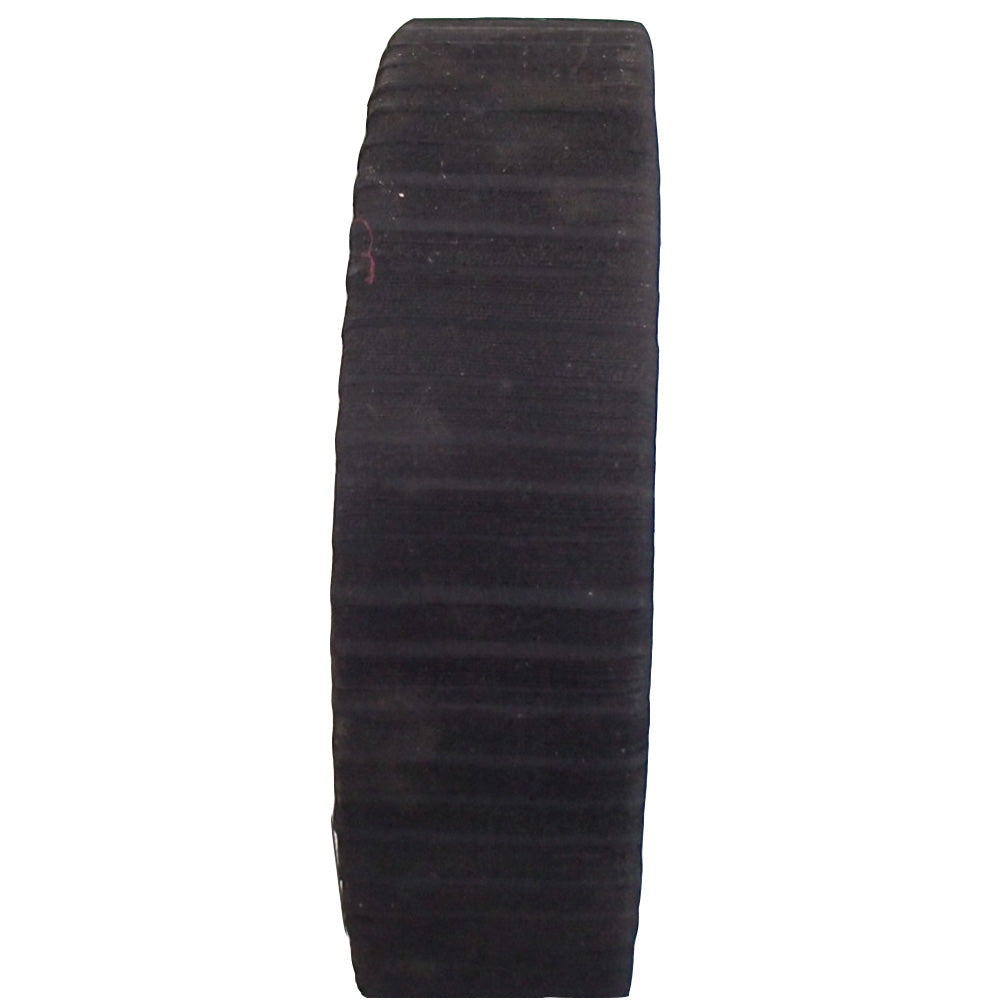

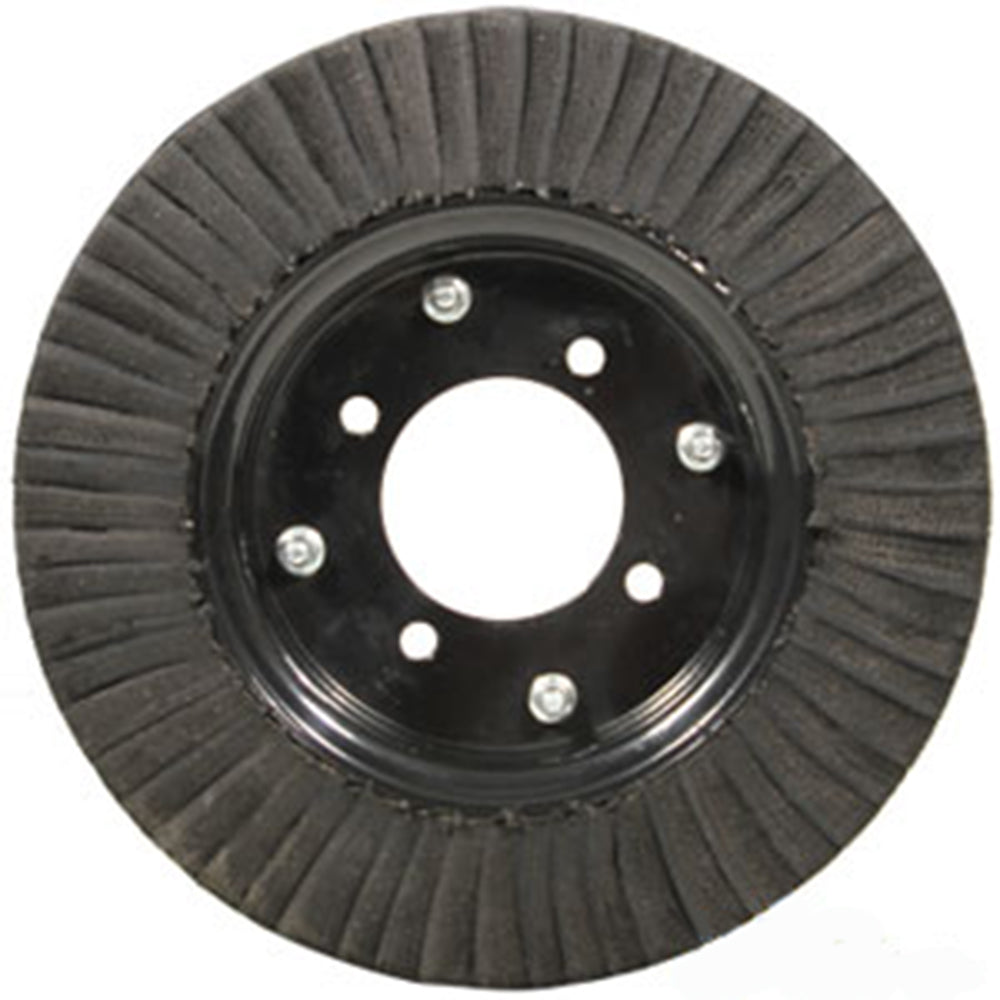

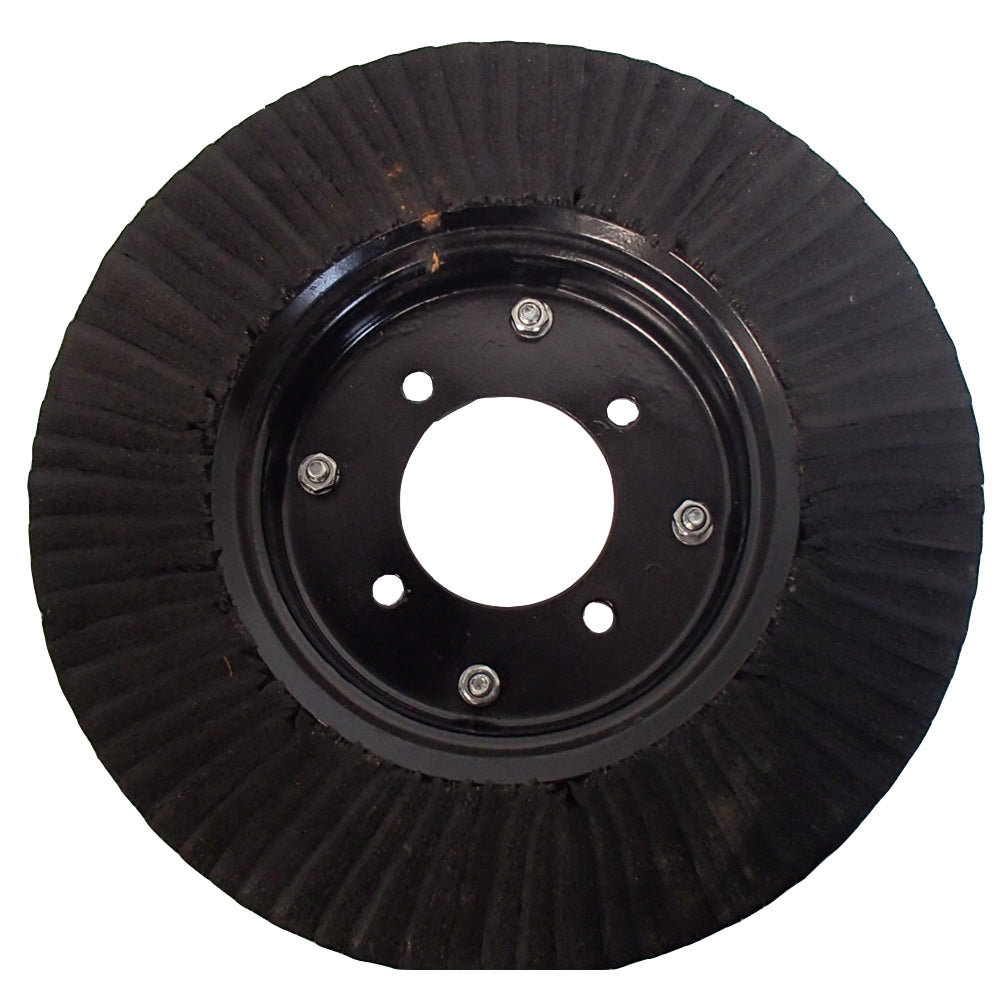

This aftermarket replacement 4" x 8" tailwheel tire and rim assembly (part number 373024H) is a direct-fit replacement for the tailwheel on a wide range of rotary cutters. The tailwheel supports the rear of the cutter deck, allowing it to follow ground contours smoothly during mowing. This assembly includes a laminated tire mounted on a steel rim, less hub.

Specifications

• Tire Size: 4" Wide x 8"
• Overall Tire Height: 15"
• Center Hole: 3-5/8"
• Bolt Pattern: 4-bolt
• Bolt Circle: 5" (hole-to-hole across bolt pattern: 3-1/2")
• Wheel Bolt Size: 1/2"
• Weight: Approx. 24 lbs

Compatible Models

Rhino / Servis-Rhino Rotary Cutters: CY60, CY72, CY84, GR60, GR72, GR84, GR260, GR472, GR484, RB60, RB72, SE8A, SE10A, TW60, TW72, TW84, TW96, TW120, TW144, TW168, Turbo 96, Turbo 120, 160, 172, 184, 260, 272, 284, CYRO 60, CYRO 72, CYRO 84, CYRO 1310, CYRO 160, FLEX 10, FLEX 15, FN 10, FN 15, FR 10, FR 15, S128, Saturn 5, Saturn 8, SM 60, SM 72, SR10M, SR15, SR15M, SR20, TK15, TW84, 2160

Alamo Rotary Cutters: A60, A60B, A72, A72B, A72SD, AG84B, AG96, RX60, RX72, RX84, RX96

Bush Hog Rotary Cutters: 104, 105, 1050, 1051, 109, 1109, 1126, 12, 1207, 1209, 1226, 126, 1306, 1307, 1405, 1405HR, 1406, 1406HR, 205, 2510, 2512, 255, 266, 275, 285, 305, 306, 307, 3108, 3209, 405, 405HR, 406, 406HR, 502, 600, BD90, SM60, SQ36, SQ480, SQ600

Hardee Rotary Cutters: C40-RC and compatible models

Hico / Howse Rotary Cutters: 300C, 350C, 400C, 500C (all 1993 and later)

King Kutter Rotary Cutters: KK4X8 and compatible models

Fits John Deere Rotary Cutters: Compatible models (replaces AW30715, AW30716)

Fred Cain, BMB (BR5, Superflex 15), Terrain King, and other rotary cutter brands: See cross-reference numbers below

Replaces Part Number(s):

AC27, 500BH, AW30715, AW30716, C40-RC, LML311, 403001KK, 373024H, 103209, 80A500, 401-0048, 4010048, KK4X8, 15205SW, A-15205SW, LML311A, LML311A-A, C40A, A-AC27, A-500BH, A-403001KK, A-373024H, A4010048, A-80A500, A-80A500-A, A-LML311-A, C40-RC, C40RC

Aftermarket Interchange Numbers

016-TW484, SM-016-TW484, 5337, 12577, 220247, MAG103D209, 814-058C, 814058C, 7533

New aftermarket replacement part - not remanufactured, not used.
