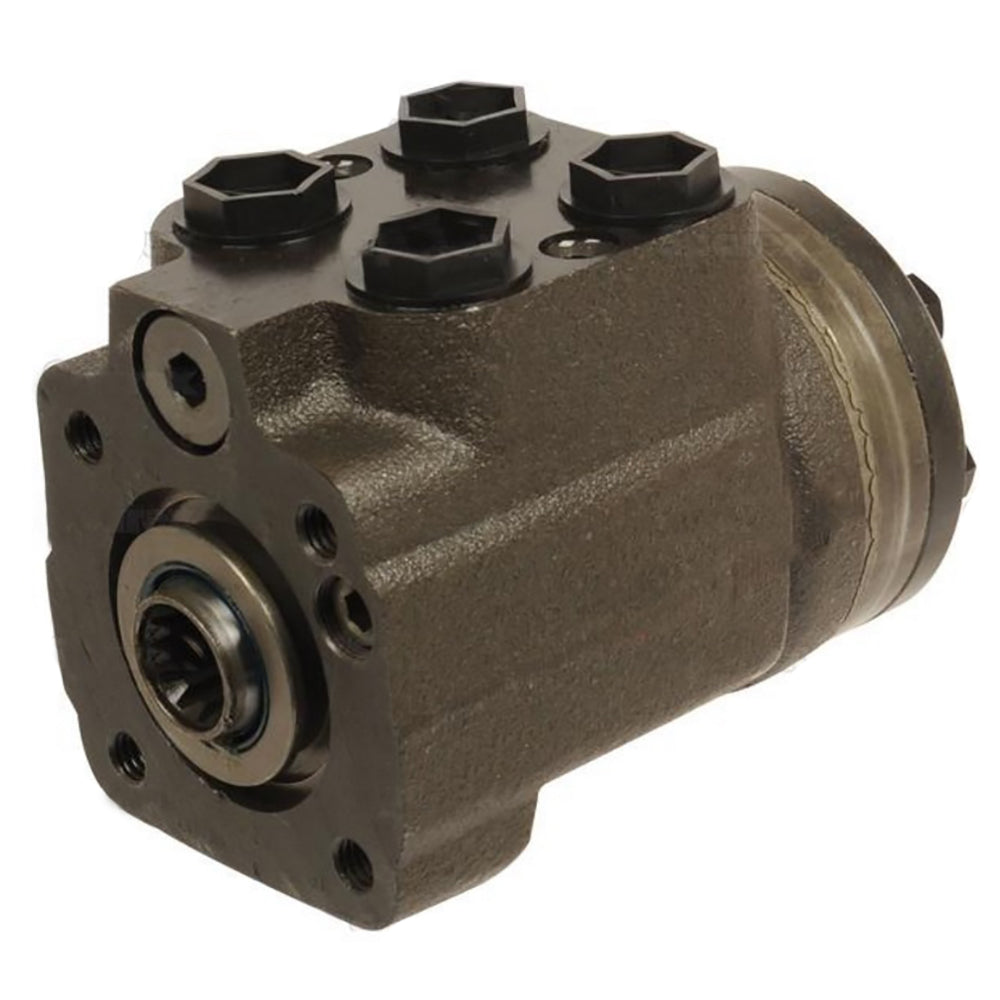

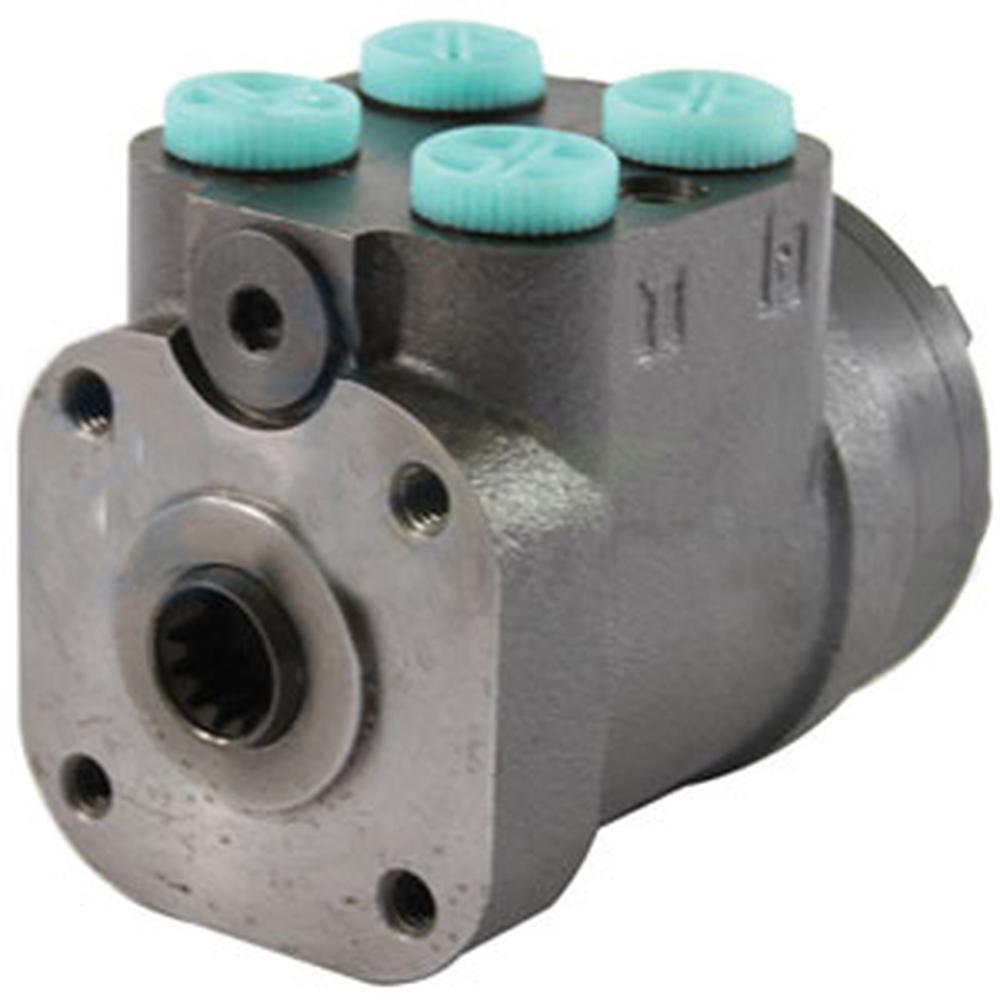

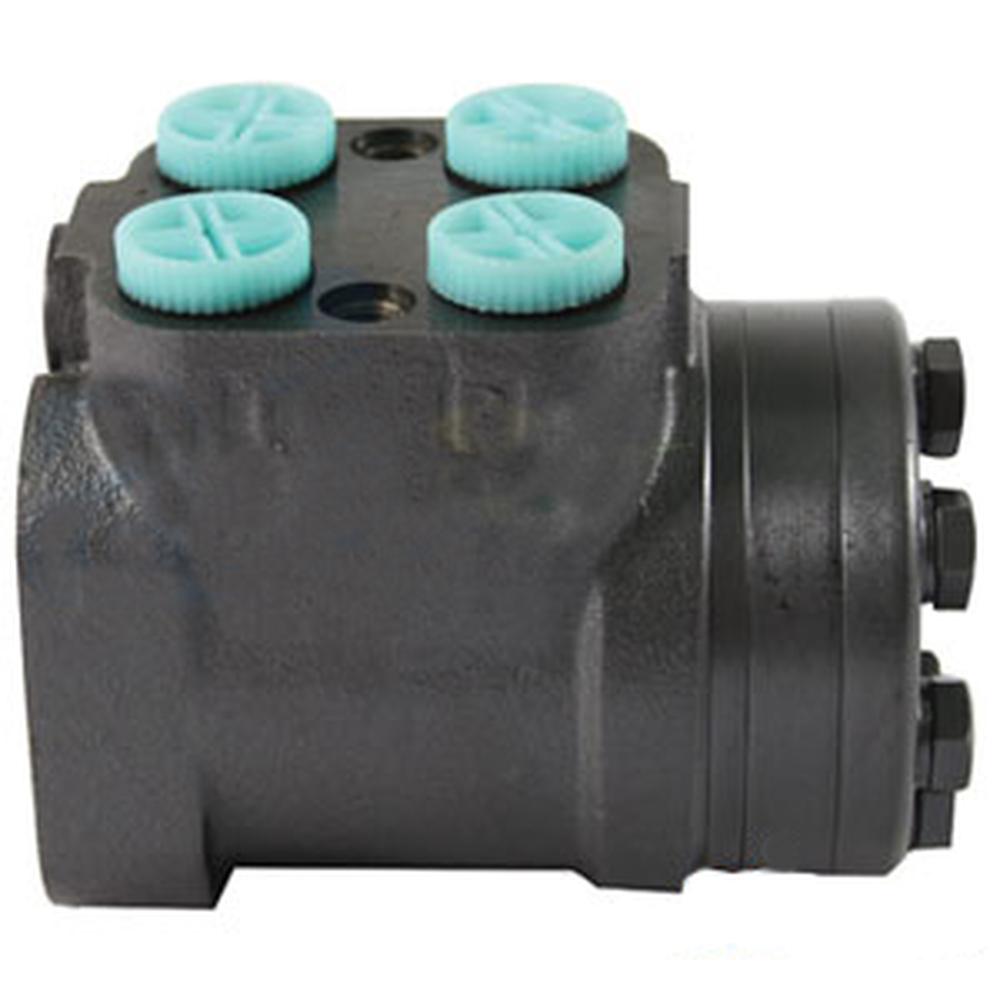

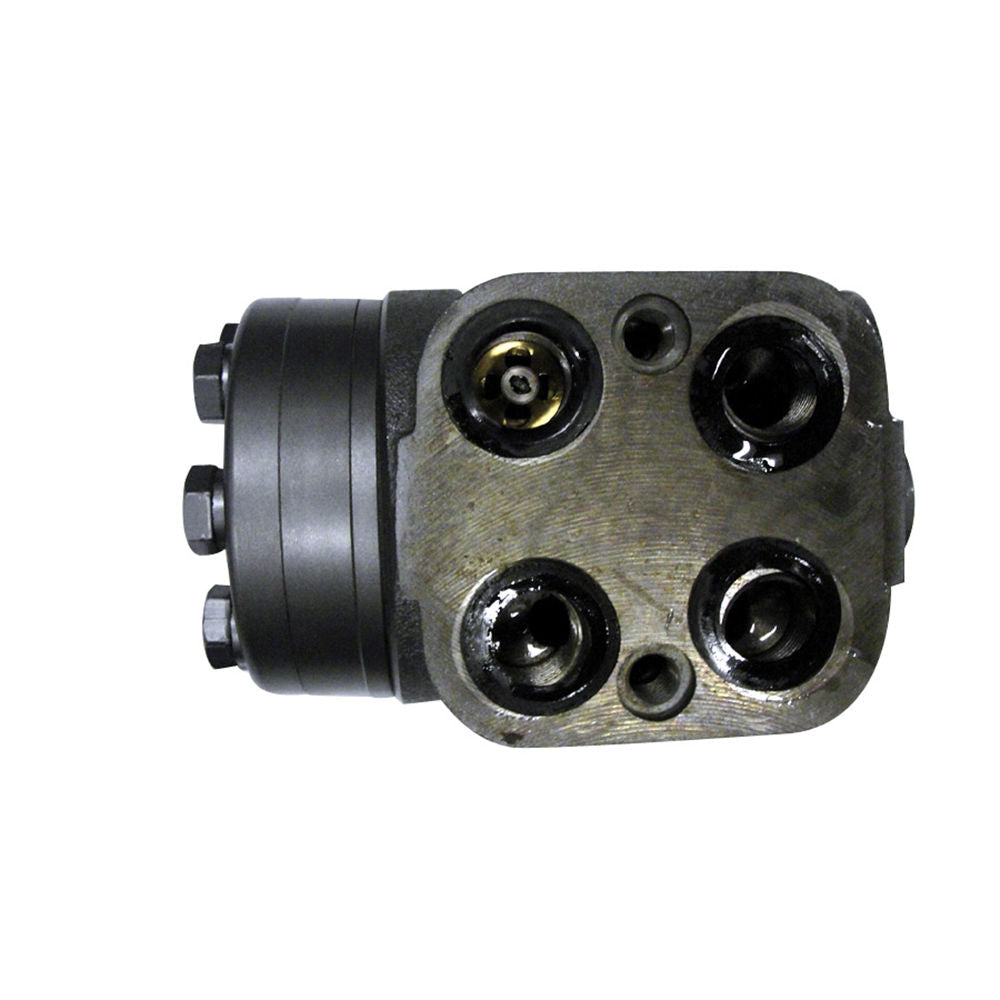

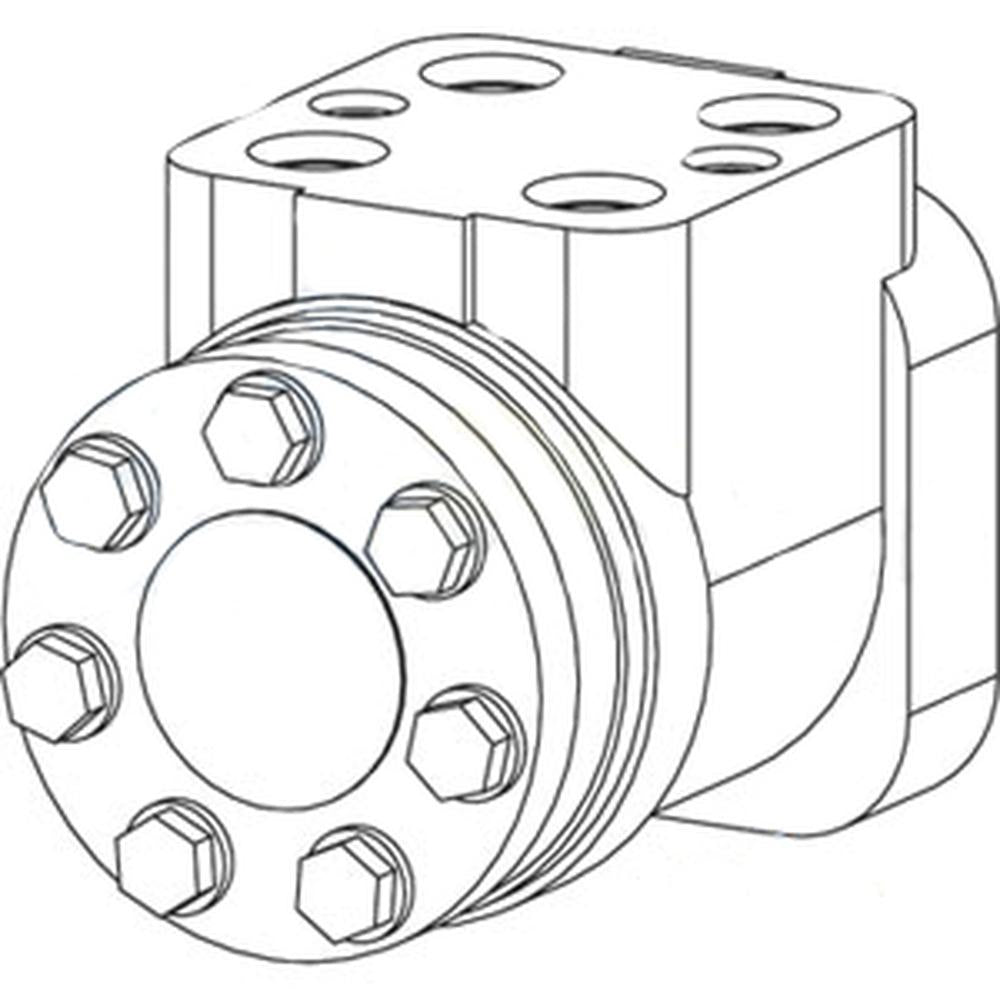

Hydraulic Steering Motor with Relief Valve Fits Case IH 395 485 88107C91 88107C9

Name: Hydraulic Steering Motor with Relief Valve Fits Case IH 395 485 88107C91 88107C9
SKU: 366441A1
Price: 705.0 USD
Availability: InStock

Hydraulic Steering Motor with Relief Valve Fits Case IH 395 485 88107C91 88107C9

$705.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Replacement Steering Motor

Fits Case/International Tractor models:
C50, C60, C70, C80, C90, C100, 380B, 385, 395, 485, 485XL, 495, 495XL, 585, 585XL, 595, 595XL, 685, 685XL, 695, 695XL, 785, 785XL, 795, 795XL, 885, 885XL, 895, 895XL, 995, 995XL, 3220, 3230, 4210, 4230, 4240, 3210, 4220.

12 Spline Ports are 3/4"-16

Replaces Part Number(s):
88107C93, 88107C92, 88107C91

Models This Part Fits:

695, C60, 485, 4230, C100, 495, 685, 85 series, 3220, 395, 895, C80, C90, 4240, C70, 84, 585, 3230, 595, 995, 4210, 385, 885, C50

Additional Information:

Hole spacing (mm): 50 Inner max. GPM: 2.64 Inner max. LPM: 10 Length (mm): 150 Relief Valve: Yes Side hole spacing: 60 Teeth: 12 Thread size: 3/8 x 16 Thread: UNF Top hole spacing: 60 Top Port Thread Size: 3/4'' x 16 UNF
