3-piece Gauge Set Fits Case/International Harvester Replaces 353868R91

3-piece Gauge Set Fits Case/International Harvester Replaces 353868R91

$117.00 CAD
$117.00 CAD
Sale Sold out
Shipping calculated at checkout.

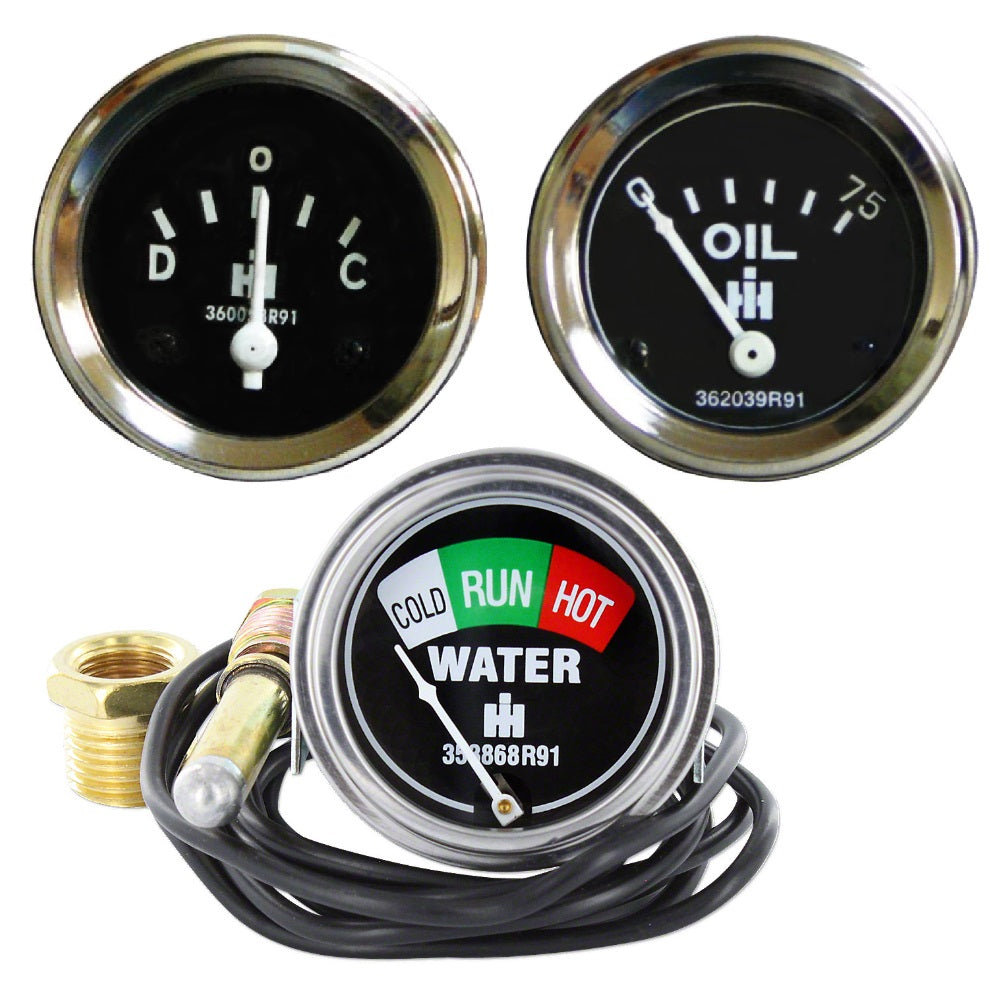

One New Aftermarket 3-piece Gauge Set

Tech Info:
 -Kit Contains:
 -(1) Oil Pressure Gauge
 -Fits 2" diameter hole in dash
 -Glass lens
 -Steel housing
 -Stainless steel bezel
 -Anodized aluminum face with the IH logo
 -1/8" NPT male thread pitch
 -Measures from 0 to 75 PSI
 -The rear of the gauge features a bracket and studs for mounting on the dash
 -
 -Replaces Part Number(s):
 -362039R93, 362036R91, 362039R91, 536962R2, 362177R94
 -
 -(1) Water Temperature Gauge
 -72" lead length
 -5/8"-18 UNF end with 1/2" NPT pipe bushing
 -
 -Replaces Part Number(s):
 -353868R91, 369849R91, 393476R91, 393481R91, 53690R2
 -
 -(1) Amp Meter
 -Includes the IH Logo and part number on the face.
 -FACE RANGE: D-0-C
 -Black Face with Chrome Bezel.
 -Comes with mounting hardware (bracket included).
 -
 -Replaces Part Number(s):
 -360053R91, 360053R92, 378424R91, 393334R91

Made to Fits Case/International Harvester:
 Tractor Models: 240, 300, 330, 340, 350, 400, 450, 460, 560, 660
 Replaces Part Number(s): 362039R93, 362036R91, 362039R91, 536962R2, 362177R94, 353868R91, 369849R91, 393476R91, 393481R91, 53690R2, 360053R91, 360053R92, 378424R91, 393334R91

Models This Part Fits:

330, 460, 300, 240, 340, 560, 660, 450, 350, 400

Additional Information:

Kit Contains: (1) Oil Pressure Gauge Fits 2" diameter hole in dash Glass lens Steel housing Stainless steel bezel Anodized aluminum face 1/8" NPT male thread pitch Measures from 0 to 75 PSI The rear of the gauge features a bracket and studs for mounting on the dash Replaces Part Number(s): 362039R93, 362036R91, 362039R91, 536962R2, 362177R94 (1) Water Temperature Gauge 72" lead length 5/8"-18 UNF end with 1/2" NPT pipe bushing Replaces Part Number(s): 353868R91, 369849R91, 393476R91, 393481R91, 53690R2 (1) Amp Meter Includes the IH Logo and part number on the face FACE RANGE: D-0-C Black Face with Chrome Bezel Comes with mounting hardware (bracket included) Replaces Part Number(s): 360053R91, 360053R92, 378424R91, 393334R91

Reference Numbers:

362039R93, 362036R91, 362039R91, 536962R2, 362177R94, 353868R91, 369849R91, 393476R91, 393481R91, 53690R2, 360053R91, 360053R92, 378424R91, 393334R91

Product Sub Group:

Gauges
