S.57622 Seal, Liner, 3228344r1
S.57622 Seal, Liner, 3228344r1
Couldn't load pickup availability

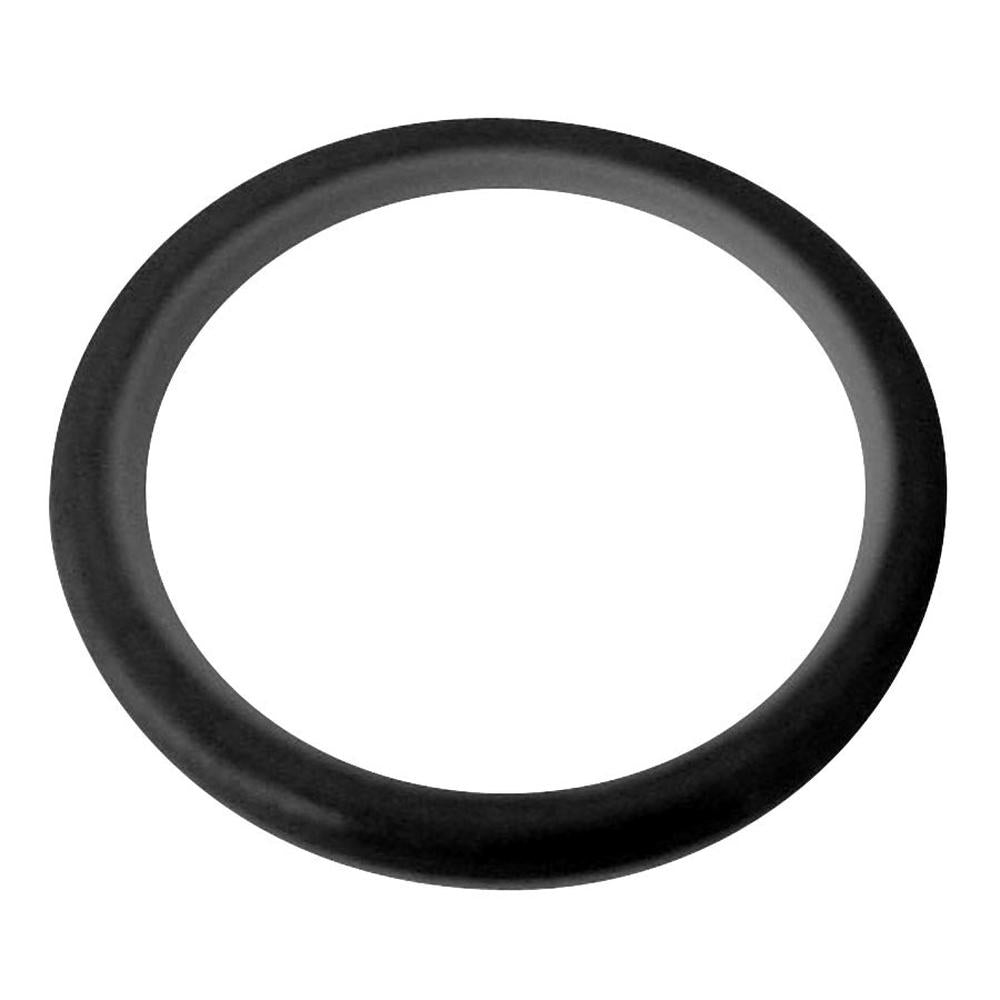

One New Aftermarket Replacement Cylinder Liner Sealing Ring Fits International Harvester / Fits Case IH Tractors
This cylinder liner sealing ring (O-ring) seals the base of the wet cylinder sleeve against coolant and combustion gas leakage. It is used during engine rebuilds and overhaul work on Fits International Harvester and Fits Case IH tractors equipped with D-series diesel engines. Identified by red dots and measuring approximately 0.195 in. thick, this ring is the correct seal for early-serial-number applications on certain models -- see serial number notes below.
Serial Number Restrictions
Important: Several models use two different liner O-rings depending on engine serial number. Verify your engine serial number before ordering:
- IH 684: use 3228344R1 up to engine S/N D475,097 (early); use 3228348R1 from S/N D475,097 (late)
- IH 544, 574, 664, 674: use 3228344R1 up to engine S/N 103,204; use 3228348R1 from S/N 103,204
Specifications
- Type: Cylinder sleeve / liner O-ring sealing ring
- Color identifier: Red dots
- Thickness: Approximately 0.195 in.
Compatible Models
Fits International Harvester Tractors: Hydro 84, 423, 454, 474, 484, 485, 523, 574, 584, 674, 684, 724, 784, 785, 824, 844, 884, 955, 956, 1055, 1056
Fits Case IH Tractors: 785, 795, 4240
Compatible Engine Types: D155, D179, D206, D239, DT239, D246, D268, DT268, D310, D358, DT358, DT402
Replaces Part Number(s):
3228344R1, 3055021R1, 3055021R2, 3218603R1, B513957
Aftermarket Interchange Numbers
S.57622, S57622, VPB7202, 25/38-62, SRK724, 305521R2, A-3228344R1
New aftermarket replacement part - not remanufactured, not used.
