Black Seat with Slide Tracks Fits Case/International Harvester Replaces 3106006M91-1

Name: Black Seat with Slide Tracks Fits Case/International Harvester Replaces 3106006M91-1
SKU: LGS100BL_01
Price: 171.0 USD
Availability: InStock

Black Seat with Slide Tracks Fits Case/International Harvester Replaces 3106006M91-1

$171.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Black Seat with Slide Tracks

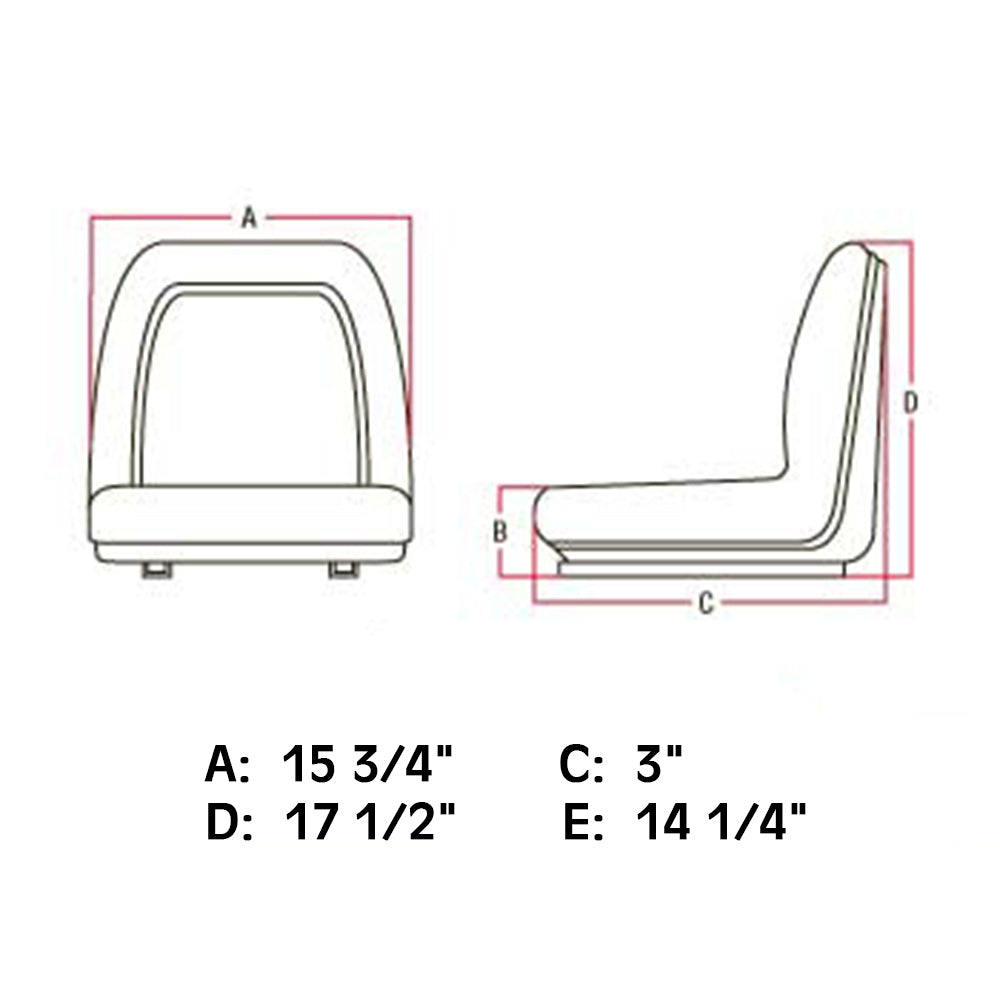

Tech Info:
Overall Width: 15-3/4"
Cushion Thickness: 3"
Overall Depth: 17-1/2"
Overall Height: 14-1/4"

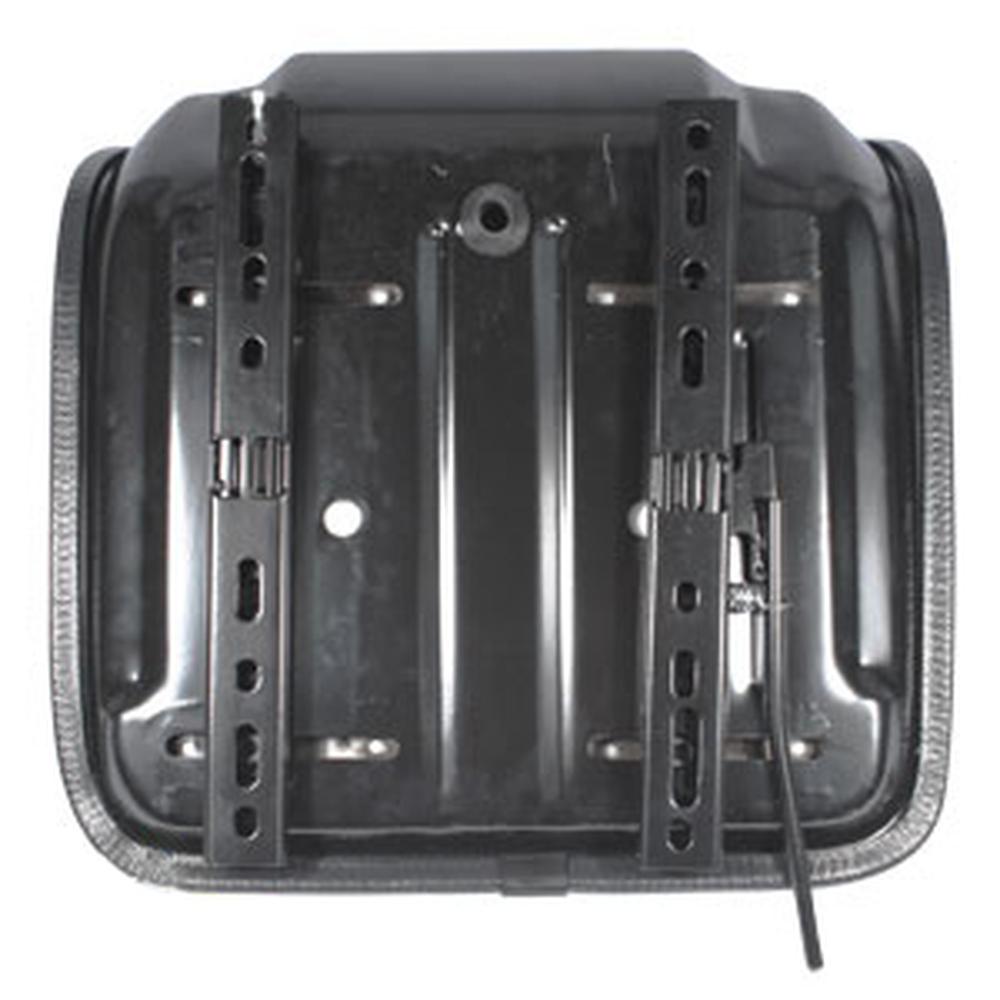

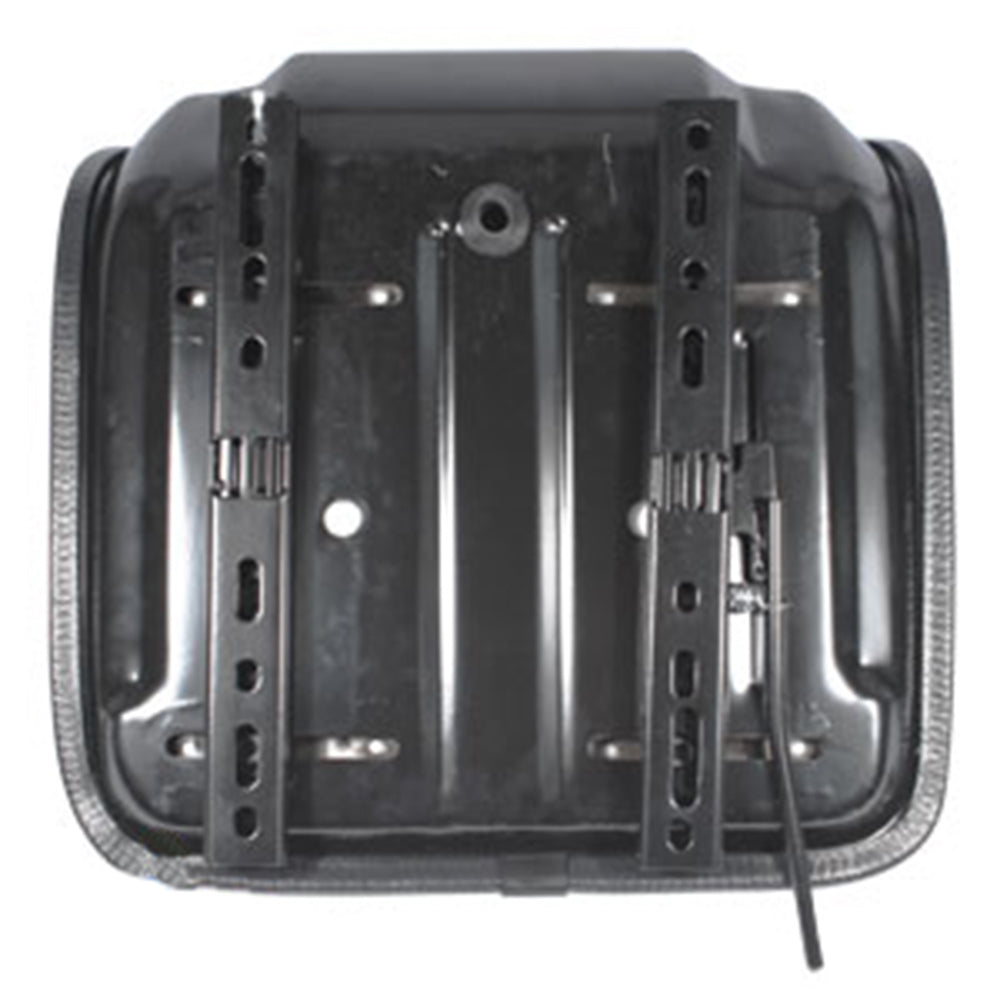

Includes Slide Adjustment Track

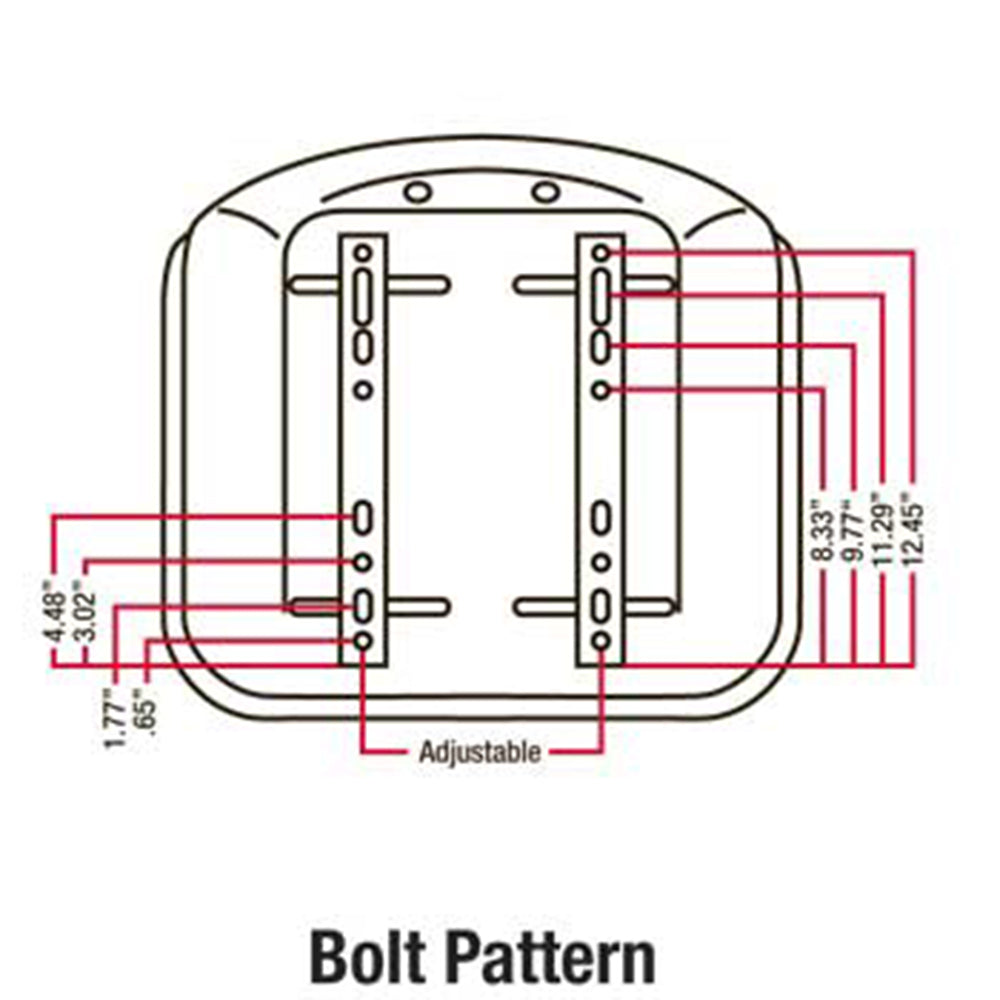

Bolt Pattern: Multiple Mounting Positions
Mounting Hole Spacing: .65", 1.77", 3.02", 4.48", 8.33", 9.77", 11.29", 12.45"
Slide Track Adjustable Width: 3.897" to 10.275"
Slide Track Horizontal Adjustment: 6.700" Max.

Made to Fits Case/International Harvester:
Replaces Part Number(s): 3106006M91-1

Models This Part Fits:

Utility Tractors, Orchard Tractors, Agricultural Tractors

Additional Information:

Overall Width: 15-3/4" Cushion Thickness: 3" Overall Depth: 17-1/2" Overall Height: 14-1/4" Includes Slide Adjustment Track Bolt Pattern: Multiple Mounting Positions Mounting Hole Spacing: .65", 1.77", 3.02", 4.48", 8.33", 9.77", 11.29", 12.45" Slide Track Adjustable Width: 3.897" to 10.275" Slide Track Horizontal Adjustment: 6.700" Max.
