Oil Pressure, Ammeter, and Water Temp Gauge Set Fits Agco Replaces 30V3485587

Name: Oil Pressure, Ammeter, and Water Temp Gauge Set Fits Agco Replaces 30V3485587
SKU: MFGAUGESET-CHROME_01
Price: 118.0 USD
Availability: InStock

Oil Pressure, Ammeter, and Water Temp Gauge Set Fits Agco Replaces 30V3485587

$118.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

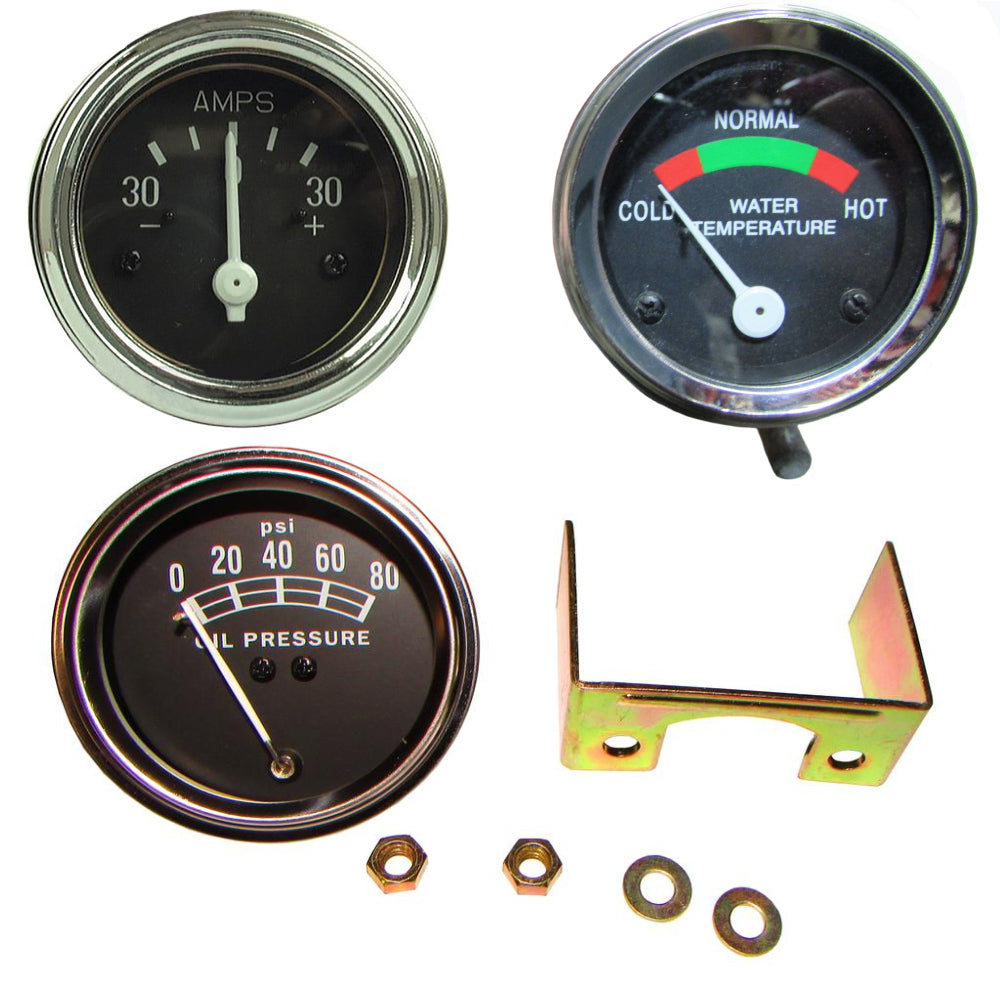

One New Aftermarket Oil Pressure, Ammeter, and Water Temp Gauge Set

Tech Info:
-Ammeter Gauge (30-0-30)
-30 Amp - Illuminated (Chrome Ring/Black Face)
-2" Diameter
-Black Face with Chrome Bezel
-Face Range: 30-0-30
-Replaces: 515521M91
-
-Temperature Gauge
-Chrome Ring with Black Face
-2" Body Diameter
-Mechanical Temp Gauge
-60" Capillary Tube with 3/8" NPT Nut and 1/2" NPT Bushing
-5/8" UNF Connector
-Range Cold to Hot
-6 or 12 Volt
-Replaces: 0236708, 1078125M91, 180727M91, 180727M92, 180727M93, 303485587, 30V3485587, 881369M91, 881396M91, 899455M91
-
-Oil Pressure Gauge
-Body Diameter: 2"
-80 PSI
-Chrome Bezel
-(1953-1964)
-Replaces: FAD9273A, 761511M91

Fits Agco:
Replaces Part Number(s): 30V3485587

Additional Information:

Ammeter Gauge (30-0-30) 30 Amp - Illuminated (Chrome Ring/Black Face) 2" Diameter Black Face with Chrome Bezel Face Range: 30-0-30 Replaces: 515521M91 Temperature Gauge Chrome Ring with Black Face 2" Body Diameter Mechanical Temp Gauge 60" Capillary Tube with 3/8" NPT Nut and 1/2" NPT Bushing 5/8" UNF Connector Range Cold to Hot 6 or 12 Volt Replaces: 0236708, 1078125M91, 180727M91, 180727M92, 180727M93, 303485587, 30V3485587, 881369M91, 881396M91, 899455M91 Oil Pressure Gauge Body Diameter: 2" 80 PSI Chrome Bezel (1953-1964) Replaces: FAD9273A, 761511M91
