3088581 Pin Link to cylinder Fits HITACHI ZX200, ZX210, ZX225
3088581 Pin Link to cylinder Fits HITACHI ZX200, ZX210, ZX225
Couldn't load pickup availability

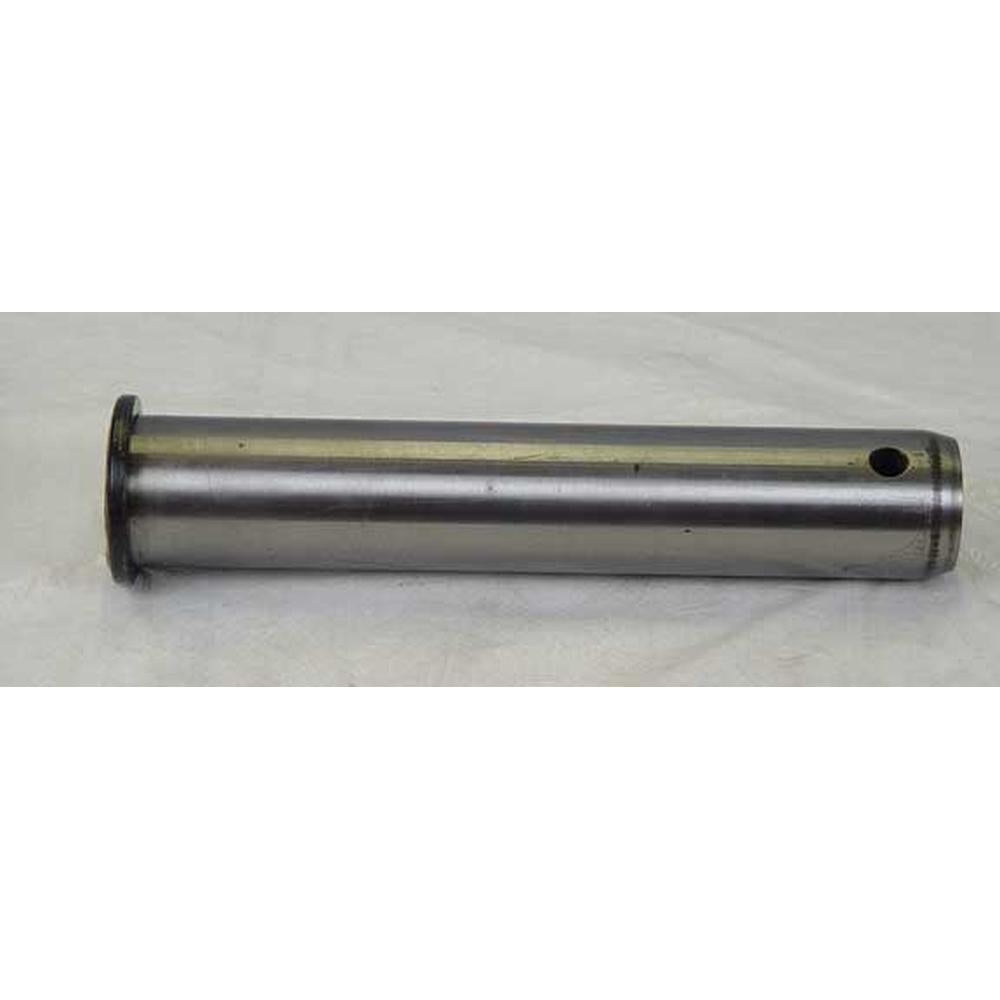

One New Aftermarket Replacement Bucket Cylinder Link Pin for Hitachi Excavators
This aftermarket replacement pin connects the H-link (bucket link) to the bucket cylinder rod end on Hitachi ZX-series and EX-series excavators. It is a precision-fit pivot pin in the bucket linkage assembly, located between the tipping link and the hydraulic cylinder, and must seat correctly for safe, low-wear bucket operation.
Specifications
- Diameter: 80 mm
- Length: 424 mm
- Flange: 85 mm diameter, 11 mm thick
- 1 bolt hole; induction hardened
Compatible Models
Hitachi ZX-Series Excavators: ZX180LC, ZX180LC-3, ZX180LC-5G, ZX180LC-5N, ZX180LC-6N, ZX180W, ZX190W-3, ZX190W-5N, ZX190W-6N, ZX200, ZX200-3, ZX200-5G, ZX200E-3, ZX200ELC-3, ZX200H, ZX200LC, ZX200LC-3, ZX200LC-5G, ZX200X-3, ZX200XLC-3, ZX210, ZX210-3, ZX210-5G, ZX210-5N, ZX210-6N, ZX210H, ZX210H-3, ZX210K-3, ZX210LC, ZX210LC-3, ZX210LC-5G, ZX210LC-5N, ZX210LC-6N, ZX210LCH, ZX210LCH-3, ZX210LCK-3, ZX210LCN-3, ZX210W, ZX210W-3, ZX220W-3, ZX225US, ZX225USLC, ZX225USLC-3, ZX230W-5N, ZX240-3, ZX245USLC, ZX245USLC-6N, ZX250H-3, ZX250K-3, ZX250W-3, ZX330-3
Hitachi EX-Series Excavators: EX200, EX200-2, EX200-3, EX200-5, EX200LC, EX200LC-2, EX200LC-3, EX200LC-5, EX210H-5, EX210LCH-5
Replaces Part Number(s):
3088581
Aftermarket Interchange Numbers
AT317252, 3036973, T144754
New aftermarket replacement part - not remanufactured, not used.
