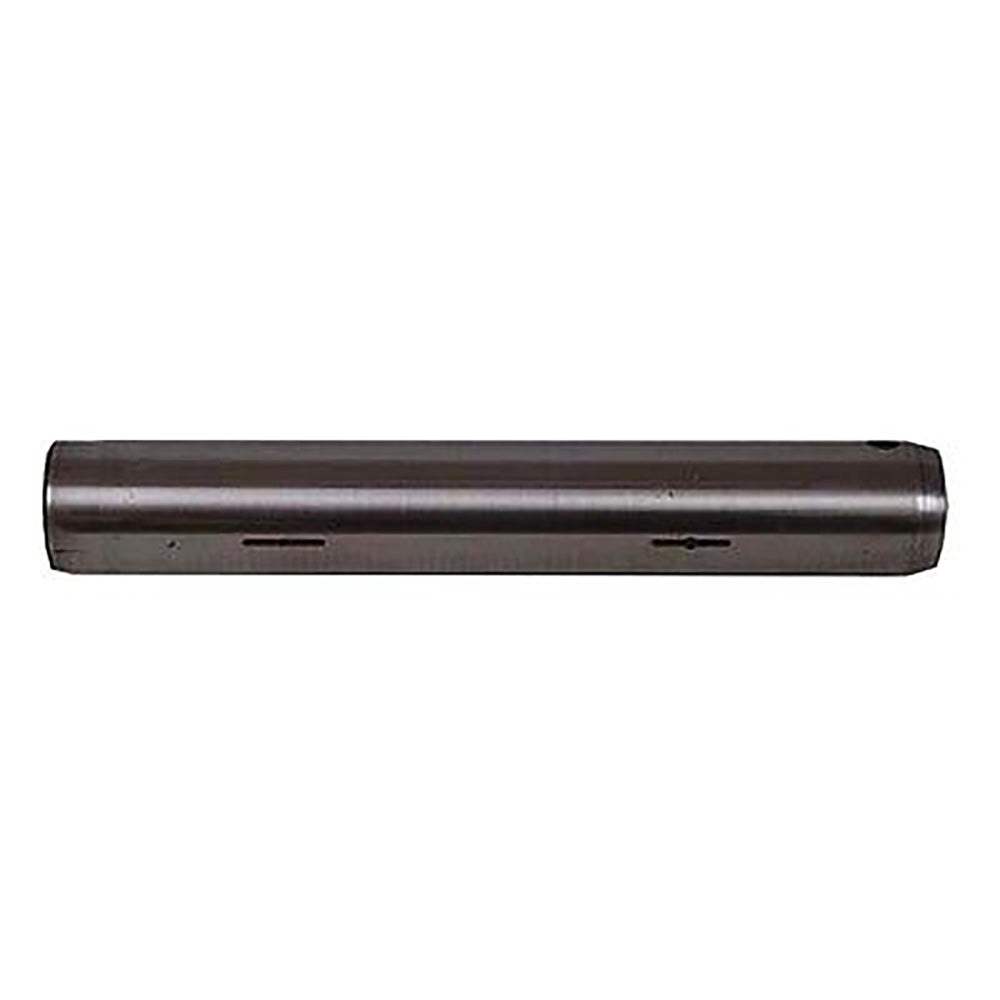

One New Aftermarket Replacement Bucket to H-Link Pin for Hitachi EX300 Series Excavators
This bucket to H-link pin is a critical linkage component in the bucket attachment system of Hitachi EX300 series hydraulic excavators. The H-link pin connects the excavator bucket to the H-link (also called the coupling link), allowing the bucket to pivot and articulate during digging and material handling operations. One pin required per machine.
Specifications
- Diameter: 100 mm
- Length: 636.5 mm
- Flange Diameter: 105 mm
- Flange Thickness: 10 mm
- 2 Bolt Holes
- 2 Grease Holes
Compatible Models
Hitachi EX300 Series: EX300-2, EX300-3, EX300-5, EX300LC, EX300LC-2, EX300LC-3, EX300LC-3C
Replaces Part Number(s):
3041581, BAN90-0042
Aftermarket Interchange Numbers
3084547, TH112086
New aftermarket replacement part - not remanufactured, not used.
