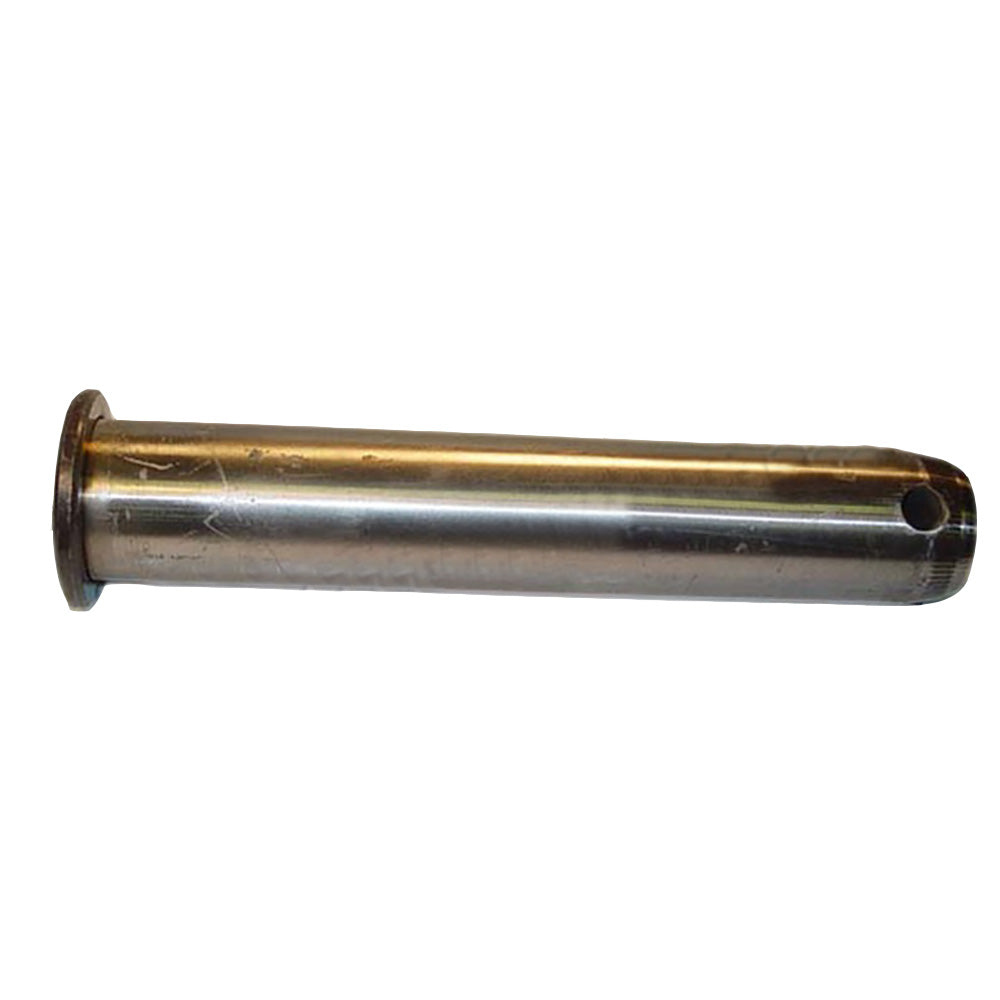

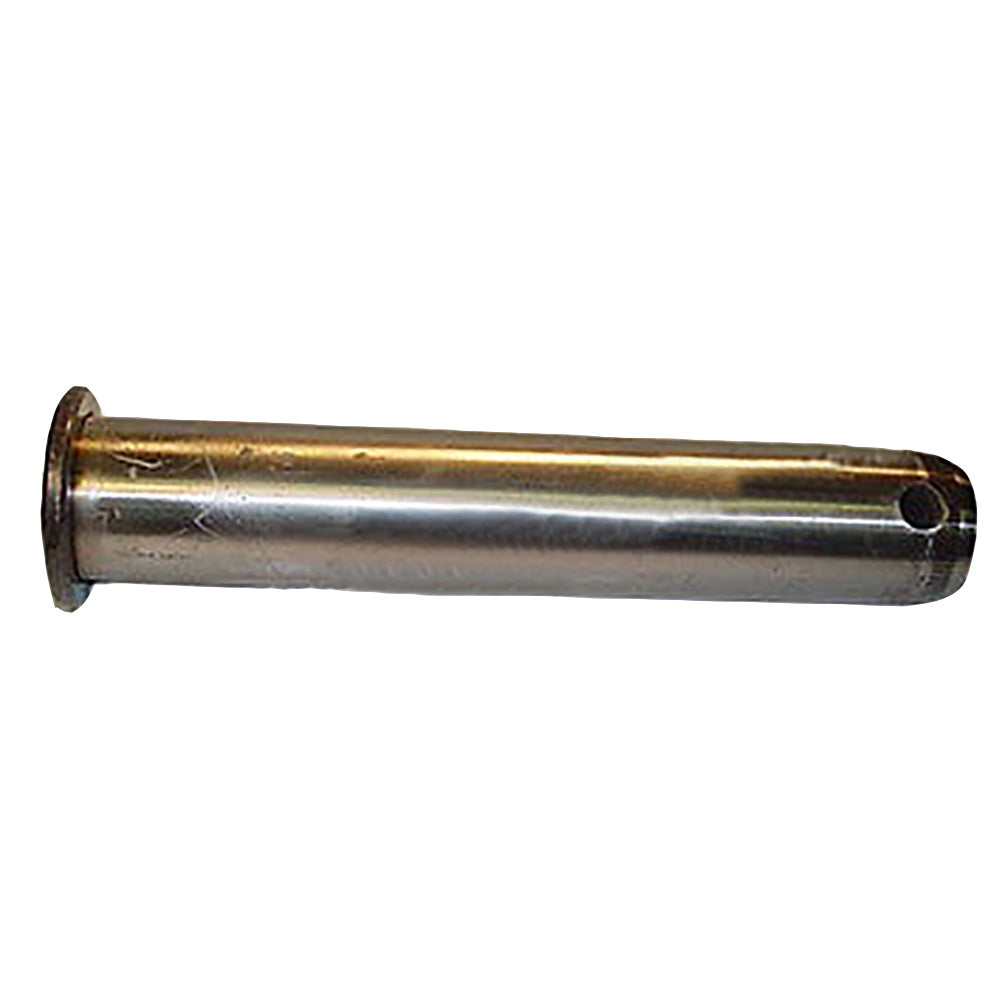

3037079 Pin Link to dipper Fits HITACHI EX100-1, EX100-2, EX100-3, EX100-5, EX1
3037079 Pin Link to dipper Fits HITACHI EX100-1, EX100-2, EX100-3, EX100-5, EX1
Regular price
$383.00 CAD
Regular price
Sale price
$383.00 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
One New Aftermarket Replacement Bucket Linkage Pin Fits John Deere and Hitachi Excavators
This bucket linkage pin (Pin - Link to Dipper) connects the bucket H-link to the dipper stick arm on the excavator's bucket attachment system. It is a precision-fit structural pin engineered to withstand the high-cycle stress and side loading typical of excavator bucket linkages.
Specifications
- Diameter: 65 mm
- Length: 355 mm
- Flange Diameter: 70 mm
- Flange Thickness: 10 mm
- 1 Bolt Hole, 1 Grease Hole
- Induction Hardened 3+ mm Deep to HWC 52-56
- High Carbon Steel (equivalent to S45C)
Compatible Models
Fits John Deere Excavators: 110, 120, 490D, 490E, 493D, 495D
Hitachi Excavators: EX100, EX100-1, EX100-2, EX100-3, EX100-5, EX100M, EX100M-2, EX100M-3, EX100W, EX100WD, EX100WD-2, EX100WD-3, EX120, EX120-2, EX120-3, EX120-5
Replaces Part Number(s):
3037079, TH108940, AP33639, 9737122
New aftermarket replacement part - not remanufactured, not used.
