3037079 Linkage Pin fits Hitachi Crawler Dozer Bucket EX100 EX120
3037079 Linkage Pin fits Hitachi Crawler Dozer Bucket EX100 EX120
Regular price
$383.00 CAD
Regular price
Sale price
$383.00 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

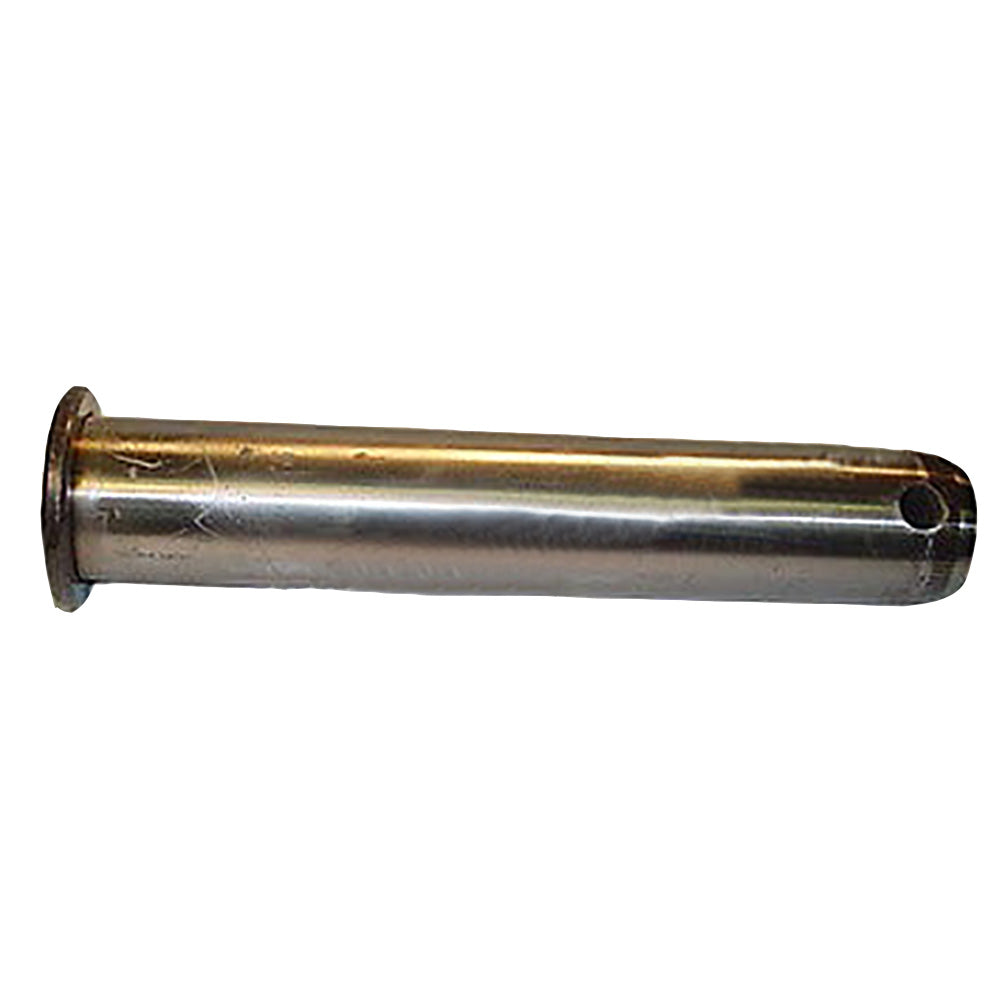

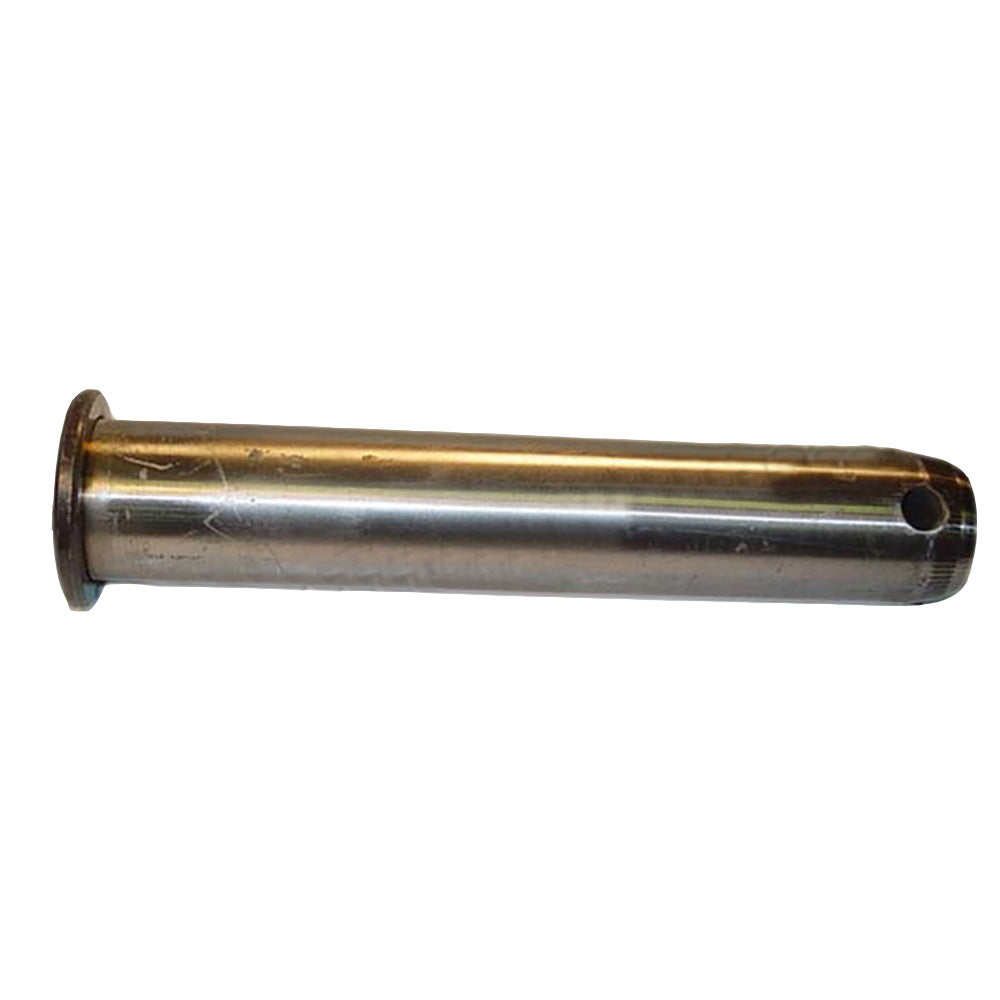

One New Aftermarket Replacement Bucket Linkage Pin Fits John Deere and Hitachi Excavators
This bucket linkage pin connects the bucket to the dipper stick linkage assembly on Fits John Deere and Hitachi hydraulic excavators. Manufactured from high carbon steel (S45C equivalent) and induction hardened for maximum service life, this pin is matched in material and heat treatment to work correctly with existing linkage bushings.
Specifications
- Diameter: 65 mm
- Length: 355 mm
- Flange Diameter: 70 mm
- Flange Thickness: 10 mm
- 1 bolt hole, 1 grease hole
- Induction hardened 3+ mm deep to HWC 52-56
- Material: High carbon steel bar equal to S45C
Compatible Models
Fits John Deere Excavators: 110, 120, 490D, 490E, 493D, 495D
Hitachi Excavators: EX100, EX100-2, EX100-3, EX100M-3, EX100M-5, EX100WD, EX110-5, EX120, EX120-5
Replaces Part Number(s):
3037079, AP33639, TH108940, 9737122
New aftermarket replacement part - not remanufactured, not used.
