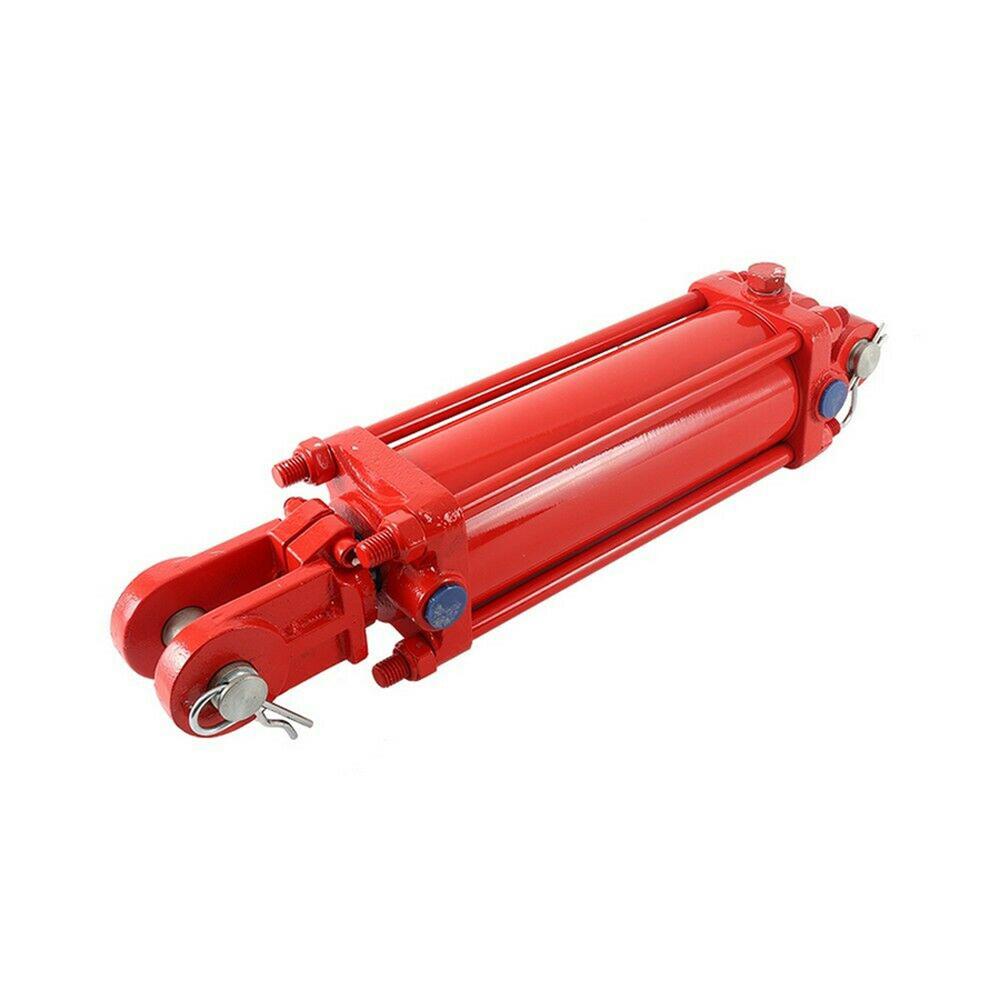

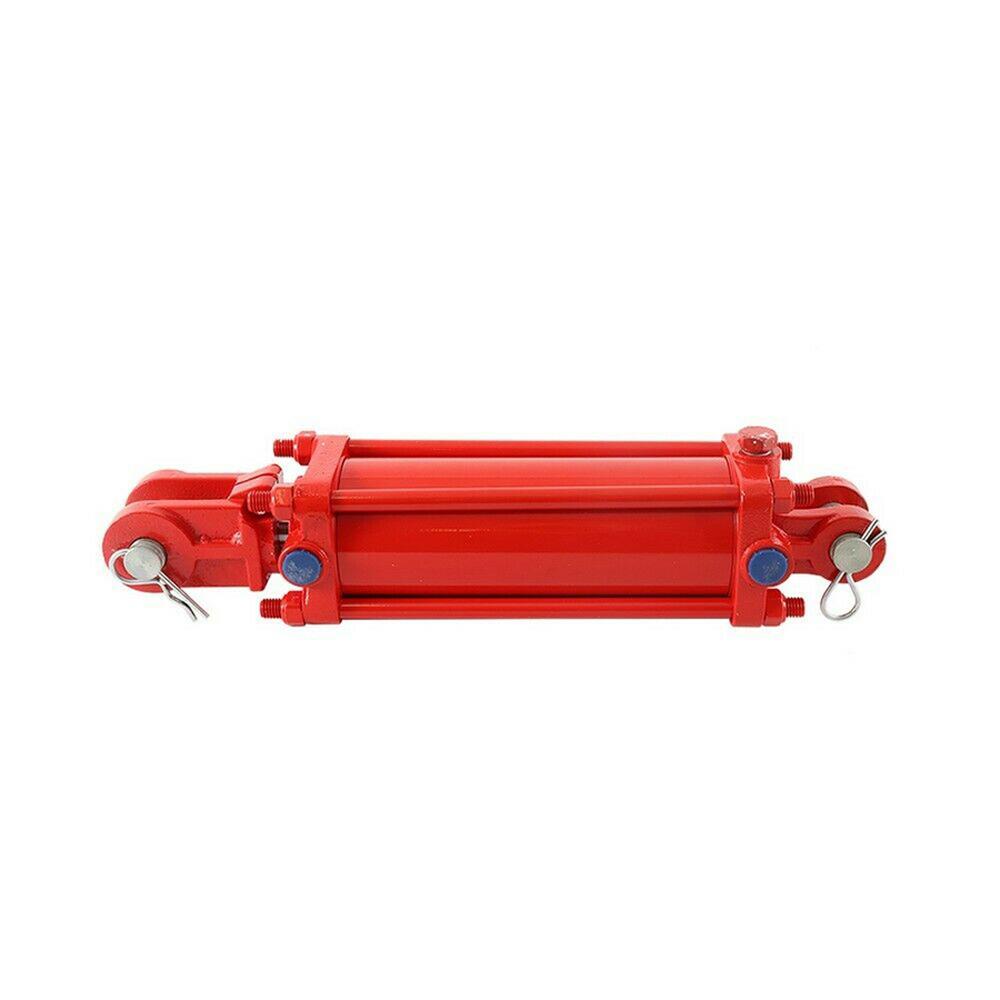

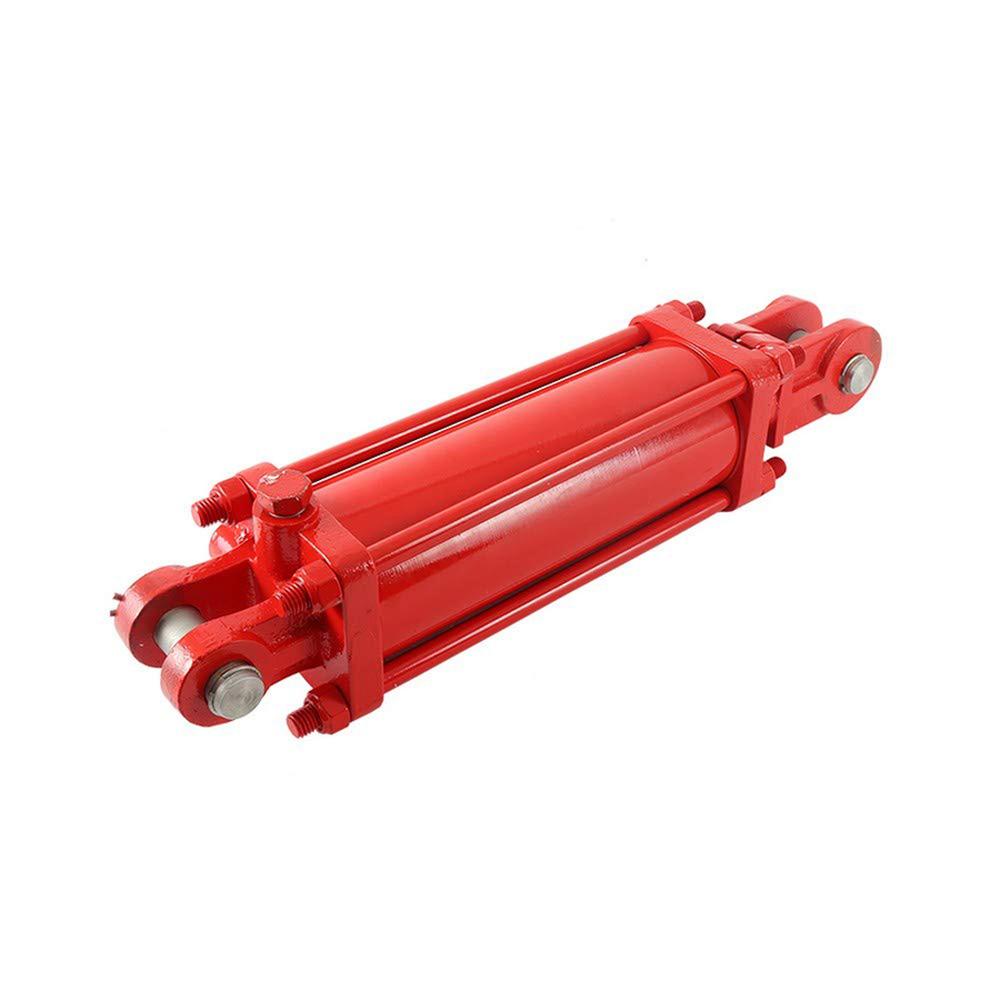

3001-5045 - Hydraulic Cylinder
3001-5045 - Hydraulic Cylinder
Regular price
$372.00 CAD
Regular price
Sale price
$372.00 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
One New Aftermarket 3001-5045 - Hydraulic Cylinder
Tech Info:
-Double acting tie rod cylinder. Pin Dia: 1", Port Dia: 1/2"-NPT, Bore Dia: 3", Stroke: 8", Rod OD: 1.25", Closed Length: 18.45", Use seal kit 3001-4007, Rated working pressure is 2500 PSI. Never use Made With Teflon tape...a pipe port is a tapered thread and it is very easy to crack a casting if Made With Teflon tape is used. Use of liquid pipe sealant is the only approved installation method.
