2X ZGZ L44643 L44610 Tapered Roller Bearing Set Wheel Axle Mower Fork Harley

2X ZGZ L44643 L44610 Tapered Roller Bearing Set Wheel Axle Mower Fork Harley

$26.00 CAD
$26.00 CAD
Sale Sold out
Shipping calculated at checkout.

Two New Aftermarket Replacement L44643/L44610 Tapered Roller Bearing Sets for Agricultural, Lawn & Garden, and Rotary Cutter Applications

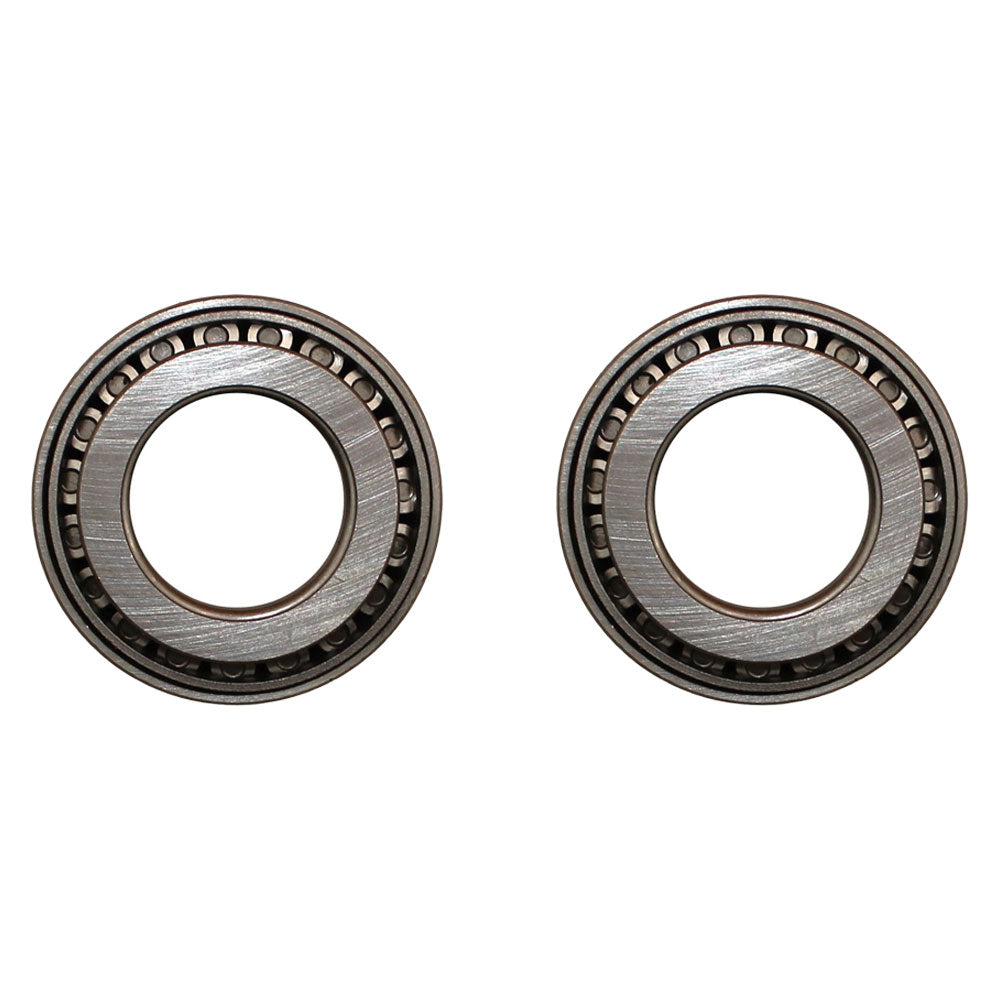

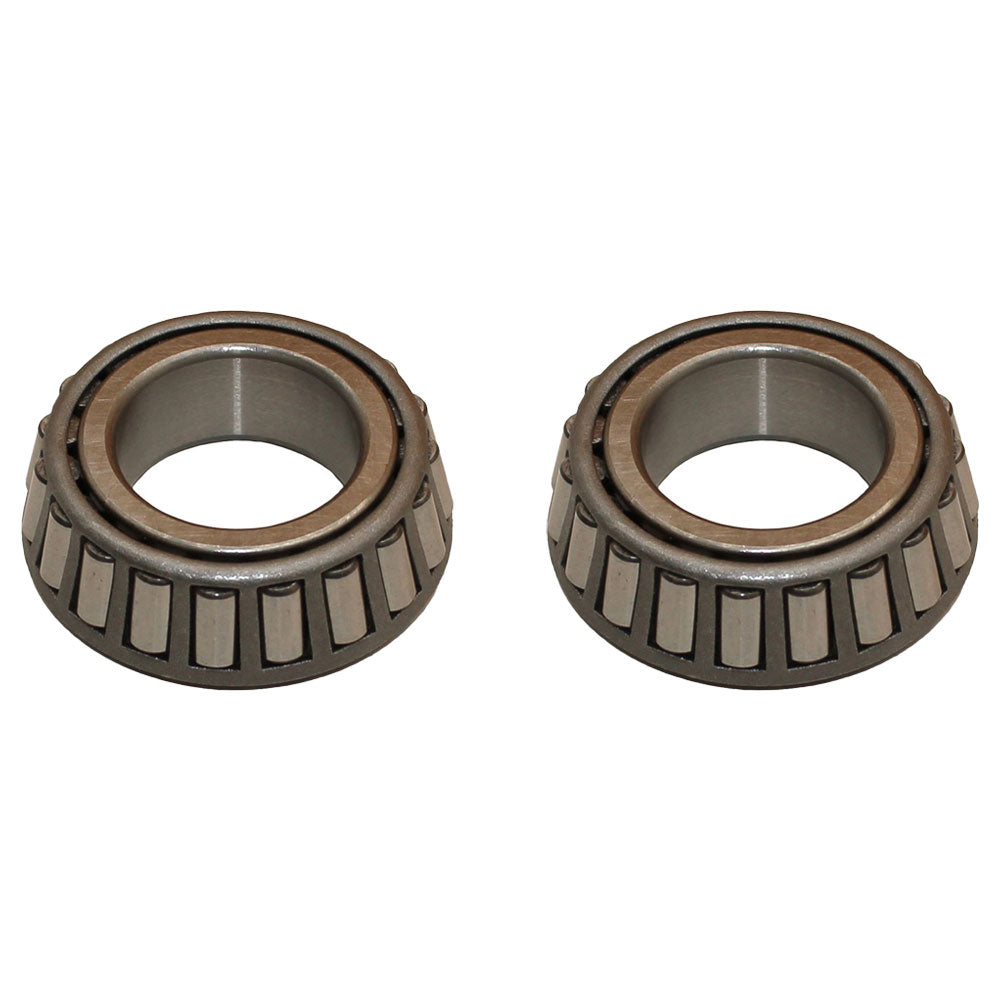

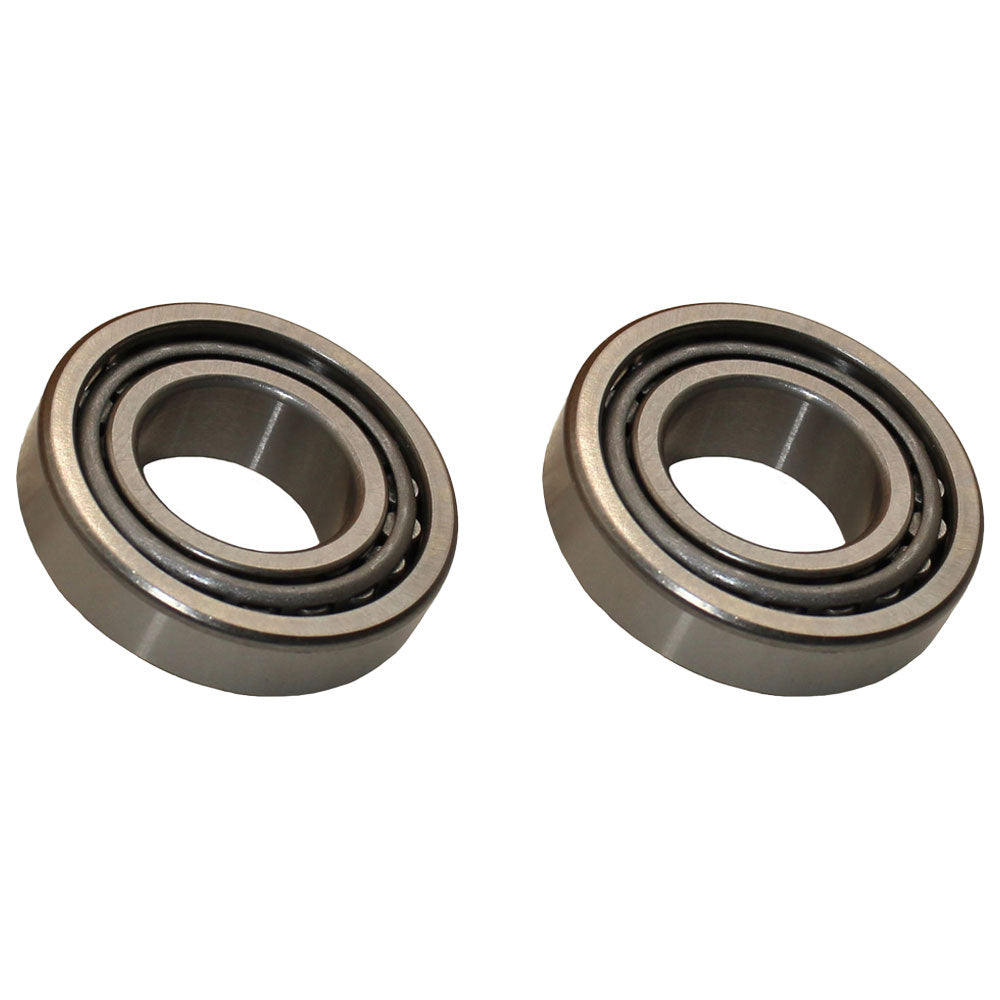

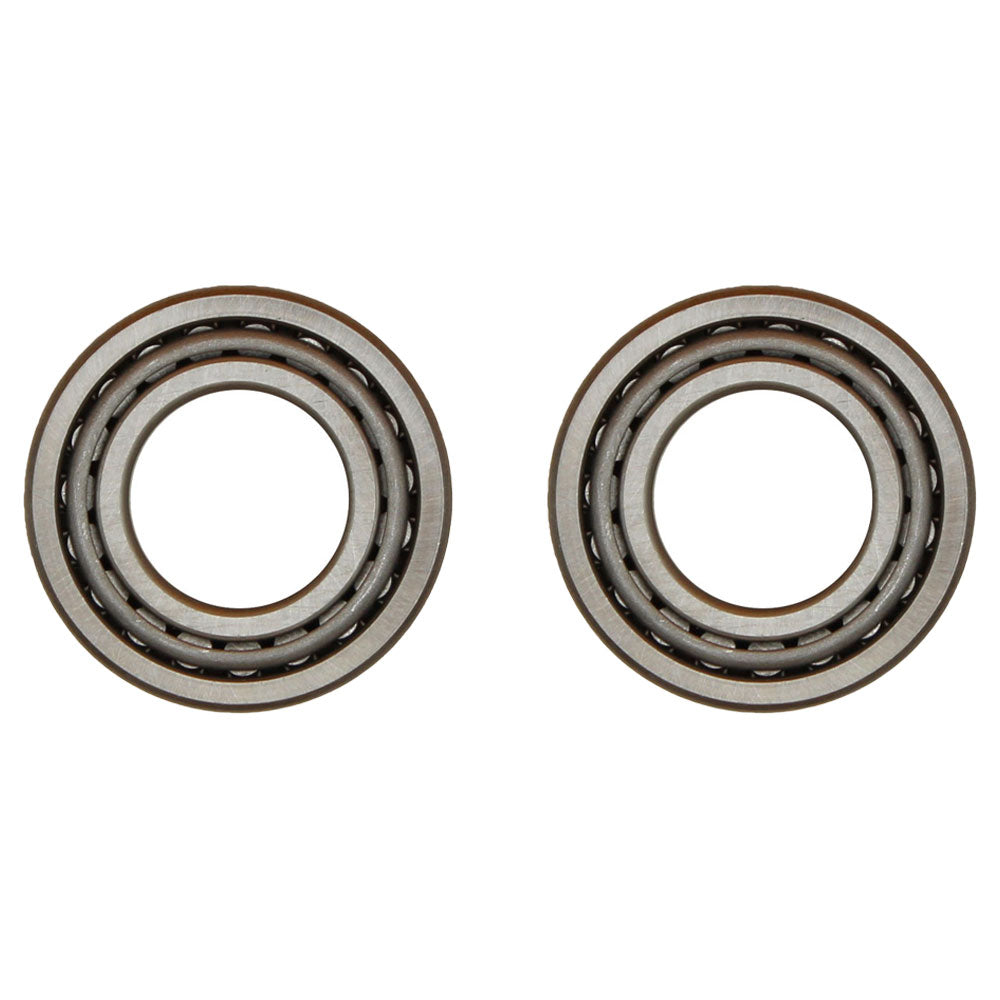

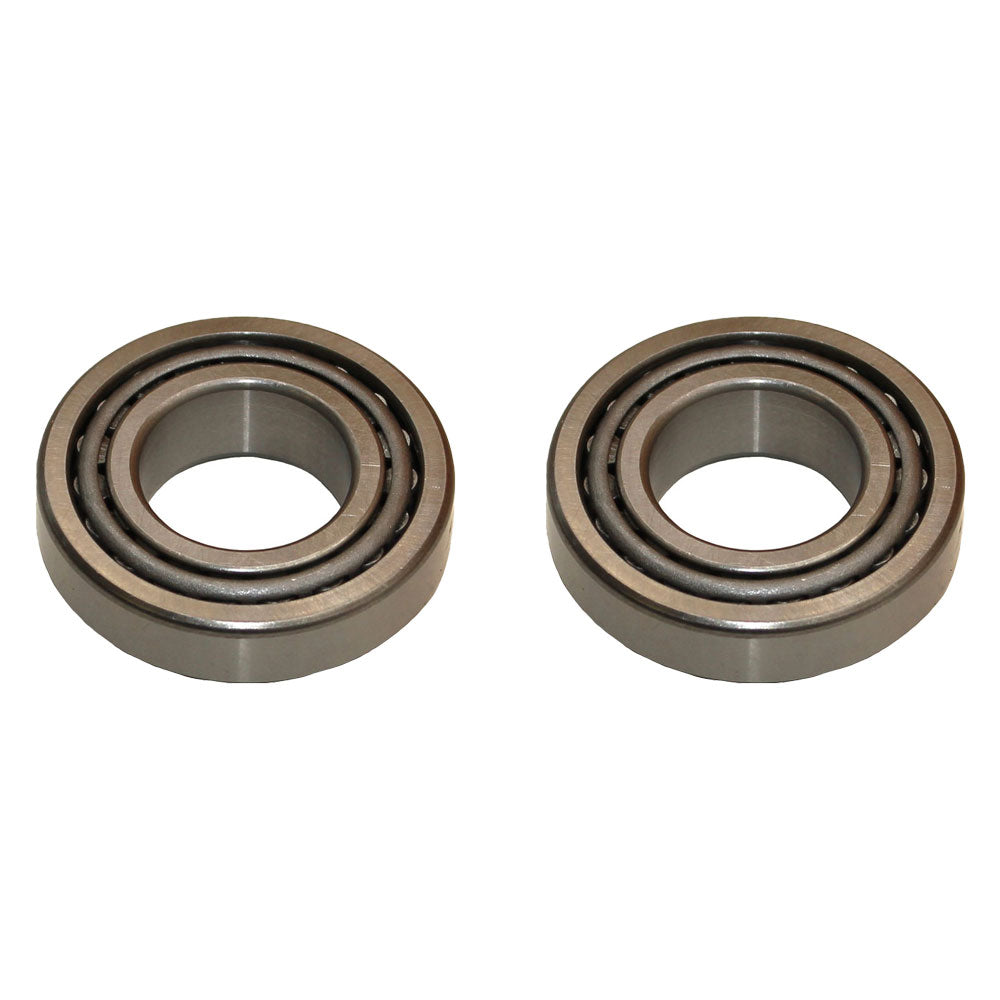

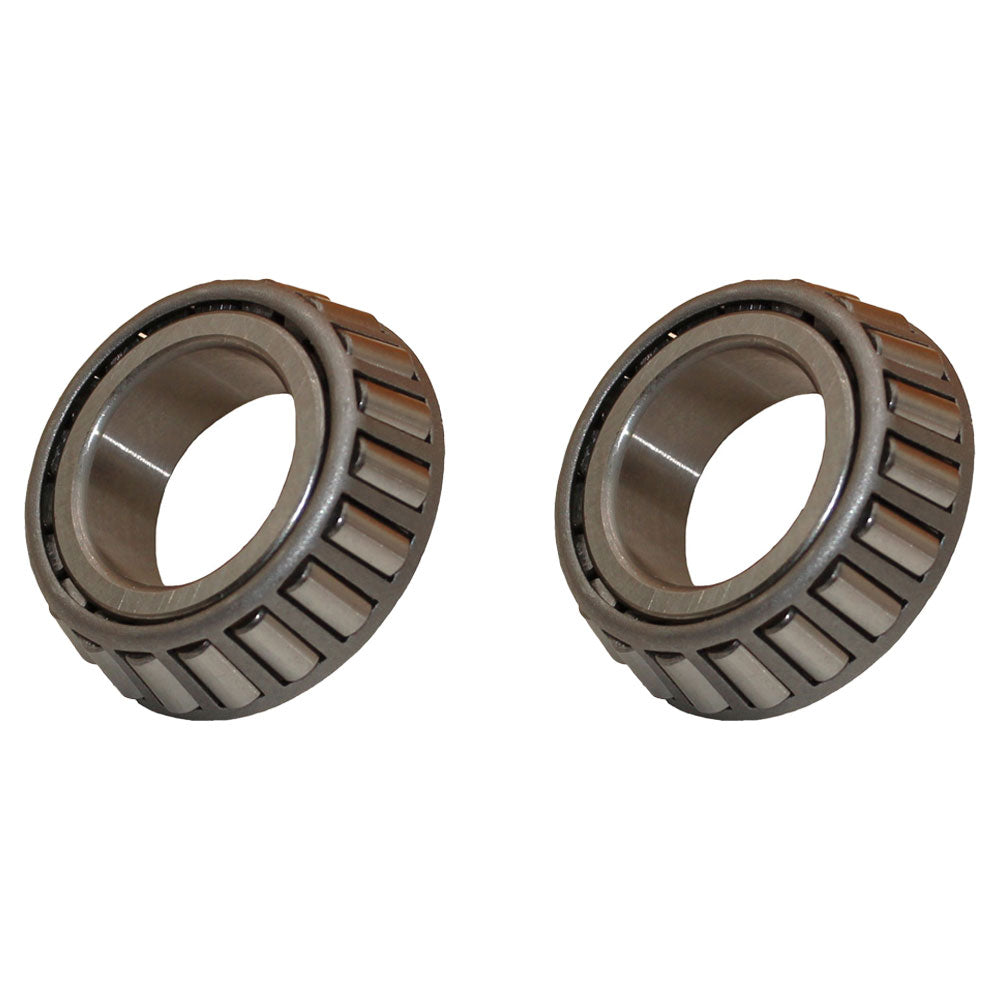

This listing includes two (2) complete L44643/L44610 tapered roller bearing sets, each consisting of one L44643 cone (inner ring assembly) and one L44610 cup (outer ring). These single-row tapered roller bearings handle both radial and axial loads and are widely used on wheel hubs, axle spindles, mower decks, rotary cutter forks, and Harley-Davidson front forks. Made from 52100 bearing-grade chromium steel, they are a direct aftermarket replacement for a broad range of agricultural, lawn and garden, and light industrial equipment.

Specifications (Per Bearing Set)

  • Cone: L44643 | Cup: L44610
  • Bore (Inner Diameter): 1.000 in (25.40 mm)
  • Cup Outer Diameter: 1.980 in (50.29 mm)
  • Cone Width: 0.580 in (14.73 mm)
  • Cup Width: 0.420 in (10.67 mm)
  • Combined Bearing Width: 0.560 in (14.22 mm)
  • Fillet Radius: 0.050 in
  • Material: 52100 Bearing-Grade Chromium Steel
  • Quantity: 2 sets included

Compatible Equipment (Partial List)

Bush Hog Rotary Cutters: 105, 109, 126, 266, 305, 306, 307, 315, 405, 405HR, 406, 406HR, 502, 600, 1050, 1051, 1109, 1126, 1209, 1226, 1307, 1405, 1406

Rhino / Servis-Rhino Rotary Cutters: T52LT, T160LT, T160LTO, T166LT, T166LTO, T172LT, T172LTO

Hesston / Massey Ferguson Swathers/Windrowers: 95, 104, 782, 8400, 8820, 8830, 8840

Case/International Harvester Combines: 2344, 2366, 2377, 2388, 2577, 2588

GEHL: 12

Harley-Davidson: Front fork / wheel axle applications (replaces 48300-60, 45586-78)

Additional Fitment: Ariens, Bad Boy, Bobcat, Cushman, Dixie Chopper, E-Z-GO, Ferris, Grasshopper, Gravely, Great Dane, Jacobsen, Lawn-Boy, Scag, Simplicity, Taylor-Dunn, Toro, Woods, and other equipment using a 1.000 in spindle. Verify bore diameter before ordering.

Replaces Part Number(s):

L44643, 373024F, 132710, 101100, 15192SW, 322, 851-IM44643, 913-L44643, L44643-I, D29266, AC23, 22BH, C33, C33-RC, 520206, JD8933, 70341230, 832189M1, 710236

Aftermarket Interchange Numbers

ZGZ L44643/L44610; Timken SET-14 (L44643/L44610); RBI L44643/L44610; NTN 4T-L44643/L44610; PEER L44643

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

126, 1307, 405HR, T166LT, 2577, 1405, 305, T172LT, agricultural, 1051, 782, earthmoving, compacting, 307, tillage equipment, 8830, 600, tractors, 406HR, 1050, T172LTO, T160LT, 104, 315, 8840, 12, 406, 1209, 405, material handling, planting, 1126, planting equipment, 306, 105, 2344, tillage, 266, 109, 1406, T160LTO, 8400, 2388, T52LT, 2588, 502, 1109, 2377, 1226, 2366, hauling, 8820, T166LTO, 95

Additional Information:

Quantity 2 Bore: 1.0" Radius: .05" Width: .580"

Reference Numbers:

70341230, 832189M1, AC23, C33, C33-RC, JD8933, 710236, D29266, 520206, 22BH, 373024F, 101100, 15192SW, 322,851-IM44643, 913-L44643, L44643-I, 132710

Product Sub Group:

Bearings, Bushings, Seals
