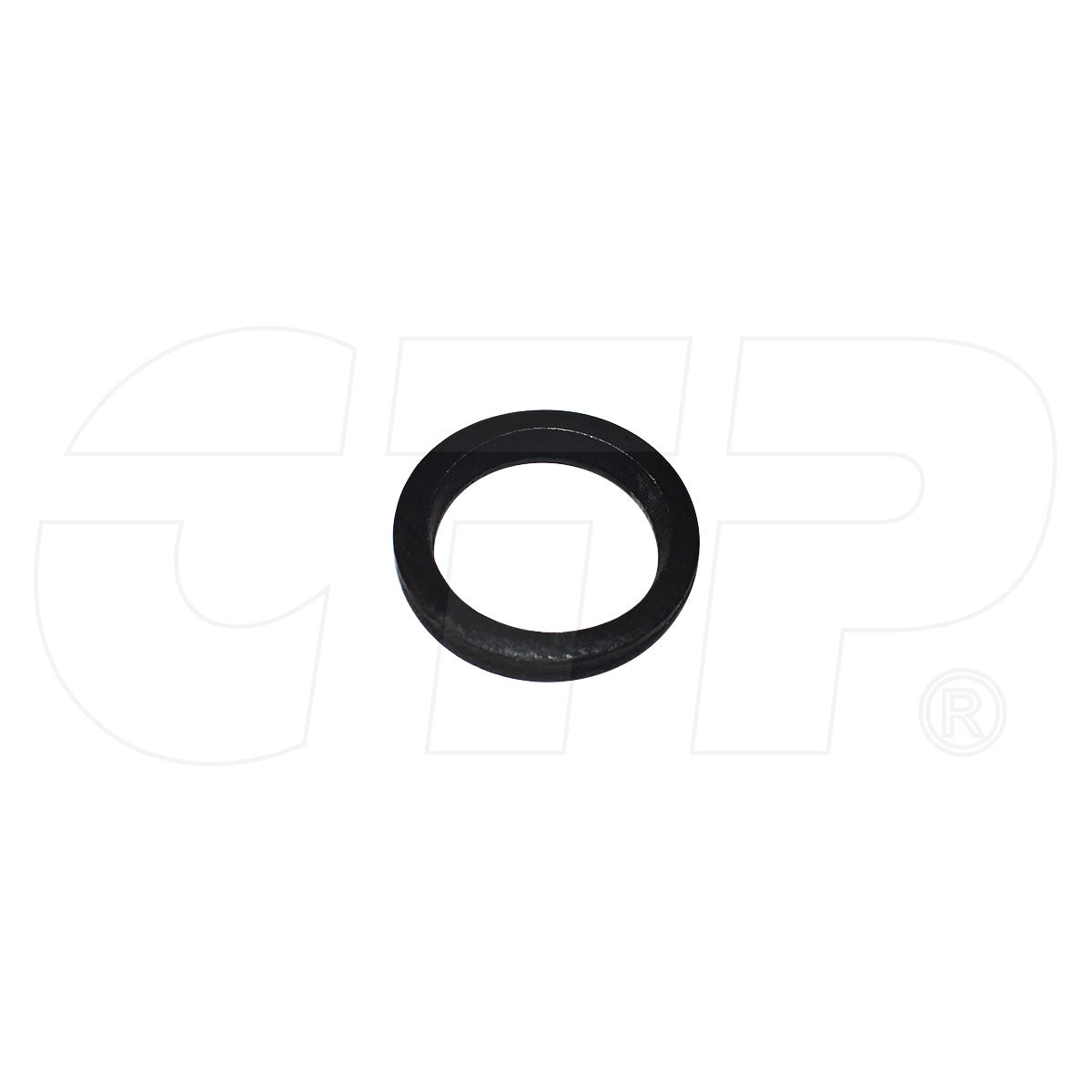

2S8966 Gasket Kit-Chamber Fits Caterpillar Models

One New Aftermarket Replacement Precombustion Chamber Gasket Kit for Caterpillar (Cat) 3304 & 3306 Engines

This precombustion chamber gasket kit (also described as a precomb chamber gasket set) seals the precombustion chambers in Caterpillar 3304 and 3306 diesel engines. The precombustion chamber is the space where fuel is ignited and the combustion process begins; proper sealing at this interface is critical to compression, cold-start performance, and preventing coolant or combustion gas leaks. This kit contains multiple gaskets of varying thickness to allow correct rotational positioning of the chamber during installation, plus an O-ring chamber seal.

Kit Includes

• 2S8959 Gasket, Chamber - 5.70mm
• 2S8960 Gasket, Chamber - 6.30mm
• 5M2667 Gasket, Chamber - 4.93mm
• 7S3206 Seal, O-Ring Chamber

Specifications

• Dimensions: approx. 3.5 x 6 x 0.08 in.
• Weight: approx. 0.3 lbs.
• OEM alternate format: 2S-8966

Compatible Models

Caterpillar Engines (Industrial & Marine): 3304, 3306, D330A, D330B

Caterpillar Excavators: 225

Caterpillar Motor Graders: 140B

Caterpillar Track-Type Loaders: 941, 951B, 955H, 955K

Caterpillar Wheel Loaders: 950, 966C

Caterpillar Track-Type Tractors: D4D, D5, D6C, D7F

Replaces Part Number(s):

2S8966, 2S-8966

New aftermarket replacement part - not remanufactured, not used.
