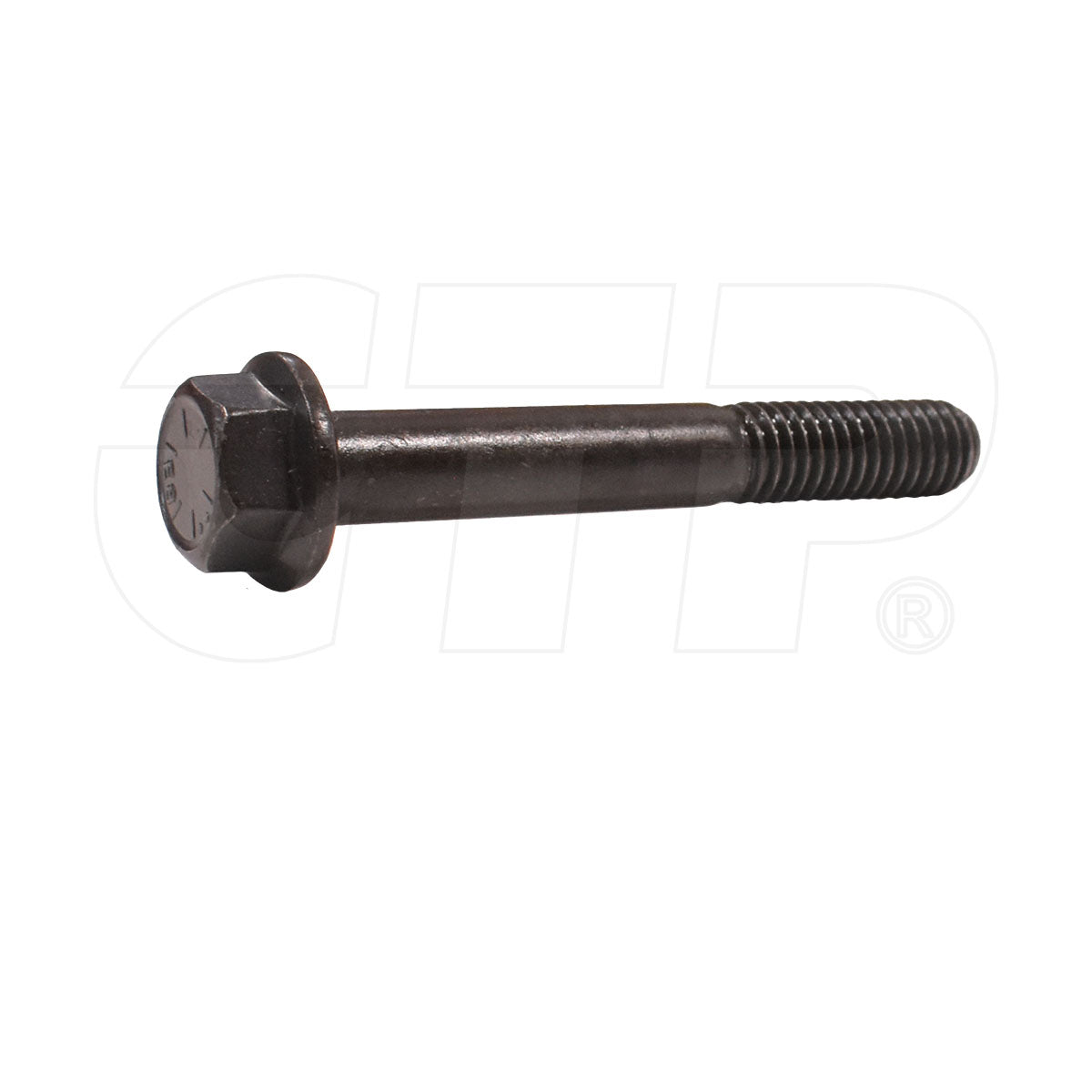

2P3209 Bolt-Hex Fits Caterpillar Models
2P3209 Bolt-Hex Fits Caterpillar Models
Couldn't load pickup availability
One New Aftermarket Replacement Bolt - Washer Head for Caterpillar (Cat) Equipment
This aftermarket replacement Bolt - Washer Head (also listed as Bolt-Hex) replaces Caterpillar OEM part number 2P3209. It is a high-strength flange-style washer head bolt used across a wide range of Caterpillar construction, earthmoving, and engine applications.
Specifications
- Thread Size: 3/8-16 UNC
- Overall Length: 69.85 mm (approx. 2.75 in)
- Grip Length: 44.45 mm
- Flange Diameter: 17.14 mm
- Head Height: 9.91 mm
- Hex Size: 14.29 mm
- Material: Steel, 1035 MPa Min Tensile Strength, Rc 33-39
Compatible Models
Caterpillar Motor Graders: 12F, 12G, 14G, 16G, 120B, 130G, 140, 140B
Caterpillar Wheel Loaders: 920, 930, 950, 966C
Caterpillar Track-Type Tractors / Dozers: D4D, D5, D6C, D7F, D10N, D10R, D10T, D10T2, D11R, D11T
Caterpillar Track Loaders: 941, 951B, 955K, 955L, 977K
Caterpillar Scrapers: 627B
Caterpillar Compactors: 814, 815, 816
Caterpillar Excavators: 225
Caterpillar Engines: 3304, 3306
Caterpillar Underground Mining: R1300, 518
Replaces Part Number(s):
2P3209, 2P-3209
Aftermarket Interchange Numbers
CA2P3209
New aftermarket replacement part - not remanufactured, not used.
