2F7761 Gasket Fits Caterpillar Models

One New Aftermarket Replacement Turbo Feed Flange Gasket for Caterpillar (Cat) Engines and Equipment

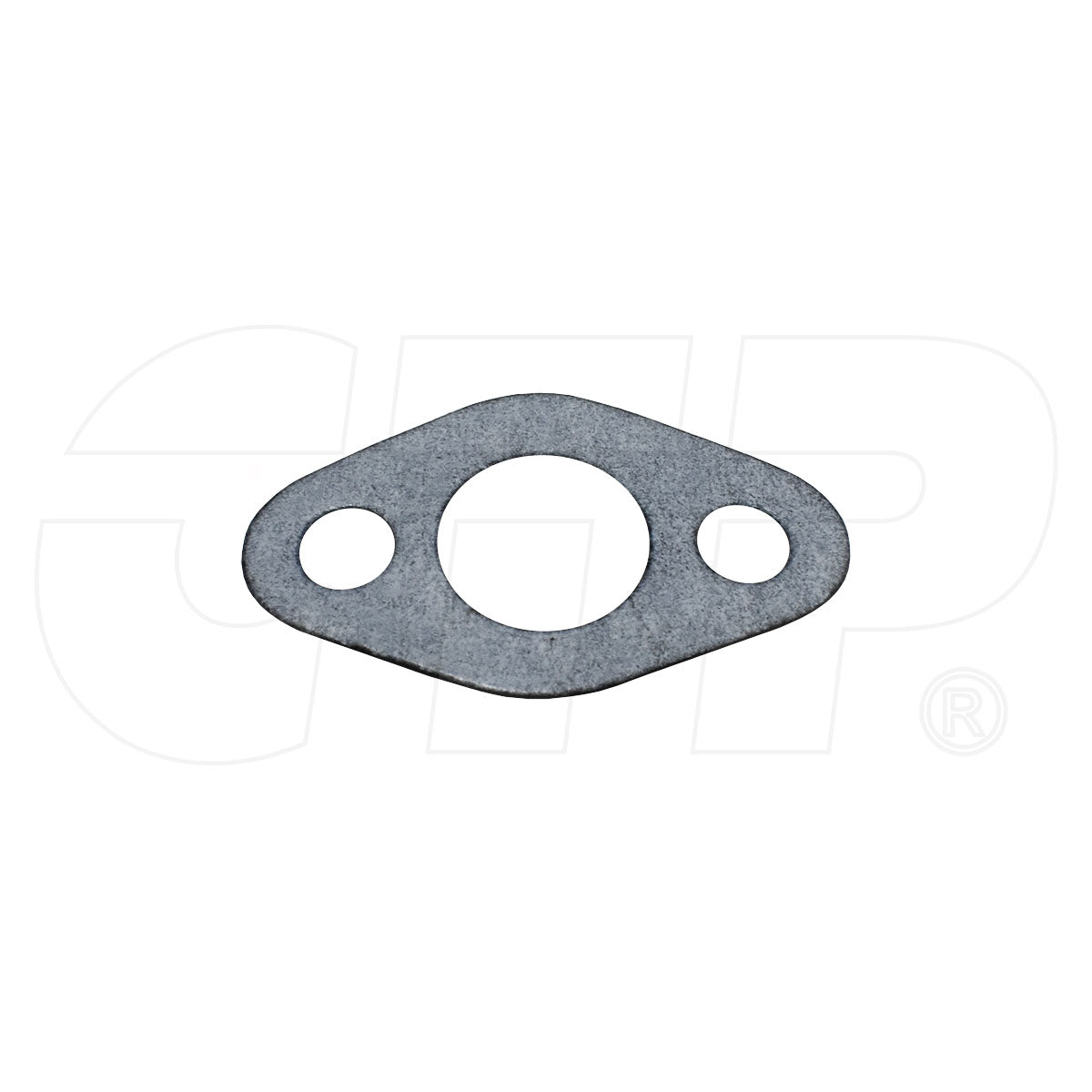

This aftermarket replacement turbo feed flange gasket (2F7761 / 2F-7761) provides a tight, leak-free seal at the turbocharger oil feed line connection on Caterpillar D342, D342C, D8H, and G342C engines, as well as a wide range of Cat-powered machines. It is a flat, two-hole flange-style gasket made from low-compressibility sheet gasket material. Supersedes OEM number 8H9788.

Specifications

• Style: Flat, 2-Hole Flange
• Material: Low-compressibility sheet gasket material
• Outside Diameter: 1.38 in.
• Inside Diameter: 0.78 in.
• Distance Between Flange Holes: 1.50 in.
• Hole Size: 0.38 in. (x2)
• Thickness: 0.03 in.
• Weight: 0.1 lbs.
• Dimensions (pkg): 2.36 x 1.38 x 0.5 in.

Compatible Models

Caterpillar Engines: D342, D342C, G342C, D330C, D333C, 3116, 3126B, 3126E, 3176, 3176B, 3176C, 3196, 3304, 3304B, 3306, 3306B, 3306C, 3406B, 3406C, 3412E, C-10, C-12

Caterpillar Track-Type Tractors: D8H

Caterpillar Wheel-Type Loaders: 924G, 928G, 938F, 938G, 950F, 950F II, 960F, 966G, 972G

Caterpillar Motor Graders: 12G, 12H, 12H ES, 12H NA, 120G, 130G, 140G, 140H, 140H ES, 140H NA, 143H, 14G, 14H NA, 160H, 160H ES, 160H NA, 163H NA, 16H

Caterpillar Articulated Dump Trucks: 725, D250E, D250E II, D300E

Caterpillar Challengers: 65C, 65D, 65E, 75C, 75D, 75E, 85C, 85E, 95E, MT835, MT845, MT855, MT865, MTC835, MTC845, MTC855, MTC865

Caterpillar Earthmoving Compactors: 815B, 815F, 816F

Caterpillar Wheel-Type Skidders: 515, 518C, 525, 528B, 545

Caterpillar Track-Type Loaders: 963B, 973, 973C

Caterpillar Excavators: 330-A, 330-A L, 330B L, 330B LN, 345B, 345B II, 345B II MH, 345B L, 350-A, 365B, 365B II, 365B L

Caterpillar Pipelayers: 561M, 572R, 572R II, 583H

Caterpillar Wheel Tractor-Scrapers: 611, 615, 615C, 615C II

Caterpillar Wheel Dozers: 814F

Caterpillar Integrated Toolcarriers: IT28G, IT38F

Caterpillar Wheeled Excavators: W345B II

Caterpillar Generator Sets: SR4, 3306B, 3516B, 3516C, PM3516

Replaces Part Number(s):

2F7761, 2F-7761, 8H9788, CA2F7761, M-2F7761

New aftermarket replacement part - not remanufactured, not used.
