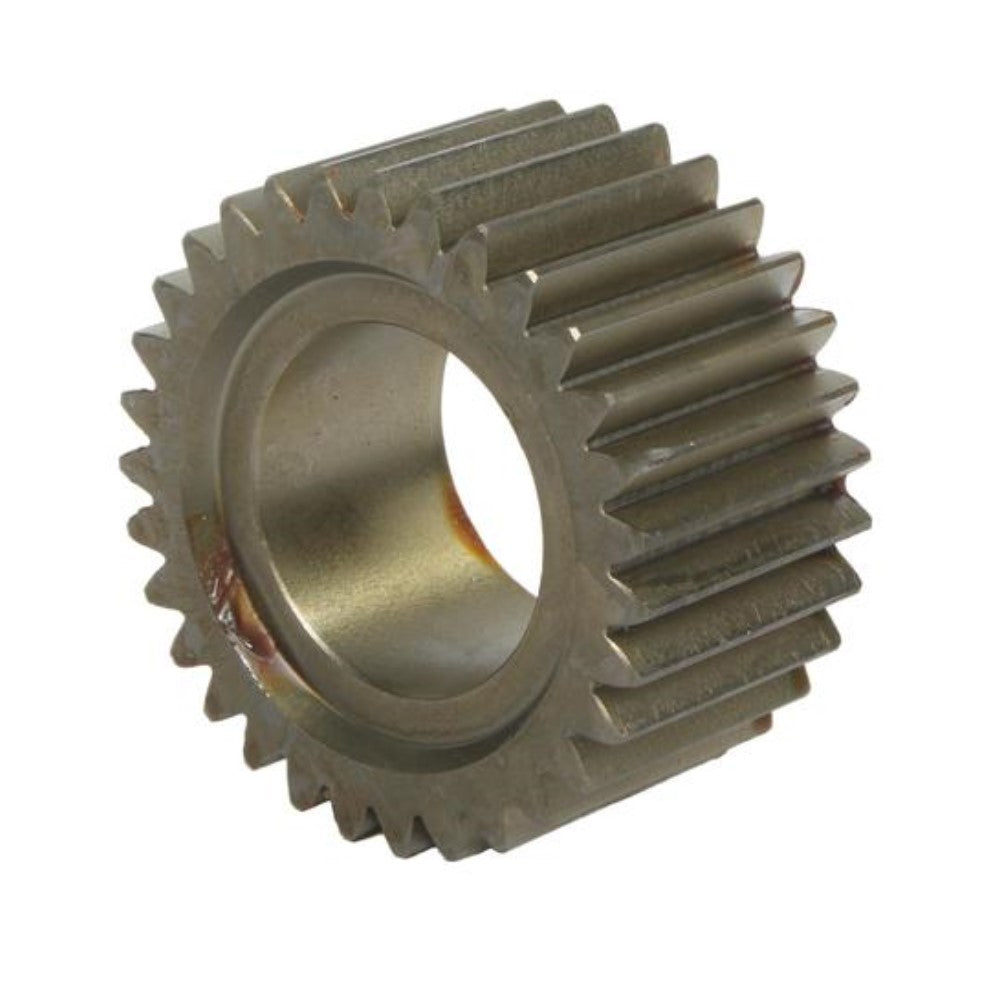

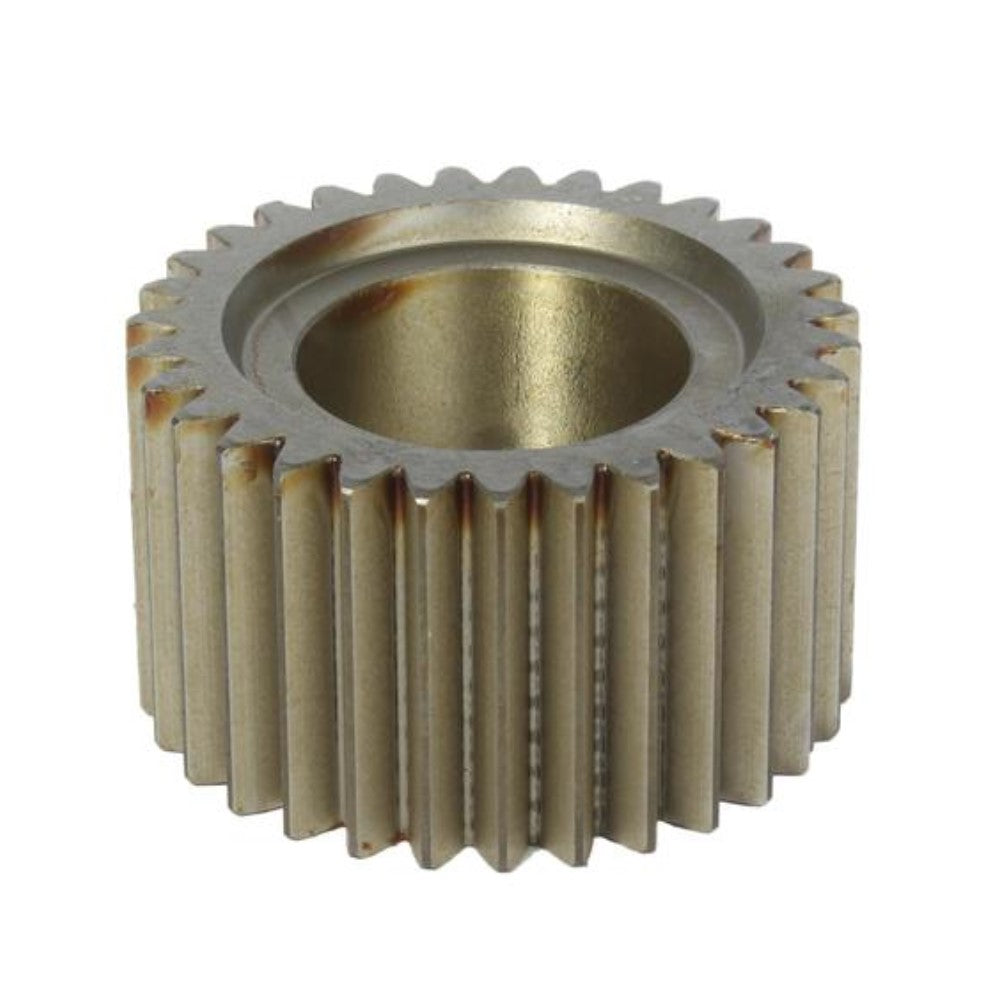

One New Aftermarket Replacement Rear Axle Hub Planetary Gear Fits Case Backhoe Loaders
This planetary gear is a direct-fit replacement for the rear axle outer planetary hub assembly on Fits Case (formerly Fits Case IH) backhoe loaders. It operates within the Carraro rear axle final drive, transmitting torque from the hub drive shaft to the wheel hub. A hardened spur gear with an external gear profile, it is precision-cast for durability under heavy construction loads.
Specifications
- Type: Rear Axle Hub Planetary Gear (Planetary Pinion)
- Gear Profile: External spur gear
- Surface Hardness: Hardened tooth surface
- Manufacturing Method: Cast gear
- Weight: 4.20 lbs
- Axle System: Carraro rear axle outer planetary hub
Compatible Models
Fits Case Backhoe Loaders:
580SL Series 2 (After Serial # JJG0239361)
580SM (Series 1)
580SM Series 2
580SM+
580SM+ Series 2
590SM
590 Super M
Note: Serial number restriction applies to 580SL Series 2 -- fits units After Serial # JJG0239361. Verify fitment before ordering.
Replaces Part Number(s):
292894A1
Aftermarket Interchange Numbers
Carraro: 138736 | CNH: 292894A1 | Komatsu: CA0138736 | Fits Volvo: VOE11709373
New aftermarket replacement part - not remanufactured, not used.
