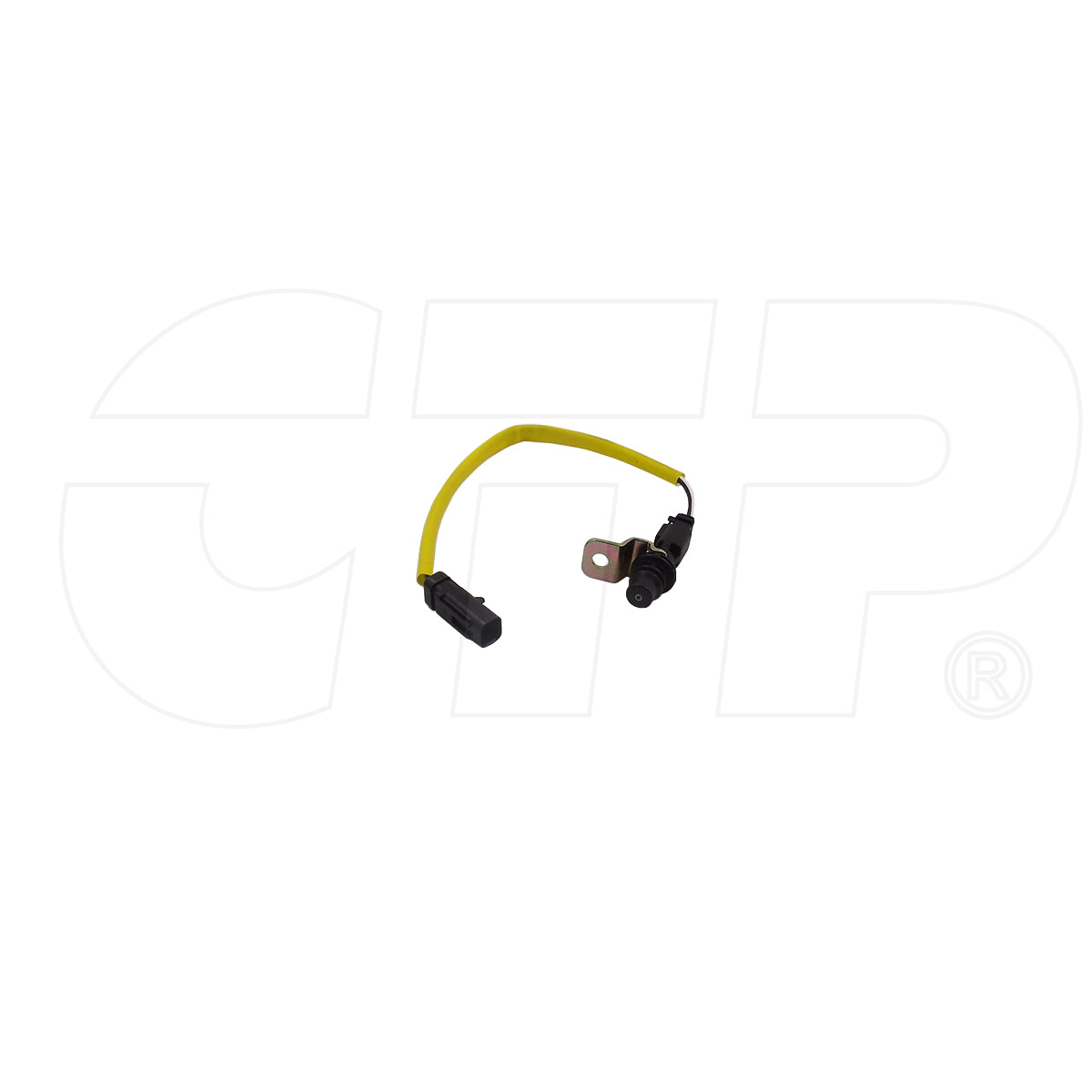

2799828 Sensor Gp-Speed Fits Caterpillar Models

One New Aftermarket Replacement Speed Sensor (Sensor Gp-Speed) for Caterpillar (Cat) Equipment

This aftermarket replacement Sensor Gp-Speed (part number 2799828 / 279-9828) is a variable reluctance, low-coil type magnetic speed sensor used on Caterpillar (Cat) engines and equipment. It measures rotational speed of engine crankshaft or driveline components and sends precise feedback signals to the ECU or transmission control unit to support engine management, optimize shifting, and control engine load. It connects via a 2-pin sealed connector and is compatible with Cat C-series diesel engines including the C9, C11, C13, C15, C18, C27, C32, 3406E, and related powerplants.

Specifications

• Type: Variable reluctance (inductive) magnetic speed sensor
• Connector: 2-pin sealed DT-style connector
• Operating Voltage: 9-32V
• Weight: Approx. 0.18-0.25 lbs
• Dimensions: Approx. 4.45 x 1.65 x 4.45 in.
• Housing: Corrosion-resistant metal with durable plastic connector
• Operating Temperature Range: -40 degrees C to +125 degrees C

Compatible Models

Caterpillar Excavators: 345C, 345C L, 345C MH, 345D, 345D L, 345D L VG, 349D, 349D L, 349E, 349E L, 349E L HVG, 349E L VG, 349F L, 352F, 365C, 365C L, 365C L MH, 374D L, 374F L, 385C, 385C FS, 385C L, 385C L MH, 390D, 390D L, 390F L, W345C MH

Caterpillar Articulated Trucks: 725, 730, 730C, 730C2, 735, 735B, 735C, 740, 740B, 740C, 740EJ, 745, 745C, 770, 770G, 772, 772G, 773F, 773G, 775F, 775G, 777D, 777E, 777F, 777G, 793F, 797, 797B, 797F, AD30, AD45B, AD55

Caterpillar Wheel Loaders: 277C, 277C2, 279C, 279C2, 287C, 287C2, 289C, 289C2, 299C, 966H, 972H, 980C, 980G, 980H, 980K, 980K HLG, 980M, 982M, 986H, 988H, 988K, 990K, 992K, 993K

Caterpillar Motor Graders: 12H, 12M, 14M, 14M Series 3, 16M, 16M Series 3, 18M Series 3, 24, 24M, 120, 120 AWD, 120H, 120M, 135H, 140, 140 AWD, 140H, 140M, 143H, 160H, 160M, 163H

Caterpillar Wheel Dozers: 824K, 825H, 825K, 826H, 826K, 836H, 836K

Caterpillar Wheel Tractor-Scrapers: 621H, 621K, 623H, 623K, 623K LRC, 627H, 627K, 627K LRC

Caterpillar Tractors: D7E, D7E LGP, D8N, D8R, D8T, D9T, D10T2, D11T

Caterpillar Pipelayers: 583T, 587T, PL83, PL87

Caterpillar Asphalt Pavers: AP1000 F, AP1055 F

Caterpillar Loggers: 345C, 345D

Cat Engines (standalone/generator sets): 3406E, C9, C11, C13, C13 XQ350, C-15, C15, C15 I6, C18, C18 I6, C27, C32, 3456, G3606, G3608, G3612, G3616, C175-16, C175-20, SR4, SR4B, SR5

Replaces Part Number(s):

2799828, 279-9828, CA2799828, 1918303, 191-8303, CA1918303

New aftermarket replacement part - not remanufactured, not used.
