2788A Tapered Roller Bearing Cone 1.5" Bore 0.06" Radius 1.01" Wide
2788A Tapered Roller Bearing Cone 1.5" Bore 0.06" Radius 1.01" Wide
Couldn't load pickup availability
One New Aftermarket Replacement Tapered Roller Bearing Cone for Various Manufacturers' Tractor and Agricultural Equipment
This tapered roller bearing cone (inner ring assembly) is an industry-standard imperial-series bearing used across a wide range of agricultural tractors, trailers, and machinery. The cone consists of the inner ring, tapered rollers, and roller cage, and is typically mounted in opposing pairs on a shaft to handle both radial and thrust loads. The matching cup (outer race) is sold separately -- commonly used races include 2729, 2720, 2729X, and 2735X.

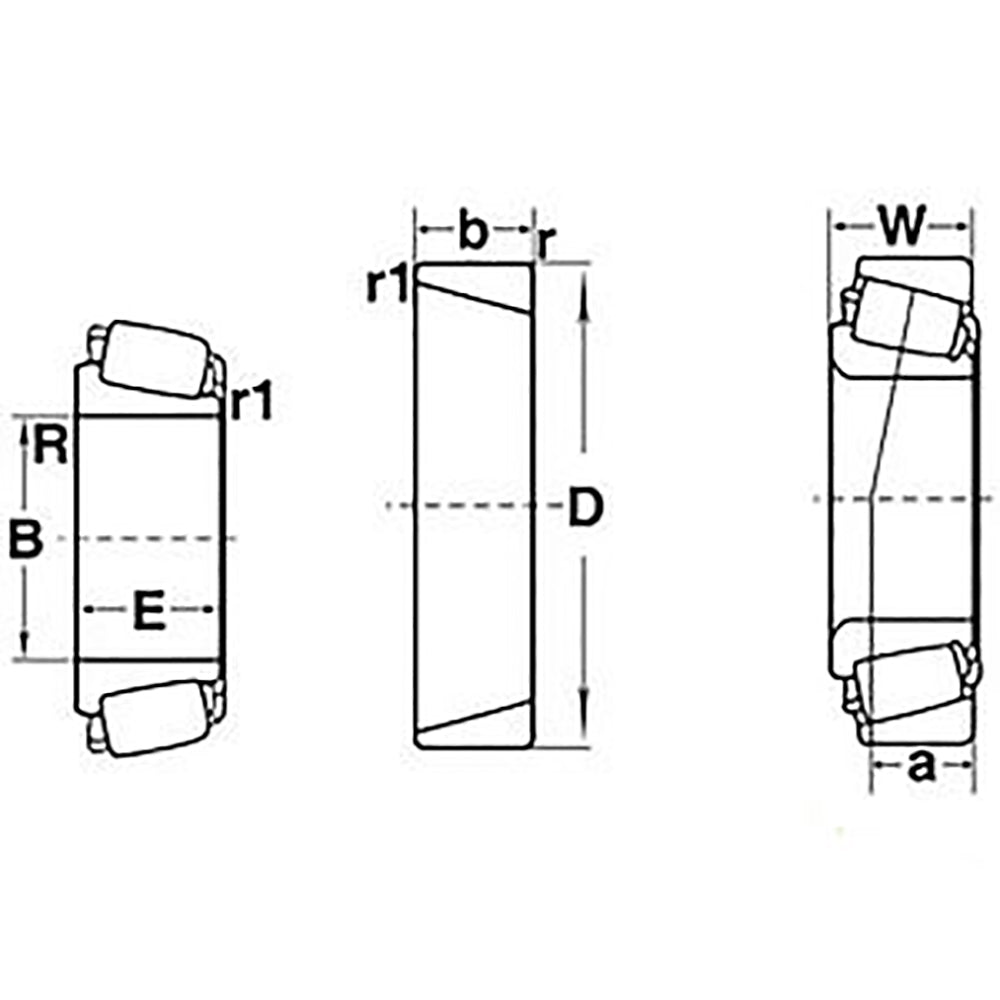

Specifications
- Type: Tapered Roller Bearing Cone (Single)
- Bore (Inner Diameter): 1.500"
- Width: 1.010"
- Radius: 0.06"
- Series: Imperial (Inch)
Compatible Models
This is an industry-standard bearing cross-referenced by part number across multiple manufacturers. It fits various agricultural tractors, trailers, and related machinery from multiple brands wherever a 2788A-specification tapered roller bearing cone is called out. Match by part number or dimensions before ordering.
Replaces Part Number(s):
211WD, 2788A, 2788A-I, 2788ATIM, W10A26950
Aftermarket Interchange Numbers
Timken 2788A, NTN 4T-2788A, Peer Bearing 2788A
New aftermarket replacement part - not remanufactured, not used.
