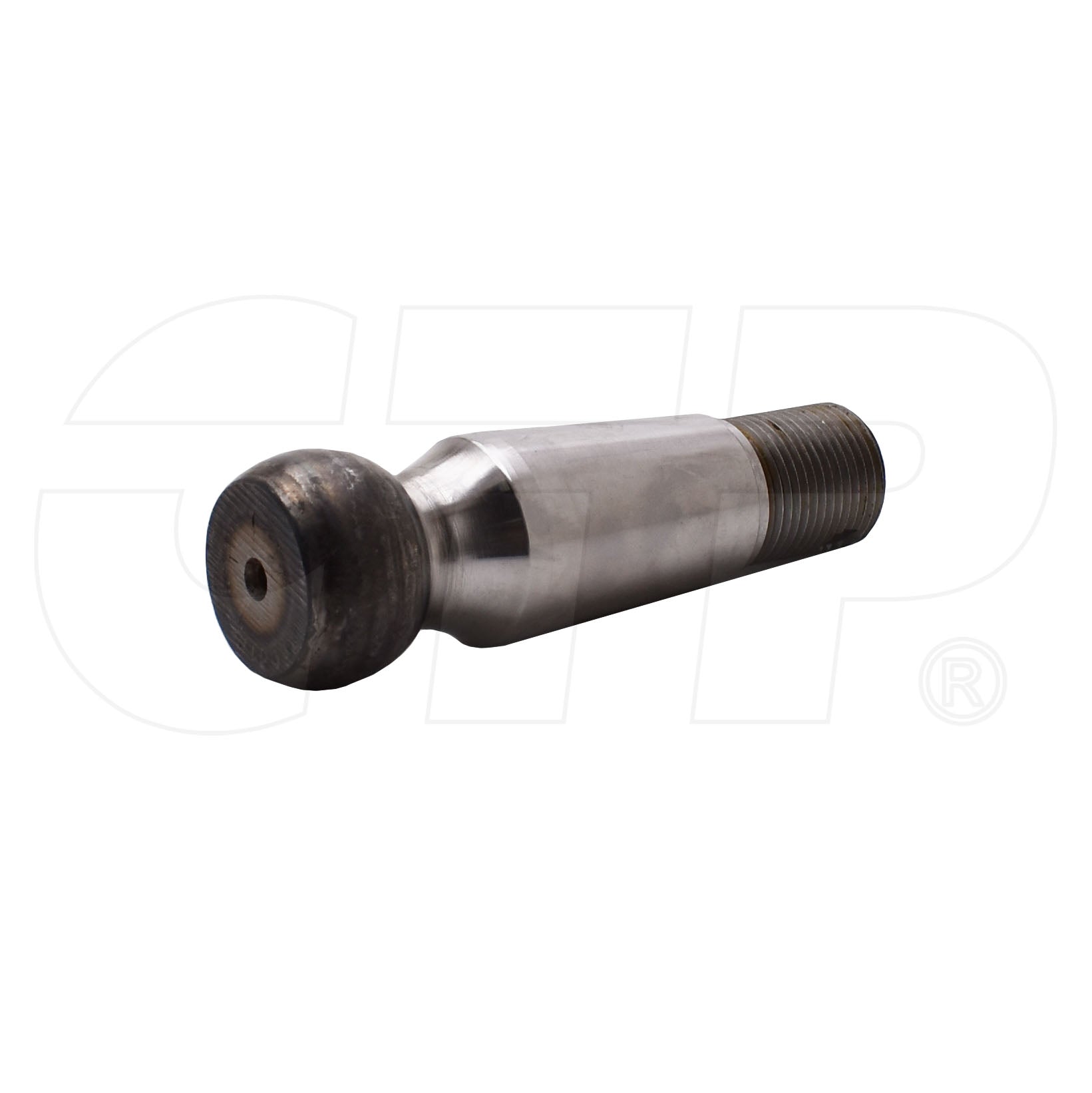

One New Aftermarket Replacement Ball Stud for Caterpillar Motor Graders
This aftermarket replacement ball stud (replaces Caterpillar OEM part number 2606117 / 260-6117) is used in the blade lift and circle assembly linkage on Cat M-Series motor graders. Ball studs in this assembly are wear items subject to stress from continuous blade control operations; replacement restores proper joint function and reduces slop in the blade system.
Specifications
- Weight: approximately 2.1 lbs
- Length: approximately 133.1 mm (5.24 in)
- Width: approximately 5.5 cm (2.17 in)
Compatible Models
Caterpillar (Cat) M-Series Motor Graders: 12M 2, 12M 3 AWD, 120M, 120M 2, 140M, 140M 2, 140M 3 AWD, 14M, 160M, 160M 2, 160M 3 AWD, 16M
Replaces Part Number(s):
2606117, 260-6117
New aftermarket replacement part - not remanufactured, not used.
