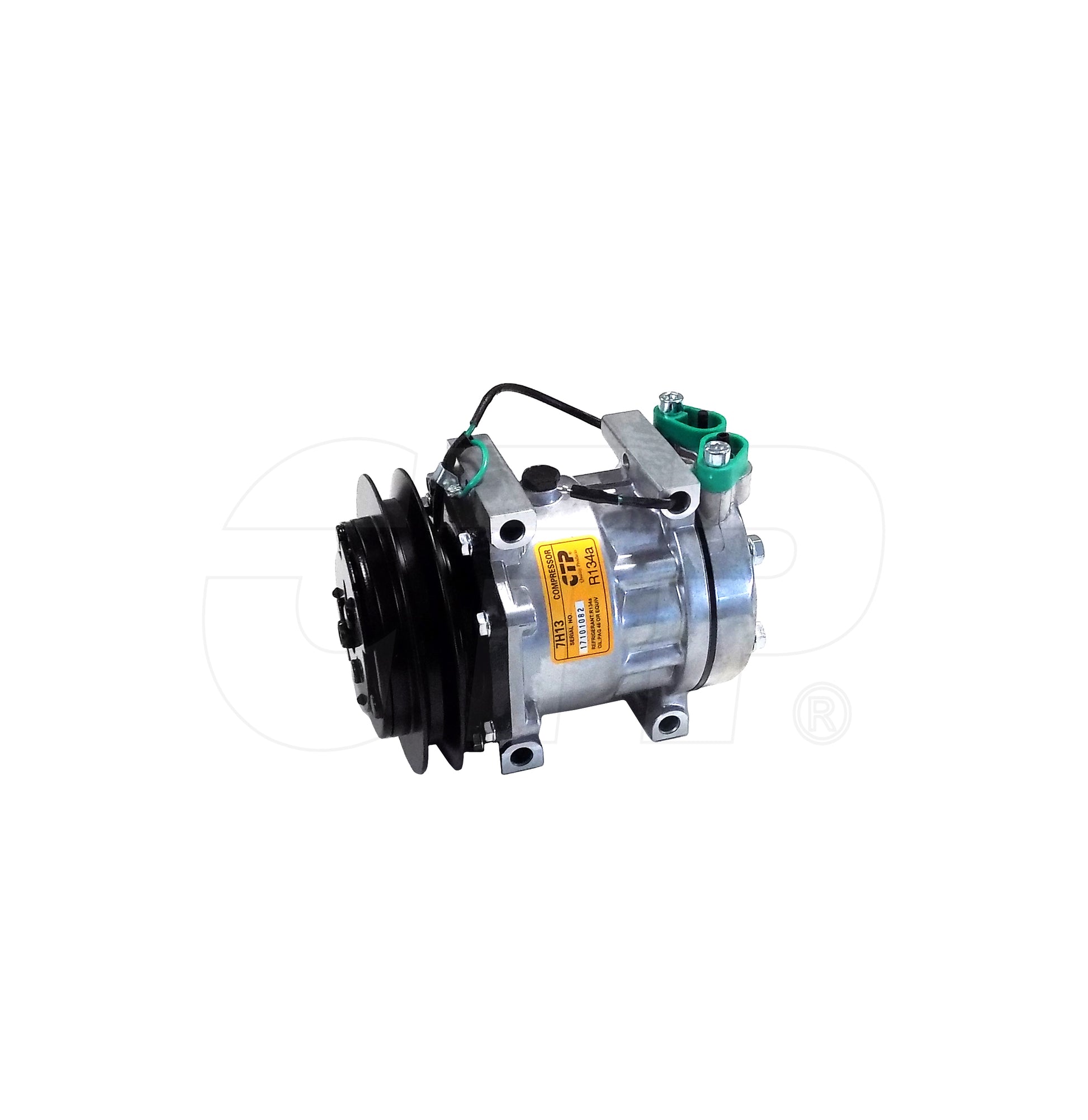

One New Aftermarket Replacement A/C Compressor for Caterpillar (Cat) Excavators
This Sanden SD7H13 refrigerant compressor is the air conditioning compressor for the cab climate system on Caterpillar mini hydraulic excavators. It is a direct-mount, clockwise-rotation compressor operating on a 24-volt electrical system and using R134a refrigerant.
Specifications
- Compressor Family: SD7H13
- Voltage: 24V
- Refrigerant: R134a
- Oil Type: SP10 or PAG 100
- Oil Quantity: 135cc
- Mount Type: Direct
- Rotation Direction: CW (Clockwise)
- Belt Type: V-Belt, 1 Groove
- Clutch Diameter: 126 mm (approx. 4-15/16 in.)
- Clutch Style: With Dust Cover
- Port Angle: Vertical
- Head Port Style: Pad
- Cylinder Head: WL
- Coil Connector: 2-Wire Deutsch DT04-2P-E
- Coil Position: 12 O'clock
- Weight: approx. 18 lbs.
Compatible Models
Caterpillar Excavators (Engines 4M40, C4.2, C6.4): 308D, 314D CR, 314D LCR, 321D LCR
Kobelco Excavators: SK135SR, SK850LC
Replaces Part Number(s):
2597245, 259-7245, CA2597245, TDKR151310S, TDKR151350S, 189-2746, 1892746
Aftermarket Interchange Numbers
Sanden 8944, M7360, LC91V00001F1, LC91V00002
New aftermarket replacement part - not remanufactured, not used.
