2584946 Gasket-Head Fits Caterpillar Models

One New Aftermarket Replacement Cylinder Head Gasket for Caterpillar (Cat) Equipment

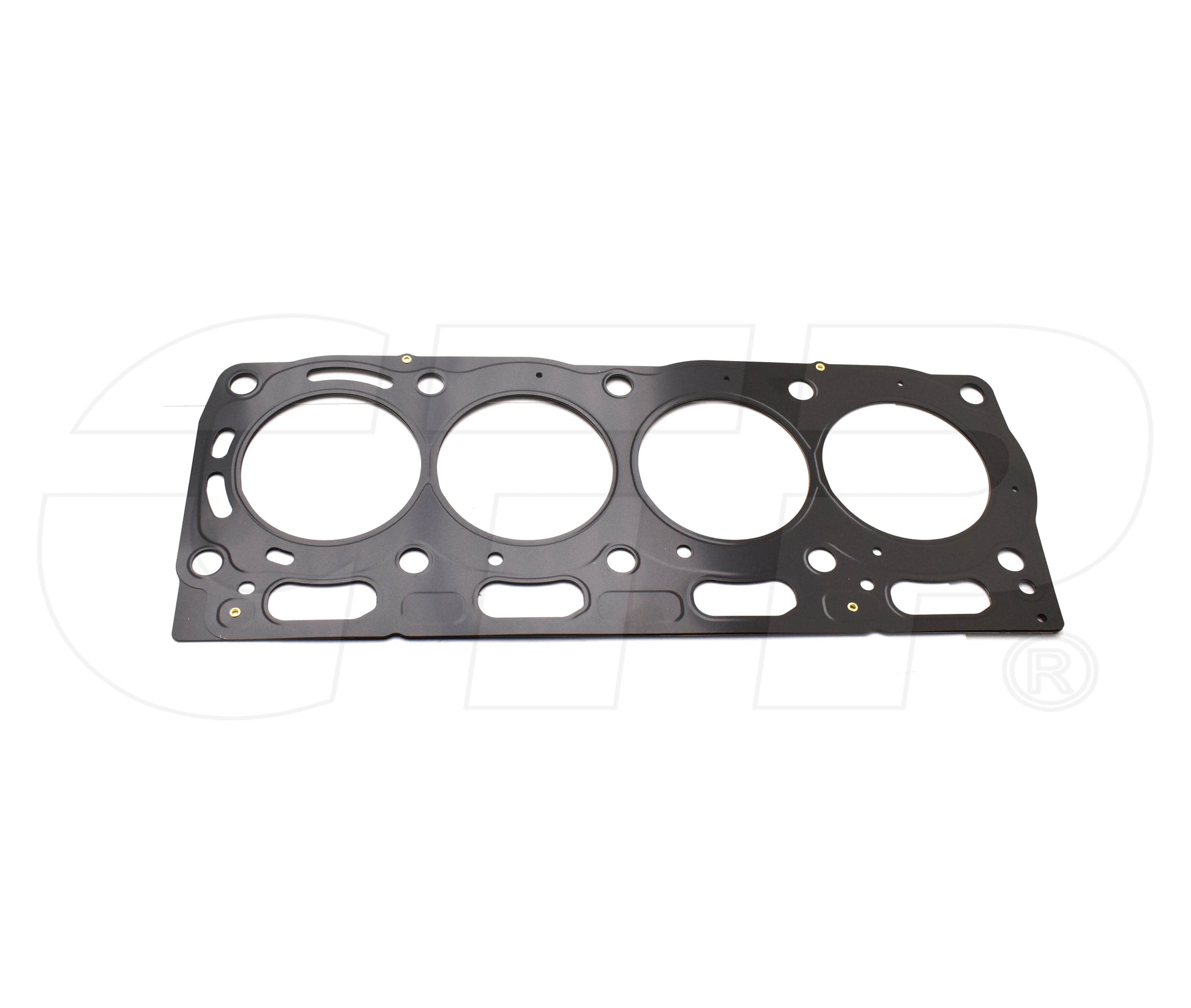

This cylinder head gasket (Gasket-Head) is a precision-fit engine sealing component for Caterpillar (Cat) C4.4 and 3054-series diesel engines. It seats between the engine block and cylinder head to maintain compression and prevent coolant or oil leaks into the combustion chamber.

Specifications

• Length: 23.62 in. (approx. 516.37 mm)
• Width: 9.06 in. (approx. 204.66 mm)
• Thickness: 0.04 in. (approx. 1.50 mm)
• Layers: 4
• Weight: 1.4 lbs.

Compatible Models

Caterpillar Engines: 3054, 3054B, 3054C, 3054E, C4.4, C4.4 ACERT

Caterpillar Excavators: 312D2, 312D2 GC, 312D2 L, 313D2, 313D2 LGP, 315C, 318D2 L

Caterpillar Backhoe Loaders: 414E, 416D, 416E, 420D, 420E, 422E, 424D, 428D, 428E, 430D, 430E, 432D, 432E, 434E, 442D, 442E, 444E

Caterpillar Compactors / Pavers: AP-300, AP-650B, AP-800D, BG-225C, BG-230D, CB-434D, CB-534D, CB-564D, CP-323C, CP-433E, CP-533E, CS-323C, CS-423E, PF-300C, PS-150C, PS-300C, PS-360C

Caterpillar Motor Graders / Other: 416F, 420F, 422F, 428F, 430F, 432F, 434F

Replaces Part Number(s):

2584946, 258-4946, 2407194, 240-7194

Aftermarket Interchange Numbers

CA2584946, 3681E074, 3681E051, 3681E052, 1600161, 1850885, 1763141, 176-3141, 2371911, 237-1911

New aftermarket replacement part - not remanufactured, not used.
