25520 387AS Final Drive Bearing Seal and Gasket Kit Fits International Dozers

Models This Part Fits:

TD7

Additional Information:

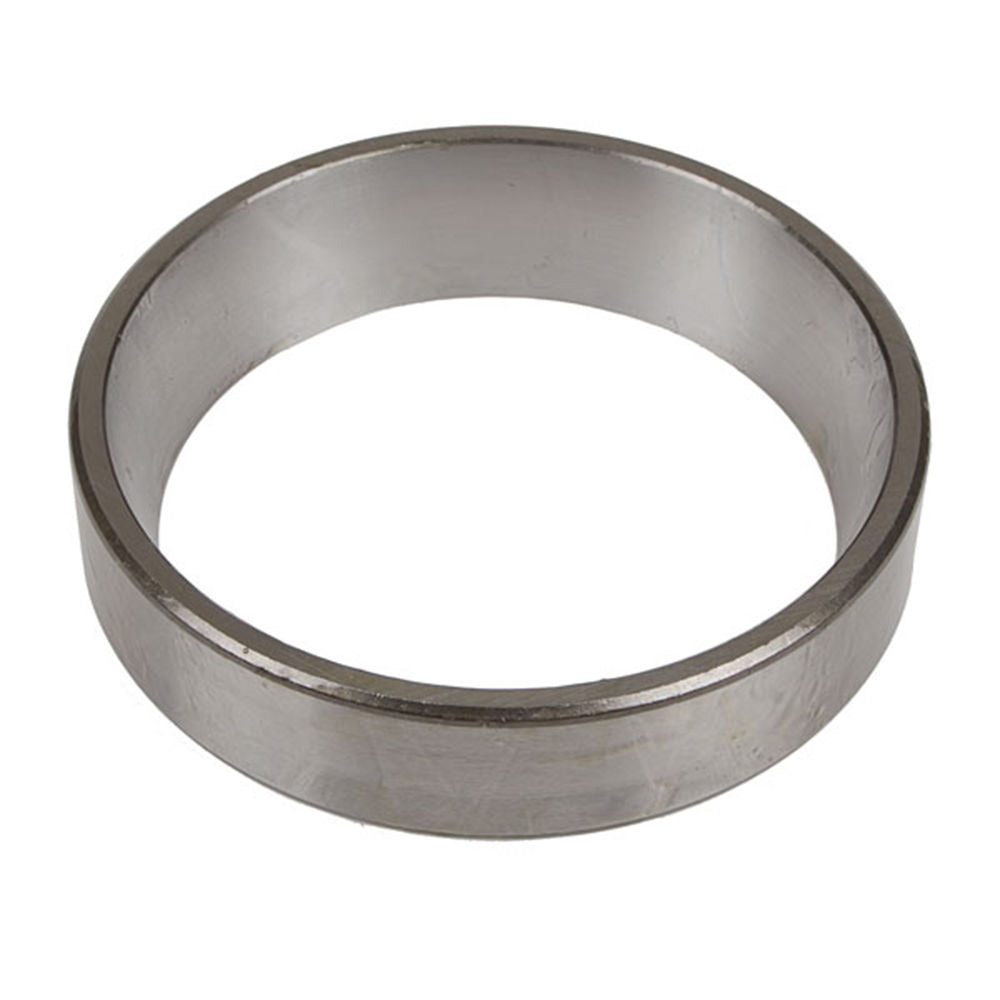

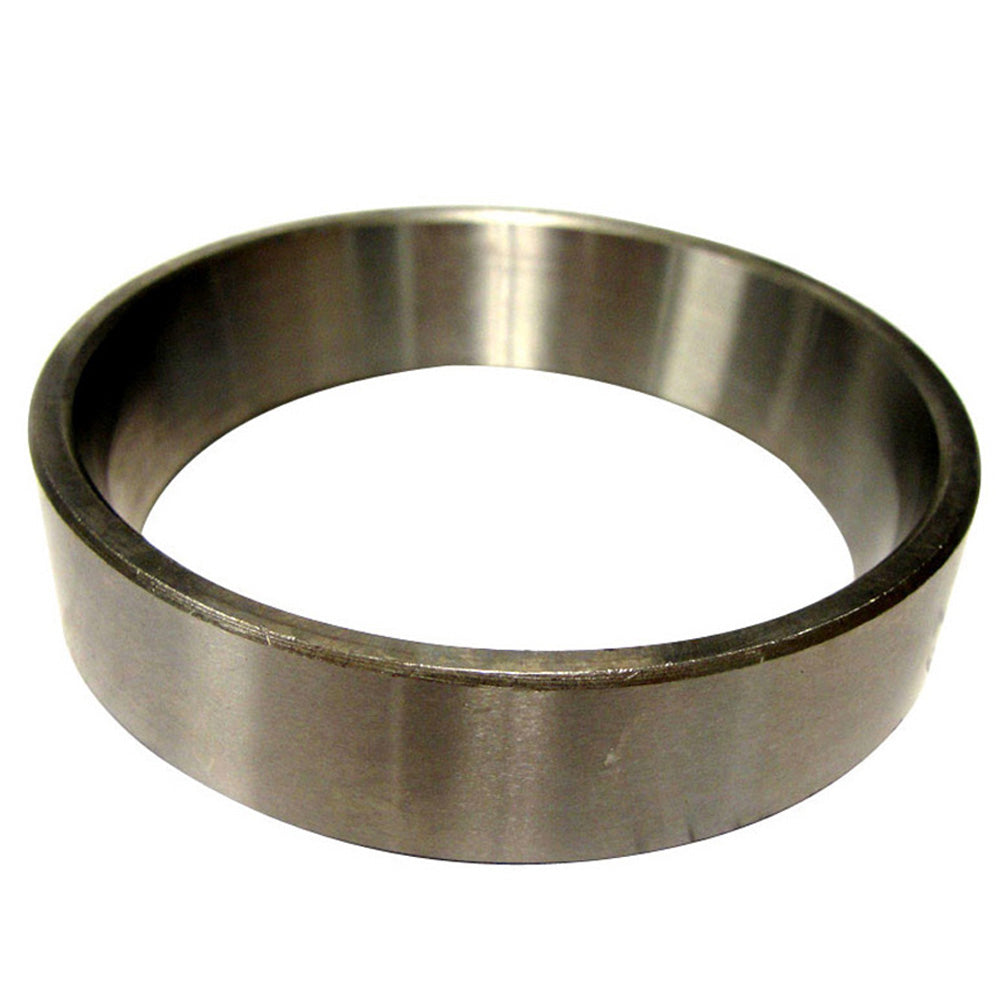

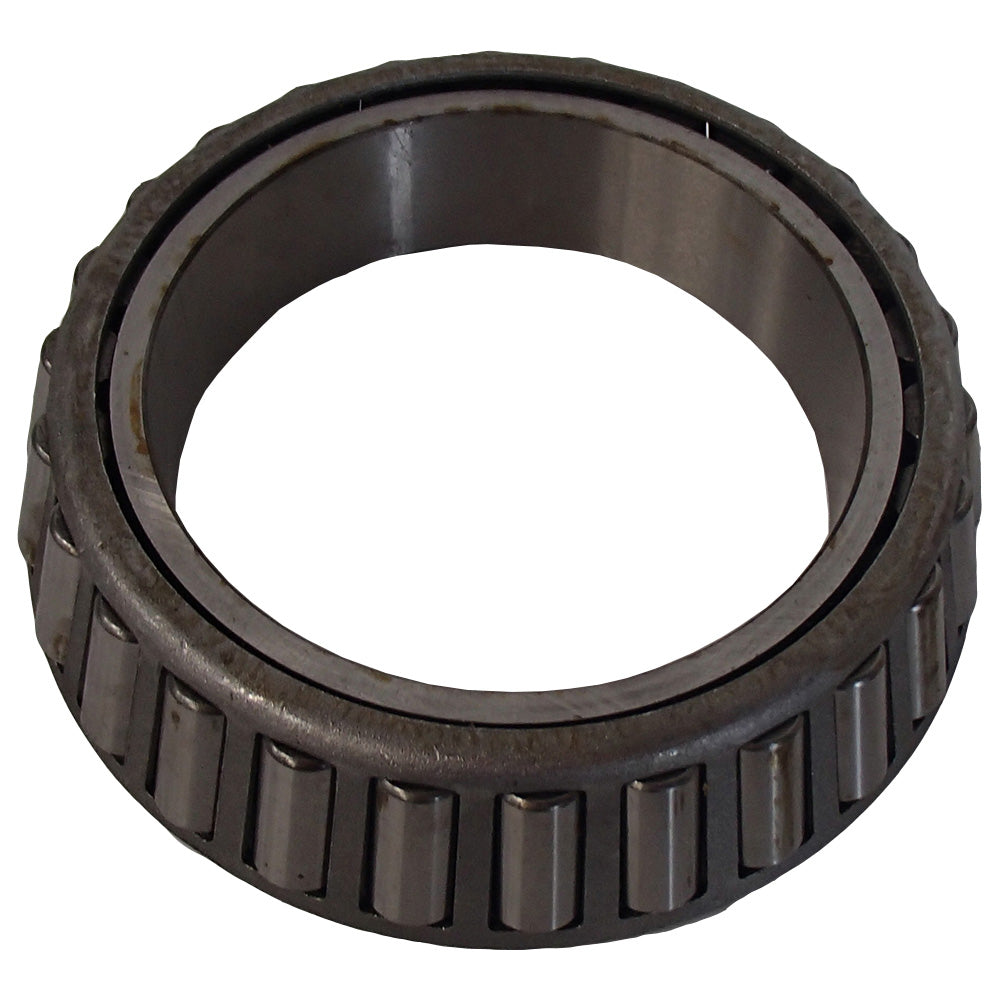

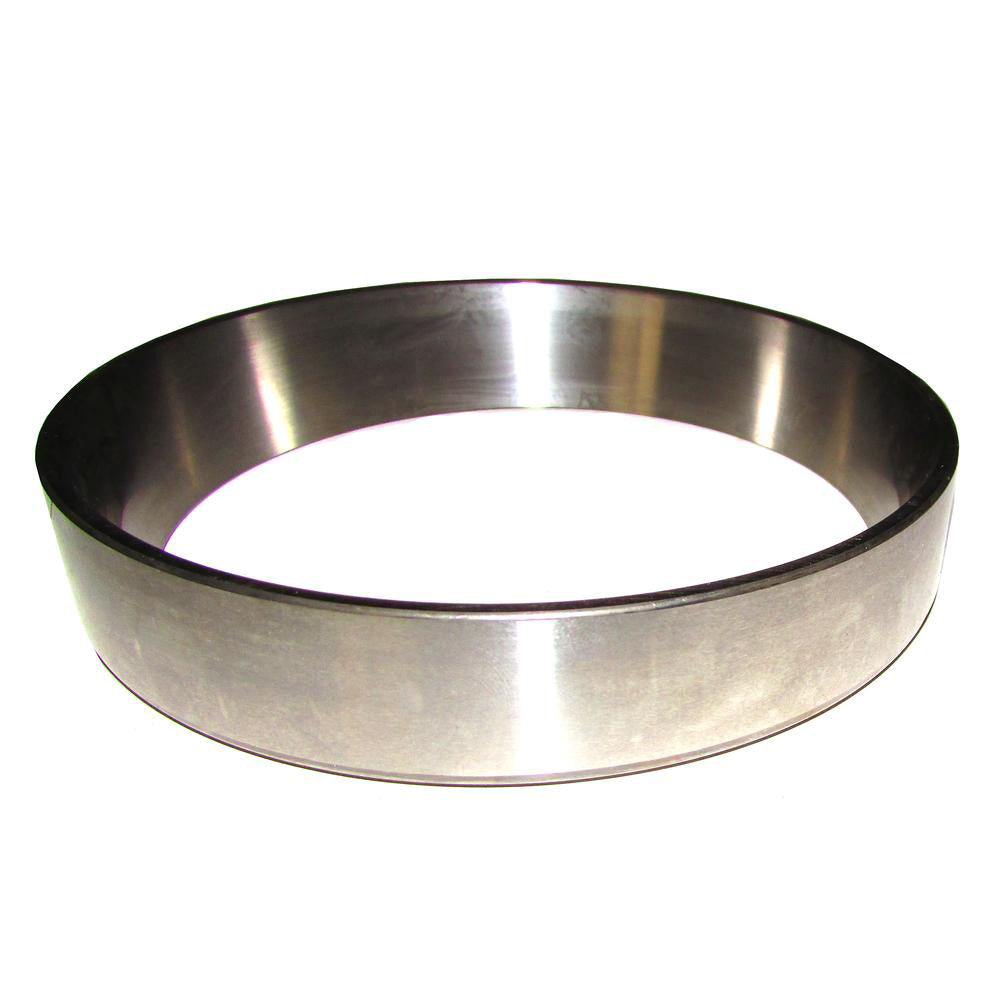

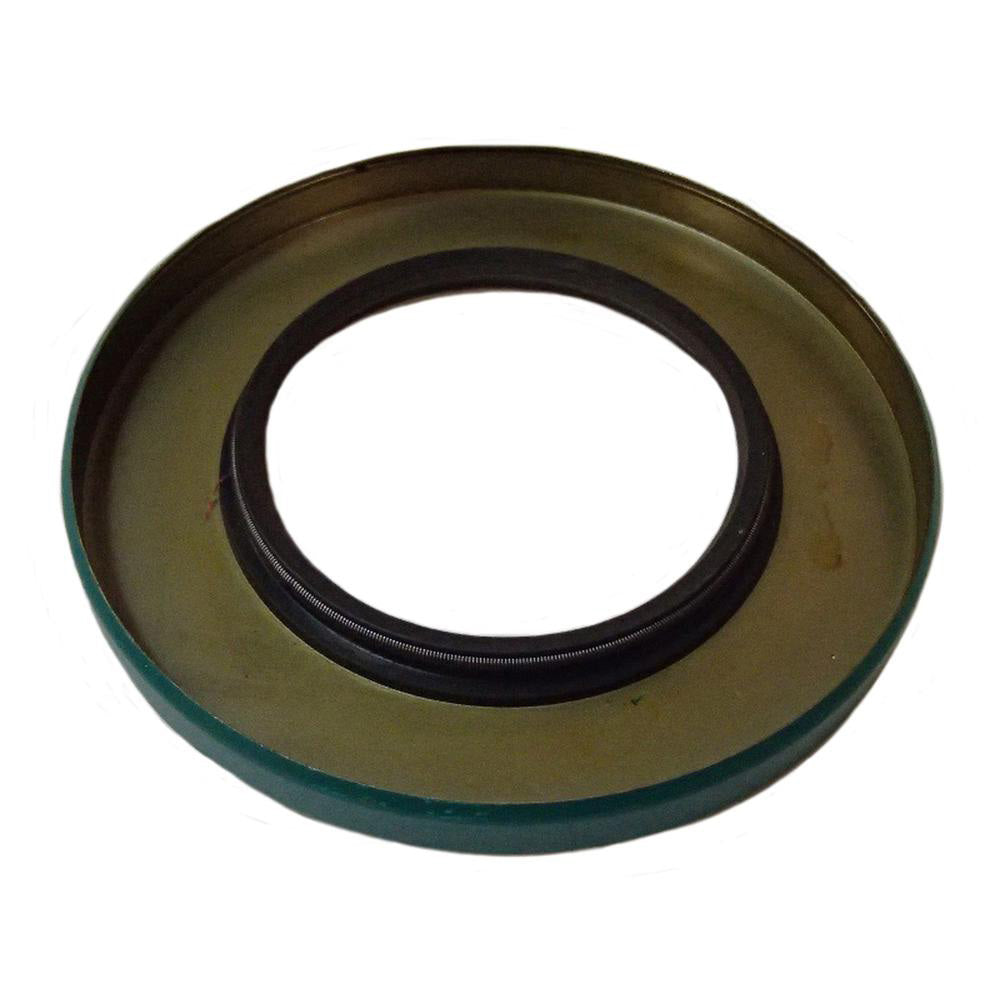

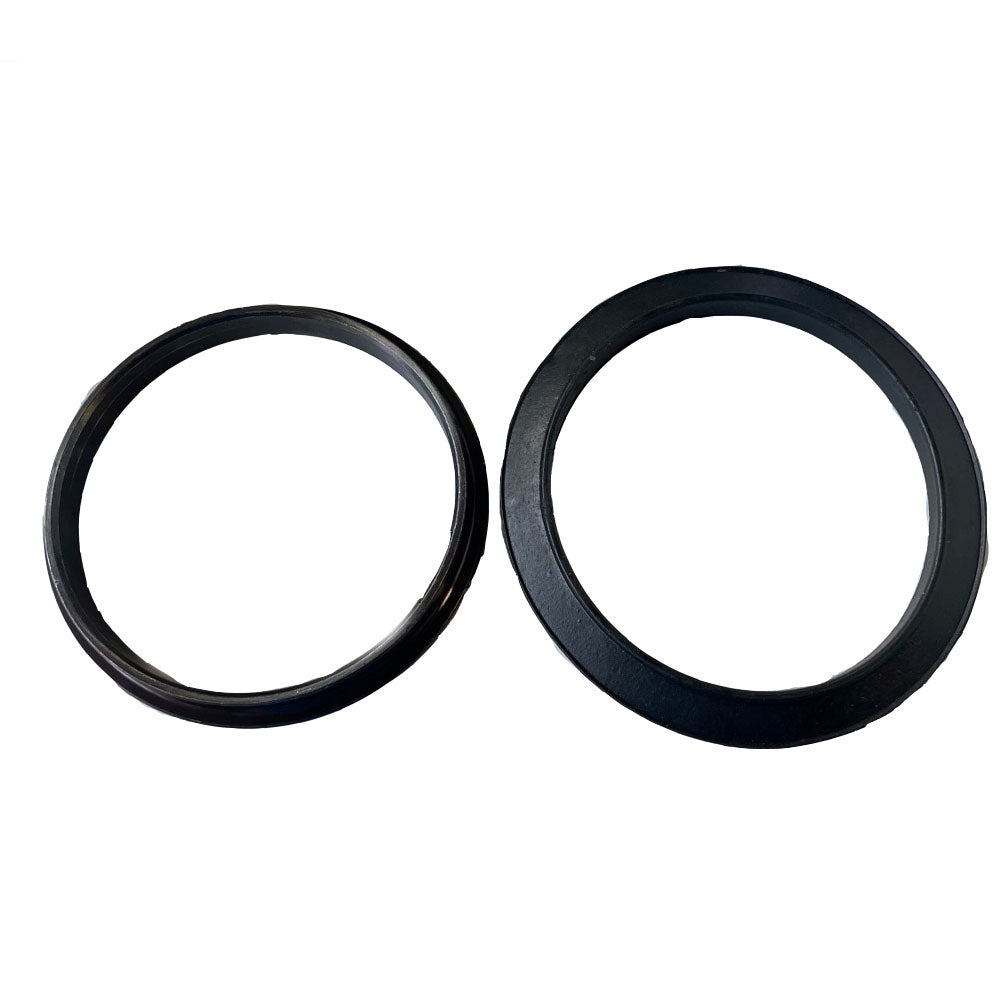

(2) Tapered Cups Outside Diameter: 3.265" Radius: .03" Width: .750" Replaces: JD7418, A29062, ST987, VT2100, 130503H (2) Bearing Cones Bore: 1.750" Radius: .14" Width" 1" Replaces: 25580, JD7395 Bearing Replaces: 86691, 382-I Bearing Set Includes: 387 Cone & 382 Cup Outer diameter: 3 3/4" x 3 3/4" x 3/4" The inner bearing piece is tapered: 3 1/2" x 3 1/2" by 7/8" Replaces: 387AS, 382A Final Drive Top Pinion Seal Replaces: 621113C93 Liquid Gasket Replaces: 1388436, 7M7260 Seal Set 2 steels & 2 rubbers (4 pieces total per set) Inner Diameter: 4 7/8" Outer Diameter: 6 3/8" Hardness:58-62HRC/62-68HRC Cup Bearing Length: 6.14" Width: 1.14" Depth: 6.14" Volume(cm3): 705.744 Replaces: JM716610, 9823418, JD9118 Cone Bearing Outer Diameter: 122.08mm (4 13/16") Inner Diameter: 84.73mm (3 11/32") Width: 31.75mm (1 1/4") Replaces: JD9055, 300061

Reference Numbers:

AT18876, AT36098, AT72157, 387AS, SET36, LM603049/LM603012, 25520, 111136H1, 130503H, 204747C1, 300985R1, 591724C1, 594160R1, 62208C1, 622211C1, A29062, 25580, 050260M1, 104623H1, 165964R1, 165964R91, 176628H1, 176678H1, 204748C91, 204753C91, 25580TIM, 395640R1, 401893R91, 560176R1, 591620C1, 591620C91, 591853C91, 594158R91, 636826R91, 66203C91, 662057R91, A29063, A30580, NCB44135B, 382, 1209261H91, 164805H1, 3134296R1, 382225C91, 38276D, 382896R1, 382905R91, 396644R91, 396645R1, 659459R1, 659459R91, 659462R92, 659715R91, 890110H1, A30308, 55337, 621113C93, 621113C1, 621113C92, 7M7260, 1981065C1, 1981095C1, 655472C91, 716720C91, 855473C91, A50567, G101798, 622335C1, 622337C1, 625425C91, 625427C1, 625428C91, 76713C1, A63171, JM716610, 622336C1, 625426C91, 76712C91, 9823420, A63185, JM716649, V300061

Product Category:

Construction
