246-5917 Seal Kit Fits CAT D3G, D4G (s/n: FDC1-520, CFN1-1071), D5G

One New Aftermarket Replacement Hydraulic Cylinder Seal Kit for Caterpillar (Cat) Crawler Dozers and Motor Graders

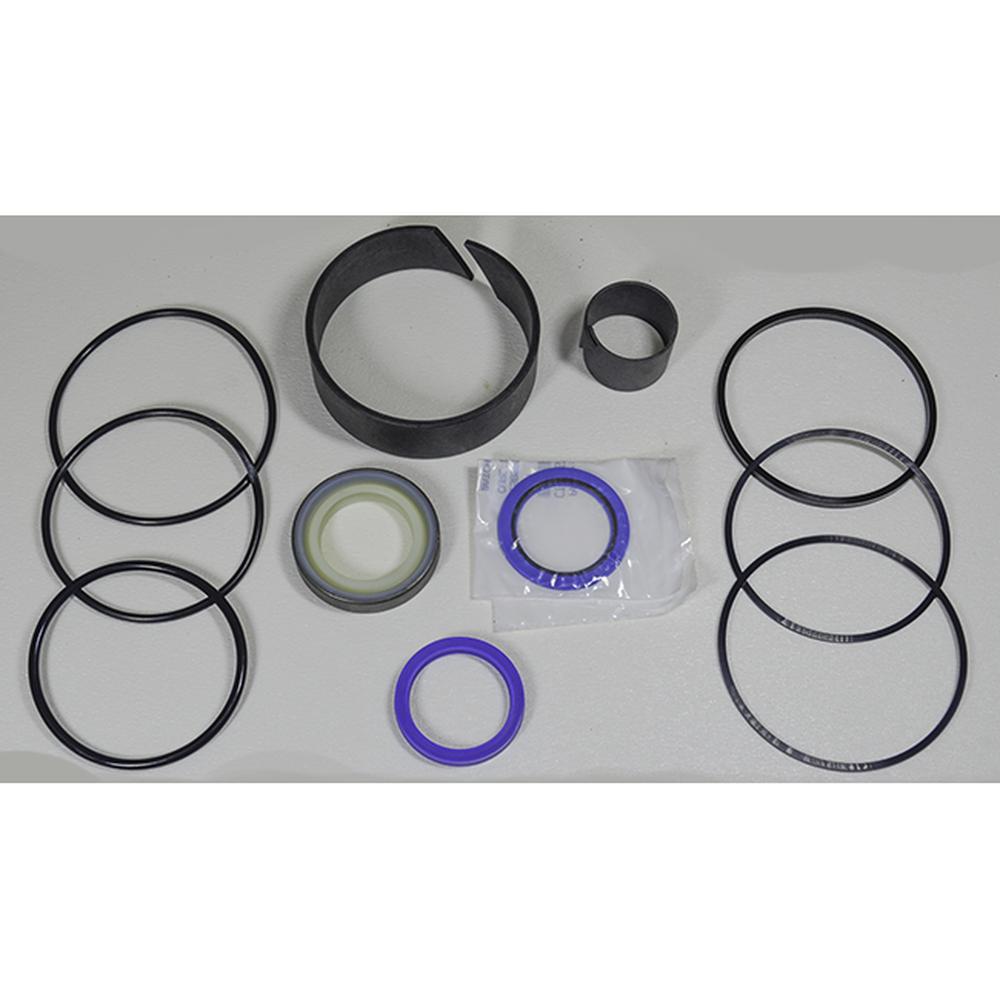

This aftermarket replacement hydraulic cylinder seal kit is designed to rebuild and reseal the dozer lift, tilt, and angle cylinders on Caterpillar (Cat) D-series crawler dozers. The kit contains all seals required for a complete reseal of the standard nominal bore hydraulic cylinder, including rod seals, piston seals, wiper seals, and O-rings. Replaces OEM part number 246-5917 (also known as 132-7058 / 1327058).

Specifications

• Bore: 3-1/2"
• Rod: 1-1/2"
• Application: Dozer Lift, Tilt, and Angle Cylinders

Compatible Models

Caterpillar Crawler Dozers - D3 Series: D3B (Dozer Angling/Lift/Tilt, s/n: 06N, 1PJ, 2PC, 3RF, 3YC, 4HJ, 4KS, 4TS, 5CJ, 5GS, 5KG, 5MC, 5ZG, 6PF, 6SL, 7JF, 7JG, 7XL, 8BF, 8DG, 9TS, 23Y, 24Y, 27Y, 28Y, 79U, 82U, 83U, 87U, 88U), D3C, D3C III (same serial ranges), D3G (Dozer Lift - s/n: BYR, CFC, CFF, JMH, FFF, JTD, LLL; Dozer Tilt - s/n: CFC, CFF, JMH, FFF, JTD, LLL), D3G XL, D3G LGP

Caterpillar Crawler Dozers - D4 Series: D4B, D4C, D4C III (Dozer Angling/Lift/Tilt, s/n: 1FW, 1RJ, 1SG, 2CJ, 2XF, 4LS, 6BS, 6YL, 7KG, 7SL, 8CS, 9BG), D4G (s/n: FDC1-520, CFN1-1071 ONLY - verify serial before ordering), D4G XL, D4G LGP

Caterpillar Crawler Dozers - D5 Series: D5C, D5C III, D5G, D5G XL, D5G LGP (all serial numbers)

Caterpillar Motor Graders: 12G, 12H, 120G, 120H, 130G, 135H, 140G, 140H, 143H, 14G, 14H, 14E, 160G, 160H, 163H

IMPORTANT - D4G Serial Number Restriction: This kit fits D4G serial numbers FDC1-520 and CFN1-1071 ONLY. D4G machines outside these serial ranges require a different kit. Verify your serial number before ordering.

Replaces Part Number(s):

1327058, 1327058-A, 132-7058, 132-7058-A, 2465917, 2465917-A, 246-5917, 246-5917-A, 7X2735, 7X-2735

New aftermarket replacement part - not remanufactured, not used.
