2405T1274 Bushing Fits KOBELCO SK200 Series III IV & V, SK210
2405T1274 Bushing Fits KOBELCO SK200 Series III IV & V, SK210
Regular price
$368.00 CAD
Regular price
Sale price
$368.00 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

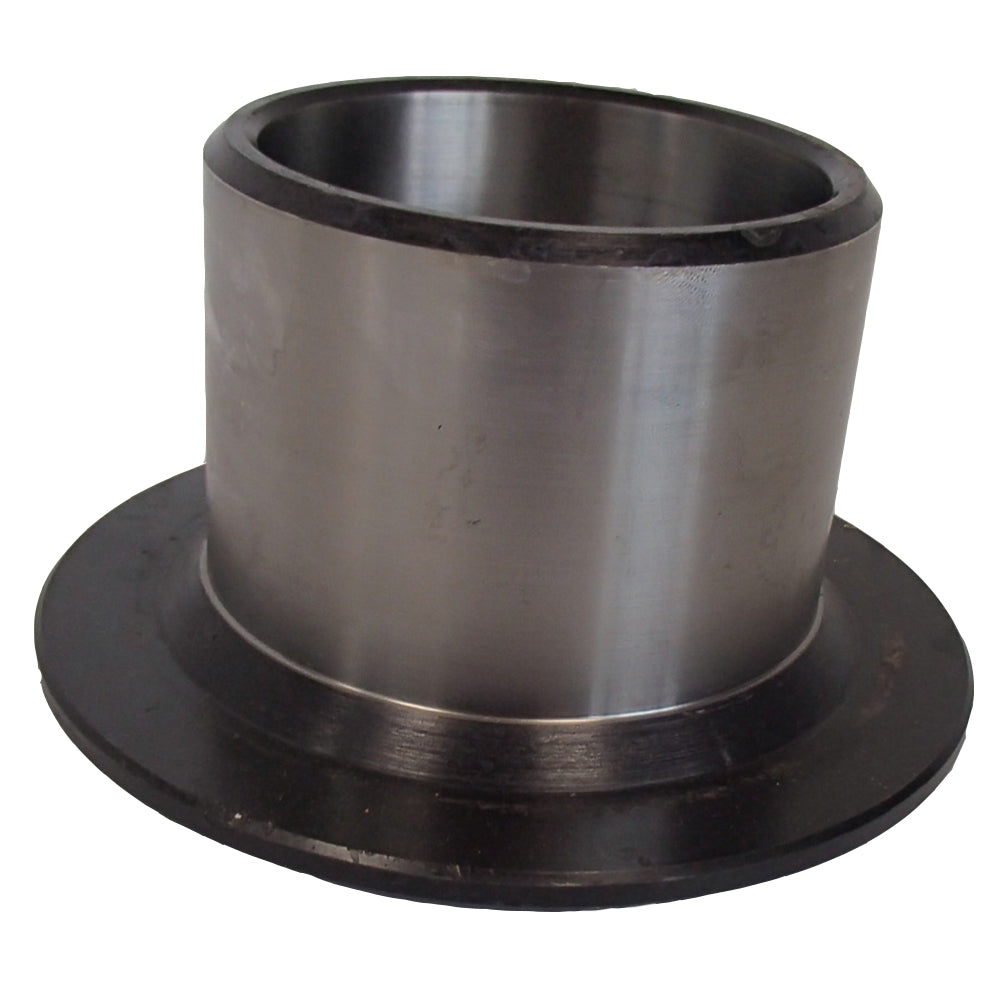

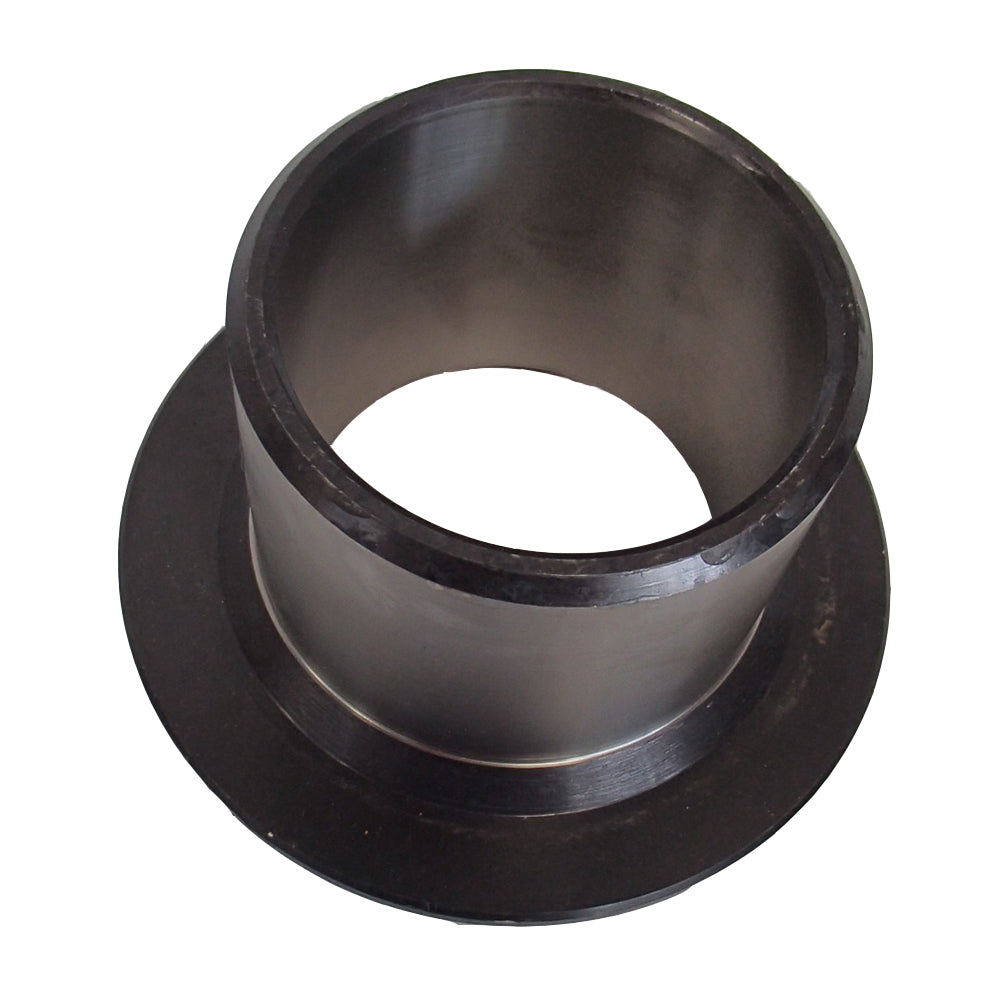

One New Aftermarket Replacement Dipper Arm Bushing for Kobelco SK200 and SK210 Crawler Excavators
This aftermarket replacement dipper arm bushing (part number 2405T1274) installs at the end of the dipper stick where it connects to the bucket linkage. A flanged, collared sliding bushing, it is part of the pin and bushing assembly at one of the highest-wear pivot points on the excavator arm. Regular inspection and replacement of this bushing is essential for maintaining accurate pin fit and peak digging performance on Kobelco SK200 and SK210 series machines.
Specifications
- Type: Flanged/Collared Dipper Stick End Bushing
- Inner Diameter: 80 mm
- Outer Diameter: 95 mm
- Height: 82.50 mm
- Flange: Yes
- Grease Holes: 0
- Weight: Approx. 4.31 lbs (2.3 kg)
Compatible Models
Kobelco Crawler Excavators: SK200, SK200LC, SK200 Series III, SK200 Series IV, SK200 Series V, SK210, MD200BLC, MD200C, K907, K907LC
Replaces Part Number(s):
2405T1274, EXB10-0014
New aftermarket replacement part - not remanufactured, not used.
