2332585 Seal As. Fits Caterpillar Models
2332585 Seal As. Fits Caterpillar Models
Regular price
$43.00 CAD
Regular price
Sale price
$43.00 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

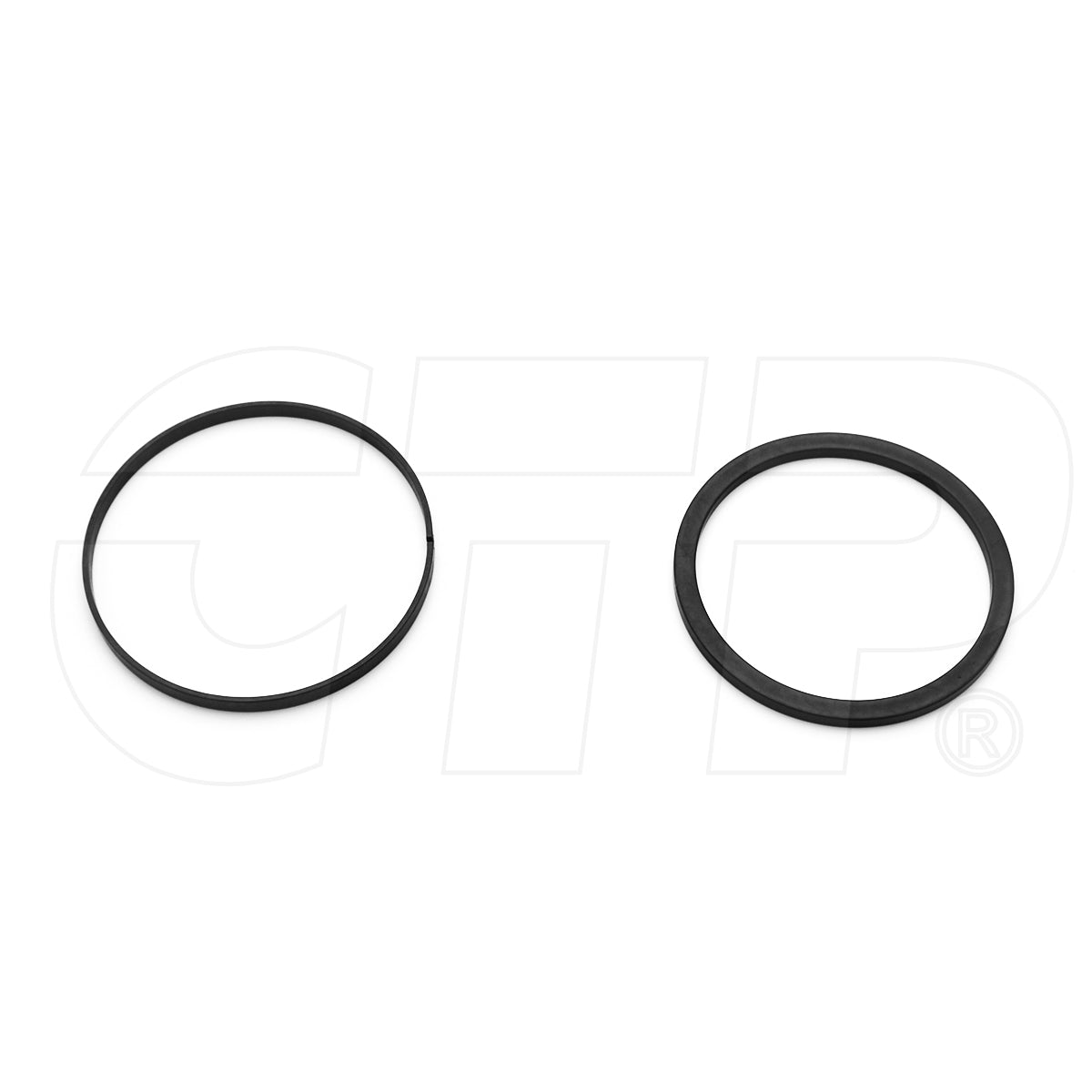

One New Aftermarket Replacement Hydraulic Piston Seal Assembly for Caterpillar (Cat) Backhoe Loaders and Skidding Tractors
This aftermarket replacement seal assembly (2332585 / 233-2585) is a 100mm two-piece metric piston seal used in the swing cylinder and stabilizer cylinder hydraulic systems on Caterpillar (Cat) construction equipment. The seal assembly consists of a glass-reinforced nylon step-cut sealing ring and a nitrile rubber expander, designed to prevent hydraulic fluid leakage between the piston and cylinder wall.
Specifications
- Seal Type: Two-piece metric piston seal (step-cut joint)
- Outer Diameter: 100mm (3.94 in)
- Inner Diameter: 84.5mm (3.33 in)
- Groove Width: 6.3mm (0.25 in)
- Seal Material: Glass-reinforced nylon sealing face with nitrile rubber expander
Compatible Models
Caterpillar Backhoe Loaders: 416D, 416E, 416F2, 420D, 420E, 420F2, 422E, 424D, 428D, 428E, 430D, 430E, 432D, 432E, 434E, 442D, 442E, 444E, 446D, 450E
Caterpillar Skidding Tractor: 527
Replaces Part Number(s):
2332585, 233-2585
Aftermarket Interchange Numbers
CTC-2332585, PA-NYL-100X84.5X6.3-ht
New aftermarket replacement part - not remanufactured, not used.
