2322V364 Multiple Speed Belt 1 7/16" X 37.2" for Several Uses and Appli Fits CAT

One New Aftermarket Replacement Variable Speed (Multi-Speed) Belt for Several Makes and Applications

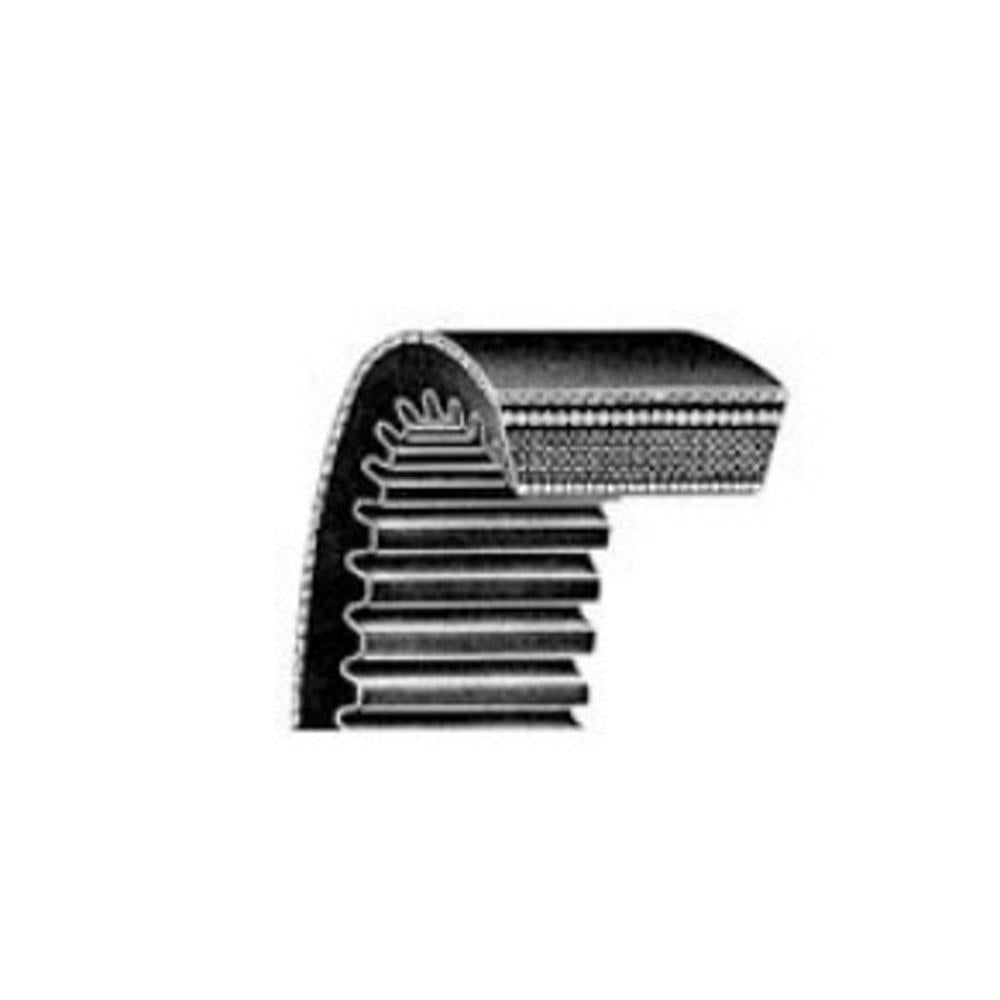

This 2322V364 variable speed belt is a bandless, cog-style power transmission belt used in variable speed drive systems across agricultural, industrial, recreational, and lawn and garden equipment. The precision-molded cogs on the underside provide lengthwise flexibility for use with smaller-diameter variable speed sheaves, while the raw edge sidewalls improve gripping action for reliable power transfer across a wide range of driven speeds.

Specifications

• Belt Type: Variable Speed (Multi-Speed), Bandless Cog Style
• Top Width: 1-7/16" (1.44")
• Outside Circumference: 37.2" (944.88 mm)
• Pitch Length: 36.4"
• Belt Depth: 0.48"
• Angle: 22 Degree
• Tensile Material: Polyester
• Weight: approx. 1.1 lb

Compatible Applications

This belt is a universal fit for variable speed sheave drives requiring exact speed control and maximum range of speed changes. Documented applications include agricultural equipment, recreational equipment, machine tools, and lawn and garden equipment including commercial mowers. Confirm belt dimensions against your machine's specifications before ordering.

Replaces Part Number(s):

2322V364, 2322V364-A

Aftermarket Interchange Numbers

Gates 2322V364 (Gates Product ID 9804-0058); Jason Industrial 2322V364; Carlisle / Timken 2322V364; Megadyne / Ammega 2322V364; Continental 2322V364; Bando BRPL7902; V-Belt Guys VBL10208

New aftermarket replacement part - not remanufactured, not used.
