2298994 Compressor Gp-Refrigerant Fits Caterpillar Models

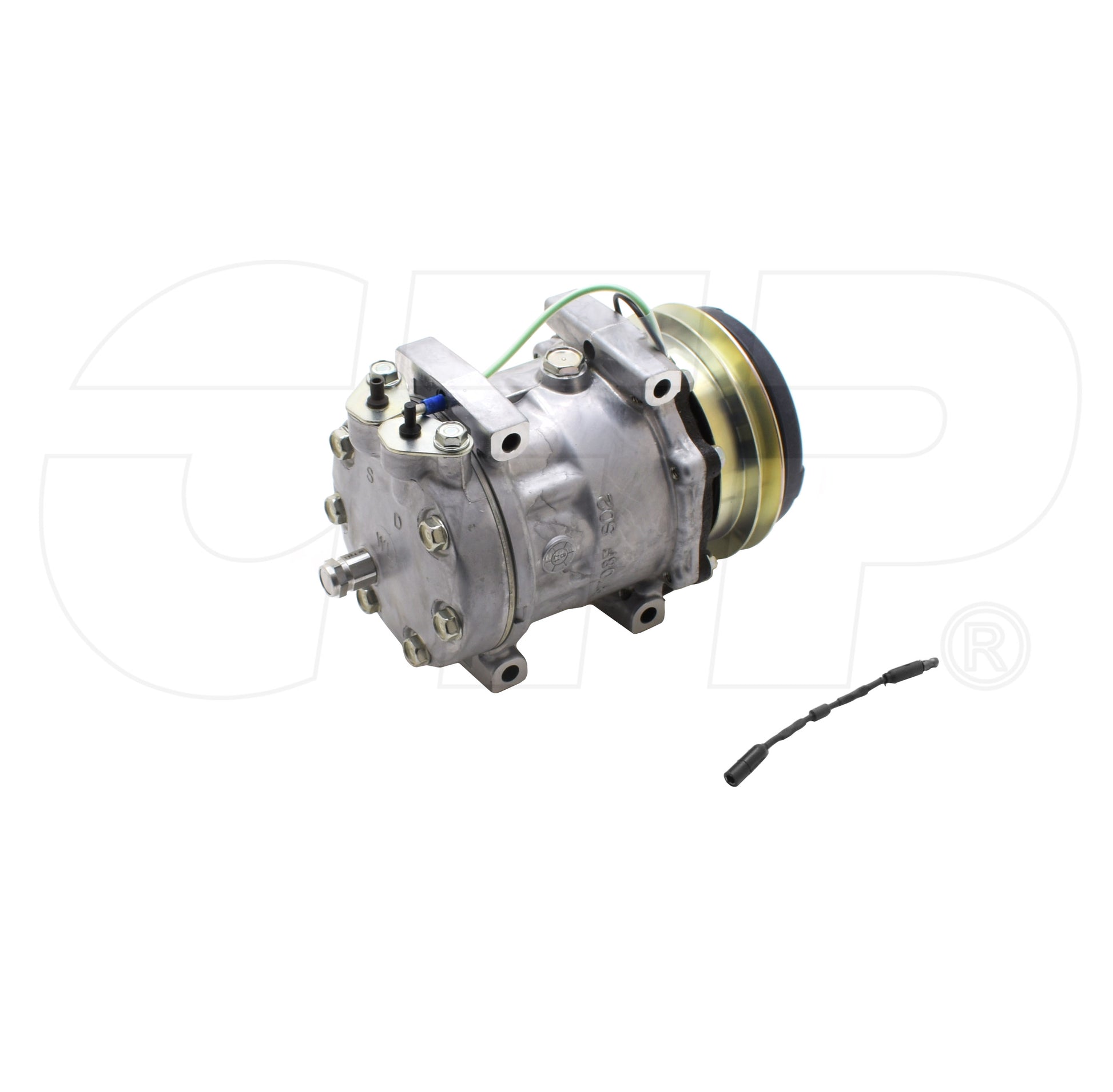

One New Aftermarket Replacement A/C Compressor (Compressor Gp-Refrigerant) for Caterpillar (Cat) Excavators

This aftermarket replacement A/C compressor (Caterpillar part designation: Compressor Gp-Refrigerant) keeps the cab air conditioning system running on Caterpillar (Cat) 308C, 314C, and 321C hydraulic excavators. It is a Sanden SD7H13-family compressor with a direct mount configuration, single V-belt groove, and 24V clutch, using R134a refrigerant. It fits machines powered by the Cat 3064, 3066, and Mitsubishi 4M40 engines.

Specifications

• Compressor Family: Sanden SD7H13
• Mount Type: Direct
• Cylinder Head: WL
• Clutch Diameter: 126 mm (approx. 4-15/16 in.)
• Number of Belt Grooves: 1 (V-Belt)
• Voltage: 24V
• Refrigerant: R134a
• Oil Type: SP10 or PAG 100
• Oil Quantity: 135cc
• Rotation: Clockwise (CW)
• Coil Connector: 2-Wire Deutsch DT04-2P-E

Compatible Models

Caterpillar Hydraulic Excavators:

• 308C CR - Serial KCX00001-UP (4M40 Engine)
• 314C CR - Serial SNY00001-UP (3064 Engine)
• 314C CR / 314C LCR - Serial KJA00001-UP (3064 Engine)
• 321C LCR - Serial MCF00001-UP (3066 Engine)
• 321C LCR - Serial KCR00001-UP (3066 Engine)

Replaces Part Number(s):

2298994, 229-8994, 509-3994, 5093994, 806-5312, 8065312

Aftermarket Interchange Numbers

Sanden: 8944 | 35067003 | 200G73 | 5093990 | CA2298994

New aftermarket replacement part - not remanufactured, not used.
