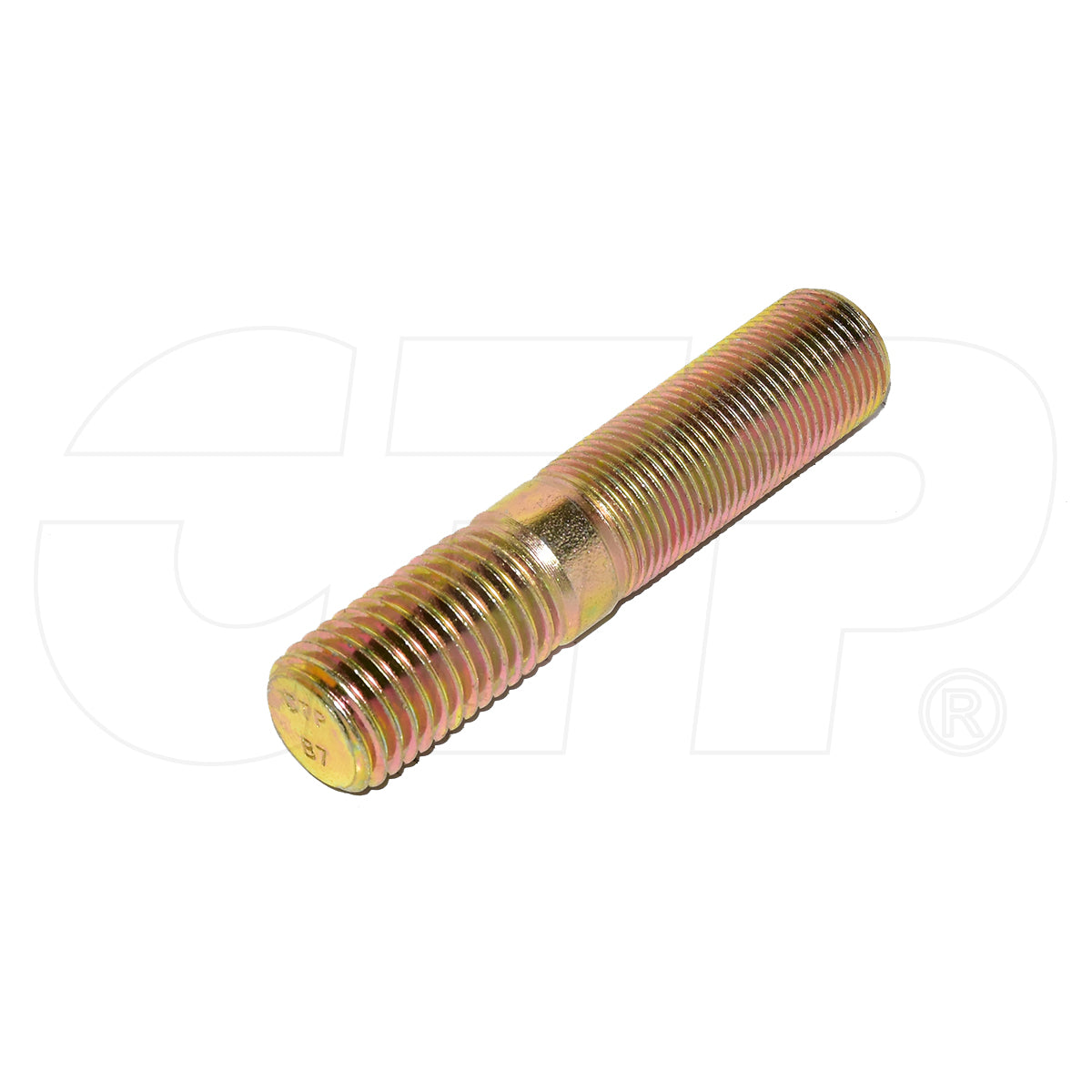

2264346 Stud-Wheel Fits Caterpillar Models

One New Aftermarket Replacement Wheel Stud for Caterpillar (Cat) Backhoe Loaders, Telehandlers, and Vibratory Compactors

This aftermarket replacement wheel stud (Stud-Wheel) secures the wheel flange on Caterpillar backhoe loaders, telehandlers, and vibratory compactors. It is a double-ended stud measuring 94 mm in length with M20x2.5 thread on one end and M20x1.5 thread on the other, designed for direct replacement of the OEM Cat 226-4346 / 2264346 stud.

Specifications

• Length: 94 mm (3.74 in)
• Thread Size A: M20x2.5 (Thread Length: 31.25 mm)
• Thread Size B: M20x1.5 (Thread Length: 49.55 mm)
• Type: Double-ended (both-end threaded)
• Weight: 0.5 lbs (approx. 0.44 lbs)

Compatible Models

Caterpillar Backhoe Loaders: 414E, 416, 416B, 416C, 416D, 416E, 416F, 420D, 420E, 420F, 422E, 422F, 424D, 426, 426B, 426C, 426F2, 428D, 428E, 428F, 430D, 430E, 430F, 432D, 432E, 432F, 434E, 434F, 438D, 442D, 442E, 444E, 444F, 450E, 450F

Caterpillar Telehandlers: TH103, TH220B, TH330B, TH336C, TH337C, TH406C, TH407C, TH414C, TH460B, TH560B, TH580B

Caterpillar Vibratory Compactors: CP-533E, CP-54, CP-54B, CP-56, CP-56B, CP-563D, CP-563E, CP-573E, CP-64, CP-68B, CP-74, CP-74B, CS-533E, CS-54, CS-54B, CS-56, CS-56B, CS-563D, CS-563E, CS-573E, CS-583E, CS-64, CS-64B, CS-66B, CS-68B, CS-74, CS-74B

Replaces Part Number(s):

2264346, 226-4346, CA2264346

New aftermarket replacement part - not remanufactured, not used.
