Ignition Tune Up Kit Fits IH Fits FARMALL Fits Cub & Fits Cub Loboy w/ J4 Magnet

Models This Part Fits:

Cub-Lo Boy, Cub

Additional Information:

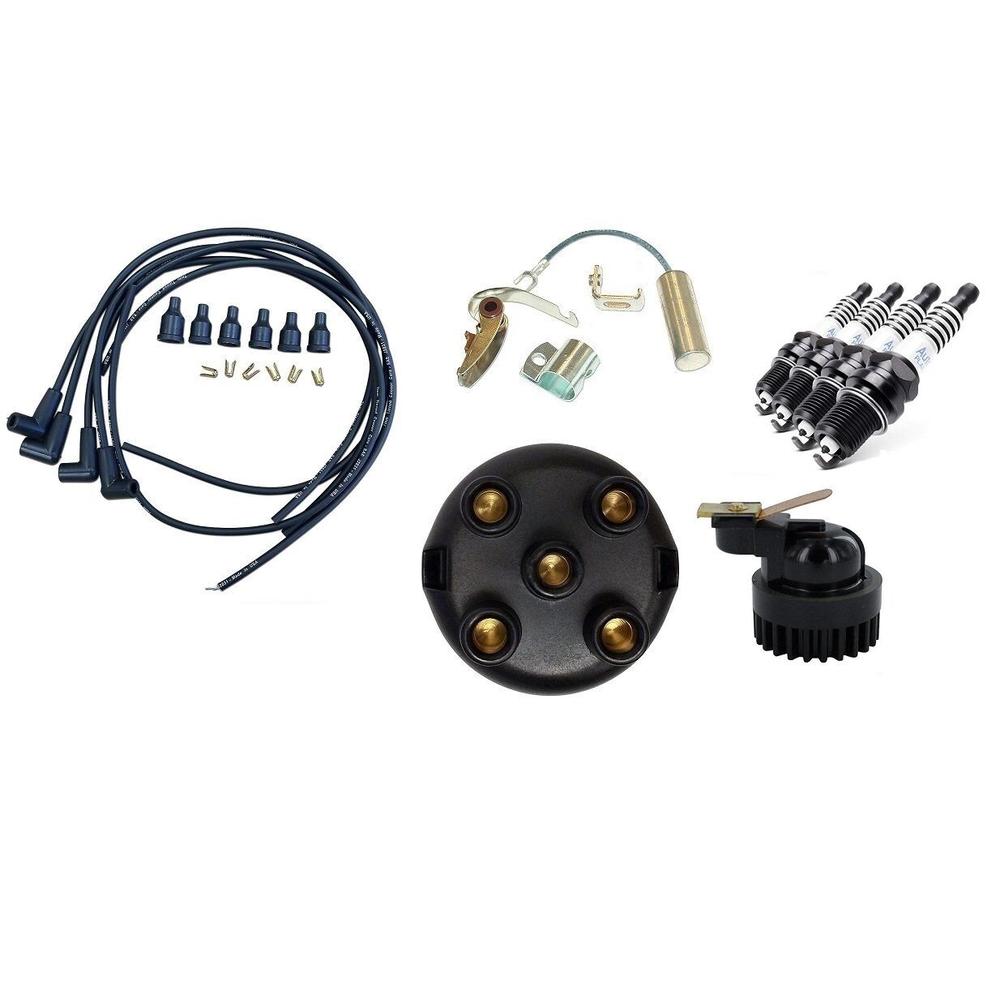

Kit Contains: (1) Magneto Rotor Fits IHC J4 magneto Replaces Part Number: 351692R91 (1) Magneto Point Set Point Gap = 0.013" Replaces Part Number(s): 353172R91, 407018R91 (1) Ignition Condenser Fits 1951-62 Distributors. Fits J4 Magneto. For Serial Numbers 81411 & Up. Replaces Part Number(s): 251539R91, 353903R91, 353903R92, 353905R1, 354136R92 (1) Distributor Cap Clip Style Cap Replaces Part Number(s): 0201-4656B, 21A461, 351693R1, 351693R92 (4) Spark Plugs Standard Info Thread Size: 18mm 7/8" Hex Shoulder Hex Size: 13/16" (20.6mm) Reach: 12mm (.472") Seat Type: Gasket Gap: .028" (0.7mm) Heat Range: 2 Terminal Type: Removable Nut Resistor: No Thread Pitch: 1.5mm Center Electrode Type: Standard Material: Nickel Size: 2.5mm Projection: Non-Projected Ground Electrode Type: Standard Material: Nickel Replaces Part Number(s): G44840, 4012405C (1) Spark Plug Wiring Set (W/ 90 degree boots) ALL 4-CYL (1939-1964) Wire Dimensions: Wire Diameter: 1/4'' With Cap: 5/8'' Length: 30'' Cap Dimensions: Length: 1 3/8'' Diameter: 3/4 Metal Pieces: Length: 3/4'' Width: 1/4'' Height: 1/2'' Replaces Part Numbers: 66442, 9N12259B, S66442

Reference Numbers:

351692R91, 251539R91, 353903R91, 353903R92, 353905R1, 354136R92, 0201-4656B, 21A461, 351693R1, 351693R92, 353172R91, 407018R91

Product Category:

Agriculture
View More: Agriculture Replacement Parts

Product Sub Group:

Ignition Components
View More: Ignition Components Replacement Parts
