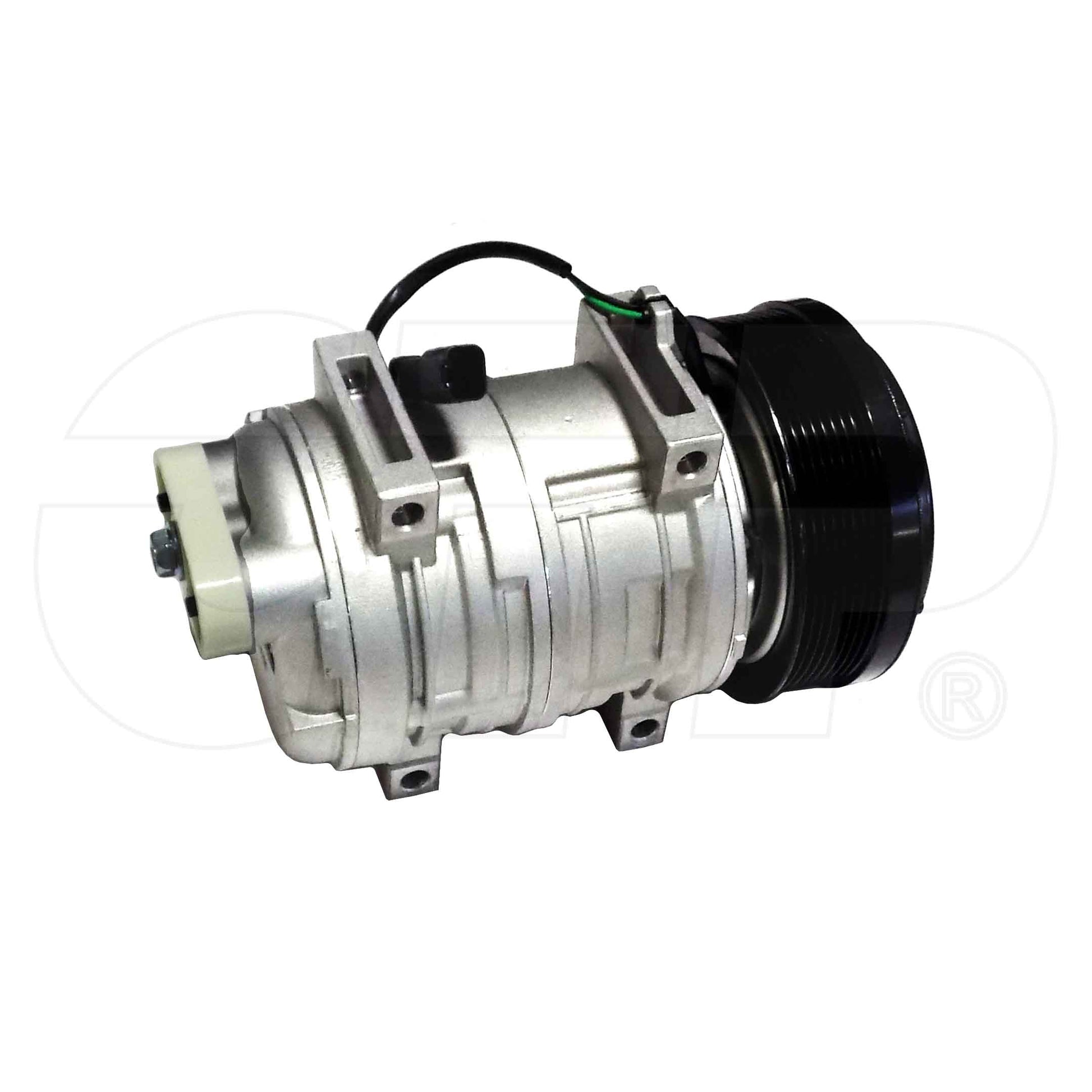

2174448 Compressor A/C Fits Caterpillar Models

One New Aftermarket Replacement A/C Compressor for Caterpillar (Cat) Wheel-Type Loaders and Off-Highway Trucks

This aftermarket replacement A/C compressor restores air conditioning system function on Caterpillar (Cat) large wheel-type loaders and off-highway haul trucks. The compressor is the heart of the cab A/C system, compressing and circulating R-134A refrigerant through the system to keep operators cool in demanding mining and construction environments. This unit features a TM-21HX-style direct-mount design with a 24-volt clutch assembly and serpentine belt pulley, compatible with all Seltec bolt-on manifolds.

Specifications

• Compressor Model: TM-21HX
• Mount Style: Direct
• Compressor Rotation: CW/CCW
• Fitting Type: Bolt-On
• Fitting Orientation: Horizontal Pad - Compatible with all Seltec Bolt-On Manifolds
• Clutch Type: 3-Eye with Dust Cover
• Pulley Diameter: 137 mm (approx. 5-3/8 in.)
• Number of Grooves: 8-Groove
• Belt Type: Serpentine
• Coil Voltage: 24 Volt - Two-Wire Deutsch Connector
• Oil Type: PAG 46
• Factory Oil Charge: 180cc (6 oz.)
• Refrigerant Type: R-134A
• Weight: Approx. 18 lbs.

Compatible Models

Caterpillar Wheel-Type Loaders: 994F, 994H

Caterpillar Off-Highway Trucks: 793D

Caterpillar Engines: 3516, 3516B

Replaces Part Number(s):

217-4448, 2174448, CA2174448

New aftermarket replacement part - not remanufactured, not used.
