Deck Rebuild Kit Fits Ariens Replaces 21546607

Deck Rebuild Kit Fits Ariens Replaces 21546607

$214.00 CAD
$214.00 CAD
Sale Sold out
Shipping calculated at checkout.

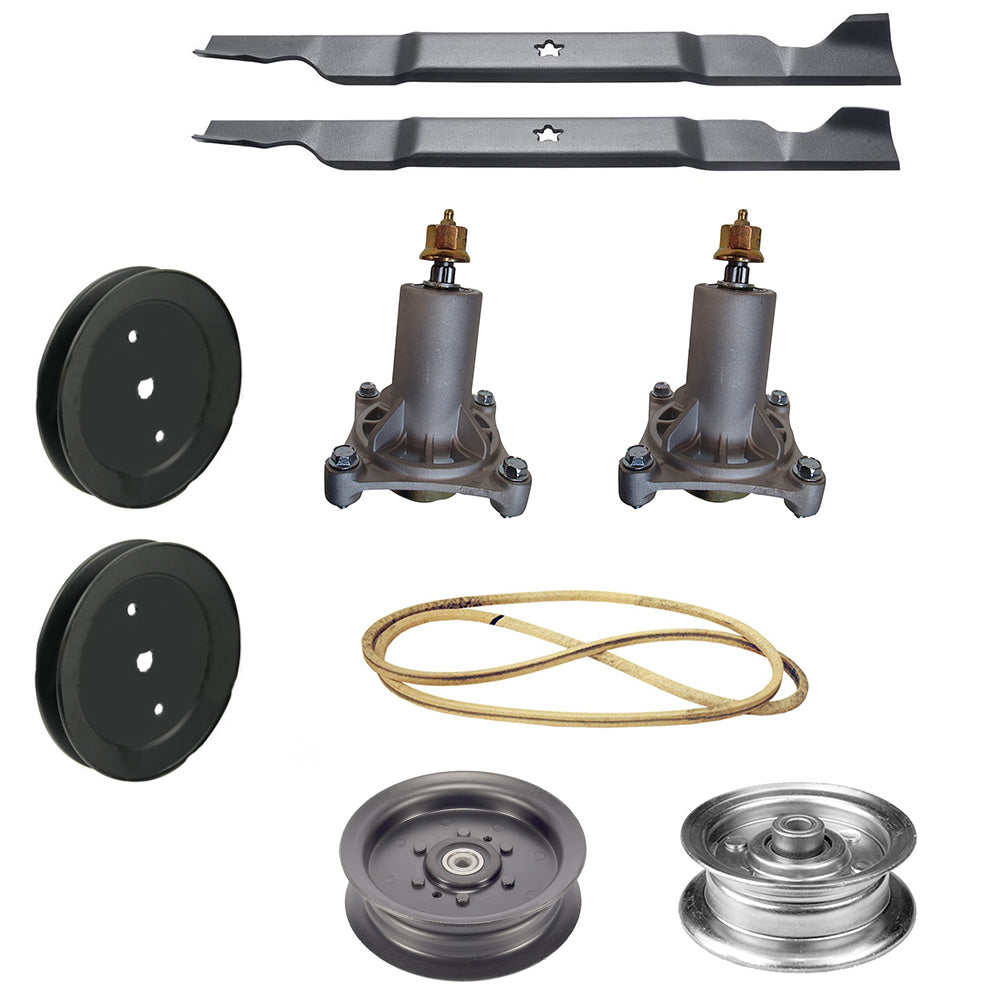

One New Aftermarket Deck Rebuild Kit

Tech Info:

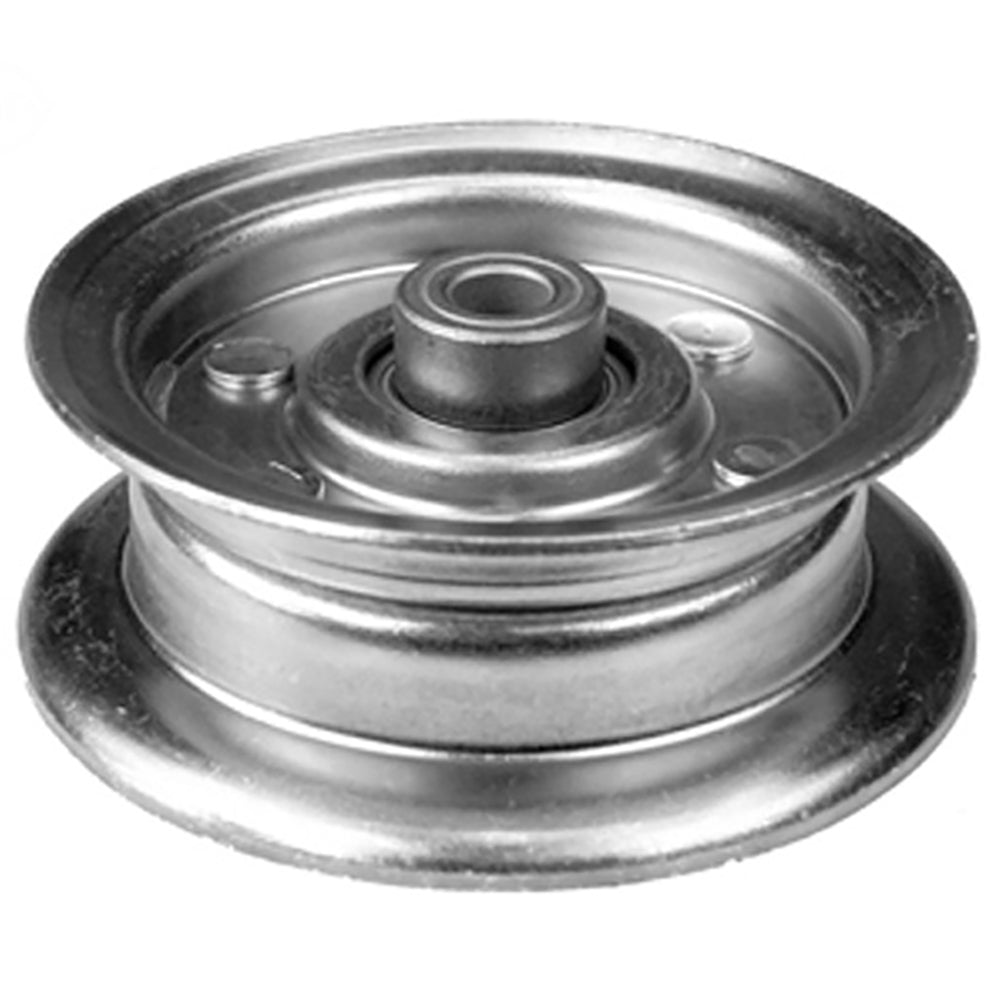

 -(1) Flat Idler Pulley
 -ID: 3/8"
 -OD: 5-3/8"
 -Height: 1-5/8"
 -Painted
 -Replaces Part Number(s):
 -196106, 197379, 532196106
 -

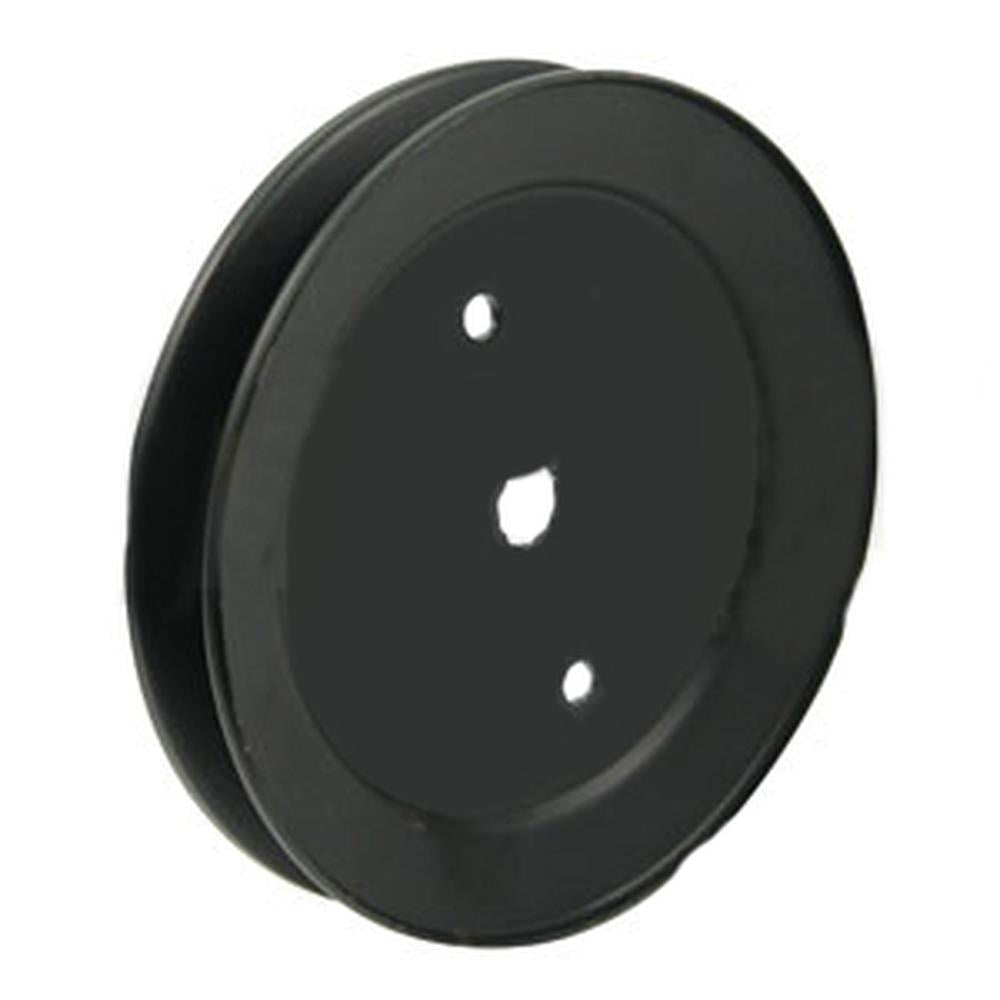

 -(2) Spindle Pullies
 -Inside Diameter: 5/8" Splined
 -Outside Diameter: 6-1/4"
 -Width: 7/8"
 -Replaces Part Number(s):
 -195945, 197473, 532195945, 532197473
 -

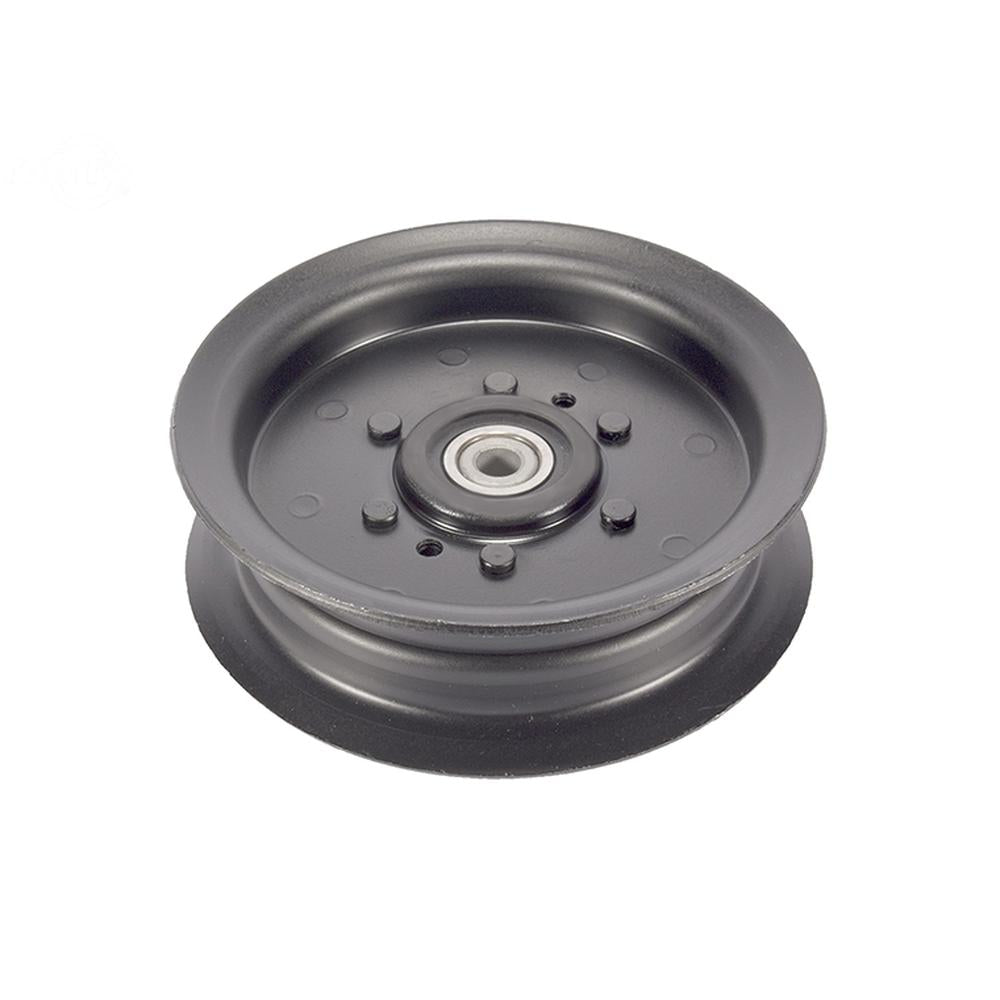

 -(1) Flat Idler Spindle Pulley
 -Height: 1-7/16"
 -ID: 3/8"
 -OD: 4"
 -Material: Metal
 -Heavy Duty: TRUE
 -Replaces Part Number(s):
 -532177968, 532193197
 -

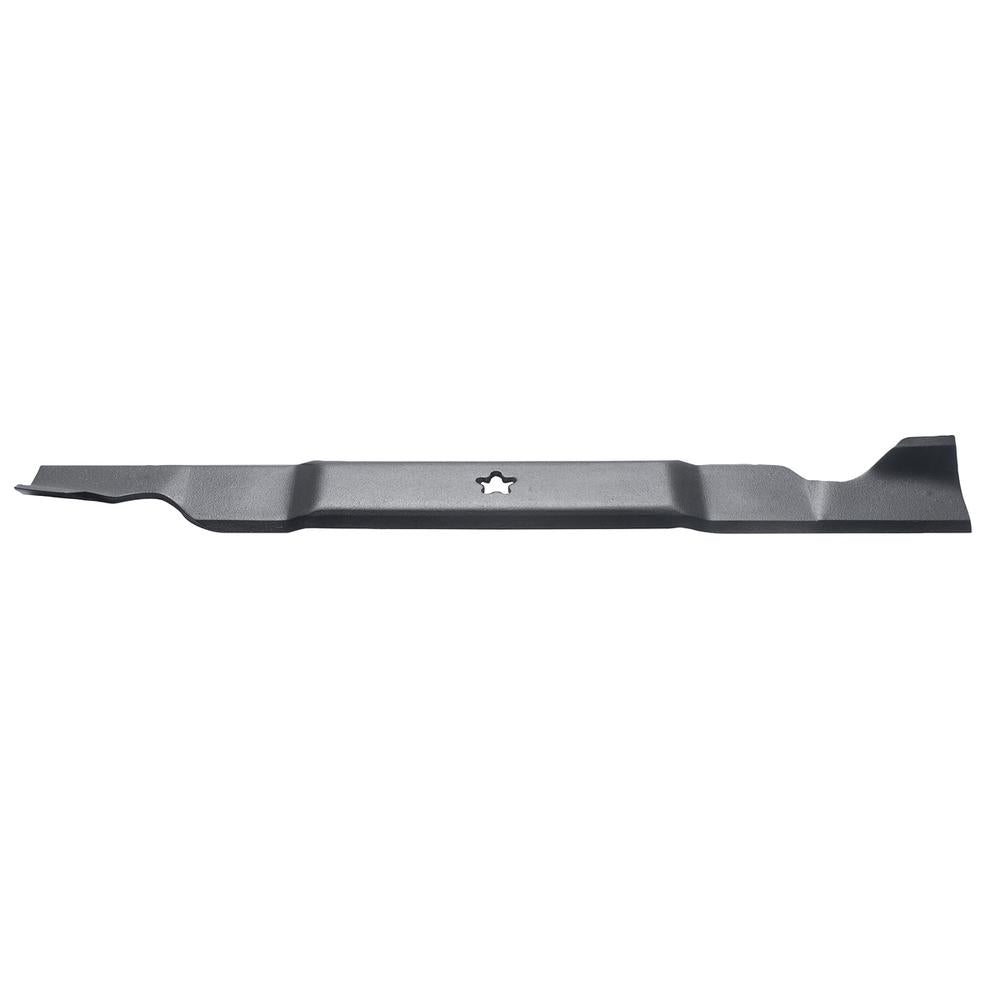

 -(2) Mower Blades
 -Length: 22-7/8"
 -Width: 2-3/4"
 -Thickness: 0.156"
 -Center Hole: 5 point star
 -Replaces Part Number(s):
 -403107, 503405380, 532403107, 532405380, 594892801
 -

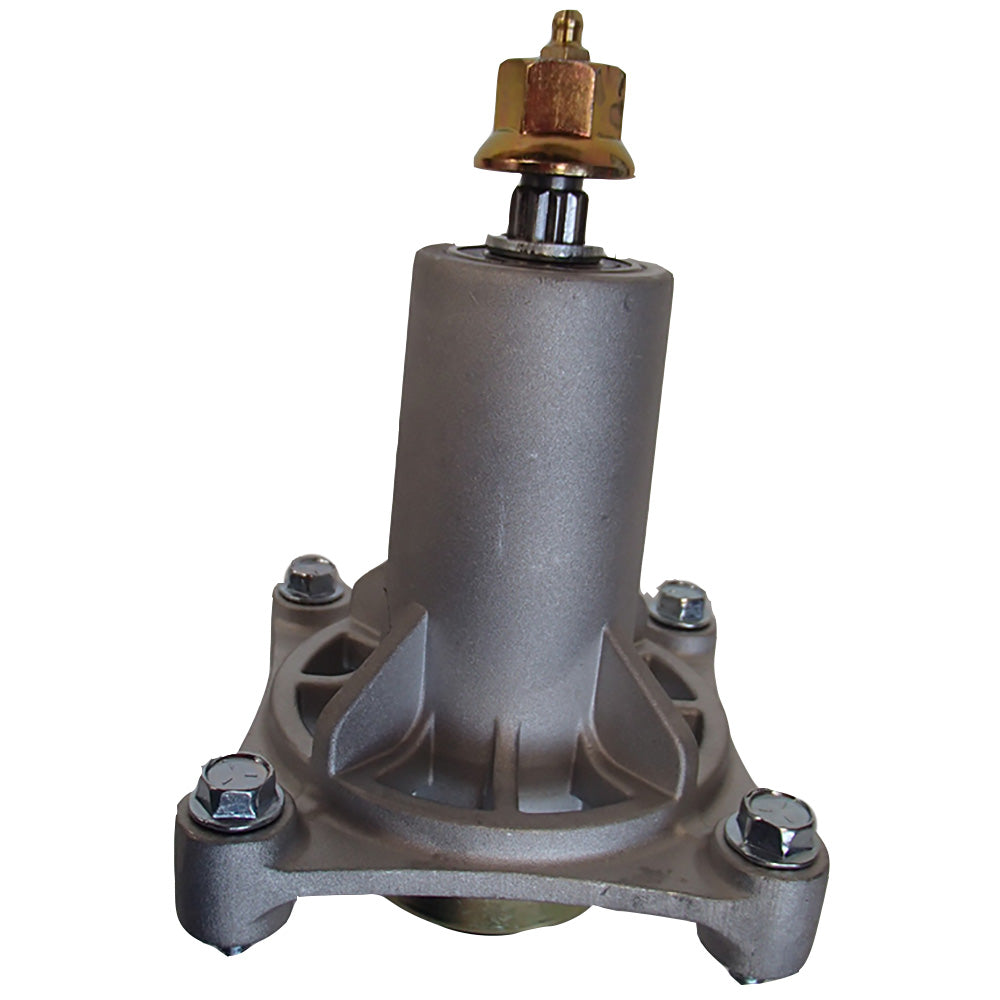

 -(2) Spindle Assemblies
 -4-Bolt Long Housing
 -5-Point Star Blade Mount
 -Threaded Mounting Holes for Easy Installation
 -Shaft is Splined for Spline-Type Pulleys
 -
 -Includes:
 -Pulley Locknut,
 -Blade Bolt/Washer,
 -Spacer,
 -4 Mounting Bolts
 -Replaces Part Number(s):
 -192870, 532187281, 532187292, 532192870, 539112057, 567253301, 587125401, 587253301, 587819701, 587820301
 -

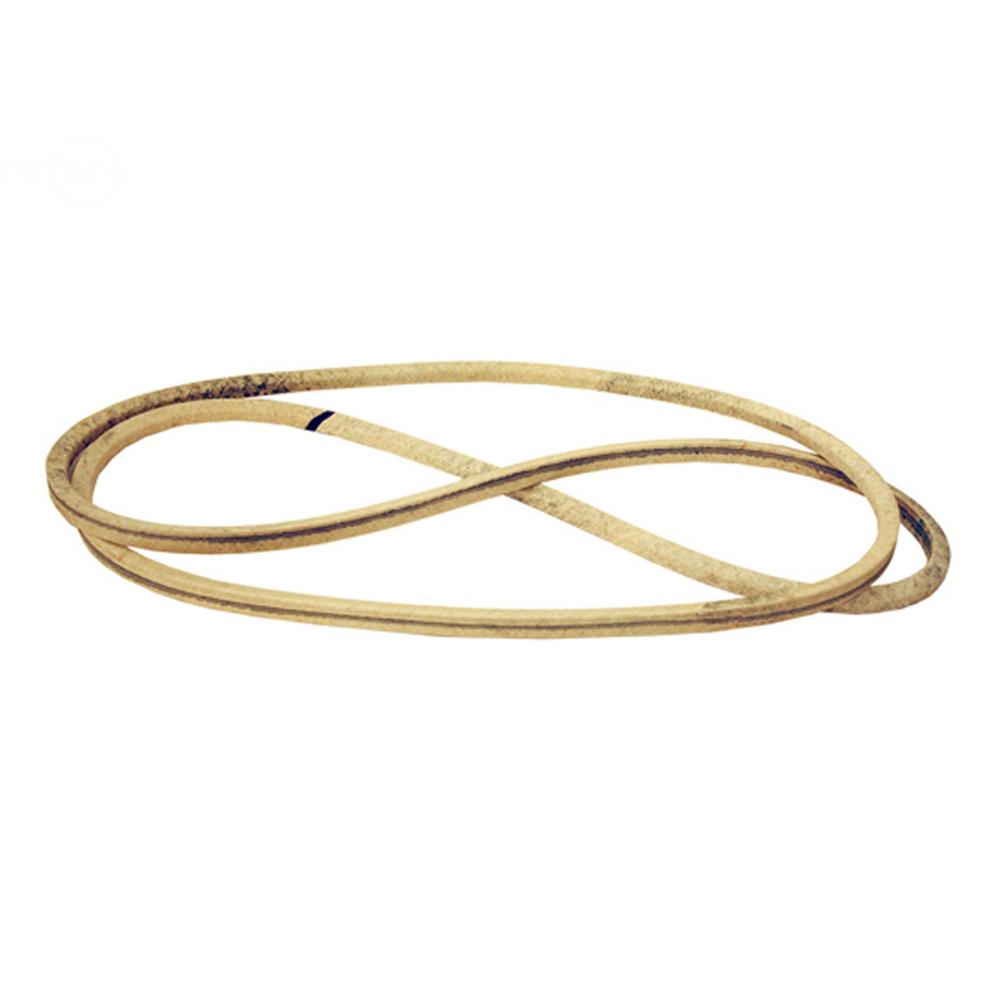

 -(1) Deck Belt
 -1/2" x 105.875"
 -Thickness: 0.35"
 -Made With Aramid Cord
 -Replaces Part Number(s):
 -532405143, 584453101

Made to Fit Ariens:
 Replaces Part Number(s): 21546607, 584453101

Additional Information:

(1) Flat Idler Pulley Inner Diameter: 3/8" Outer Diameter: 5-3/8" Height: 1-5/8" Painted Replaces Part Number(s): 196106, 197379, 532196106 (2) Spindle Pulleys Inside Diameter: 5/8" Splined Outside Diameter: 6-1/4" Width: 7/8" Replaces Part Number(s): 195945, 197473, 532195945, 532197473 (1) Flat Idler Spindle Pulley Height: 1-7/16" Inside Diameter: 3/8" Outside Diameter: 4" Material: Metal Heavy Duty: TRUE Replaces Part Number(s): 532177968, 532193197 (2) Mower Blades Length: 22-7/8" Width: 2-3/4" Thickness: 0.156" Center Hole: 5 point star Replaces Part Number(s): 403107, 503405380, 532403107, 532405380, 594892801 (2) Spindle Assemblies 4-Bolt Long Housing 5-Point Star Blade Mount Threaded Mounting Holes for Easy Installation Shaft is Splined for Spline-Type Pulleys Pulley Locknut Blade Bolt/Washer Spacer 4 Mounting Bolts Replaces Part Number(s): 192870, 532187281, 532187292, 532192870, 539112057, 567253301, 587125401, 587253301, 587819701, 587820301 (1) Deck Belt 1/2" x 105.875" Thickness: 0.35" Made With Aramid Cord Replaces Part Number(s): 532405143, 584453101

Reference Numbers:

21546607, 584453101

Product Category:

Lawn & Garden
View More: Lawn & Garden Replacement Parts

Product Sub Group:

Deck Components
View More: Deck Components Replacement Parts
