21163-2124 Starter Fits Kawasaki Mule 3000 3010 KAF620 Fits Denso OSGR 12 Volt 9
21163-2124 Starter Fits Kawasaki Mule 3000 3010 KAF620 Fits Denso OSGR 12 Volt 9
Couldn't load pickup availability

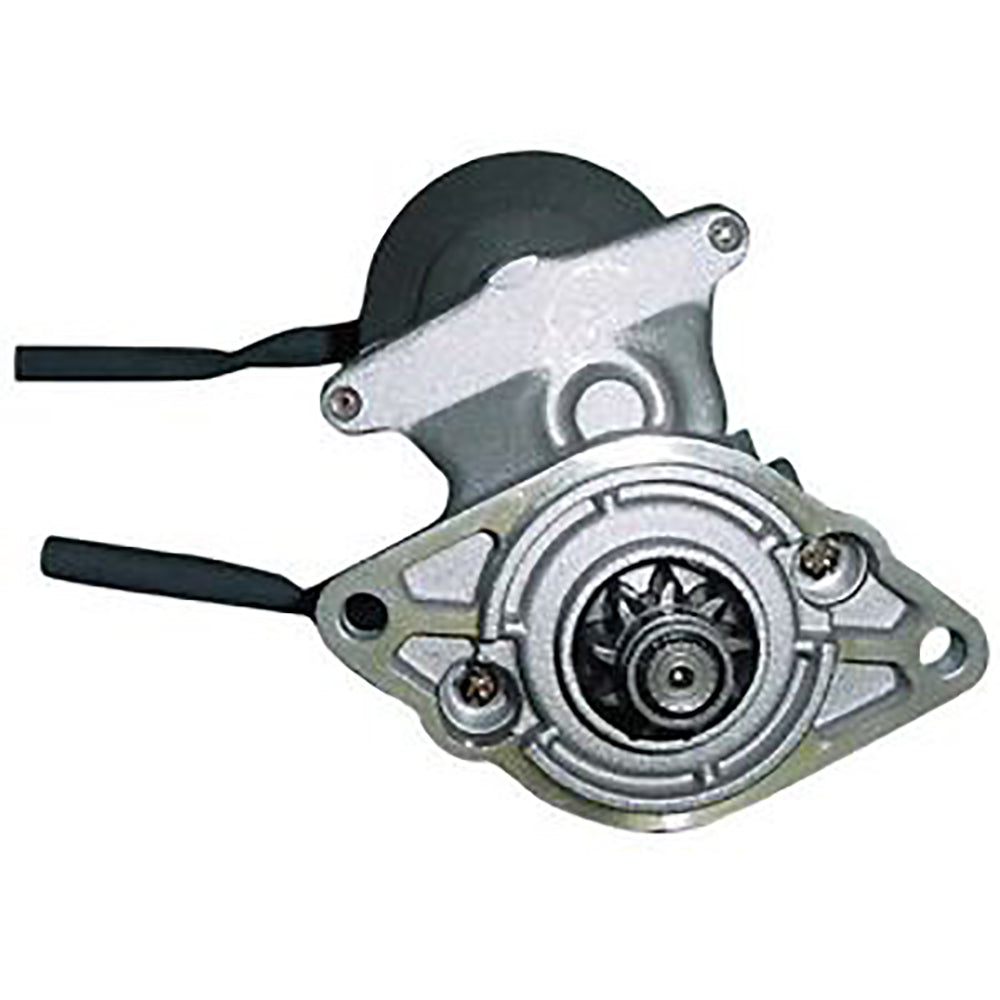

One New Aftermarket Replacement Starter Fits Kawasaki (KAF620) Mule UTV
This OSGR (Offset Gear Reduction) starter motor is a direct aftermarket replacement for the Fits Kawasaki Mule KAF620 617cc 2-cylinder utility vehicle lineup spanning 2001-2011, as well as the Suzuki QUV620F. It replaces the original Fits Denso/Nippondenso unit and bolts directly into place with dual 10.0mm unthreaded mounting holes.
Specifications
- Type: OSGR (Offset Gear Reduction)
- Voltage: 12 Volts
- Power: 1.2 kW
- Rotation: Counter-Clockwise (CCW)
- Teeth: 9
- Pinion OD: 29mm / 1.142 in
- Mounting: Dual 10.0mm ID Unthreaded Holes
- Weight: approx. 8.1 lbs / 3.68 kg
Compatible Models
Fits Kawasaki KAF620 Mule 3000 Series (2001-2008): Mule 3000 617cc
Fits Kawasaki KAF620 Mule 3010 Series (2001-2008): Mule 3010 4x4, Mule 3010 4x4 Adv. Classic, Mule 3010 Trans 4x4
Fits Kawasaki KAF620 Mule 3020 Series (2001-2003): Mule 3020 Turf 617cc
Fits Kawasaki KAF620 Mule 4000 Series (2009-2010): Mule 4000 617cc
Fits Kawasaki KAF620 Mule 4010 Series (2009-2011): Mule 4010 4x4, Mule 4010 4x4 Hardwoods, Mule 4010 Trans 4x4
Suzuki: QUV620F 620cc Utility Vehicle (2005)
Replaces Part Number(s):
21163-2124, 21163-6010, 228000-8841, 228000-8840, K2116-32124, 18629, 410-52117, SND0459, 49-5266, 190-6112, 71-29-18629
New aftermarket replacement part - not remanufactured, not used.
