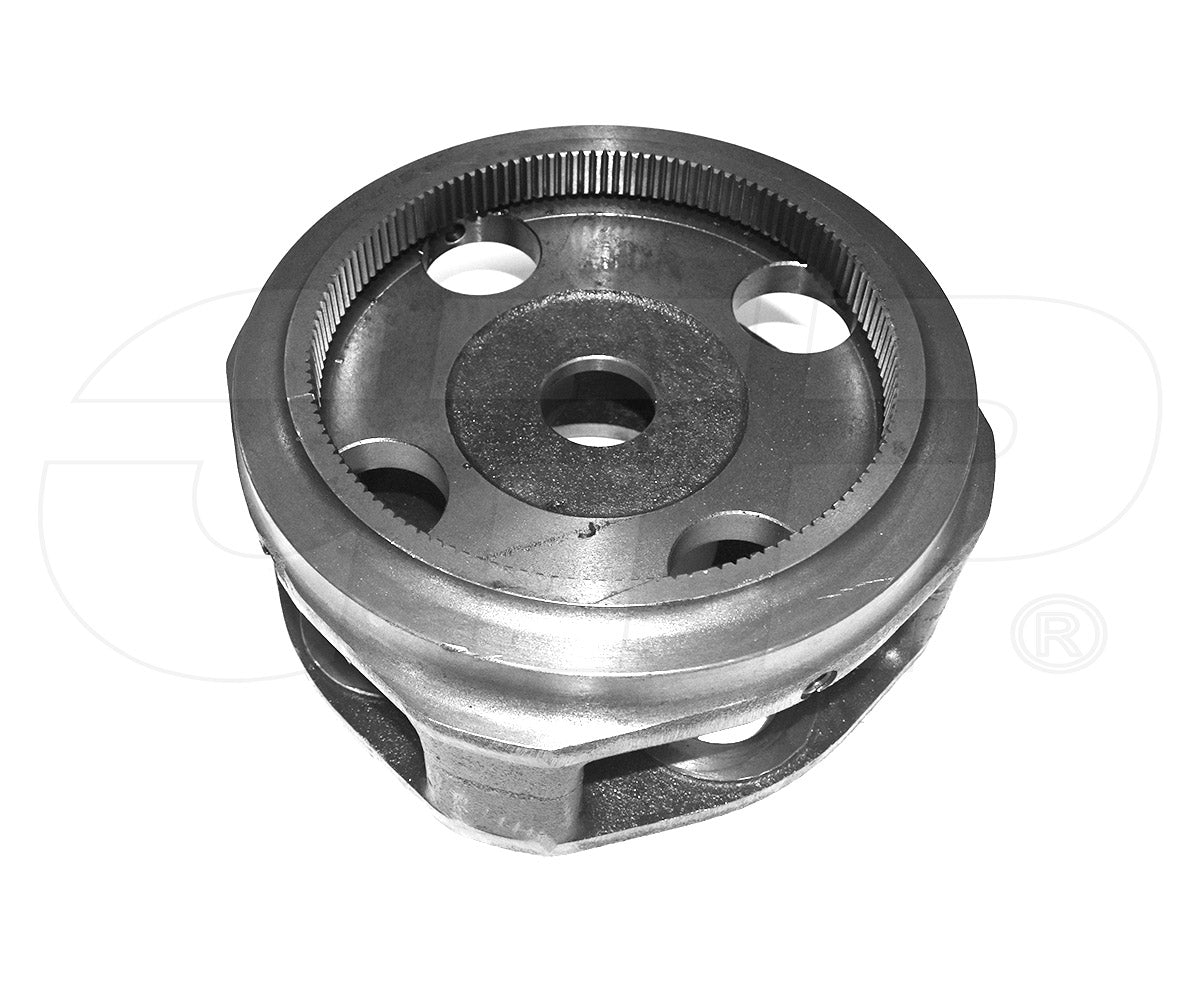

One New Aftermarket Replacement Planetary Carrier for Komatsu PC200 Excavators
This planetary carrier (position 10 in the final drive assembly) is a first-stage carrier in the two-stage planetary gear reduction final drive on Komatsu PC200-series excavators. The final drive is the last component in the powertrain, providing the final speed reduction and torque increase that drives the tracks. This carrier houses the planetary gears and transfers torque through the gear set to the output hub. It is the larger of the two carriers in this final drive and is not interchangeable with the second-stage carrier (20Y-27-22160).
Specifications
- Weight: 20.4 kg (approx. 45 lbs)
- Serial Number Applicability: SN 91087-UP
- Position: First-stage planetary carrier (final drive assembly position 10)
Compatible Models
Komatsu PC200 Series: PC200-6, PC200-7
Replaces Part Number(s):
20Y-27-22170
New aftermarket replacement part - not remanufactured, not used.
