One New Aftermarket Replacement Oil Seal for Komatsu Excavators

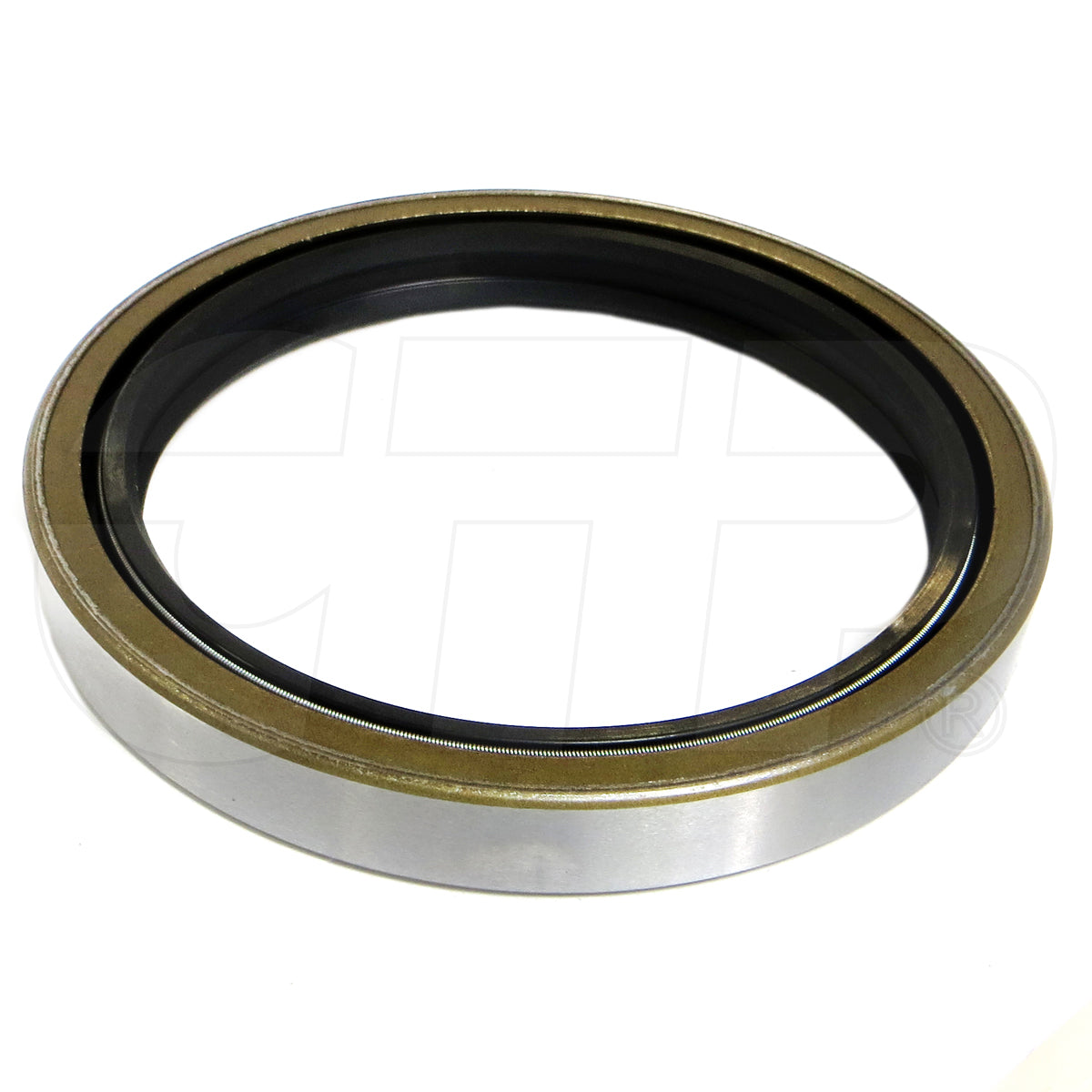

This aftermarket replacement oil seal (part number 20Y-26-22420, also referenced as 20Y2622420) fits the swing reduction gearbox / swing motor assembly on a wide range of Komatsu hydraulic excavators. The seal measures 125 mm x 155 mm x 18 mm and is a skeleton-style oil seal used to retain lubricant and exclude contaminants from the swing drive unit.
Specifications
- Type: Skeleton Oil Seal
- Dimensions: 125 mm ID x 155 mm OD x 18 mm Width
- Application: Swing Reduction Gearbox / Swing Motor
Compatible Models
Komatsu Hybrid Excavators: HB205-1, HB205-1M0, HB215LC-1, HB215LC-1M0, HB215LC-2, HB215LC-3
Komatsu PC Series Excavators: PC200, PC200-6, PC200-7, PC200-8, PC200-8E0, PC200-8M0, PC200CA, PC200F-8, PC200LC-8, PC200LC-8M0, PC200LL, PC200SC, PC210-10, PC210-11, PC210LC-8, PC220, PC220-8, PC228, PC228US, PC228US-11, PC228USLC-10, PC228UU, PC230, PC230NHD, PC238USLC-11, PC240, PC240-8, PC250, PC270, PC290, PC308
Komatsu PW Series Wheeled Excavators: PW200, PW220
Replaces Part Number(s):
20Y-26-22420, 20Y2622420
Aftermarket Interchange Numbers
BW0760E
New aftermarket replacement part - not remanufactured, not used.
