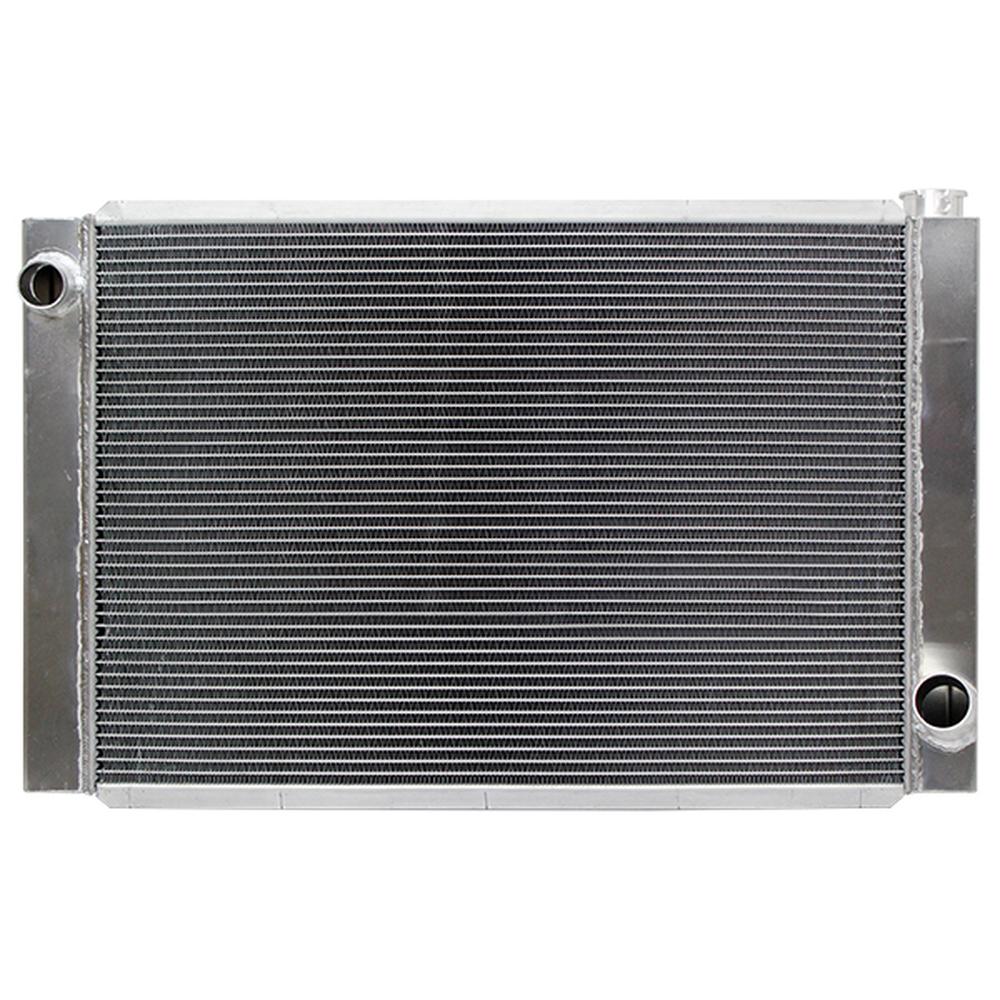

209688 Race Pro Radiators - 31 x 19 x 4 1/4 Overall (Chevy / GM 3 Row)
209688 Race Pro Radiators - 31 x 19 x 4 1/4 Overall (Chevy / GM 3 Row)
Regular price
$1,217.00 CAD
Regular price
Sale price
$1,217.00 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
One New Aftermarket Race Pro Radiators - 31 x 19 x 4 1/4 Overall (Chevy / GM 3 Row)
Tech Info:
-SPECIFIC OVERALL DIMENSIONS: 30 7/8 x 19 9/16 x 4 1/4
-RECOMMENDED HURRICANE ENGINE DRIVEN FAN SHROUD: Z40023
-RECOMMENDED HIGH CFM ELECTRIC FAN & SHROUD: Z40076
-RECOMMENDED BRUSHLESS FAN SHROUD: Z40133
-CORE DIMENSIONS: 26 1/4 x 18 x 3 7/16
-INLET: 1 1/2
-OUTLET: 1 3/4
-3 ROWS OF 1" TUBES FOR HIGH PERFORMANCE COOLING. 30% MORE COOLING CAPACITY THANANY BRAND OF 2 ROW 1" TUBE RADIATOR!
-MACHINED BILLET ALUMINUM SAE COMPLIANT FILLER NECK
-COOLING WHERE YOU NEED IT - HIGH HP, BLOWN, ASPHALT / MODIFIED
-TYPICAL GM HOSE CONNECTION LOCATIONS
-**MUST USE HIGH CFM FAN IF INSTALLING ELECTRIC FAN** SEEITEM DETAILS TABLE BELOW
-FOR ULTIMATE PERFORMANCE SEE THESE HIGH PRESSURE RACE RADIATOR CAPS:
-20 LB psiZ19200
-24 LB psiZ19201
-28 LB psiZ19202
View full details
Tech Info:
-SPECIFIC OVERALL DIMENSIONS: 30 7/8 x 19 9/16 x 4 1/4
-RECOMMENDED HURRICANE ENGINE DRIVEN FAN SHROUD: Z40023
-RECOMMENDED HIGH CFM ELECTRIC FAN & SHROUD: Z40076
-RECOMMENDED BRUSHLESS FAN SHROUD: Z40133
-CORE DIMENSIONS: 26 1/4 x 18 x 3 7/16
-INLET: 1 1/2
-OUTLET: 1 3/4
-3 ROWS OF 1" TUBES FOR HIGH PERFORMANCE COOLING. 30% MORE COOLING CAPACITY THANANY BRAND OF 2 ROW 1" TUBE RADIATOR!
-MACHINED BILLET ALUMINUM SAE COMPLIANT FILLER NECK
-COOLING WHERE YOU NEED IT - HIGH HP, BLOWN, ASPHALT / MODIFIED
-TYPICAL GM HOSE CONNECTION LOCATIONS
-**MUST USE HIGH CFM FAN IF INSTALLING ELECTRIC FAN** SEEITEM DETAILS TABLE BELOW
-FOR ULTIMATE PERFORMANCE SEE THESE HIGH PRESSURE RACE RADIATOR CAPS:
-20 LB psiZ19200
-24 LB psiZ19201
-28 LB psiZ19202
