206-70-53143 Pin Fits Komatsu Models
206-70-53143 Pin Fits Komatsu Models
Couldn't load pickup availability

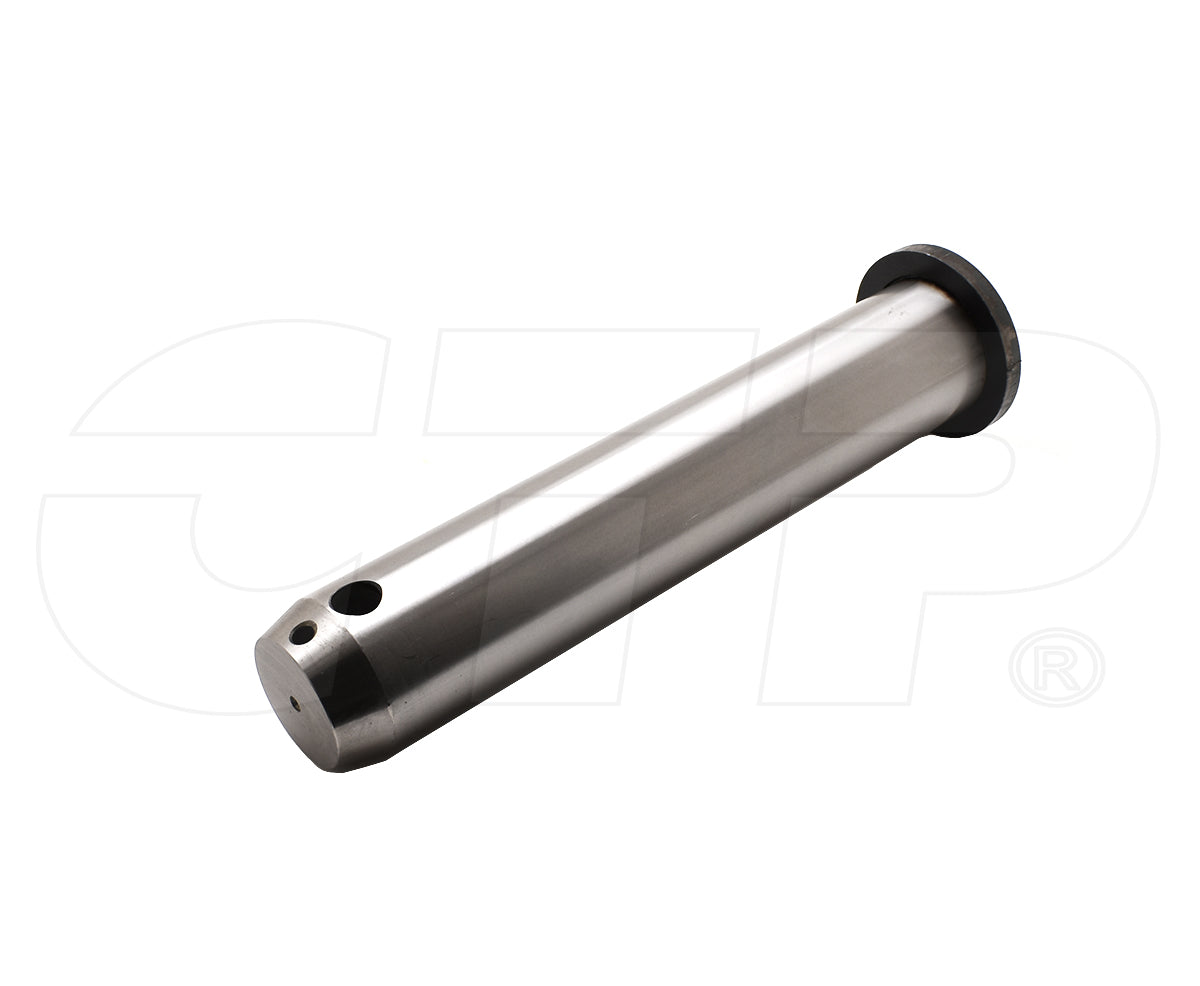

One New Aftermarket Replacement Pin for Komatsu Excavators
This aftermarket replacement pin fits Komatsu hydraulic excavators and is used in the boom and arm assembly. Replaces OEM part number 206-70-53143. Measured at 80 mm diameter, 424 mm length including flange, with a 110 mm flange diameter, 12 mm flange thickness, and 2 bolt holes.
Specifications
- Diameter: 80 mm
- Length (including flange): 424 mm
- Flange Diameter: 110 mm
- Flange Thickness: 12 mm
- Bolt Holes: 2
Compatible Models
Komatsu PC220 Series: PC220-8, PC220-8M0, PC220LC-8, PC220LC-8M0, PC220LL-8
Komatsu PC240 Series: PC240-8K, PC240LC-8, PC240LC-10, PC240LC-11, PC240LC-11E0, PC240LL-10, PC240NLC-8K, PC240NLC-10, PC240NLC-11, PC240NLC-11WO
Komatsu PC270 Series: PC270-8, PC270LC-8, PC270LC-88N1-W1
Komatsu PC290 Series: PC290-8K, PC290LC-10, PC290NLC-10
Komatsu PC308 Series: PC308USLC-3E0-W1
Komatsu PC350/PC360 Series: PC350L-8, PC350LC-8, PC360LC-11, PC360LC-11E0, PC360NLC-11, PC360NLC-11E0
Komatsu PC380/PC450 Series: PC380USLC-3E0, PC450LC-8
Replaces Part Number(s):
206-70-53143
New aftermarket replacement part - not remanufactured, not used.
