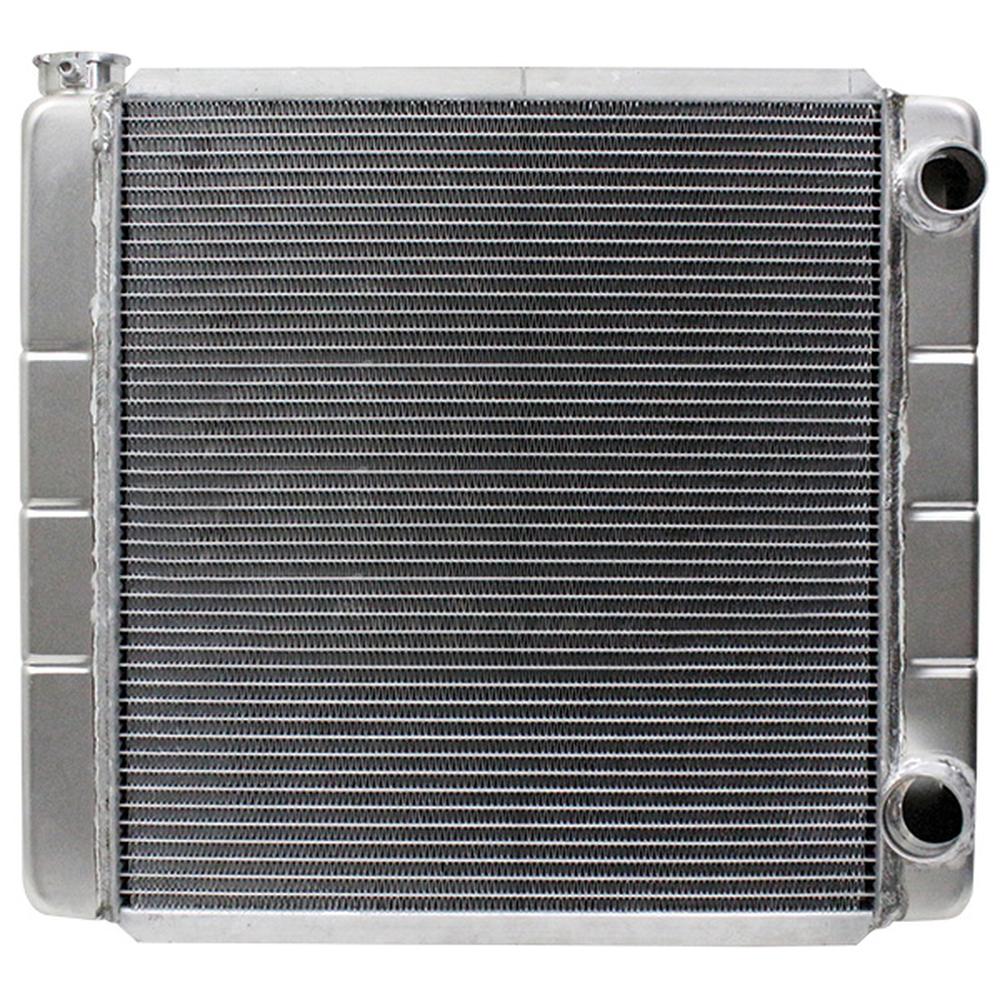

204109 Race Pro Radiators - 22 x 19 GM Double Pass
204109 Race Pro Radiators - 22 x 19 GM Double Pass
Regular price
$498.00 CAD
Regular price
Sale price
$498.00 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
One New Aftermarket Race Pro Radiators - 22 x 19 GM Double Pass
Tech Info:
-SPECIFIC OVERALL DIMENSIONS: 21 1/4 x 19 1/2 x 3 1/8
-RECOMMENDED ELECTRIC FAN SHROUD: Z40073
-RECOMMENDED HURRICANE ENGINE DRIVEN FAN SHROUD: Z40020
-INLET: 1 1/2
-OUTLET: 1 3/4
-CORE DIMENSIONS: 17 x 18 x 2 1/4
-CORE HAS 2 ROWS OF 1" TUBES
-MACHINED BILLET ALUMINUM SAE COMPLIANT FILLER NECK
-INLET / OUTLET ON RIGHT
-FOR ULTIMATE PERFORMANCE SEE THESE HIGH PRESSURE RACE RADIATOR CAPS:
-20 LB psiZ19200
-24 LB psiZ19201
-28 LB psiZ19202
