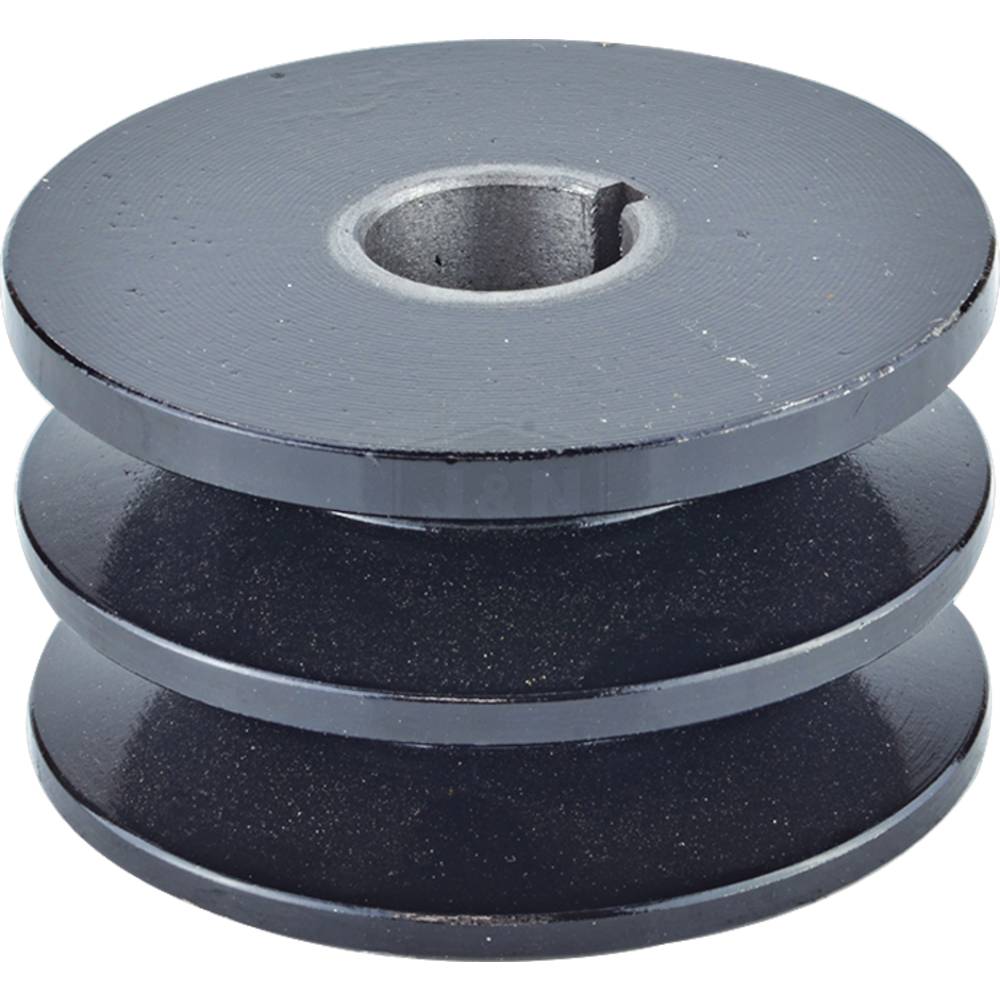

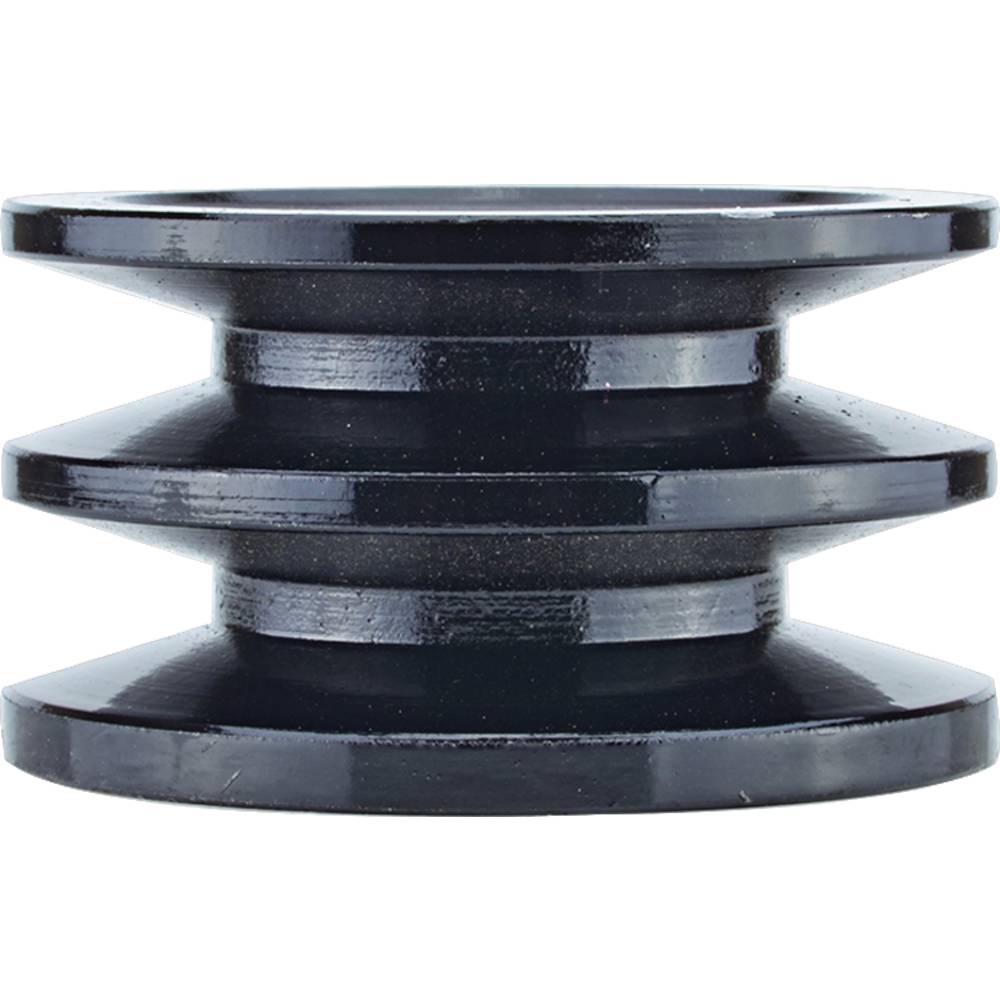

202-50000-JN J&N Electrical Products Pulley

202-50000-JN J&N Electrical Products Pulley

$73.00 CAD
$73.00 CAD
Sale Sold out
Shipping calculated at checkout.
One New Aftermarket J&N Electrical Products Pulley

Tech Info:
-BELT WIDTH: 15, Fits Case OD: 0.807", Fits Case OD: 20.500mm, CENTER OF GROOVE TO REAR: 0.571", CENTER OF GROOVE TO REAR: 14.500mm, CENTER TO CENTER GROOVE: 0.807", CENTER TO CENTER GROOVE: 20.500mm, GROOVE TYPE: V-Groove, ID: 0.874", ID: 22.200 mm, KEYWAY WIDTH: 0.157", KEYWAY WIDTH: 4mm, NUMBER OF GROOVES: 2, NUT RECESS: 0.736", NUT RECESS: 18.700mm, OD: 3.232", OD: 82.100 mm, PULLEY TYPE: Solid, THICKNESS: 46 mm
-Arrowhead: 202-50000; Nikko: 1-35411-0100

Replaces Part Number(s): 202-50000

Additional Information:

BELT WIDTH: 15, CASE OD: 0.807", CASE OD: 20.500mm, CENTER OF GROOVE TO REAR: 0.571", CENTER OF GROOVE TO REAR: 14.500mm, CENTER TO CENTER GROOVE: 0.807", CENTER TO CENTER GROOVE: 20.500mm, GROOVE TYPE: V-Groove, ID: 0.874", ID: 22.200 mm, KEYWAY WIDTH: 0.157", KEYWAY WIDTH: 4mm, NUMBER OF GROOVES: 2, NUT RECESS: 0.736", NUT RECESS: 18.700mm, OD: 3.232", OD: 82.100 mm, PULLEY TYPE: Solid, THICKNESS: 46 mm, Arrowhead: 202-50000; Nikko: 1-35411-0100

Reference Numbers:

202-50000
