202-48001-JN J&N Electrical Products Pulley

202-48001-JN J&N Electrical Products Pulley

$64.00 CAD
$64.00 CAD
Sale Sold out
Shipping calculated at checkout.

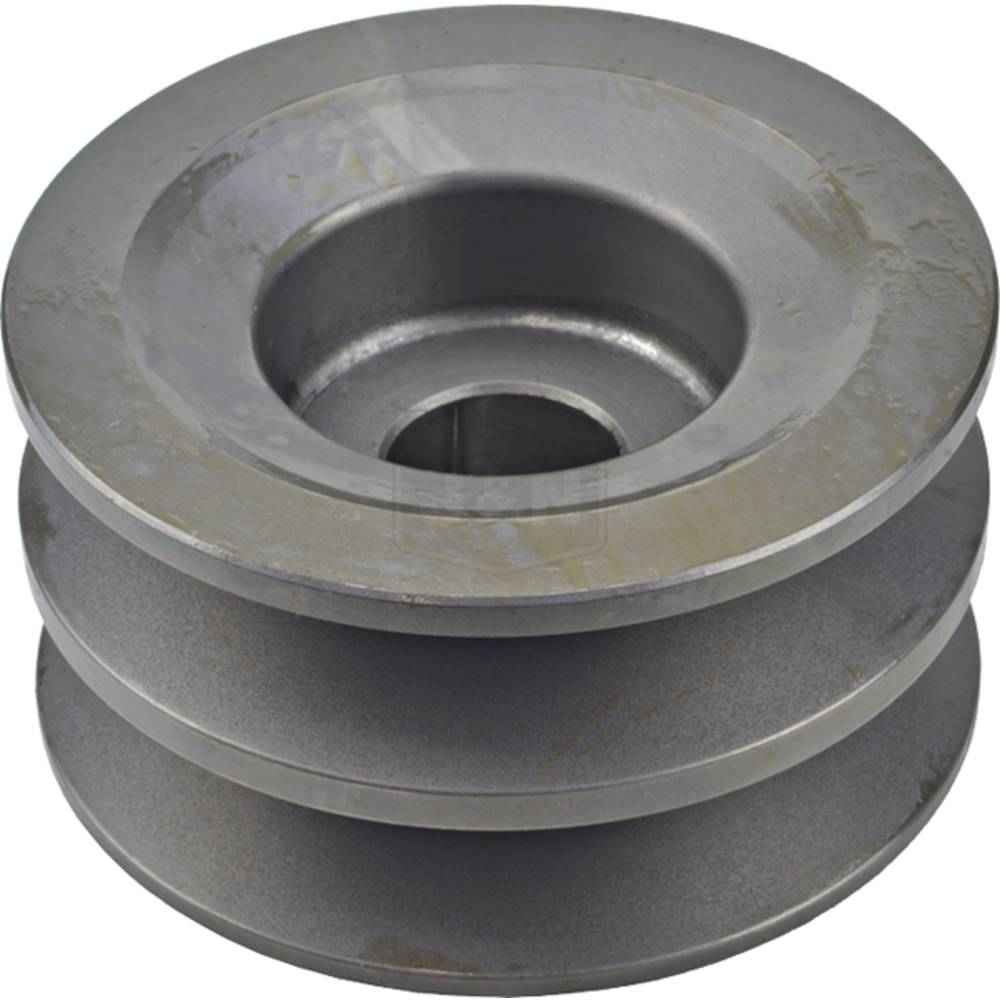

One New Aftermarket J&N Electrical Products Pulley

Tech Info:
-Arrowhead: 202-48001; Fits Mitsubishi: A628T54470
-BELT WIDTH: 16, Fits Case OD: 0.787", Fits Case OD: 20mm, CENTER OF GROOVE TO REAR: 0.413", CENTER OF GROOVE TO REAR: 10.500mm, CENTER TO CENTER GROOVE: 0.787", CENTER TO CENTER GROOVE: 20mm, COMPOSITION: Steel, GROOVE TYPE: V-Groove, ID: 0.787", ID: 20 mm, NUMBER OF GROOVES: 2, NUT RECESS: 0.776", NUT RECESS: 19.700mm, OD: 3.228", OD: 82 mm, PULLEY TYPE: Solid, THICKNESS: 42.800 mm

Replaces Part Number(s): 202-48001

Additional Information:

Arrowhead: 202-48001; Mitsubishi: A628T54470, BELT WIDTH: 16, CASE OD: 0.787", CASE OD: 20mm, CENTER OF GROOVE TO REAR: 0.413", CENTER OF GROOVE TO REAR: 10.500mm, CENTER TO CENTER GROOVE: 0.787", CENTER TO CENTER GROOVE: 20mm, COMPOSITION: Steel, GROOVE TYPE: V-Groove, ID: 0.787", ID: 20 mm, NUMBER OF GROOVES: 2, NUT RECESS: 0.776", NUT RECESS: 19.700mm, OD: 3.228", OD: 82 mm, PULLEY TYPE: Solid, THICKNESS: 42.800 mm

Reference Numbers:

202-48001
