202-16004-JN J&N Electrical Products Pulley

202-16004-JN J&N Electrical Products Pulley

$43.00 CAD
$43.00 CAD
Sale Sold out
Shipping calculated at checkout.

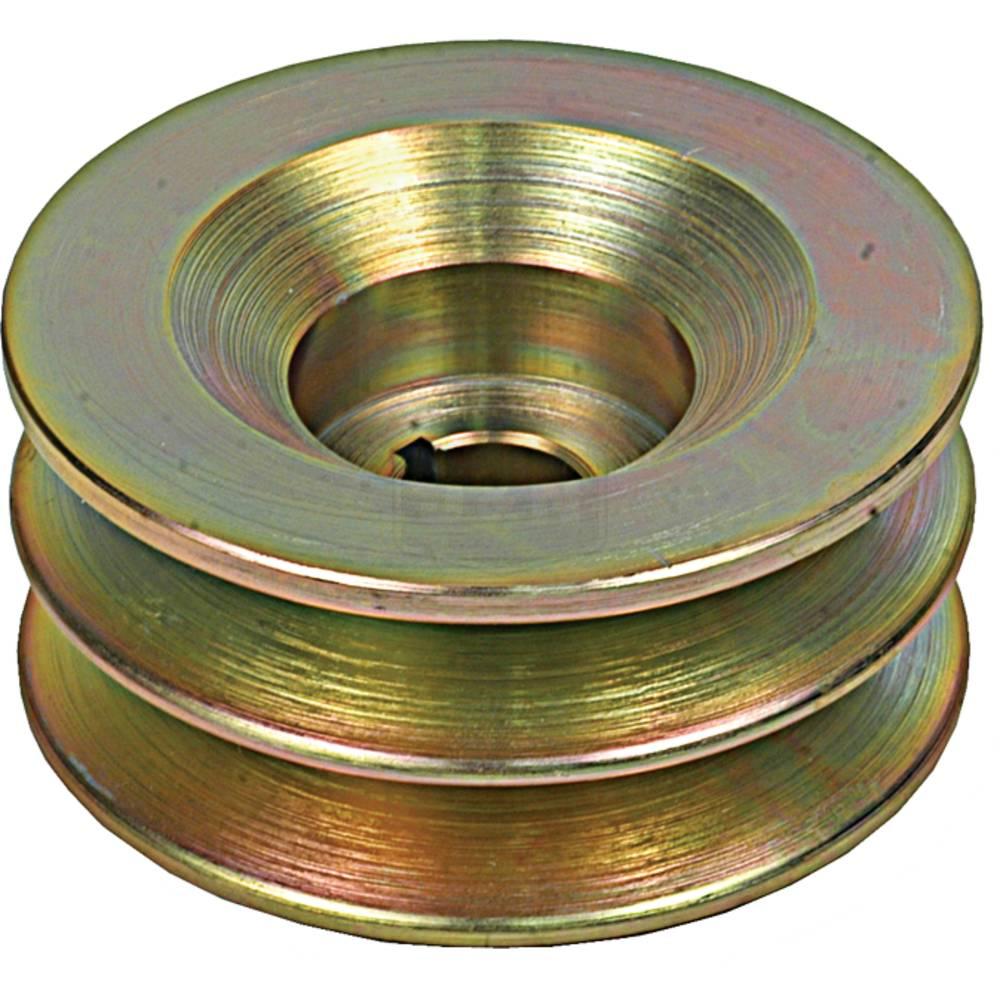

One New Aftermarket J&N Electrical Products Pulley

Tech Info:
-BELT WIDTH: 13, Fits Case OD: 0.630", Fits Case OD: 16mm, CENTER OF GROOVE TO REAR: 0.394", CENTER OF GROOVE TO REAR: 10mm, CENTER TO CENTER GROOVE: 0.630", CENTER TO CENTER GROOVE: 16mm, GROOVE TYPE: V-Groove, ID: 0.626", ID: 15.900 mm, KEYWAY WIDTH: 0.126", KEYWAY WIDTH: 3.200mm, NUMBER OF GROOVES: 2, NUT RECESS: 0.803", NUT RECESS: 20.400mm, OD: 3.126", OD: 79.400 mm, PULLEY TYPE: Solid, THICKNESS: 35.500 mm
-Arrowhead: AMO5002, PL107-43; J&N Electrical Products: 202-16004, 202-18003; Leece Neville: 107-43, 4941502A31; Fits Motorola: 7-43; Prestolite: 107-43

Replaces Part Number(s): 202-16004

Additional Information:

BELT WIDTH: 13, CASE OD: 0.630", CASE OD: 16mm, CENTER OF GROOVE TO REAR: 0.394", CENTER OF GROOVE TO REAR: 10mm, CENTER TO CENTER GROOVE: 0.630", CENTER TO CENTER GROOVE: 16mm, GROOVE TYPE: V-Groove, ID: 0.626", ID: 15.900 mm, KEYWAY WIDTH: 0.126", KEYWAY WIDTH: 3.200mm, NUMBER OF GROOVES: 2, NUT RECESS: 0.803", NUT RECESS: 20.400mm, OD: 3.126", OD: 79.400 mm, PULLEY TYPE: Solid, THICKNESS: 35.500 mm, Arrowhead: AMO5002, PL107-43; J&N Electrical Products: 202-16004, 202-18003; Leece Neville: 107-43, 4941502A31; Motorola: 7-43; Prestolite: 107-43

Reference Numbers:

202-16004
