1U0257 Adapter Fits Caterpillar 920 924F 924G 924GZ 924H IT12B IT24F IT28F IT28G
1U0257 Adapter Fits Caterpillar 920 924F 924G 924GZ 924H IT12B IT24F IT28F IT28G
Couldn't load pickup availability

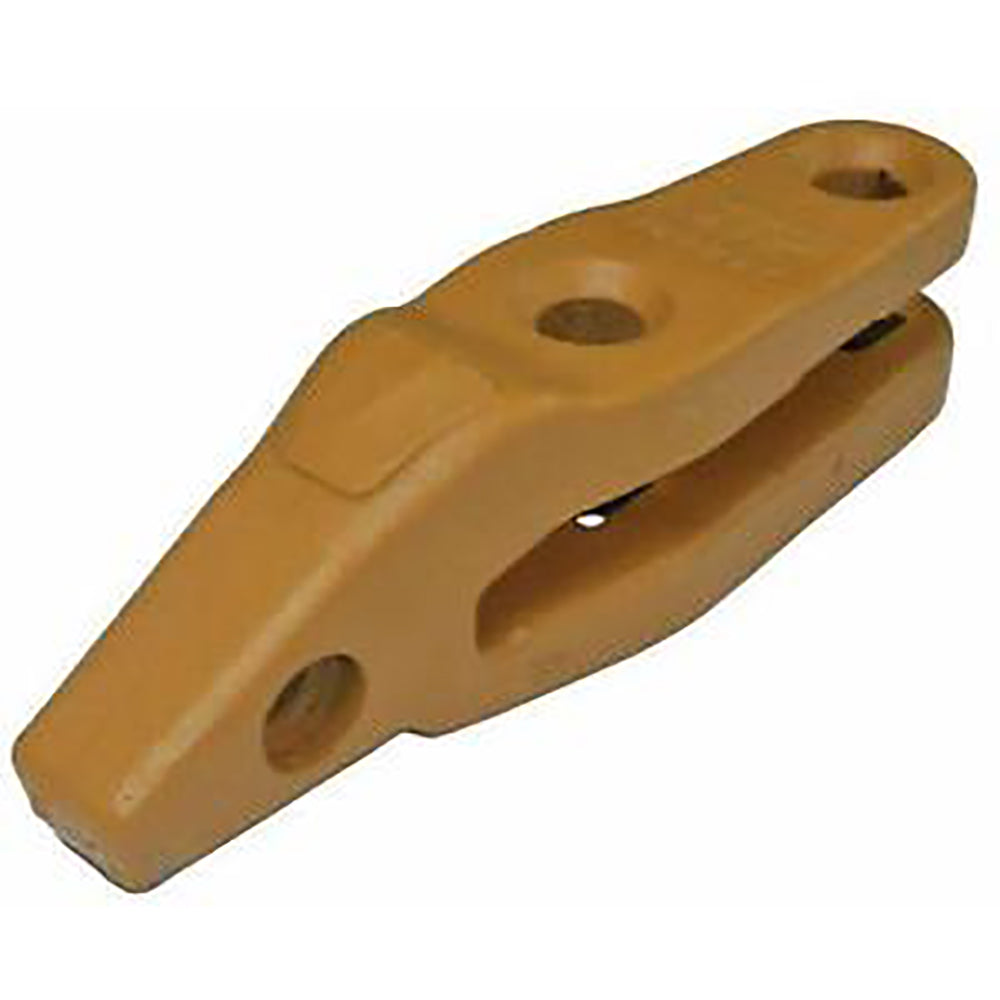

One New Aftermarket Replacement Bolt-On Bucket Adapter for Caterpillar (Cat) Wheel Loaders and Integrated Tool Carriers
This J250 series center bolt-on bucket adapter (also known as an adapter-strap) mounts to the cutting edge lip of the bucket and accepts J250 series tooth points. It is a ground engaging tool (GET) component used on Caterpillar (Cat) wheel loaders and integrated tool carriers. The adapter uses 2 bolt holes and is compatible with a 1-inch lip thickness, requiring two 1-inch x 3-3/4-inch plow bolts and two 1-inch cone nuts. Bolt hole spacing is 4.84 inches center to center.
Specifications
- Series: J250 (Caterpillar J-Series)
- Edge Location: Center
- Edge Thickness: 27 mm
- Bevel Angle: 22.5 degrees
- Blunt Height Max: 10 mm
- Nose Angle: O/T
- Mounting: 2-hole bolt-on strap style
- Lip Thickness: 1 inch
- Bolt Hole Spacing: 4.84 inches center to center
- Weight: Approx. 18-19 lbs (8-8.3 kg)
- Dimensions: Approx. 13.2 x 4 x 3.3 in
Compatible Models
Caterpillar Wheel Loaders: 920, 924F, 924G, 924GZ, 924H, 924HZ, 924K, 926, 928G, 928HZ, 930G, 930K, 936F, 938F, 938G, 938G II, 938H, 938K, 939, 939C, 953, 953C, G936
Caterpillar Integrated Tool Carriers: IT12B, IT24F, IT28F, IT28G, IT38F, IT38G, IT38G II, IT38H
Replaces Part Number(s):
1U0257, 1U0257-A
Aftermarket Interchange Numbers
1U-0257, 8J6656, 8J-6656, 1U257
New aftermarket replacement part - not remanufactured, not used.
